1. Install 2 M10 x 1.5 guide bolts (5) into the transmission case (4). 2. Install a new torque converter housing to case gasket (3) onto the transmission case. 3. Attach a sling to the converter housing (1). 4. Attach a hoist to the sling. 5. Align the converter housing (1) with the guide bolts (5). 6. Apply J 36850 or equivalent lubrication to the 3 seal rings on the rear of the oil pump cover assembly. See Special Tools. 7. Lower the converter housing/oil pump cover assembly (1) over the turbine shaft (2) and onto the transmission case (4). 8. Tap the converter housing until the converter housing seats on the transmission case. 9. Remove the sling. 10. Remove 2 guide bolts (5) from the transmission case. personal injury and/or property damage: Use caution when installing, removing, or moving the Get help when lifting the converter housing/oil pump Assistance from a hoist or another person may be Make sure lifting equipment can properly support the NOTE: Transmission damage may occur if the torque converter Output sun gear Output sun gear spacer Seal ring
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

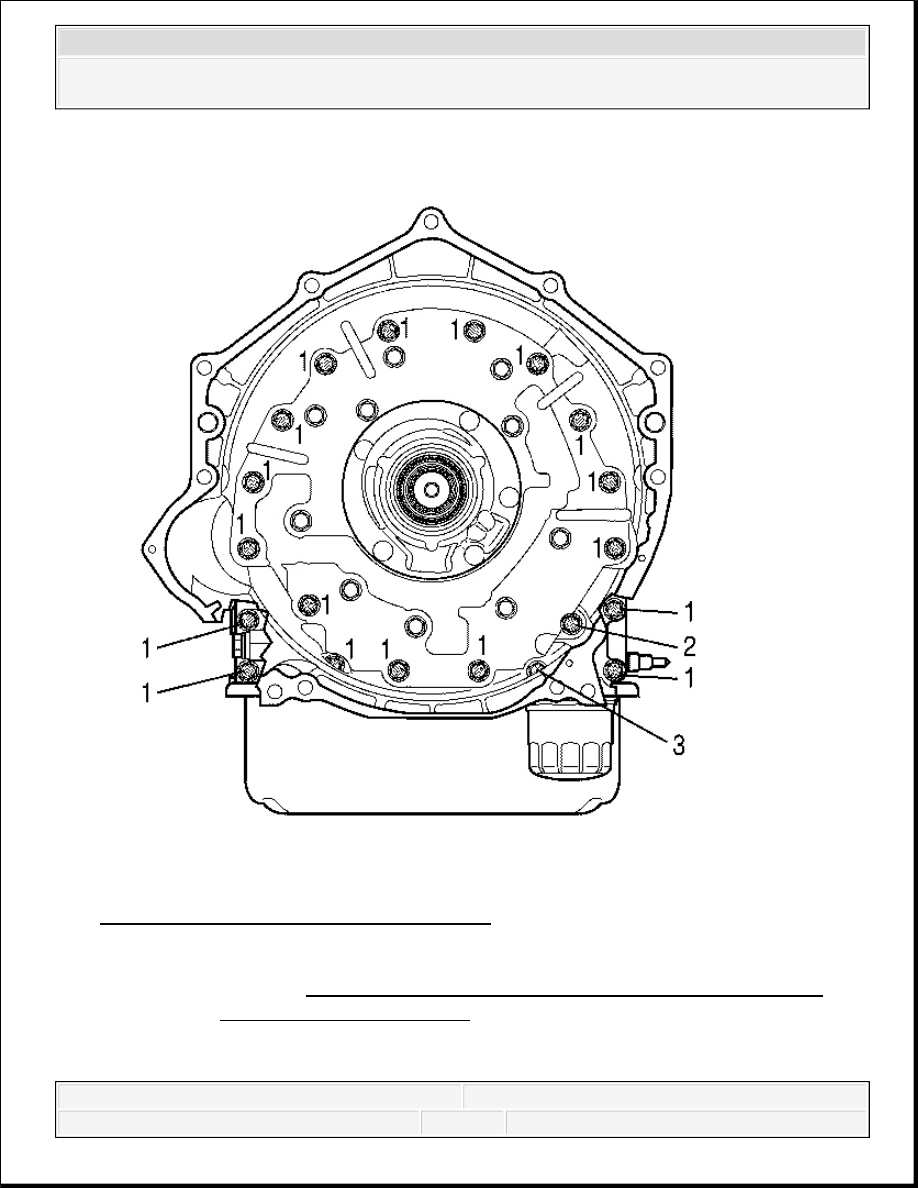

Fig. 495: Locating Transmission Case Bolts 11. Install 18 bolts (1). NOTE: Refer to Torque Converter Housing/Low and Reverse Clutch
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
12. Install 1 bolt (2). 13. Install 1 bolt (3). Tighten: Tighten bolts (1, 2, 3) to 56 N.m (42 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

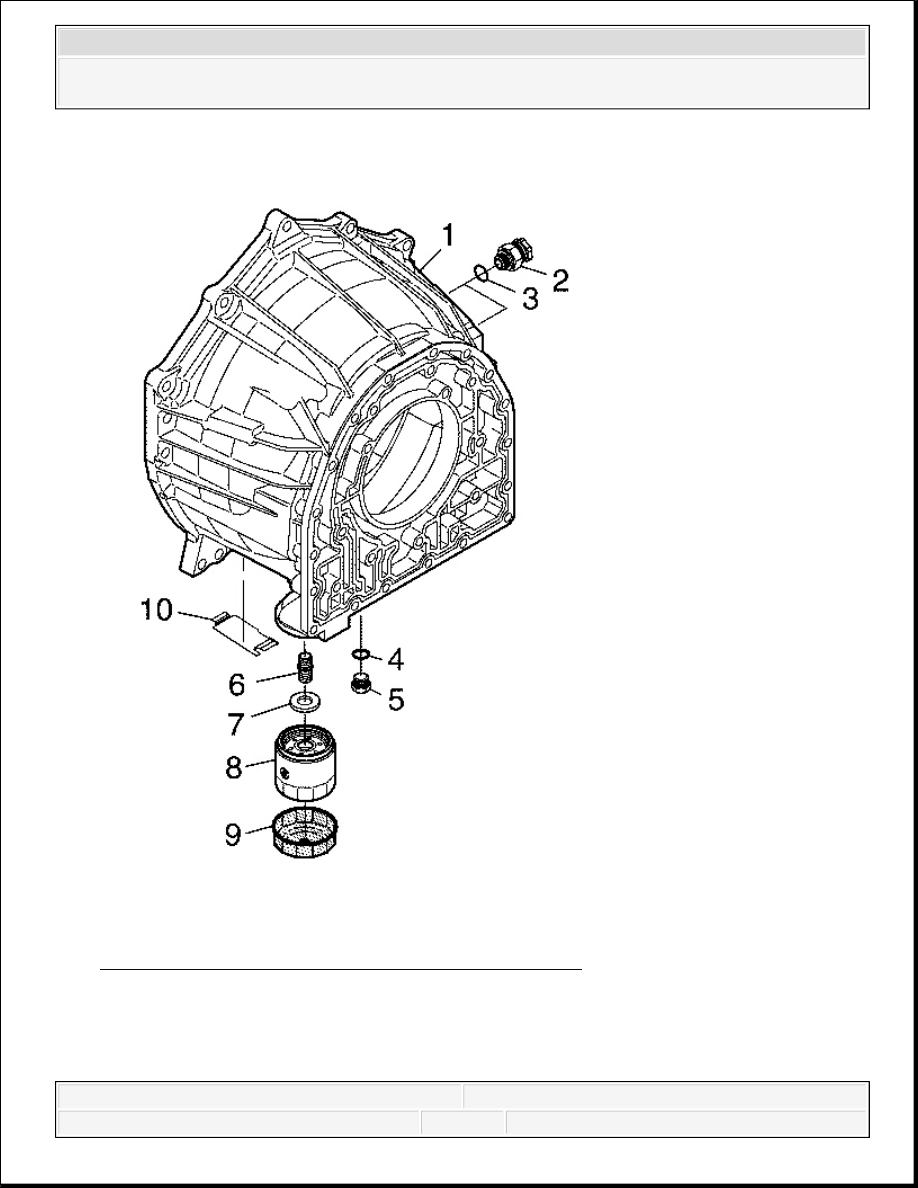

Fig. 496: Identifying Converter Housing Components NOTE: Install the short-threaded end of the transmission external oil
