PARK PAWL INSTALLATION

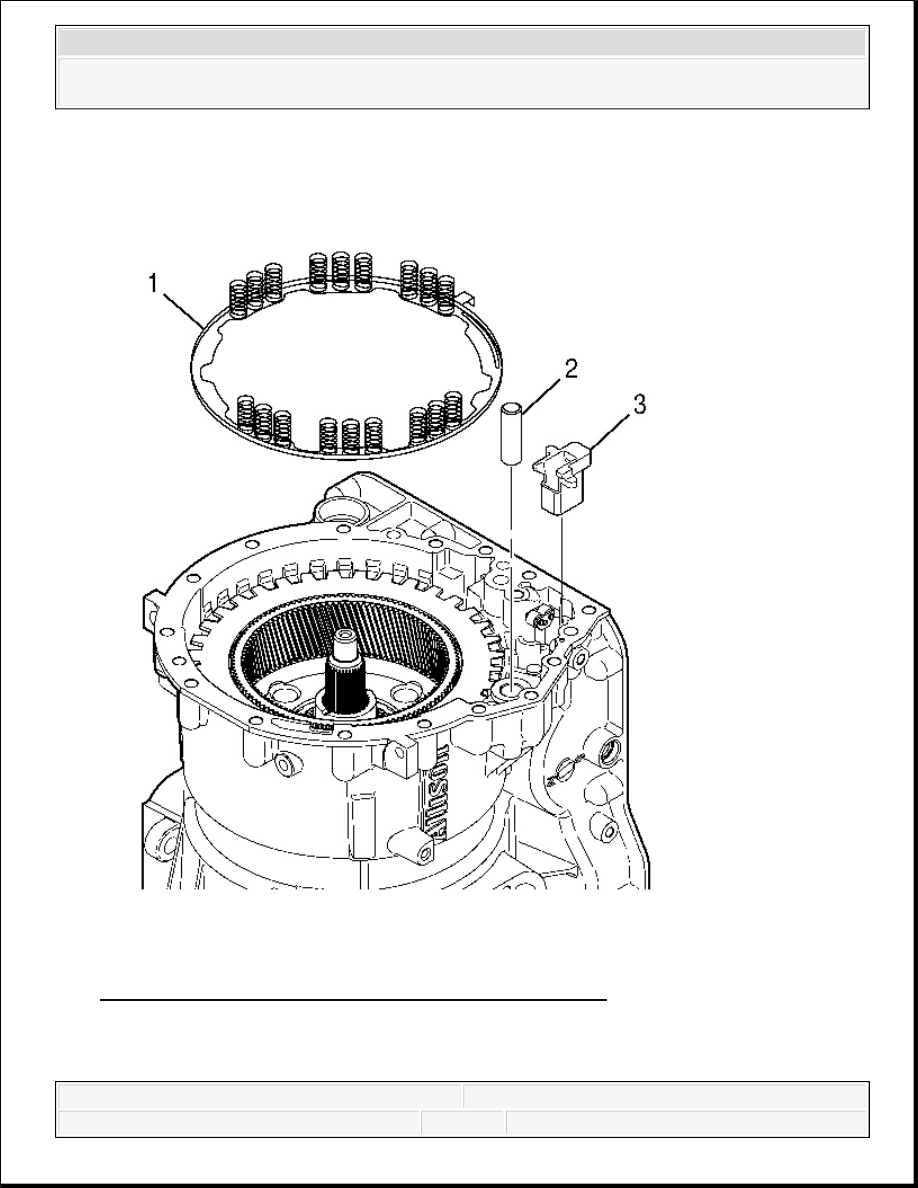

Fig. 476: View Of Park Pawl Support Pin & Cam Guide
Courtesy of GENERAL MOTORS CORP.
1. Align the tang in the low and reverse clutch return spring assembly (1) with the notch in the
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
transmission case.
2. Install the low and reverse clutch piston return spring assembly (1).
3. Install the park pawl cam guide (3).
4. Install the park pawl support pin (2) into the transmission case.

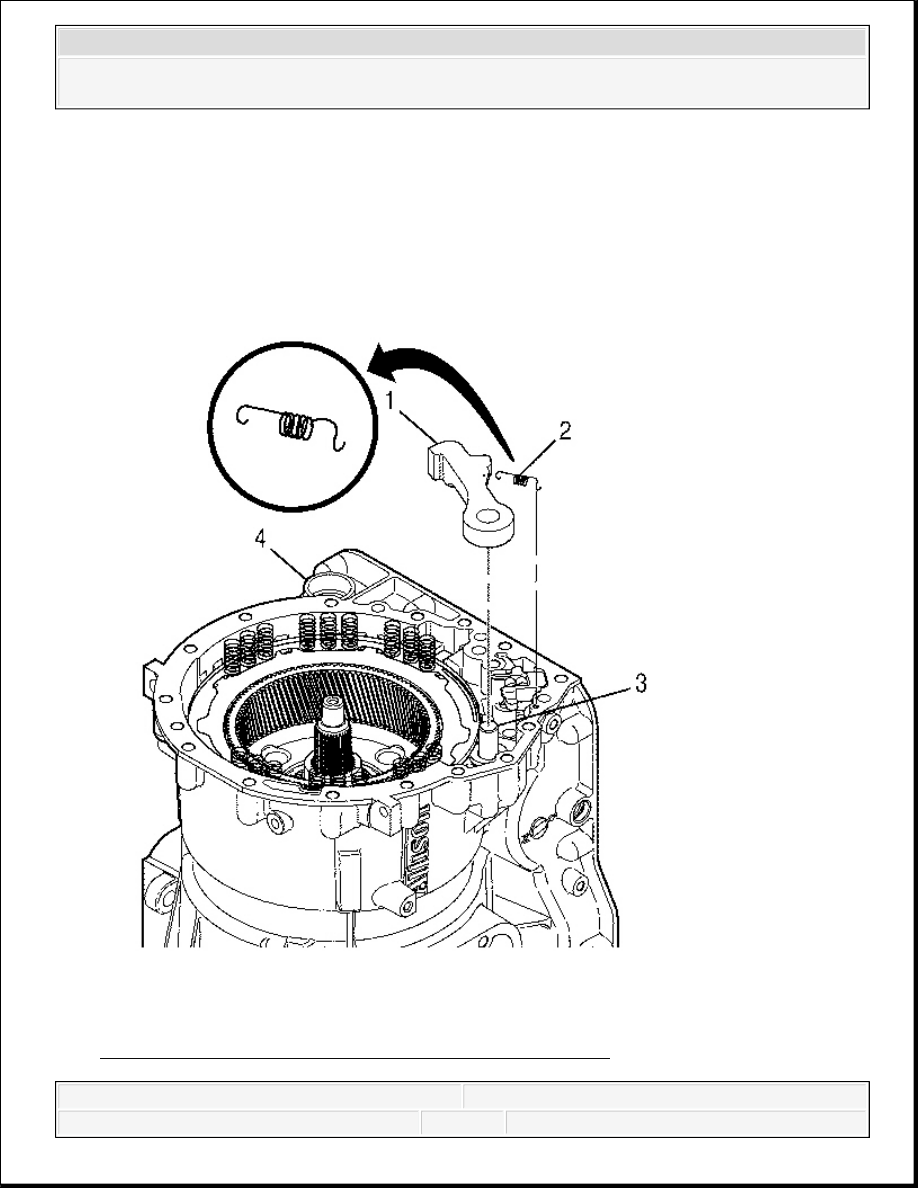

Fig. 477: Exploded View Of Park Pawl & Return Spring
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
5. Install the park pawl return spring (2) onto the park pawl (1).
6. Align the park pawl and the park pawl return spring toward the rear, with the park pawl
support pin (3).
7. Install the park pawl (1) onto the park pawl support pin (3).
8. Connect the park pawl return spring (2) to the transmission case.
OUTPUT SHAFT AND OUTPUT CARRIER ASSEMBLY INSTALLATION
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

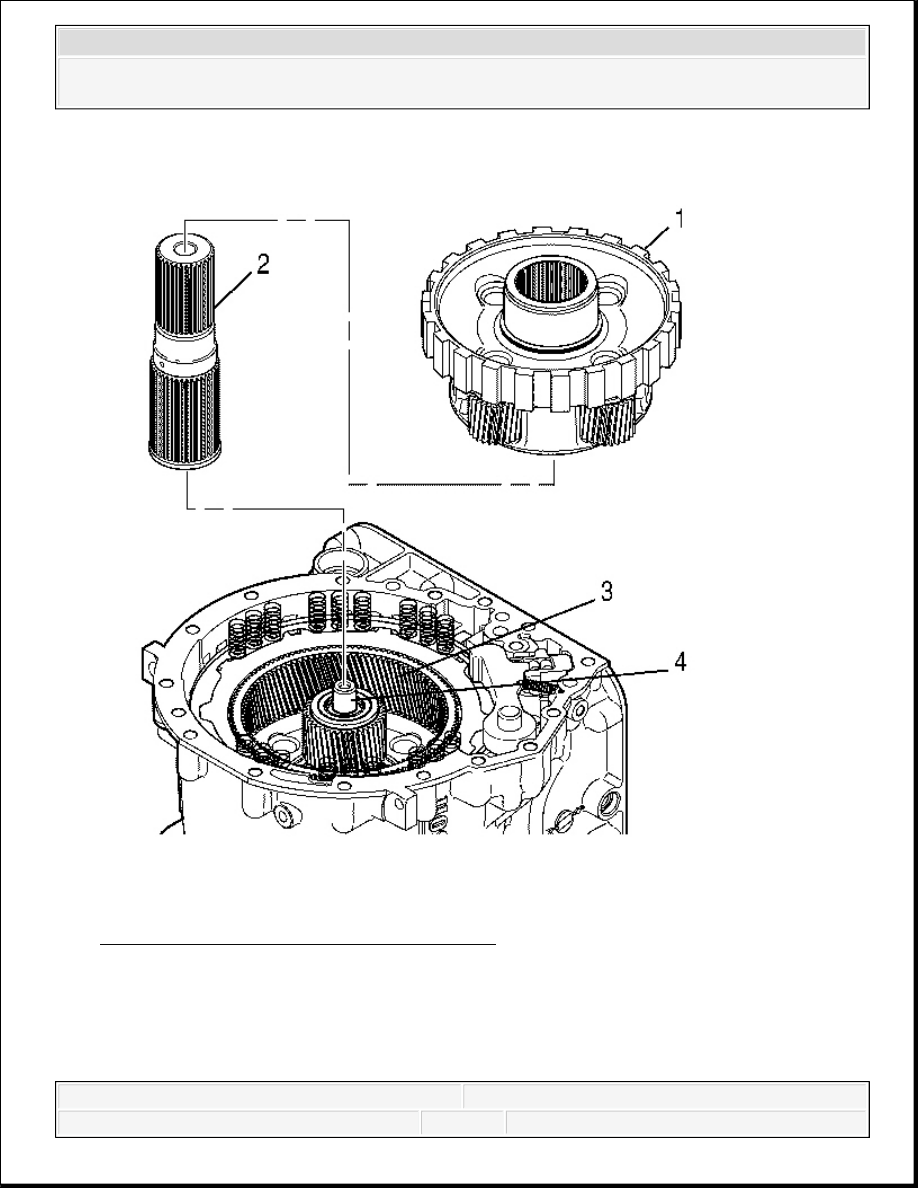

Fig. 478: Output Shaft And Output Carrier
Courtesy of GENERAL MOTORS CORP.
1. Install the output shaft (2) into the output carrier assembly (1).
2. While holding the output shaft (2), place the output carrier assembly (1) into the top of the
output ring gear (3).
