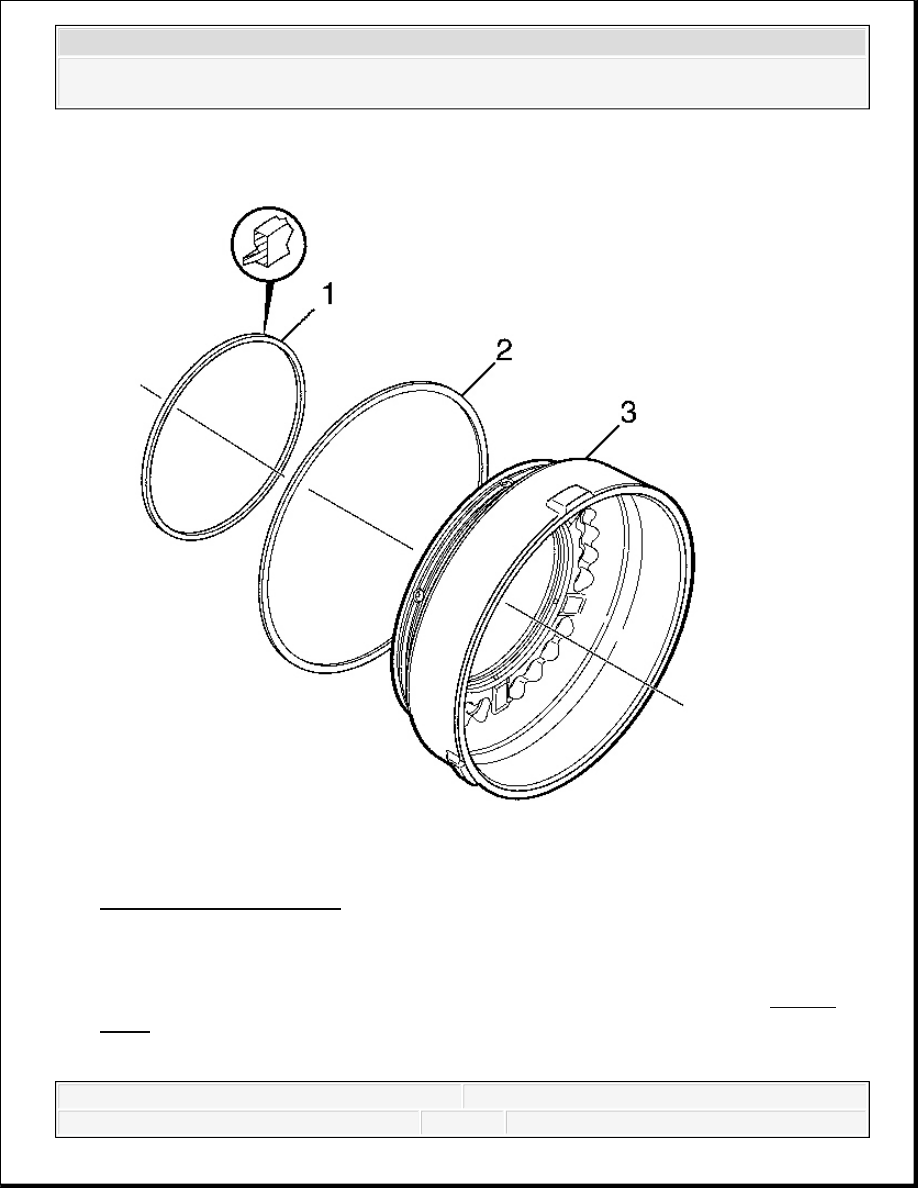

Fig. 303: Piston Seal Rings
Courtesy of GENERAL MOTORS CORP.
1. Install the piston seal rings (1, 2) onto the 4-5-6 clutch piston (3).
2. Lubricate the 4-5-6 clutch piston ID and OD seal rings (1, 2) with J 36850 . See Special
Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

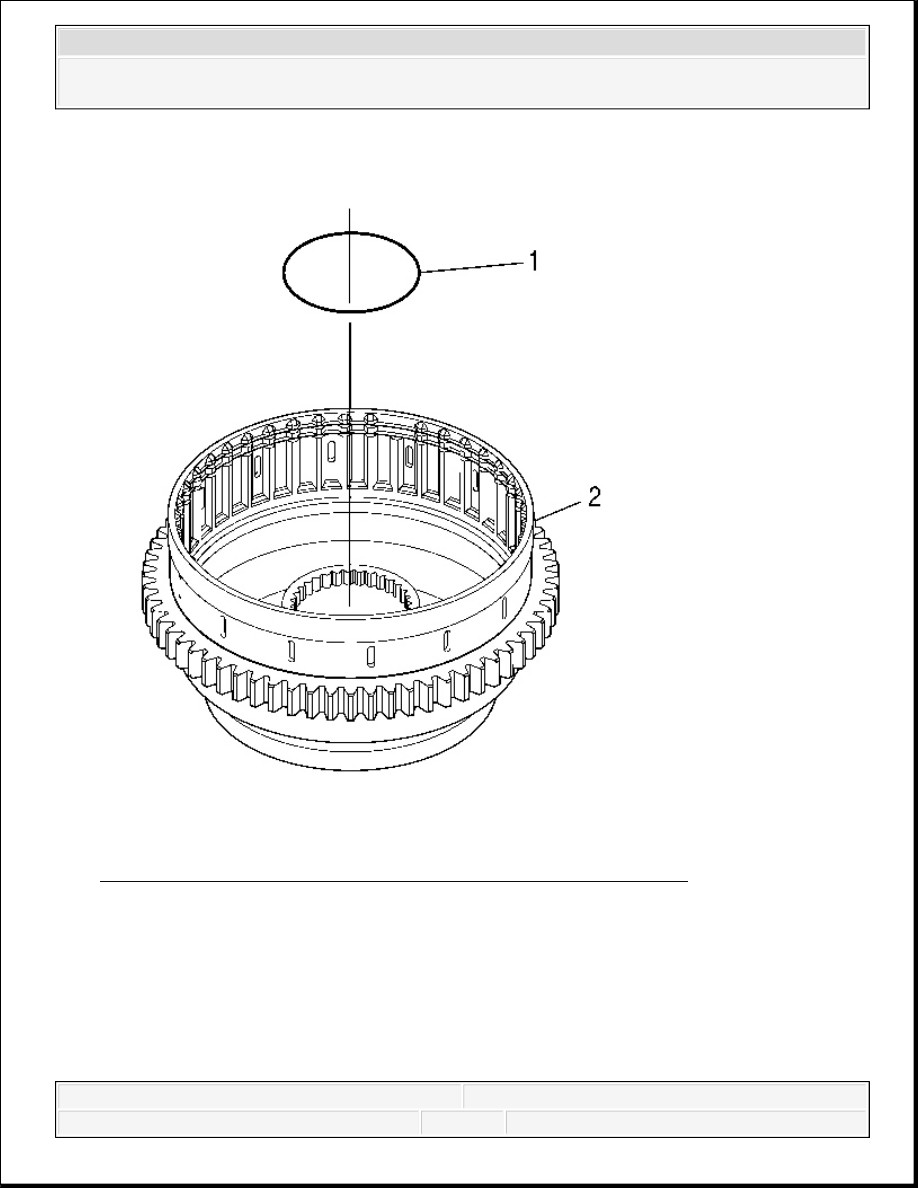

Fig. 304: View Of 1-2-3-4, 4-5 Clutch Housing Inner Hub O-Ring
Courtesy of GENERAL MOTORS CORP.
3. Position the 1-2-3-4, 4-5-6 clutch housing (2) on the work table so that the rear of the
housing is facing up.
4. Install the O-ring (1) into the bottom groove on the inner hub of the 1-2-3-4, 4-5-6 clutch
housing (2).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

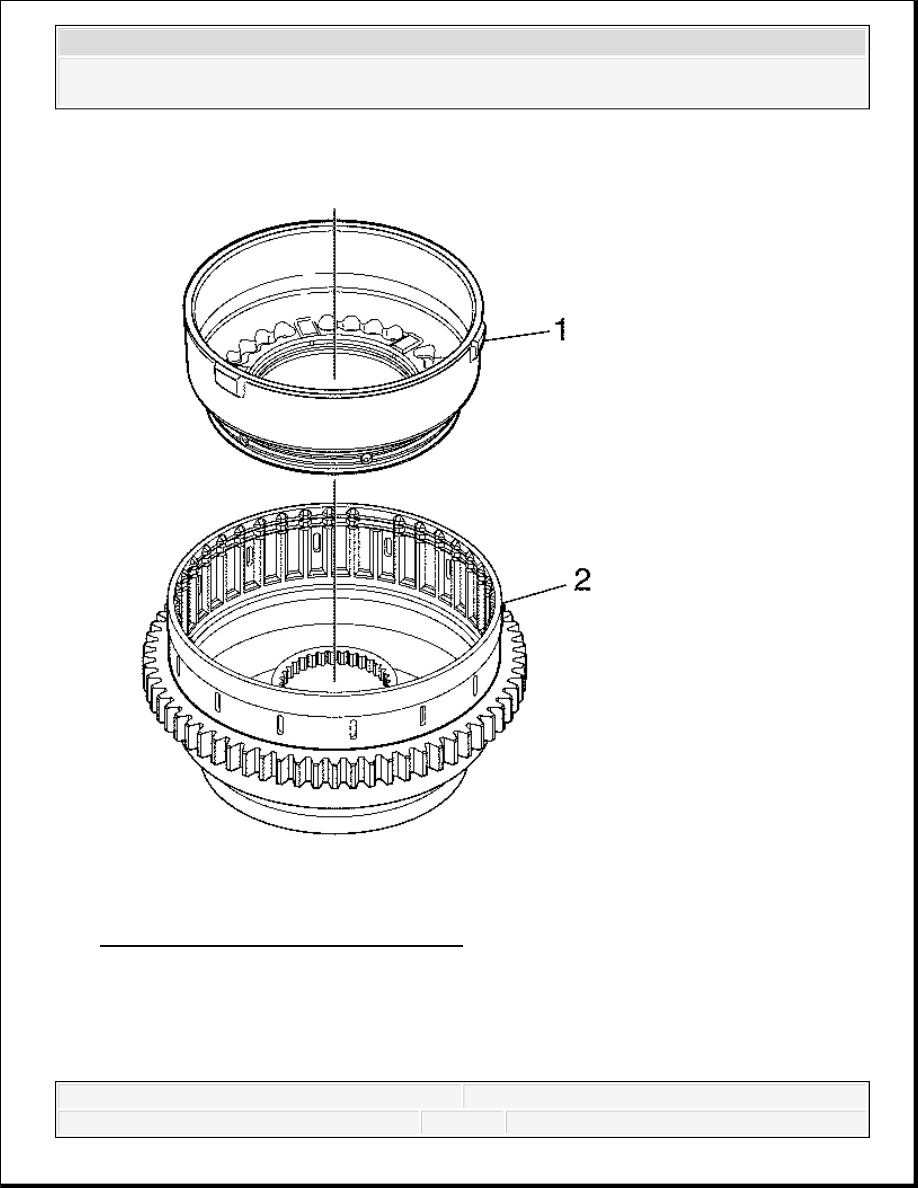

Fig. 305: 4-5-6 Clutch Piston & Housing
Courtesy of GENERAL MOTORS CORP.
5. Position the 4-5-6 clutch piston (1) on the work table so that the rear of the piston is facing
up.
6. Install the 4-5-6 clutch piston (1) into the 1-2-3-4, 4-5-6 clutch housing (2).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
7. Make sure the 4-5-6 clutch piston (1) is seated on the 1-2-3-4, 4-5-6 clutch housing (2).

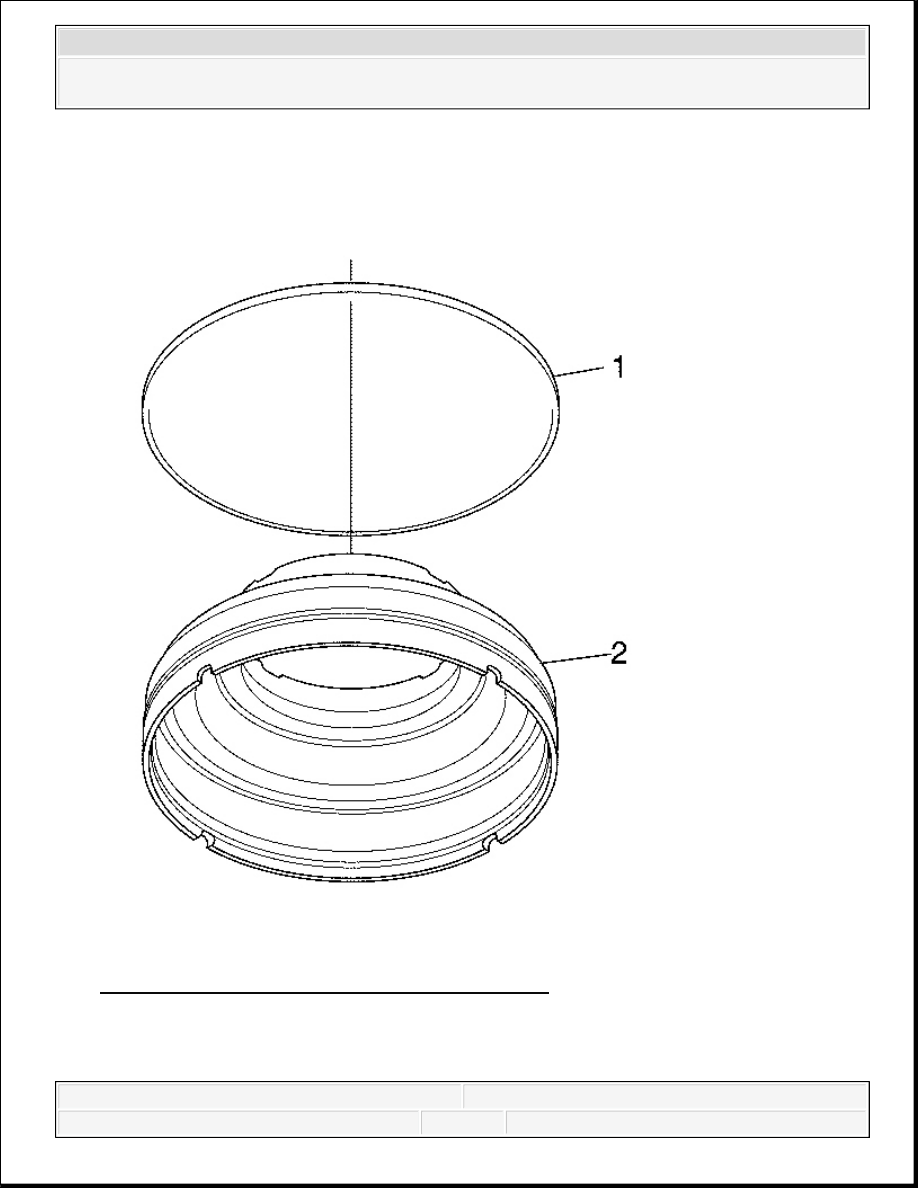

Fig. 306: 1-2-3-4 Clutch Piston Housing Seal Ring
Courtesy of GENERAL MOTORS CORP.
8. Install the seal ring (1) onto the 1-2-3-4 clutch piston housing (2).
