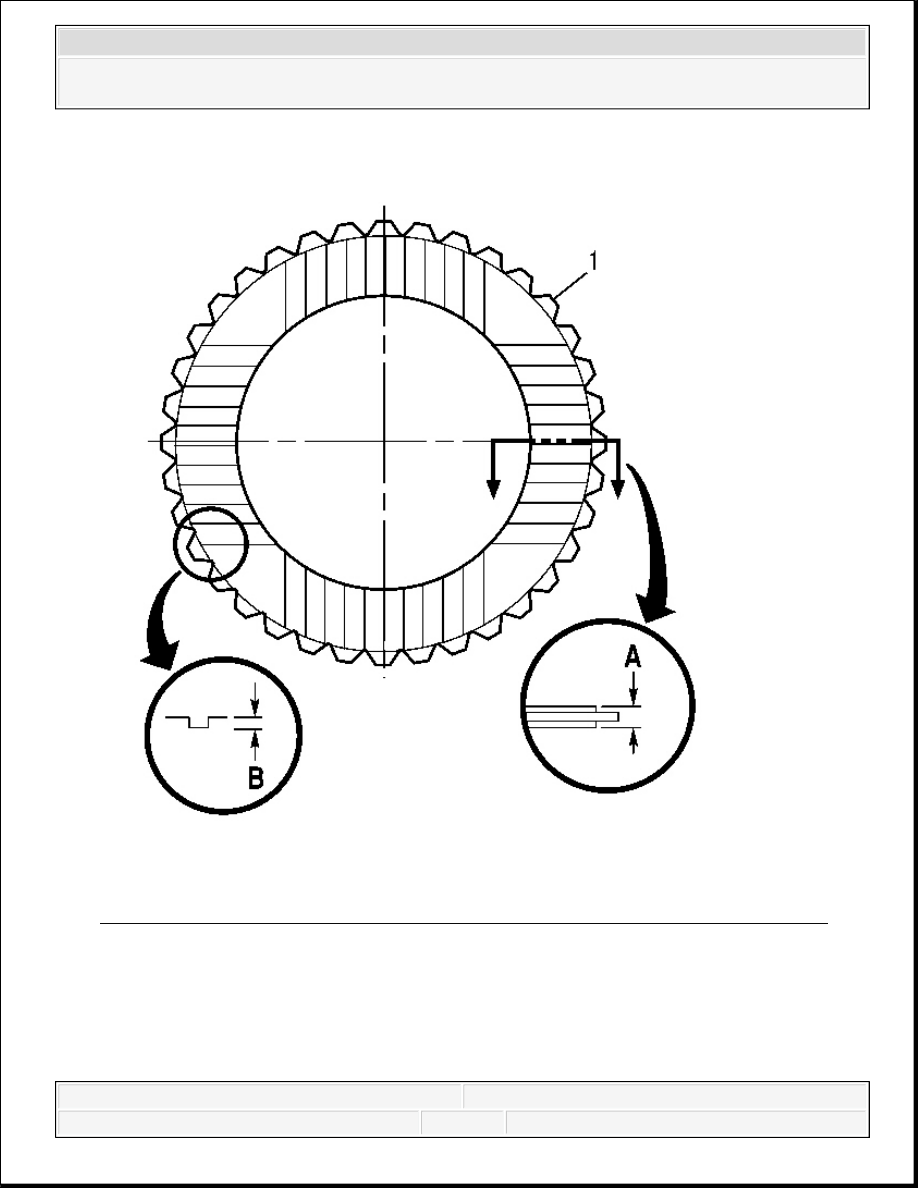

Fig. 293: Checking Thickness & Oil Groove Depth On 1-2-3-4 Clutch Fiber Plate IMPORTANT: Measure as described below at a minimum of 3 Replace any 1-2-3-4 clutch fiber plate that does not meet
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. Measure the thickness of each 1-2-3-4 clutch fiber plate (1) at dimension A. Specification: The 1-2-3-4 clutch friction plate minimum thickness is 2.375 mm (0.093 in). 2. Measure the oil groove depth of each plate at dimension B. Specification: The oil groove minimum depth is 0.200 mm (0.0079 in). 3. Measure the cone of each plate (1) at dimension A. Friction Plate Cone: The fiber plate maximum cone is 0.255 mm (0.010 in). 1-2-3-4 CLUTCH STEEL PLATE INSPECTION IMPORTANT: Check the plates for coning on a level surface.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

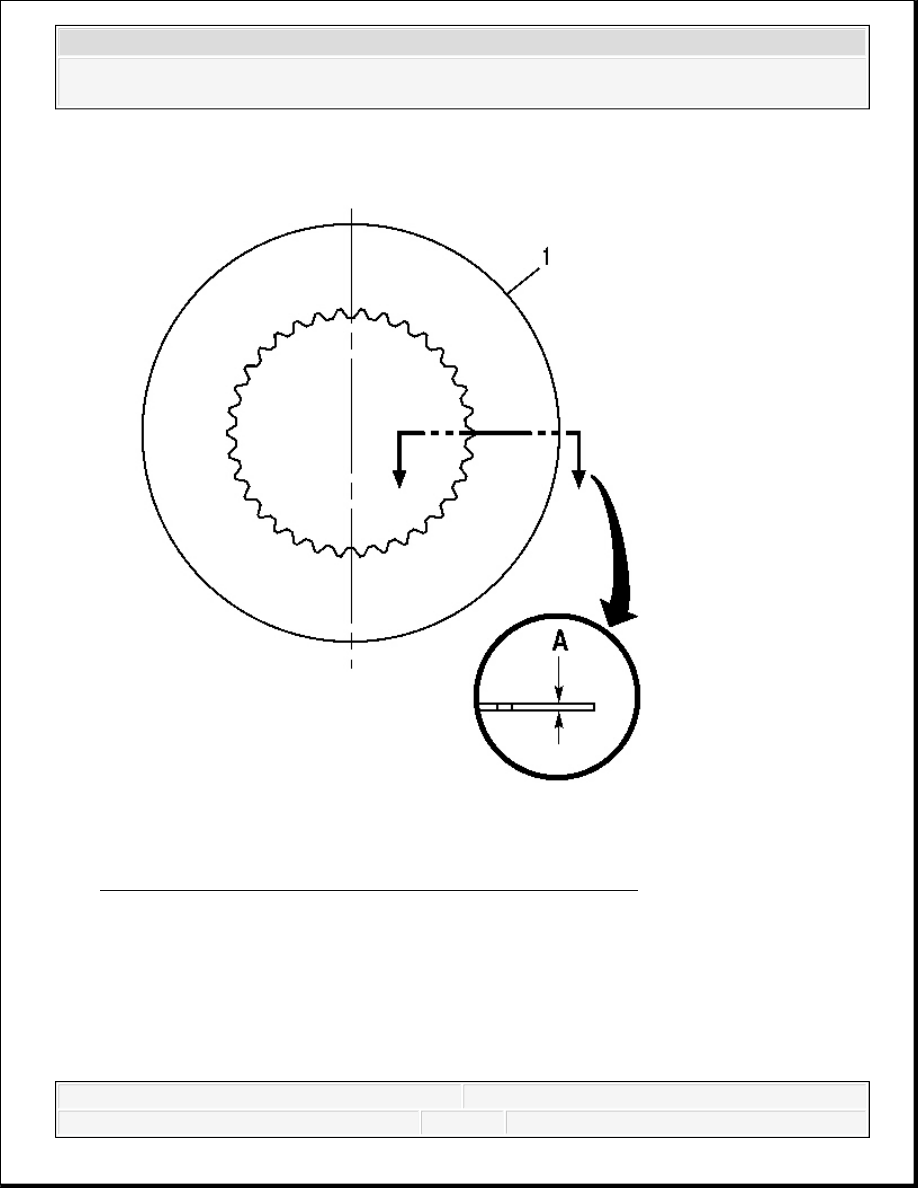

Fig. 294: Inspecting Thickness Of 1-2-3-4 Steel Clutch Plate IMPORTANT: Measure as described below at a minimum of 3 Replace any 1-2-3-4 clutch steel plate that does not meet
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. Measure the thickness of each 1-2-3-4 clutch steel plate (1) at dimension A. Specification: The 1-2-3-4 clutch steel plate minimum thickness is 2.135 mm (0.084 in). Fig. 295: Checking Cone On Steel Clutch Plate 2. Measure the cone of each plate (1) at dimension A. Specification: The 1-2-3-4 clutch steel plate maximum cone is 0.200 mm (0.0079 in). 1-2-3-4 CLUTCH BACKING PLATE INSPECTION IMPORTANT: Check the plates for coning on a level surface.
