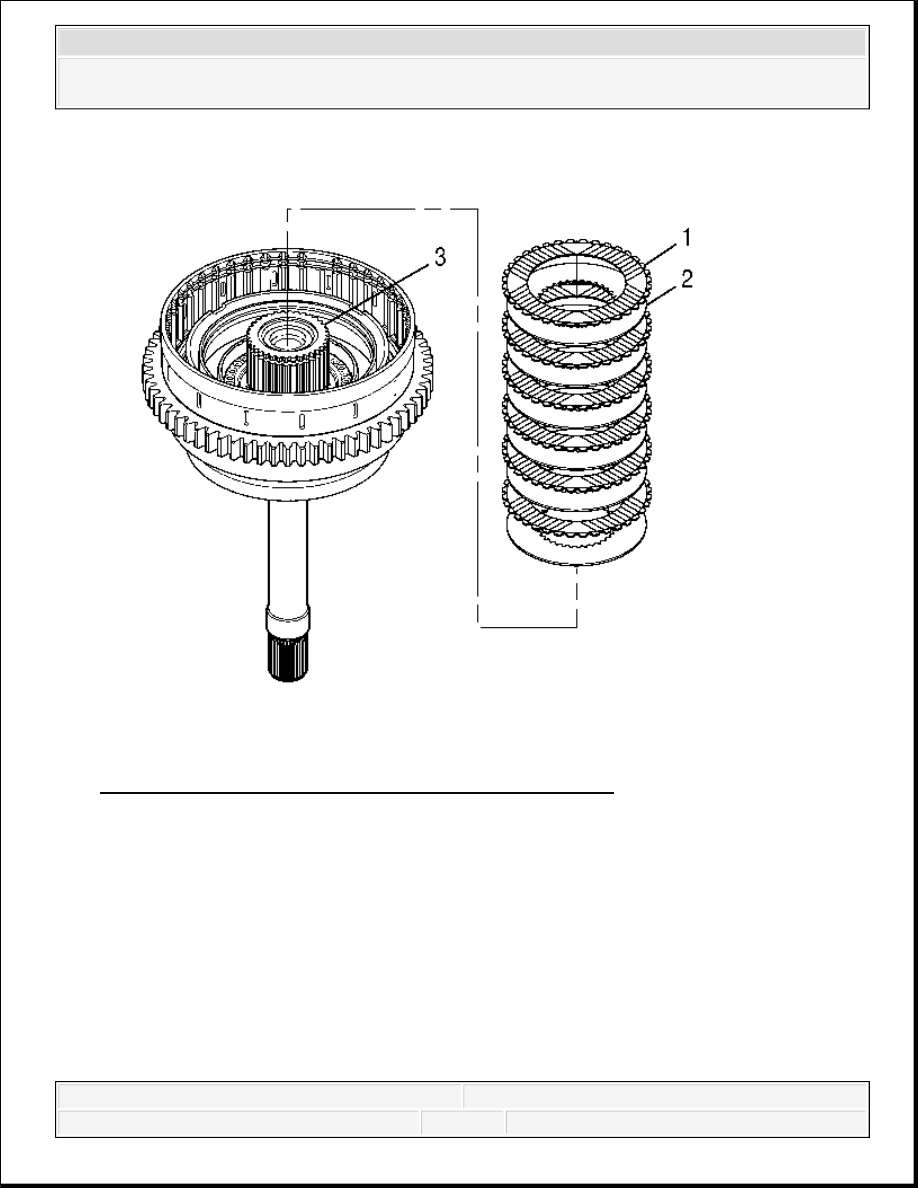

Fig. 270: Identifying Stacking Sequence Of Clutch Plates
Courtesy of GENERAL MOTORS CORP.
14. Remove six 1-2-3-4 clutch fiber plates (1) and six 1-2-3-4 clutch steel plates (2) from the
turbine shaft (3).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

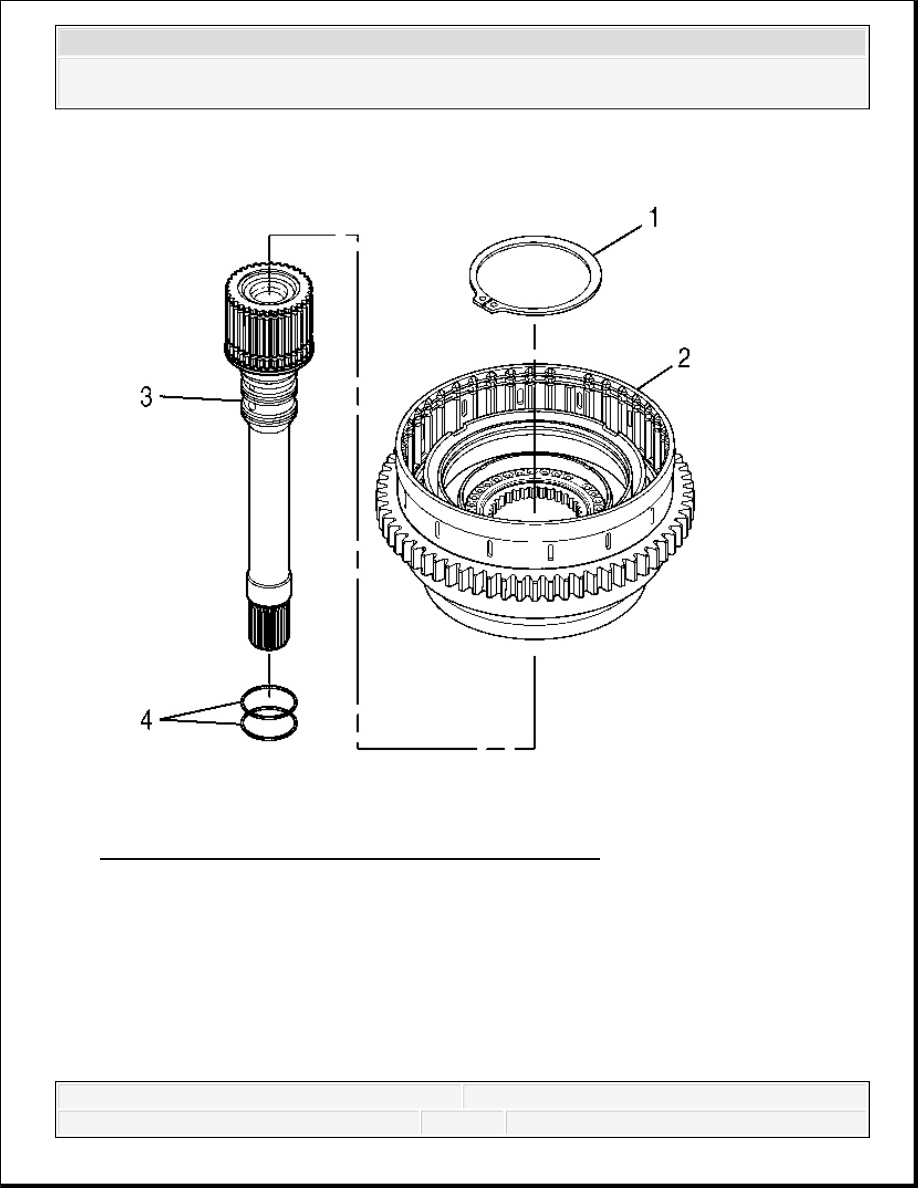

Fig. 271: Locating Turbine Shaft & Overlap Seal Rings
Courtesy of GENERAL MOTORS CORP.
CAUTION: Personal injury and/or property damage may result from
the movement of the 1-2-3-4, 4-5-6 clutch housing or the
turbine shaft. The 1-2-3-4, 4-5-6 clutch housing and
turbine shaft are held together by a retaining ring.
Removing the retaining ring allows the turbine shaft and
the 1-2-3-4, 4-5-6 clutch housing to move freely. When
removing the retaining ring, make sure the 1-2-3-4, 4-5-6
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
15. Remove the retaining ring (1) from the turbine shaft (3).
16. Remove the 1-2-3-4, 4-5-6 clutch housing (2) from the rear of the turbine shaft.
17. Remove 2 overlap seal rings (4) from the turbine shaft.

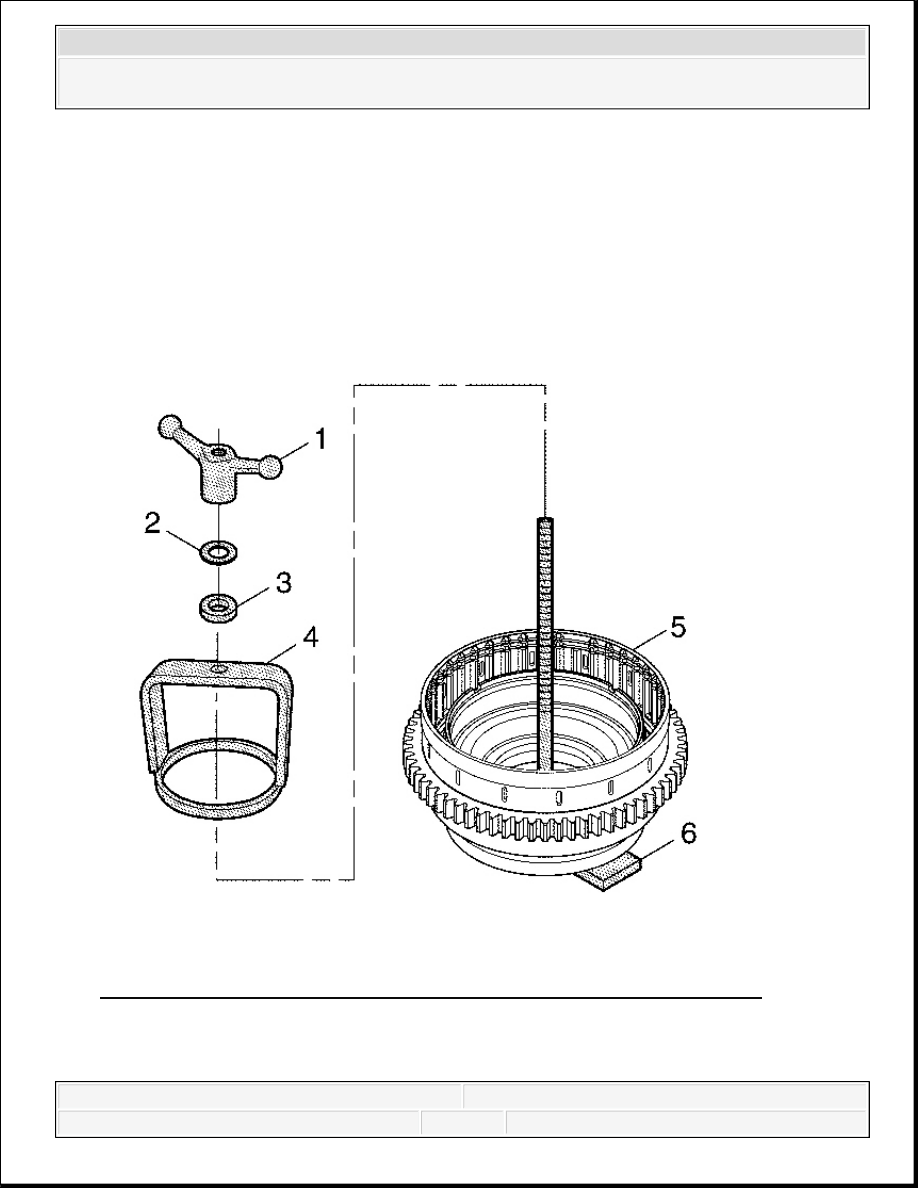

Fig. 272: Positioning 1-2-3-4, 4-5-6 Clutch Housing On Base Of J 24204-2
Courtesy of GENERAL MOTORS CORP.
18. Position the 1-2-3-4, 4-5-6 clutch housing (5) on the base of J 24204-2 (6) so that the rear
clutch housing and the turbine shaft are restrained from
moving.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
of the housing is facing up. See Special Tools.
19. Install J-47339-1 (4) onto the 1-2-3-4 clutch balance piston. See Special Tools.
20. Install the J 24204-2 ball bearing (3) and washer (2) onto the shaft of J 24204-2 . See
Special Tools.
21. Install the J 24204-2 wing nut (1) onto the shaft of J 24204-2 (6). See Special Tools.

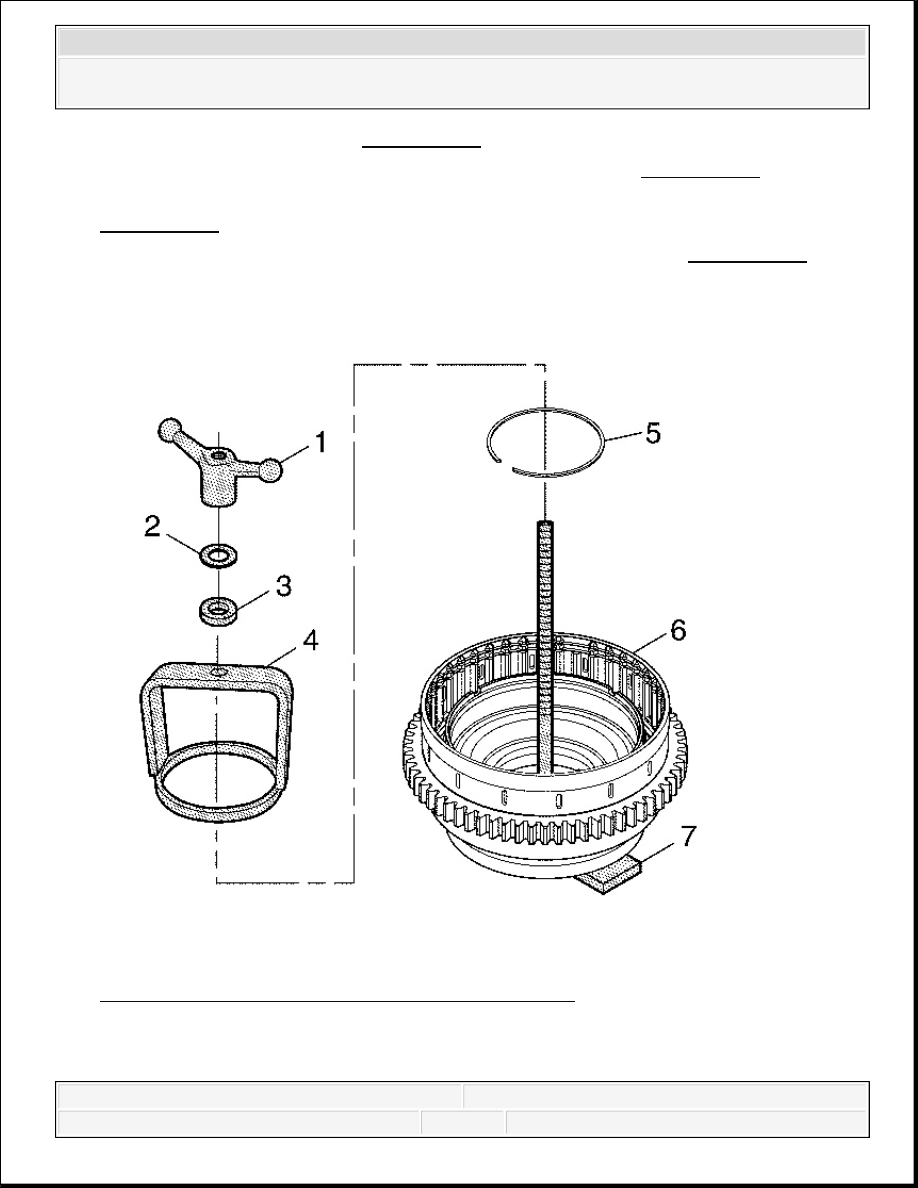

Fig. 273: 1-2-3-4-, 4-5-6 Clutch Housing & J 24204-2
Courtesy of GENERAL MOTORS CORP.
22. Compress the 1-2-3-4 clutch balance piston return spring assembly until the retaining ring
