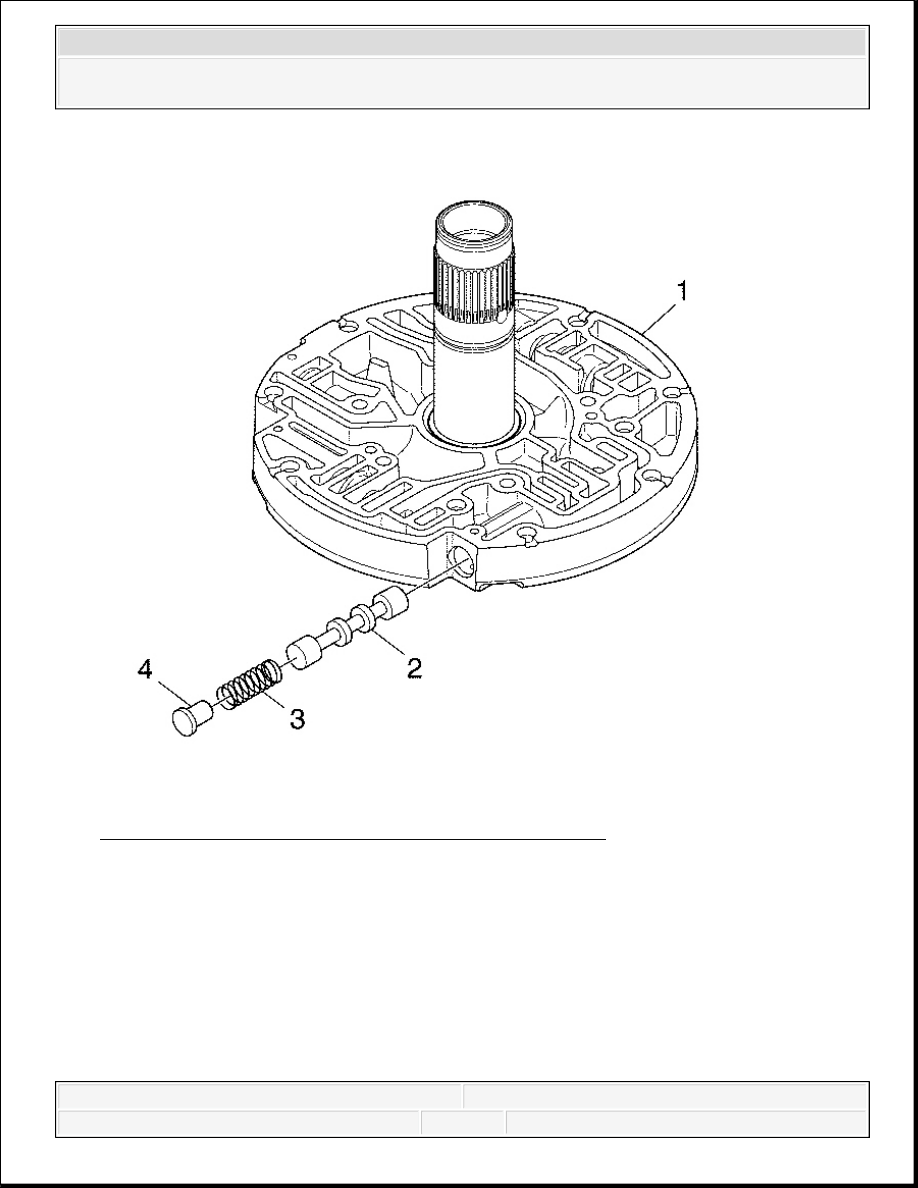

Fig. 231: View Of Converter Flow Valve, Stop & Spring 33. Remove the stop (4), the spring (3), and the TCC valve (2). STATOR SHAFT INSPECTION IMPORTANT: Replace the needle bearing if the bearing is damaged. The only time the stator shaft is pressed from the oil pump
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

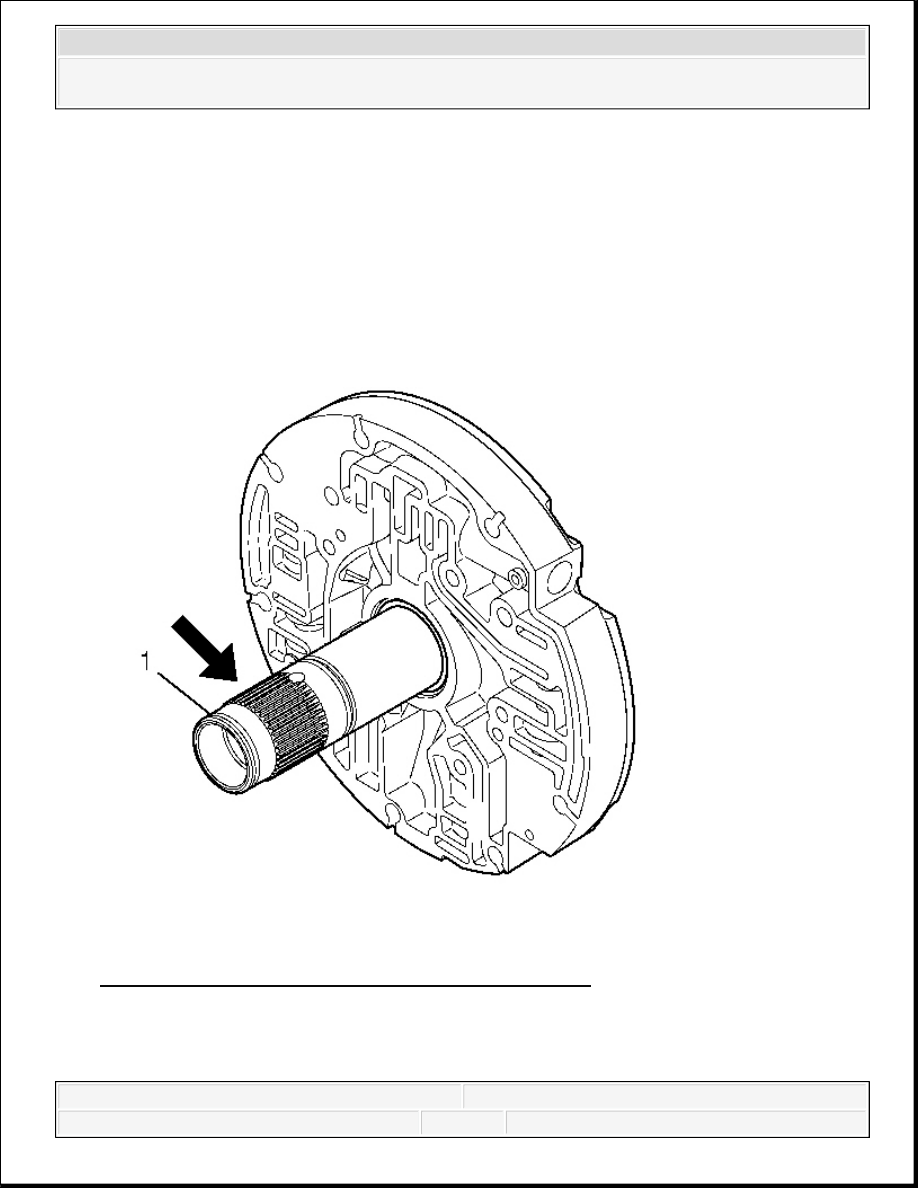

Fig. 232: Identifying Inspection Areas On Stator Shaft 1. Inspect the splines of the stator shaft (1) for damage and wear. Replace the stator shaft if there is any visible wear. The new stator shaft comes with a pre-installed bushing. The bearing must be removed to replace the stator shaft. If Replace the stator shaft if the specifications are not met.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

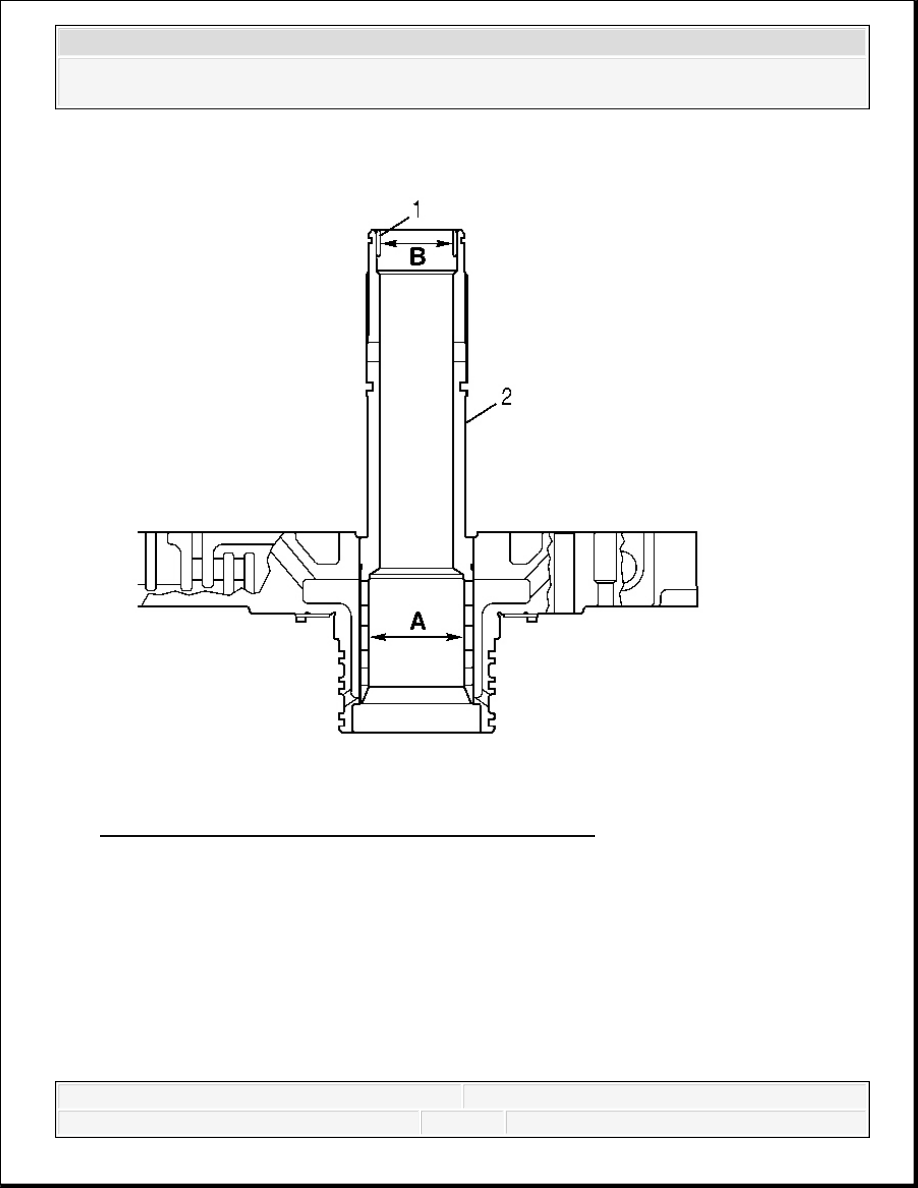

Fig. 233: Illustrating Stator Shaft Measurement Points 2. Measure the inside diameter (ID) of the stator shaft (2) at dimension A, the turbine shaft seal ring bore. IMPORTANT: The stator shaft bushing and bearing are replaced with Replace the stator shaft if the stator shaft splines or seal
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Specification: Stator shaft maximum ID is 45.450 mm (1.789 in). 3. Measure the ID of the stator shaft bushing (1) at dimension B. Specification: Stator shaft bushing maximum ID is 33.820 mm (1.3315 in). STATOR SHAFT REPLACEMENT Tools Required J 43765 Stator Shaft Installer/Remover. See Special Tools. Removal Procedure IMPORTANT: Replace the bushing if the bushing is damaged or the ID specification is not met.
