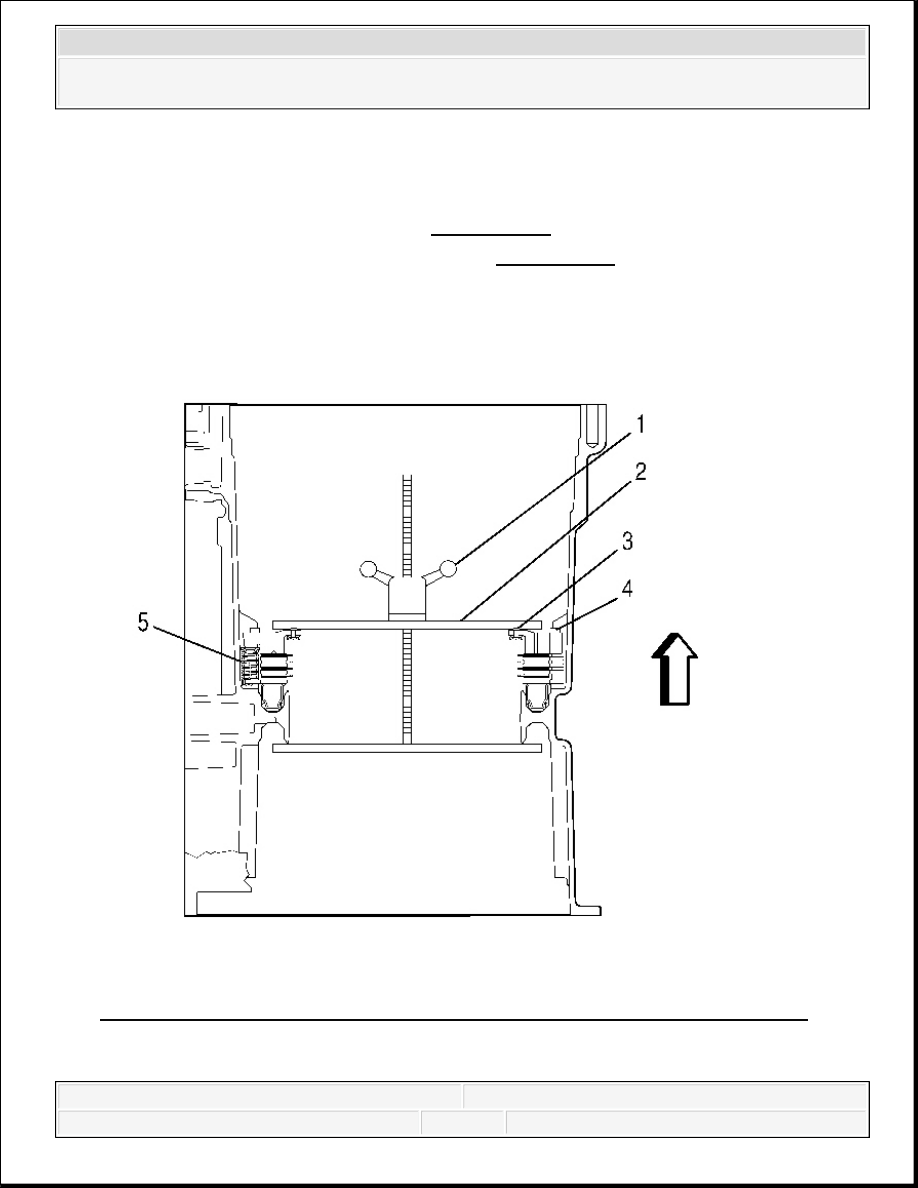

3RD, 5TH AND REVERSE CLUTCH REMOVAL Tools Required J 24204-2 Bar and Stud Assembly. See Special Tools. J 44530 Clutch Piston Spring Compressor. See Special Tools. Removal Fig. 191: Compressing 3rd, 5th, And Reverse Piston Return Spring Assemblies
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. Position the transmission case so that the front of the transmission case is facing up. 2. Install J 24204-2 (1) and J 44530 (2) into the transmission case. See Special Tools. Make sure that J 44530 does not touch the gear thrust plate rivets (3) on the 3rd, 5th, and reverse 3. Compress the piston return spring assemblies (5) until a gap is visible below the retaining ring (4). 4. Remove the retaining ring (4). 5. Remove J 24204-2 and J 44530 from the transmission case. See Special Tools. NOTE: Refer to 3-5 Reverse Clutch Backing Plate Rivet Damage
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

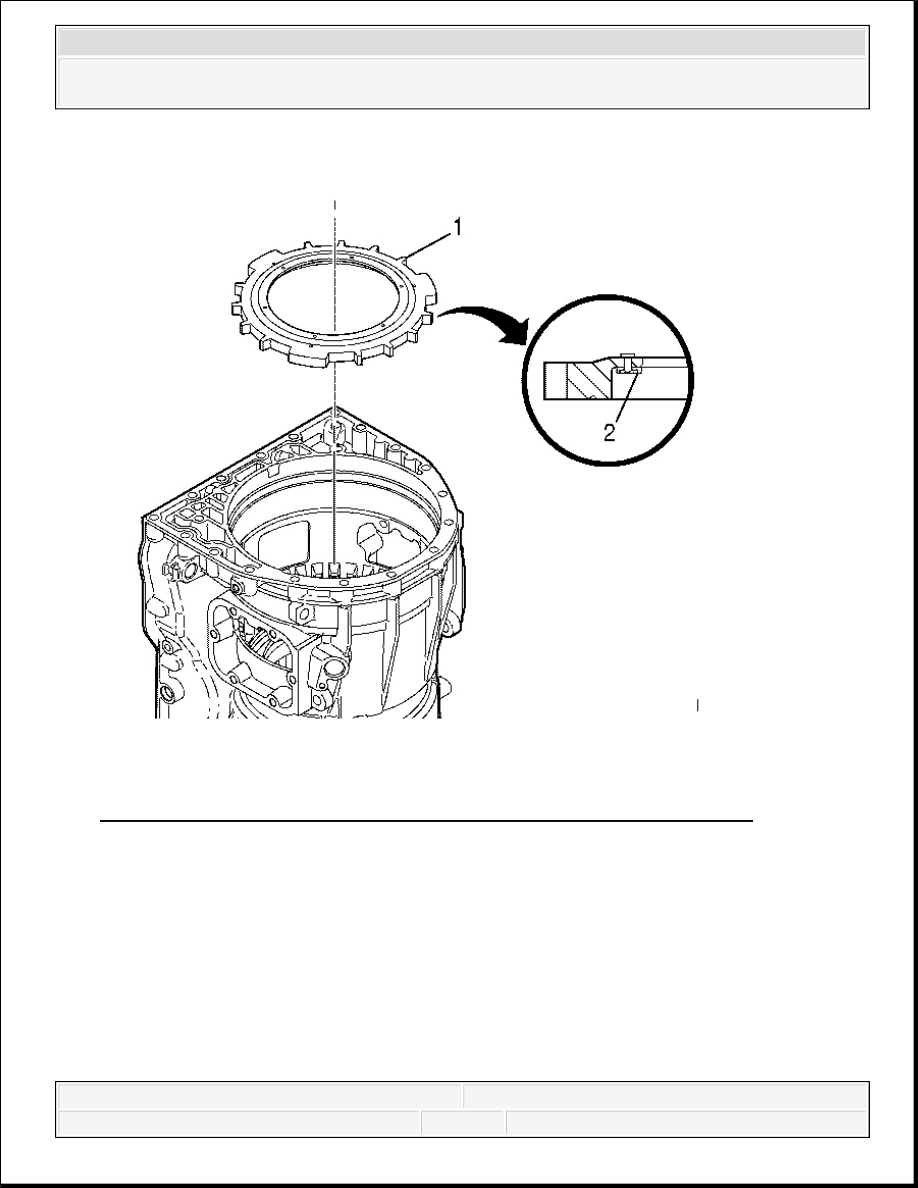

Fig. 192: Aligning 3rd, 5th, And Reverse Clutch Backing Plate Assembly 6. Remove the 3rd, 5th, and reverse clutch backing plate assembly (1).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

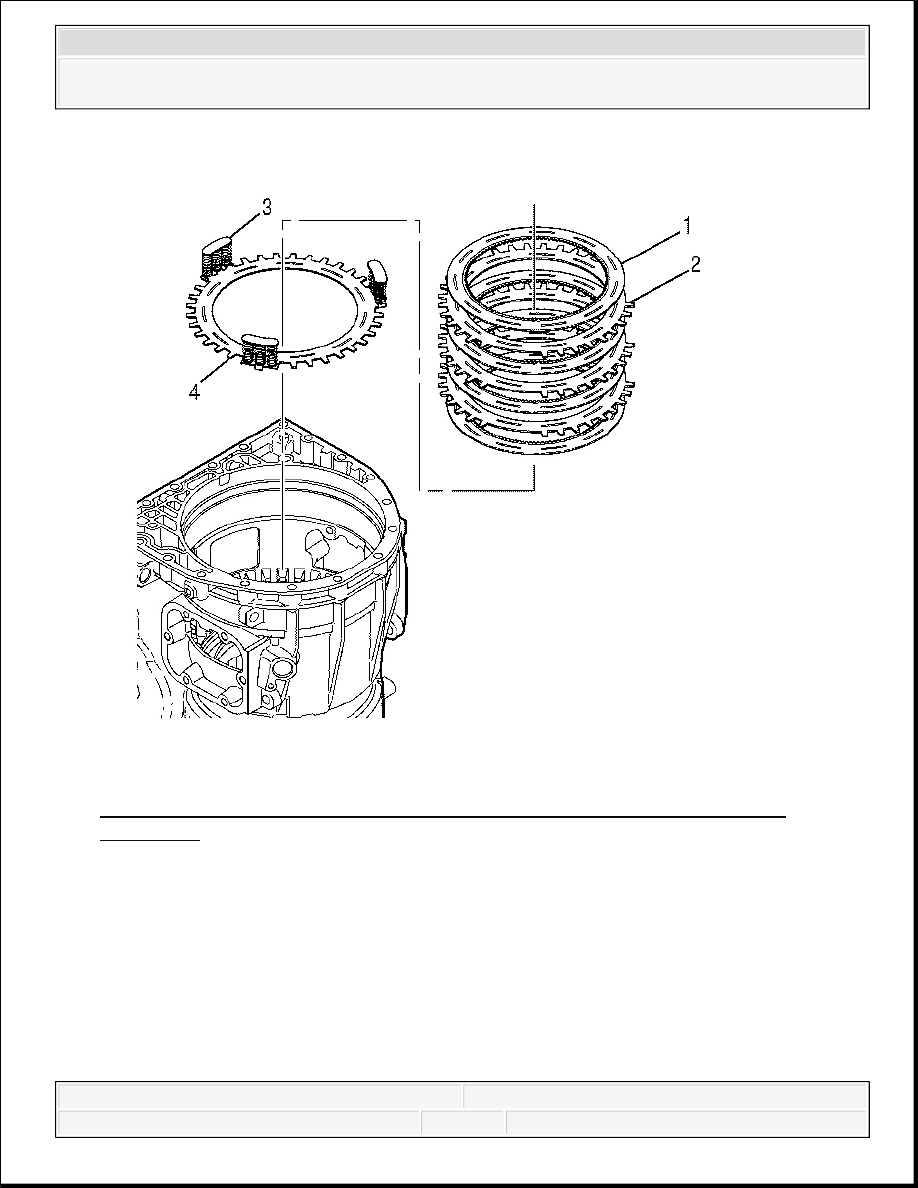

Fig. 193: View Of 3rd, 5th And Reverse Spring Plates, Steel Plates & Spring 7. Remove four 3rd, 5th, and reverse clutch fiber plates (1) and three 3rd, 5th, and reverse clutch steel plates (2). 8. Remove, as a unit, 3rd, 5th, and reverse spring plate (4) and 3 piston return spring assemblies (3).
