4. Remove the thrust bearing assembly (1) from the intermediate carrier assembly (2) or the
intermediate sun gear.
LOW AND REVERSE CLUTCH REMOVAL
IMPORTANT: The thrust bearing assembly may adhere to the intermediate
carrier assembly (2) or the intermediate sun gear.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

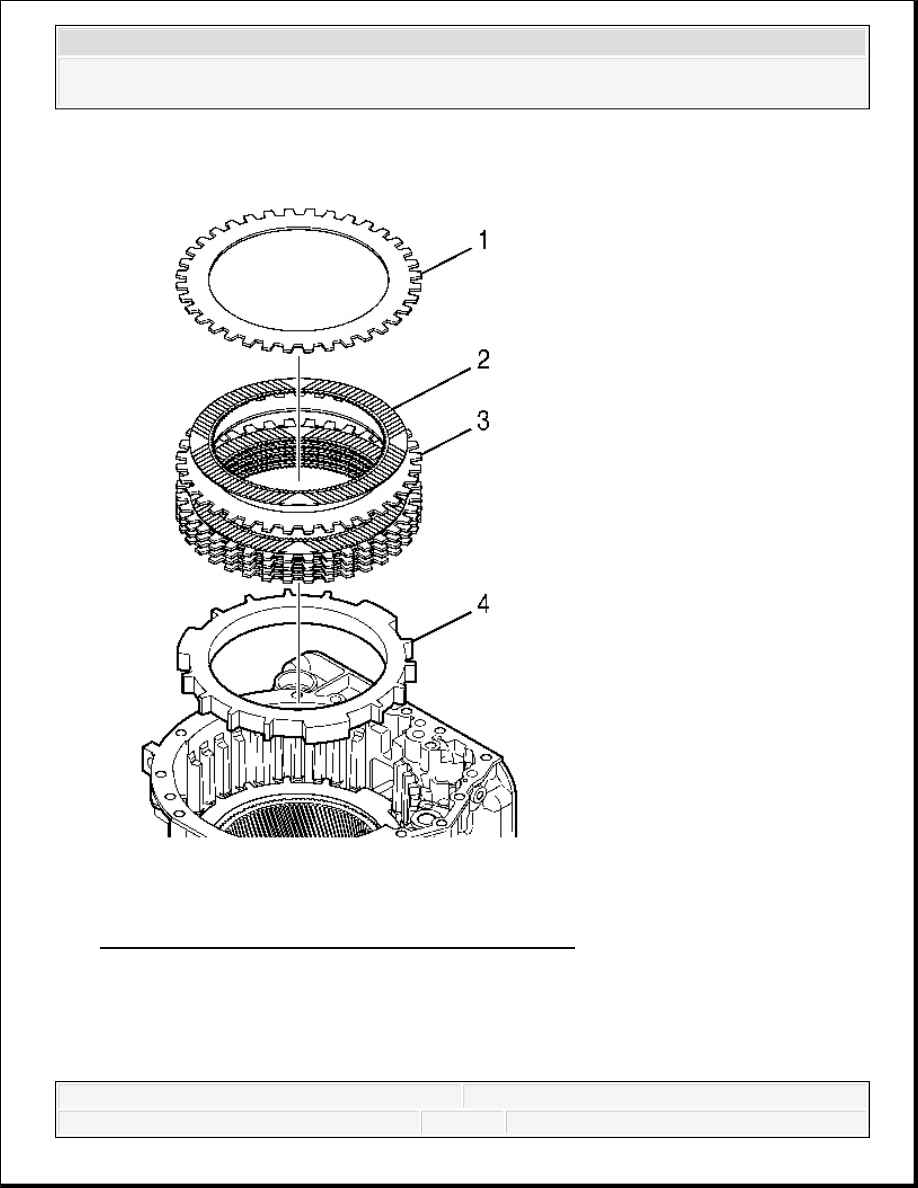

Fig. 182: Identifying Low And Reverse Clutch Plates
Courtesy of GENERAL MOTORS CORP.
1. Remove the low and reverse clutch selective steel plate (1).
2. Remove 6 low and reverse clutch fiber plates (2) and 5 low and reverse clutch steel plates
(3).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
3. Remove the low and reverse clutch backing plate (4).
INPUT CARRIER REMOVAL

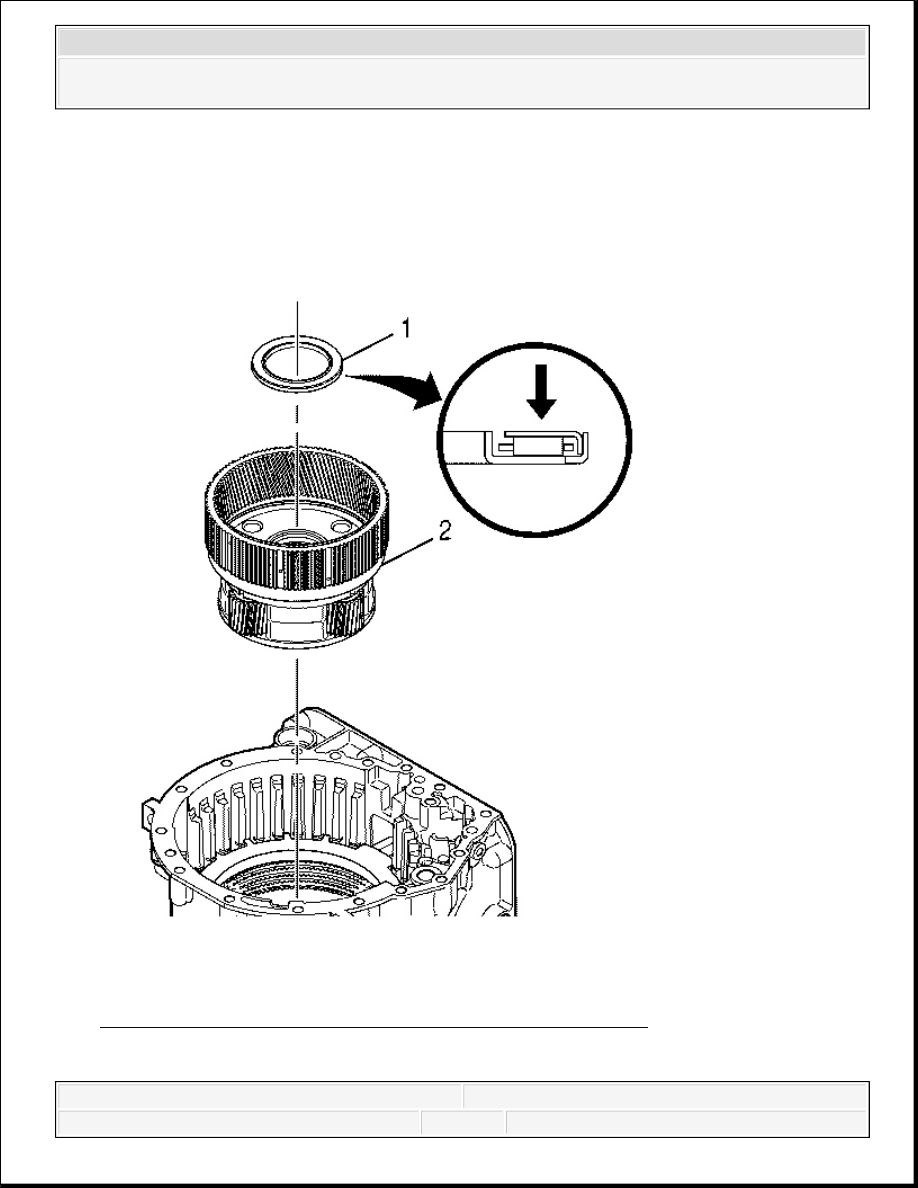

Fig. 183: View Of Input Carrier & Thrust Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
1. Remove the input carrier assembly (2).
2. Remove thrust bearing assembly (1) from input carrier assembly (2) or intermediate carrier
assembly.
2-6 CLUTCH REMOVAL
Tools Required
J 24204-2 Bar and Stud Assembly. See Special Tools.
J 44530 Clutch Piston Spring Compressor. See Special Tools.
Removal
IMPORTANT: The thrust bearing assembly may stick to the input carrier
assembly or the intermediate carrier assembly.
