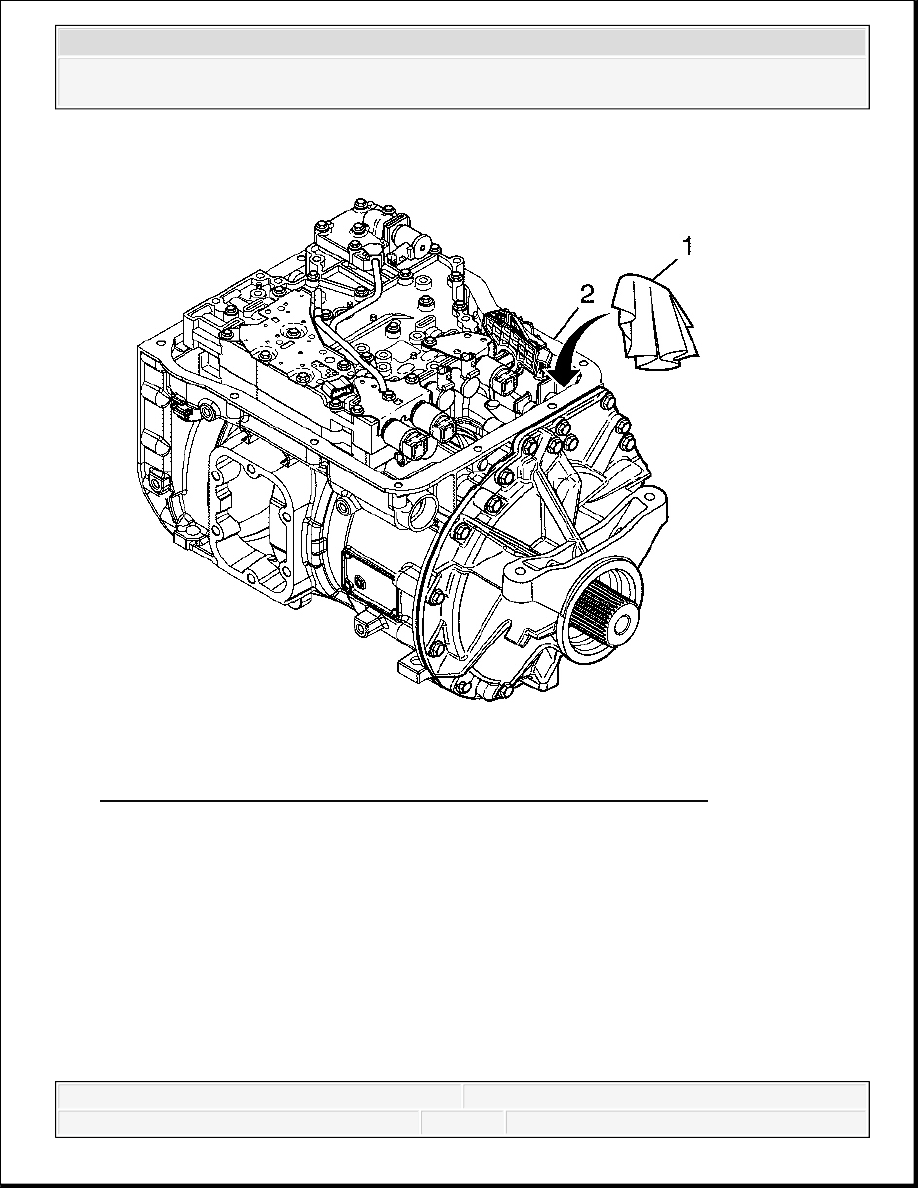

Fig. 165: Installing Cloth In Park Pawl Apply Assembly Guide Hole 5. Install a lint-free cloth (1) in the park pawl apply assembly guide hole in the transmission case (2). IMPORTANT: Installing a lint-free cloth into the park pawl apply assembly guide hole prevents the manual valve pin from falling into the
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

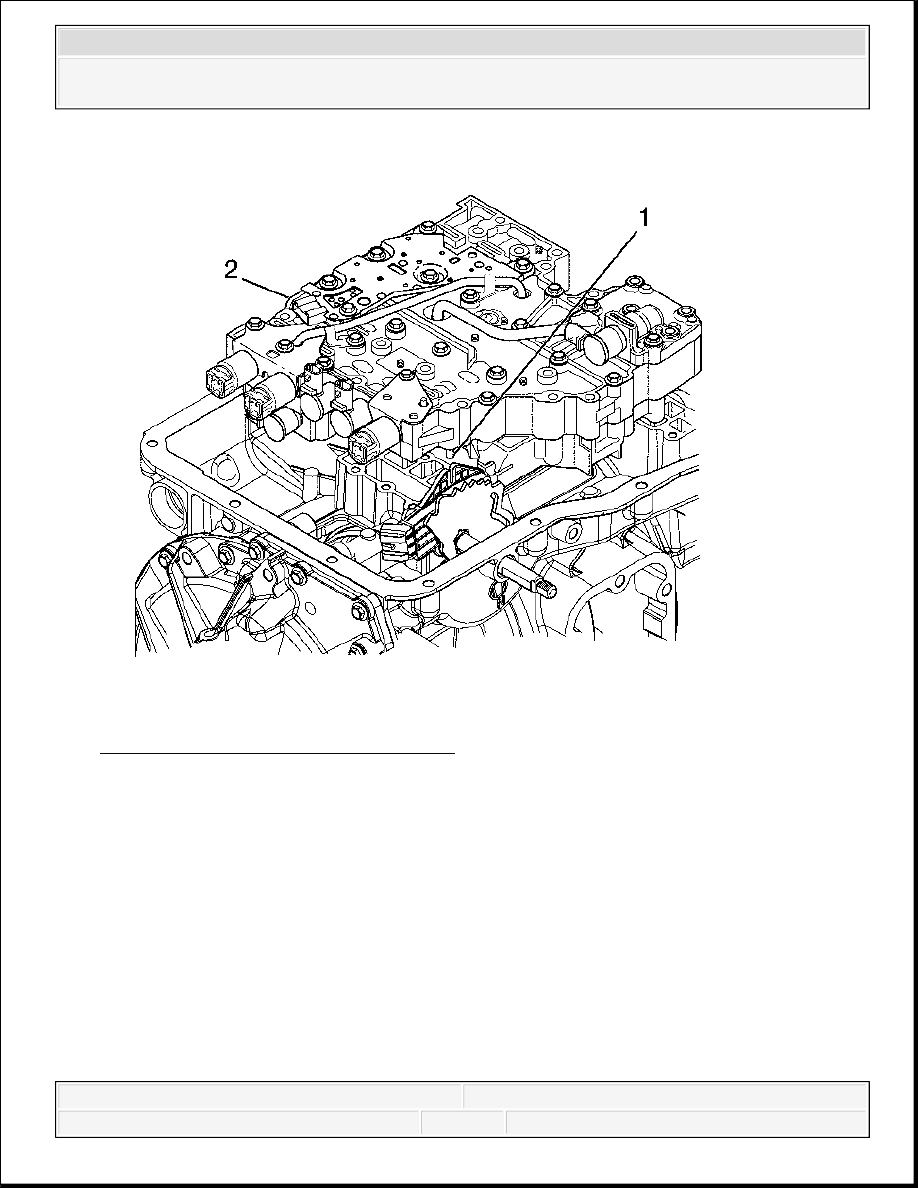

Fig. 166: Control Valve Body Assembly 6. Lift the control valve body assembly (2) until the 2 locating pins (1) of the control valve body assembly are disengaged from the transmission case. IMPORTANT: Do not drop the manual valve when removing or installing the control valve body assembly onto or from the transmission
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

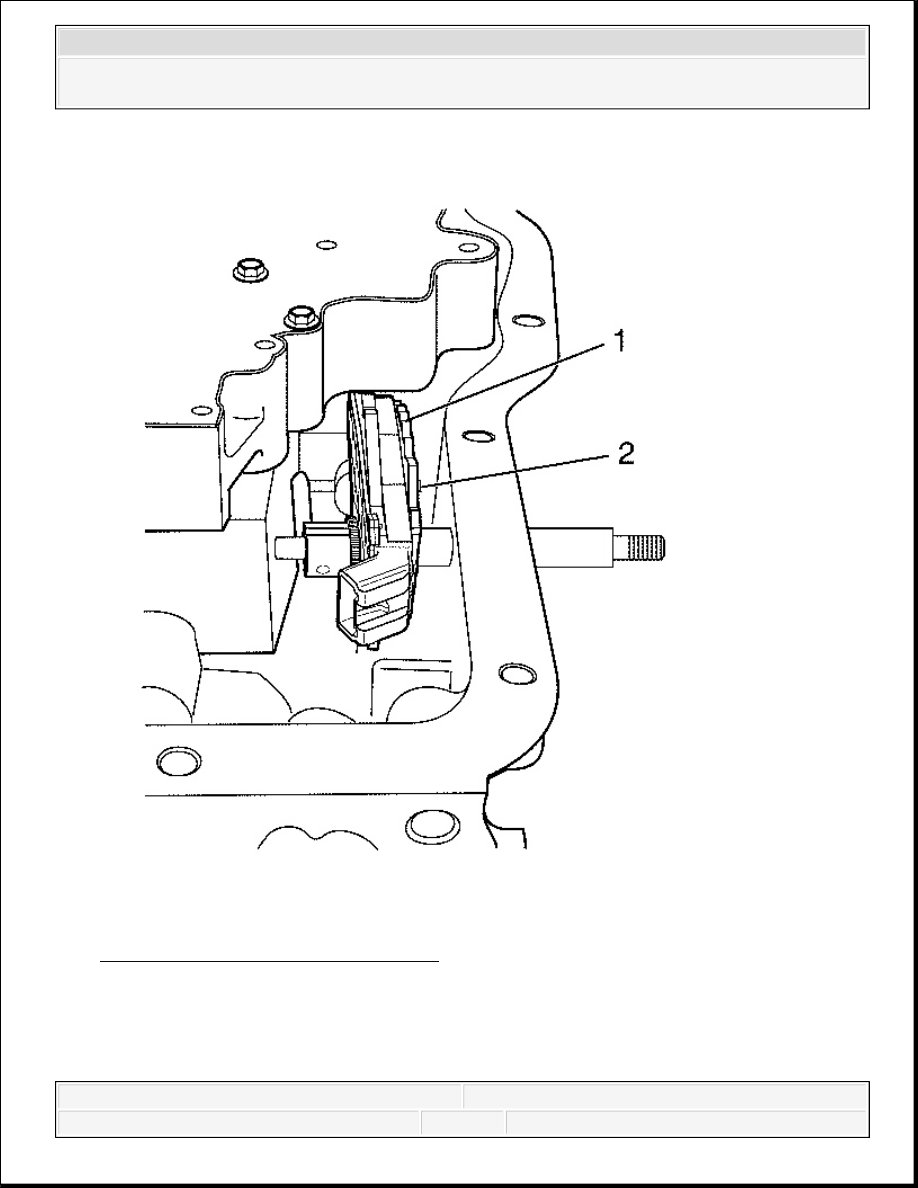

Fig. 167: Detent Lever/IMS Assembly 7. Slide the control valve body assembly to the side and disengage the manual valve pin (2) from the manual shift shaft detent lever/IMS assembly (1). 8. Remove the control valve body assembly from the transmission case.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

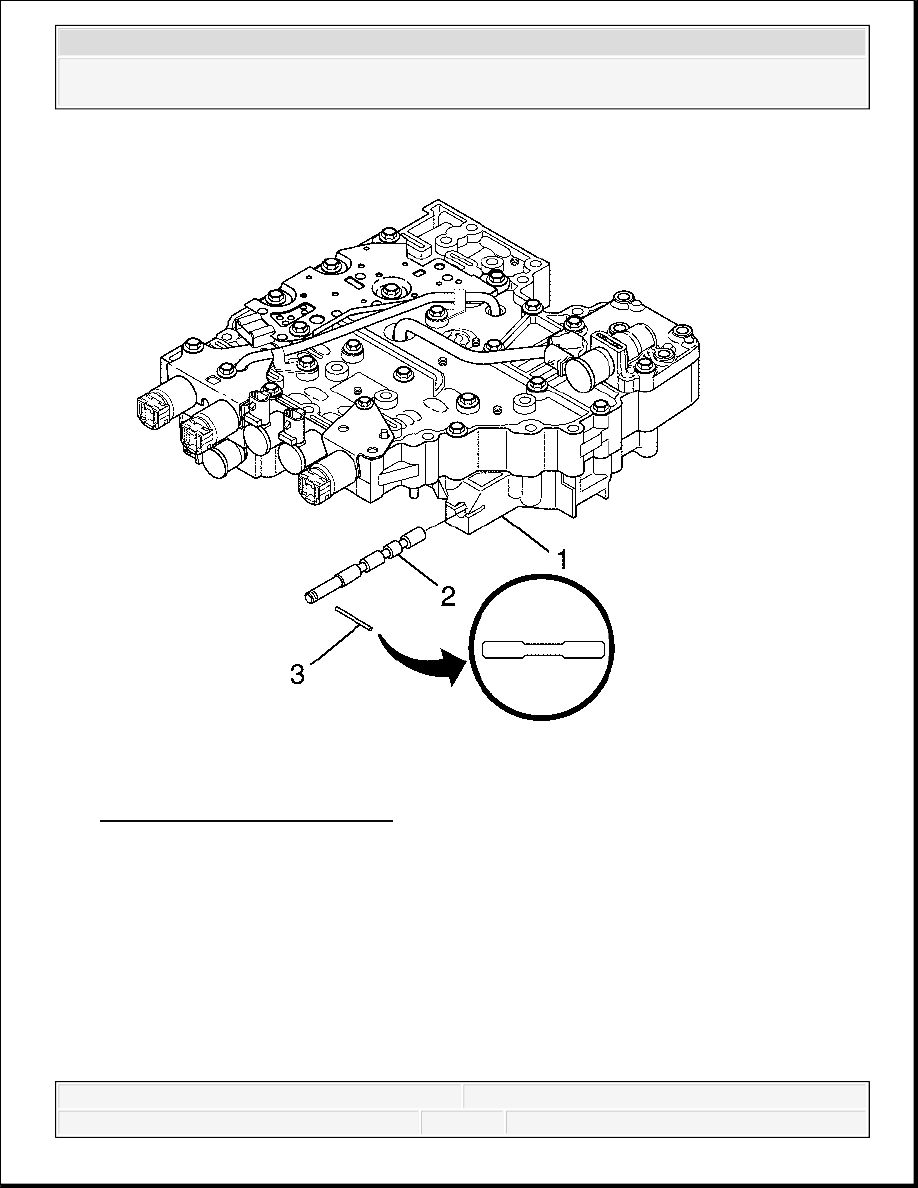

Fig. 168: Manual Valve And Pin 9. Remove, as a unit, the manual valve (2) and the manual valve pin (3) from the shift valve body assembly (1). 10. Remove the manual valve pin (3) from the manual valve (2).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
