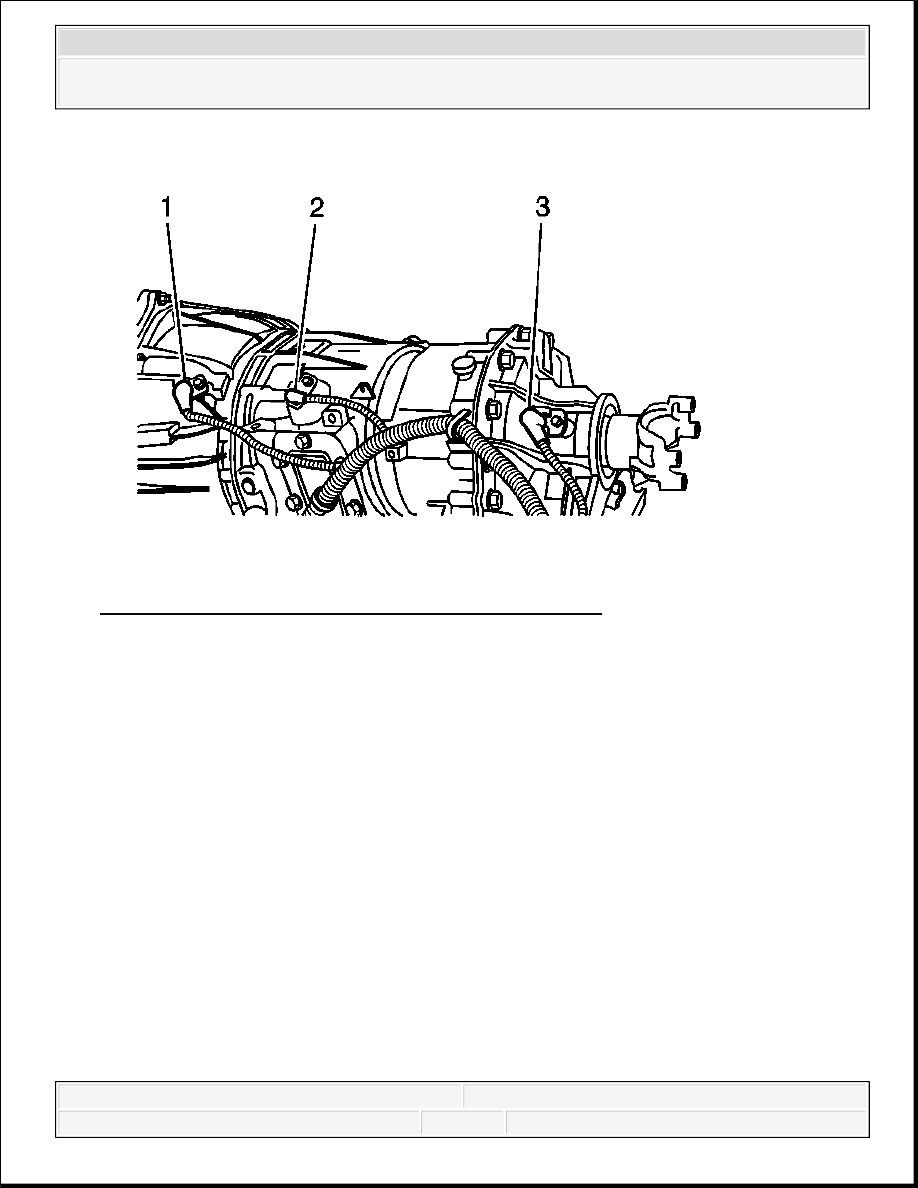

Fig. 131: Identifying Electrical Connectors And Sensors
Courtesy of GENERAL MOTORS CORP.
18. Two wheel drive vehicles, connect the electrical connectors to the output speed sensor (3),
turbine speed sensor (1), and the input speed sensor (2).
19. Four wheel drive vehicles, connect the electrical connectors to the turbine speed sensor (1),
the input speed sensor (2) and any remaining electrical connectors on the transfer case.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

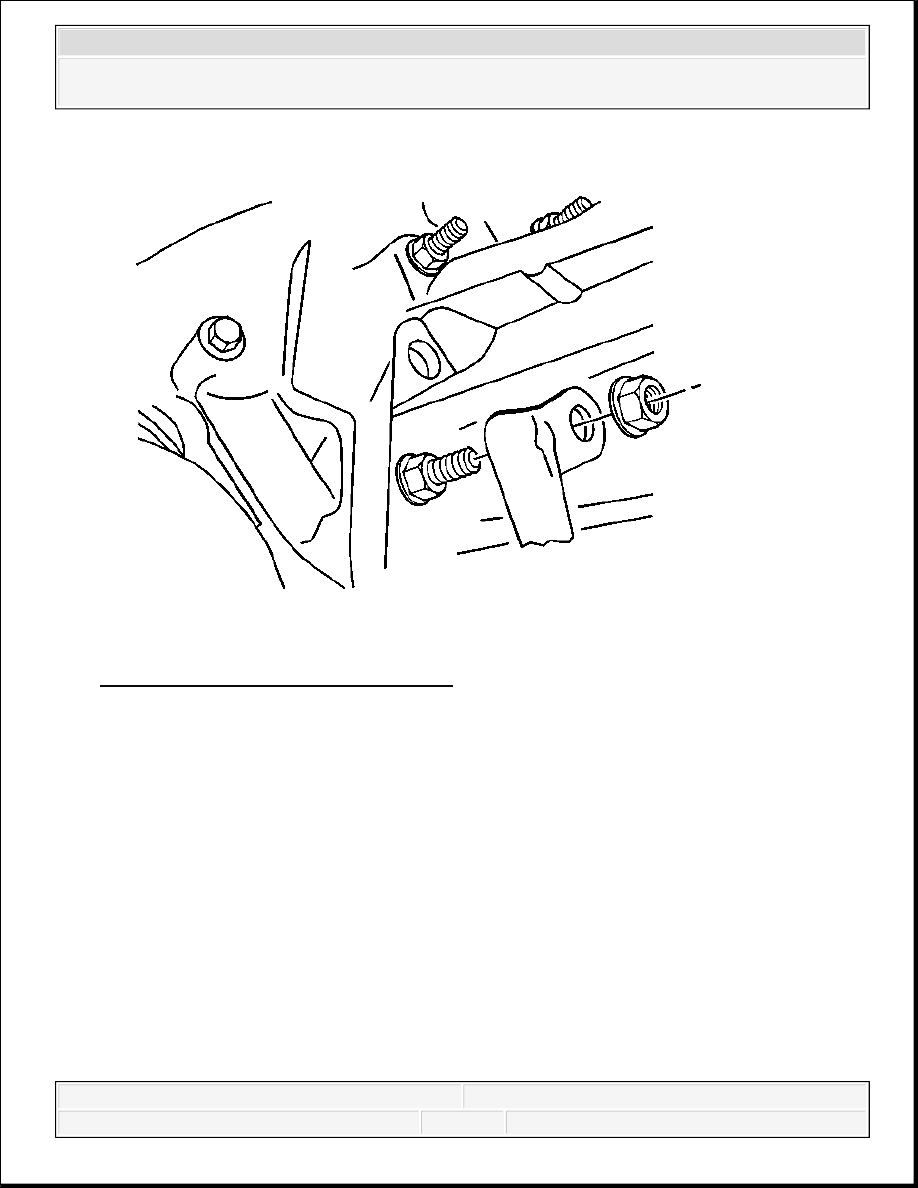

Fig. 132: Identifying Fuel Line Bracket
Courtesy of GENERAL MOTORS CORP.
20. Install the fuel line bracket and nut to the transmission converter housing stud.
Tighten: Tighten the nut to 18 N.m (13 lb ft).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

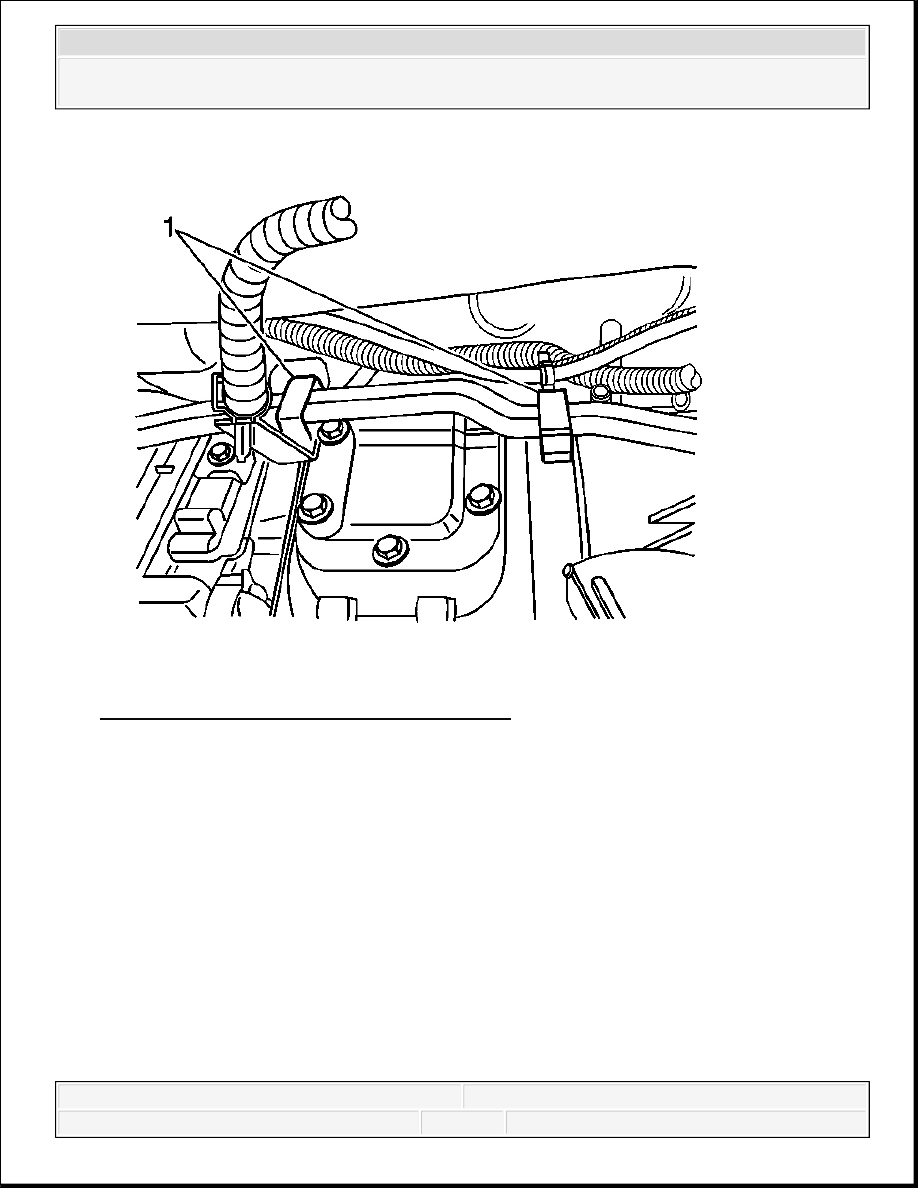

Fig. 133: Identifying Fuel Line Retainer Bolts
Courtesy of GENERAL MOTORS CORP.
21. Install the fuel line retainer (1) and bolts to the left side of the transmission.
Tighten: Tighten the bolts to 2.5 N.m (22 lb in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

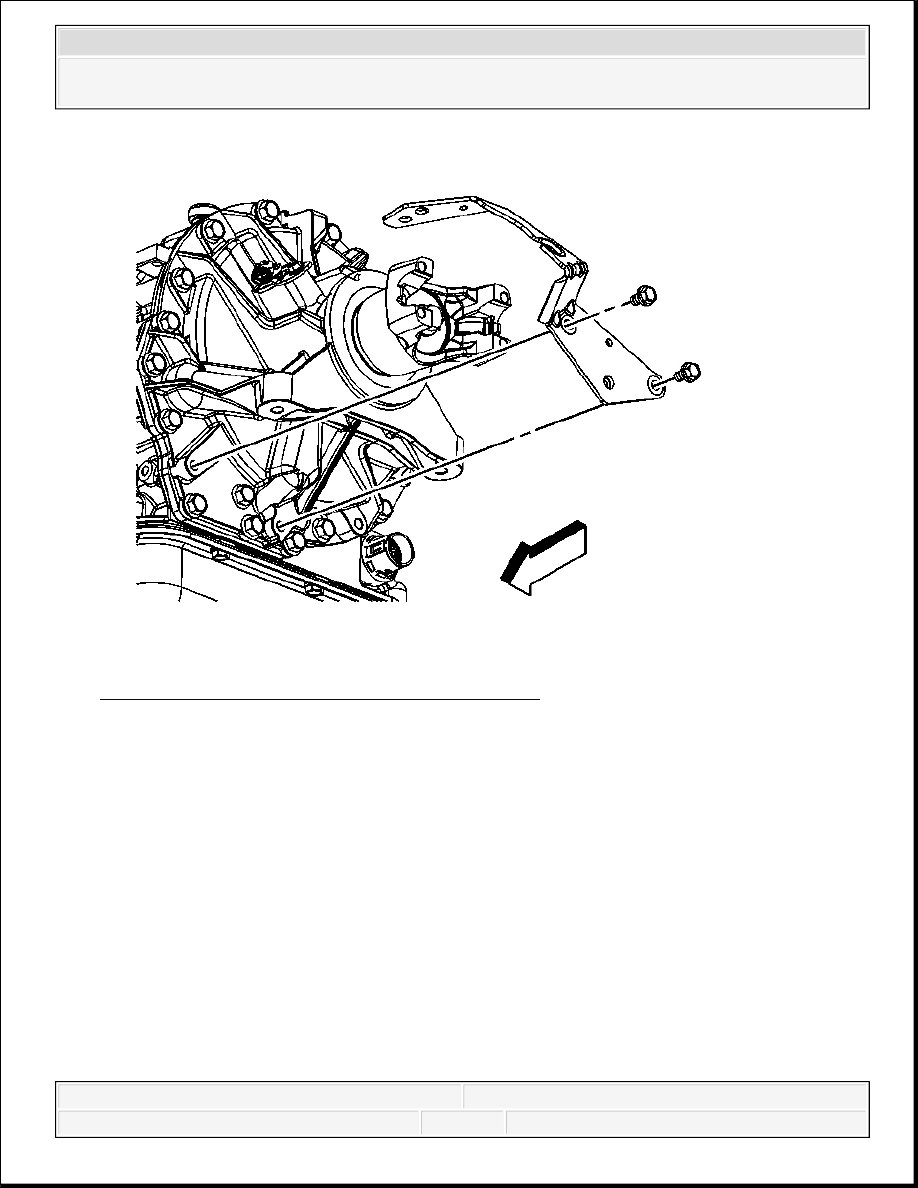

Fig. 134: View Of Shift Cable Bracket And Bolts
Courtesy of GENERAL MOTORS CORP.
22. Install the shift cable bracket and bolts to the transmission.
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
