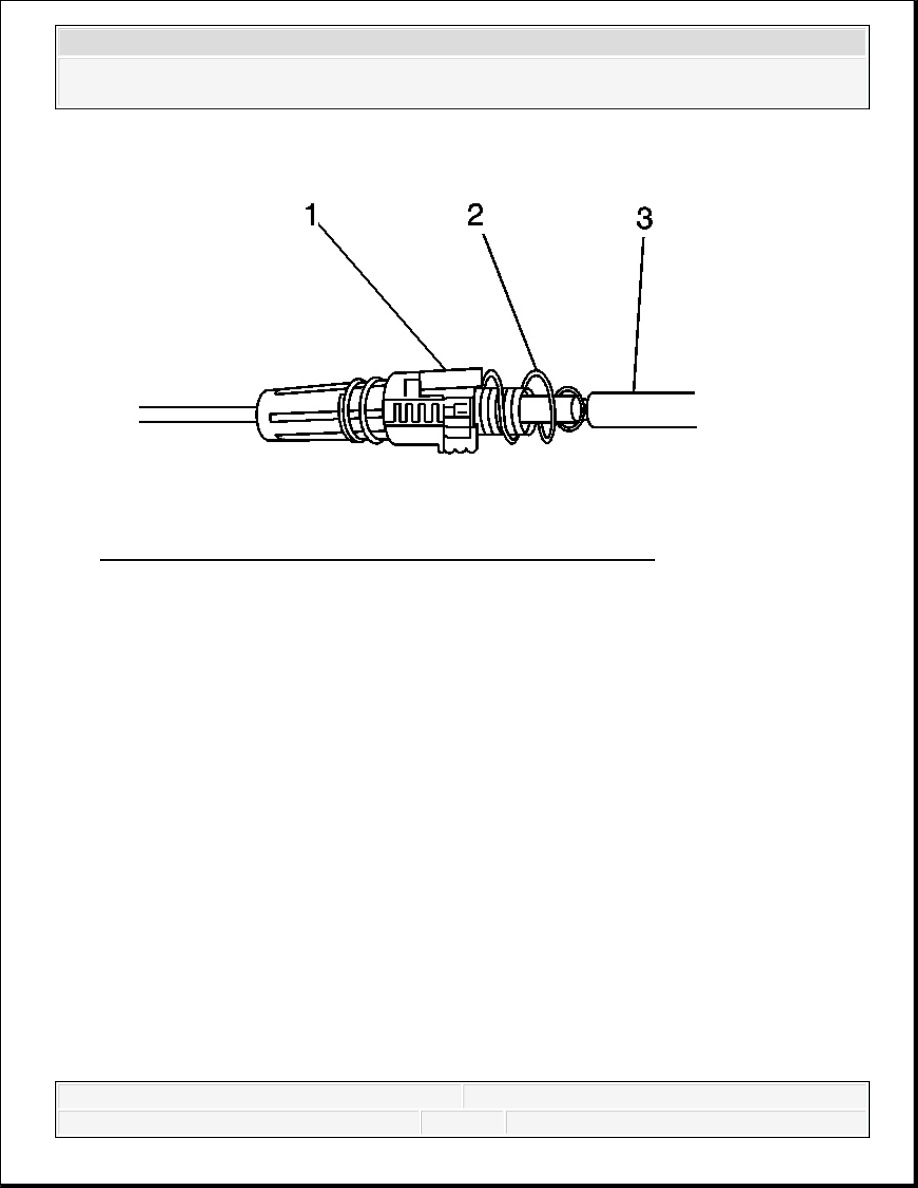

Fig. 32: Engaging Inner Wire And Lock Both Wires Together
Courtesy of GENERAL MOTORS CORP.
5. Push the end of the transmission end (3) inside the shifter end (1) until the blue spring (2) on
the transmission end (3) is fully compressed, this will engage the inner wire and lock both
wires together.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

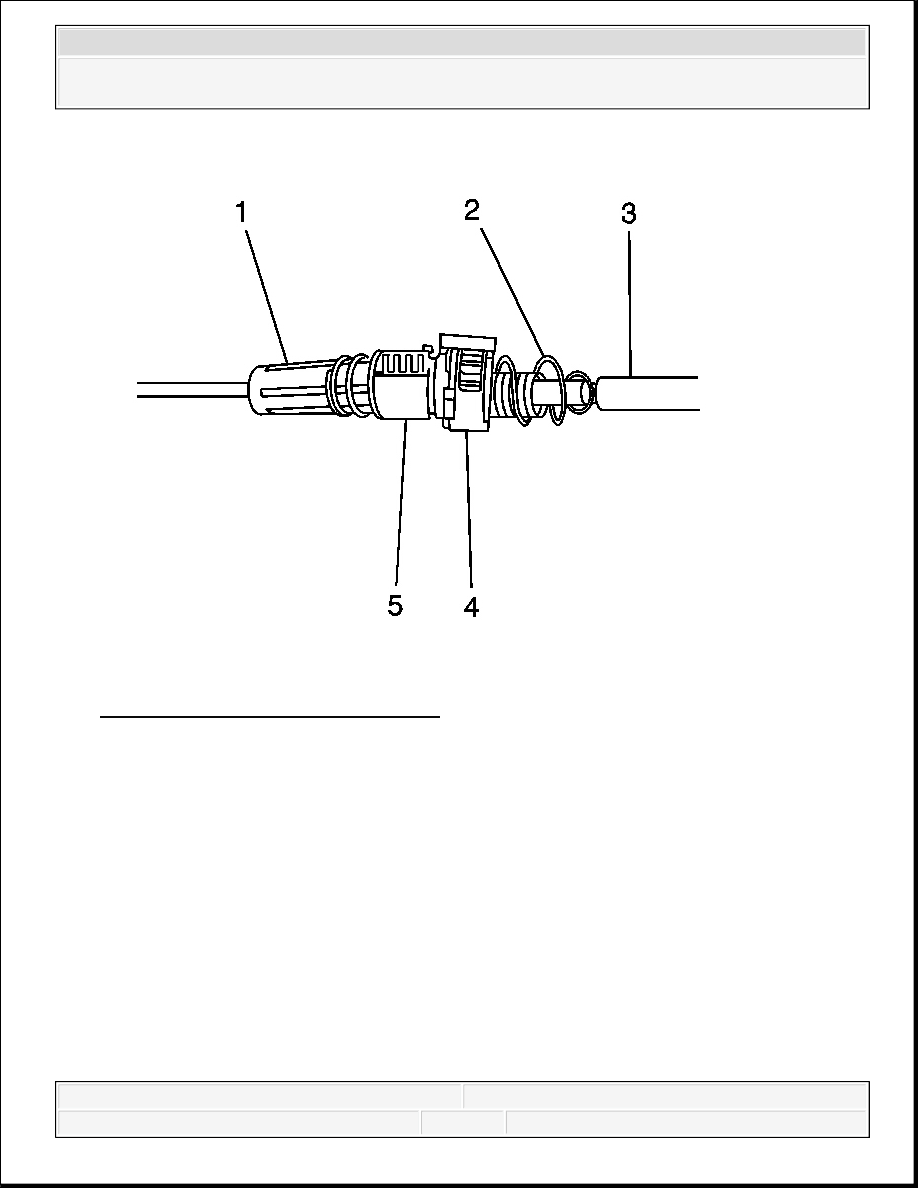

Fig. 33: Tension/Adjust Cable System
Courtesy of GENERAL MOTORS CORP.
6. Release the transmission end (3) and allow the spring (2) to tension/adjust the cable system.
7. Pull the white cover (5) on the shifter end (1) back.
8. Push the natural colored lock button (4) down to engage the locking teeth on the
transmission end (3).
IMPORTANT: DO NOT hold the transmission end (1) during this operation,
this will result in a mis-adjusted cable.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

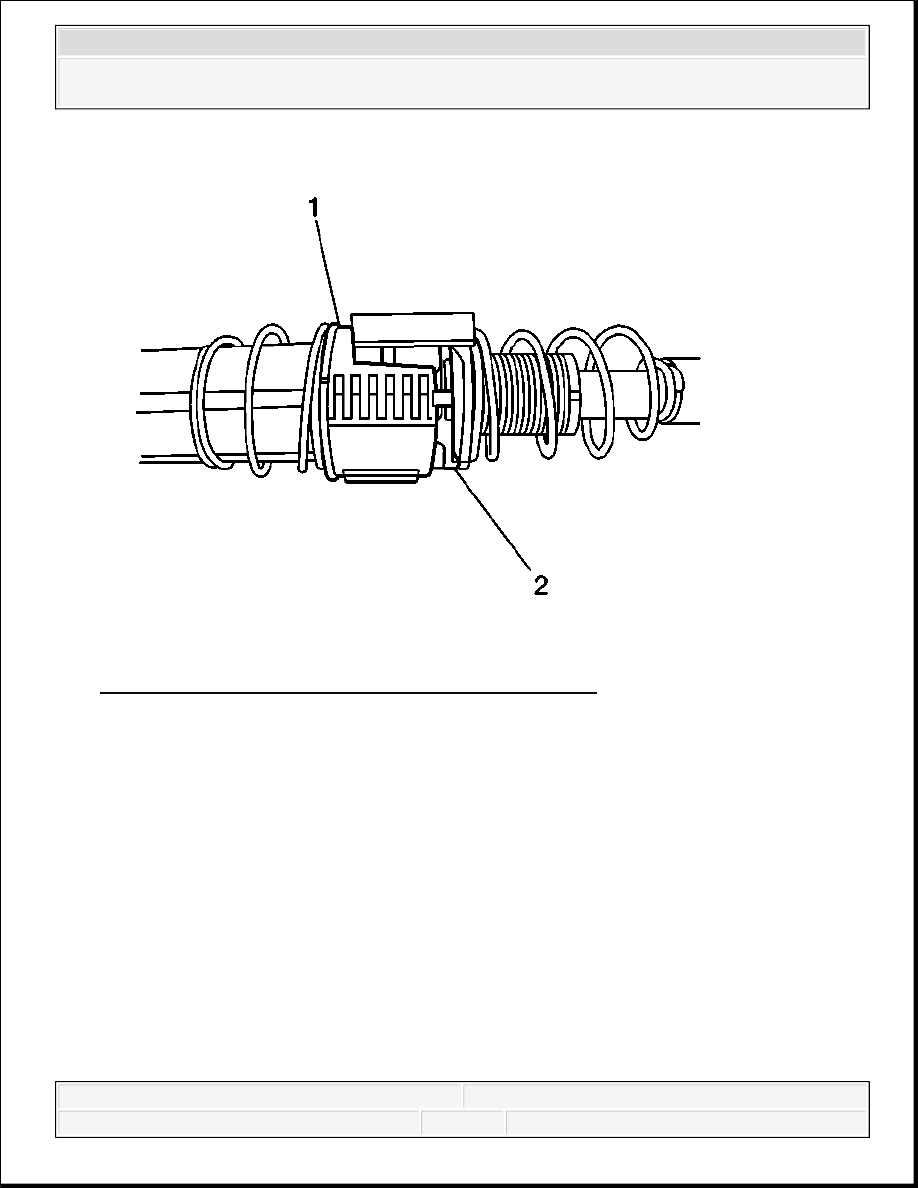

Fig. 34: View Of White Cover & Natural Colored Lock
Courtesy of GENERAL MOTORS CORP.
9. Release the white cover (1).
10. Verify the white cover (1) conceals the natural colored lock (2).
MANUAL SHIFT SHAFT, DETENT LEVER, AND POSITION SWITCH ASSEMBLY
REPLACEMENT
Removal Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

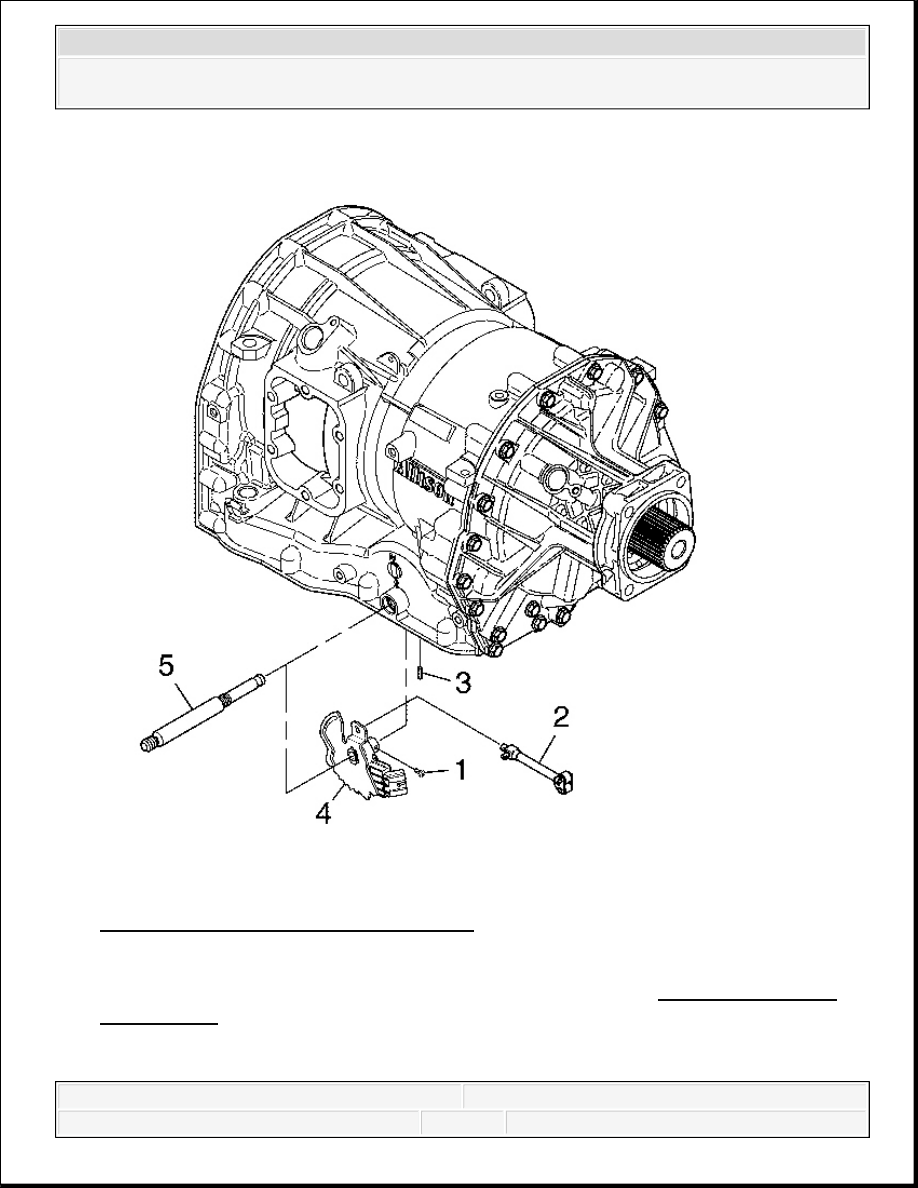

Fig. 35: Detent Lever/IMS Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
1. Remove the control valve assembly from the transmission. Refer to Control Valve Body
Replacement.
IMPORTANT: The detent lever/IMS retaining bolt contains patch lock
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
