8. Perform the FastLearn procedure. Refer to FastLearn Procedure.
PRESSURE SWITCH MANIFOLD REPLACEMENT
Removal Procedure
IMPORTANT: The FastLearn (adapt) procedure must be performed. This
can be done in one step using a scan tool. If this procedure is
not done, the TCM's adaptive values will be at the settings
that it learned for the old components. and will be in slow
adaptive mode. Under these conditions, it would take an
unacceptably long time for the adaptive values to converge
to levels suitable for the new transmission.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

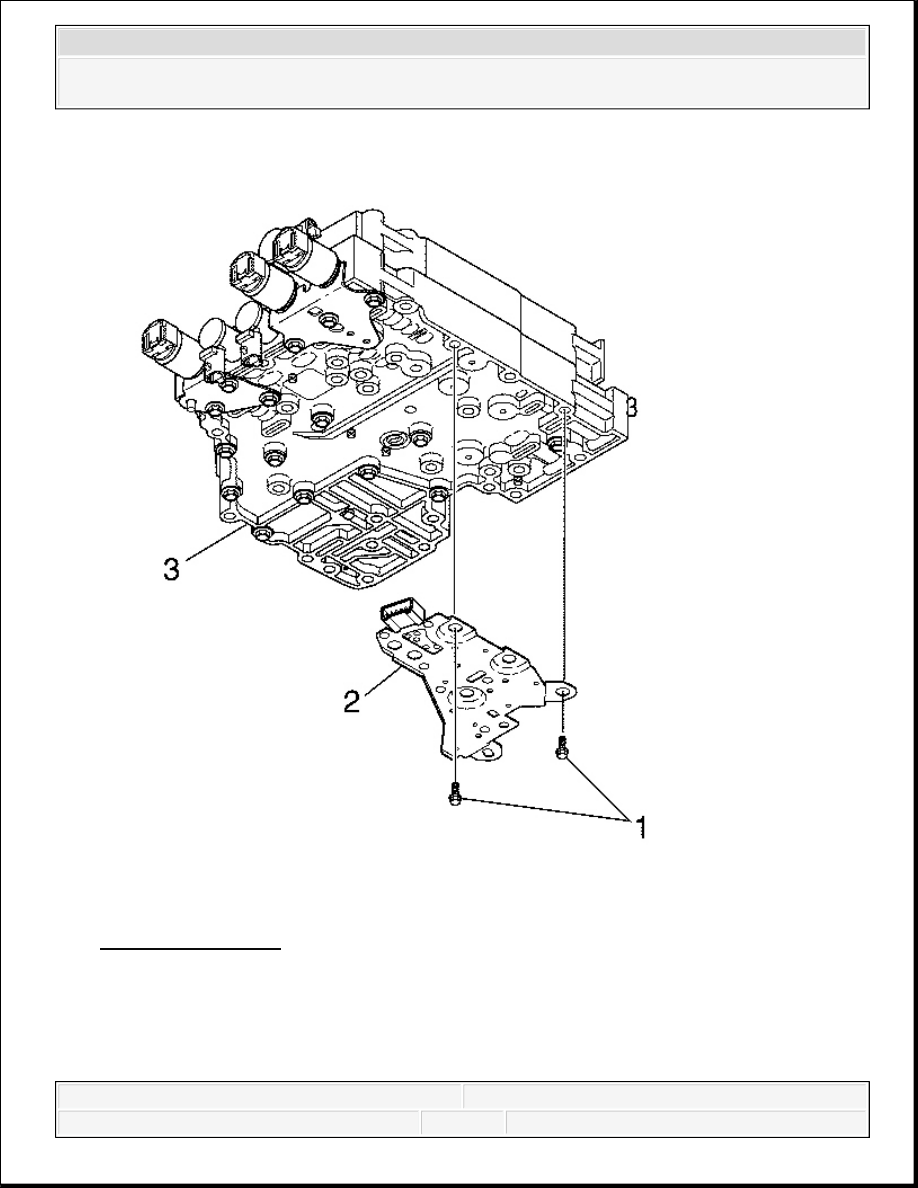

Fig. 23: TFP Switch
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Individual pressure switches cannot be replaced. When any
pressure switch needs replacing, the entire assembly must
be replaced.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
1. Remove the oil pan and transmission internal oil filter. Refer to Oil Pan Replacement.
2. Disconnect the internal wiring harness connector from the transmission fluid pressure (TFP)
switch (2).
3. Remove six bolts (1). Remove the TFP switch (2).
Installation Procedure
IMPORTANT: The modulated main pressure (MAIN MOD) solenoid has been
removed for clarity.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

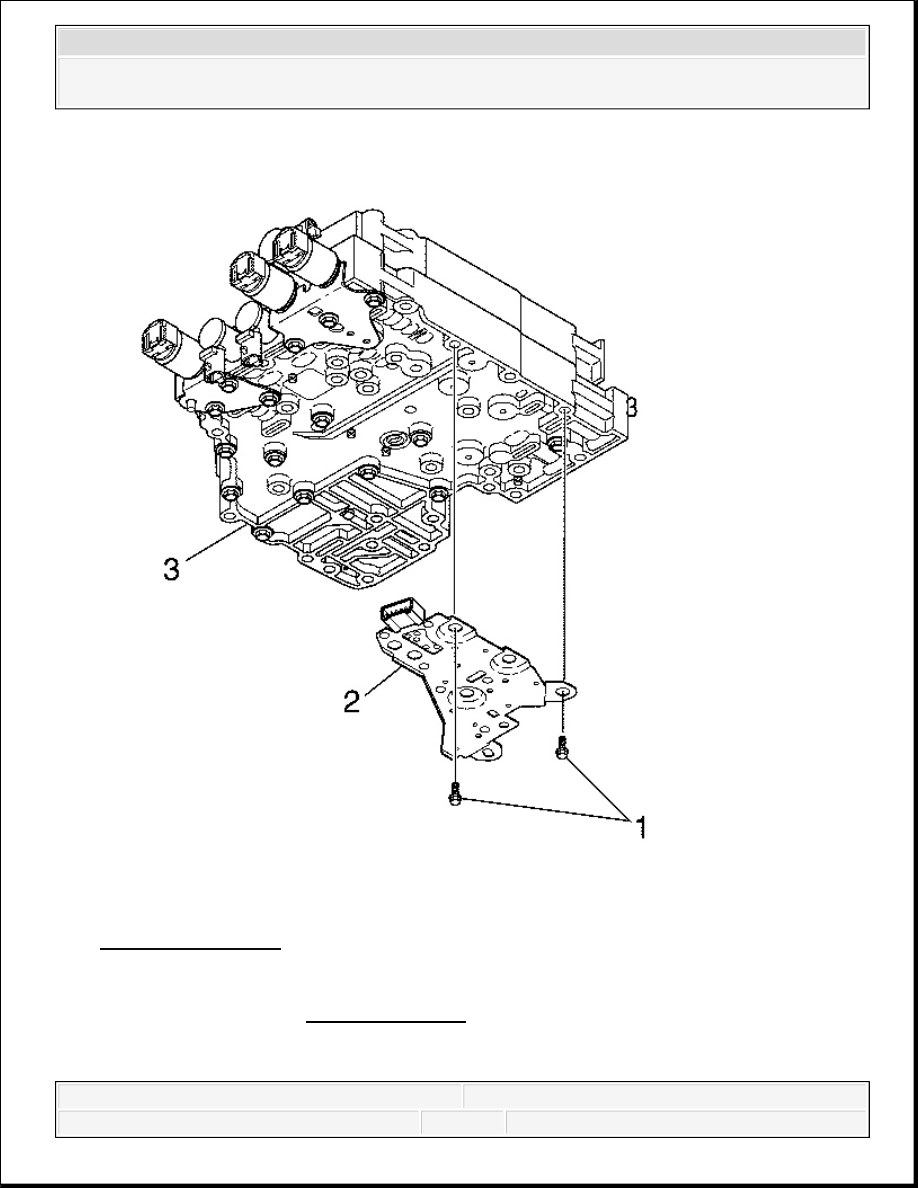

Fig. 24: TFP Switch
Courtesy of GENERAL MOTORS CORP.
1. Place the new TFP manifold assembly (2) in position and install one bolt (1) in a recessed
NOTE:
Refer to Fastener Notice .
