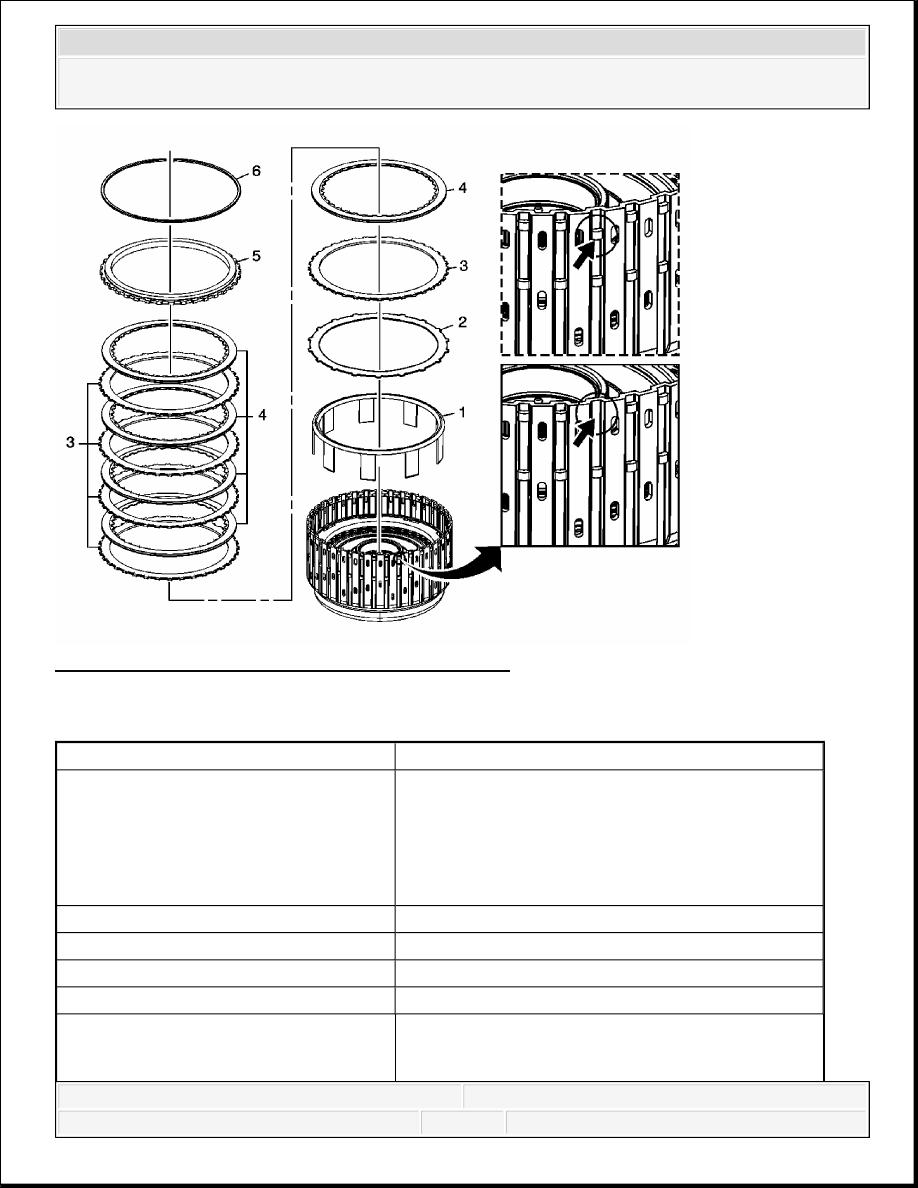

Fig. 163: 1-2-3-4 Clutch Plate Installation
Courtesy of GENERAL MOTORS CORP.
1-2-3-4 Clutch Plate Installation
Callout
Component Name
1
1-2-3-4 Clutch (Waved) Plate
NOTE:
Ensure an opening between the external splines of the
waved plate is oriented with the missing snap ring
groove punch in the housing. Failure to do so may
cause damage to the clutch assembly.
2
1-2-3-4 Clutch Plate (Qty: 6)
NOTE:
Ensure all clutch plates are centered in the housing.
When installing the first steel clutch plate, ensure an
opening between the external splines is oriented with
the missing snap ring groove punch in the housing.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
3-5 AND REVERSE CLUTCH PLATE INSTALLATION
Align the external splines of each remaining steel clutch
plate with the first steel clutch plate. Failure to do so
may cause damage to the clutch assembly.
3
1-2-3-4 Clutch Plate Assembly (Qty: 6)
4
1-2-3-4 Clutch Backing Plate
NOTE:
Align the external splines of the backing plate with the
external splines of the steel clutch plates. Failure to do
so may cause damage to the clutch assembly.
5
1-2-3-4 Clutch Backing Plate Retaining Ring
Tip: After the retaining ring is installed, determine
clutch piston travel in order to verify if the correct
selective retaining ring is being used. Refer to 1-2-
3-4 Clutch Backing Plate Retaining Ring
Measurement.
NOTE:
Depending on the housing configuration, align the
retaining ring gap with the missing snap ring groove
punch in the housing or the offset punch in the
housing. Failure to do so may cause damage to the
clutch assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

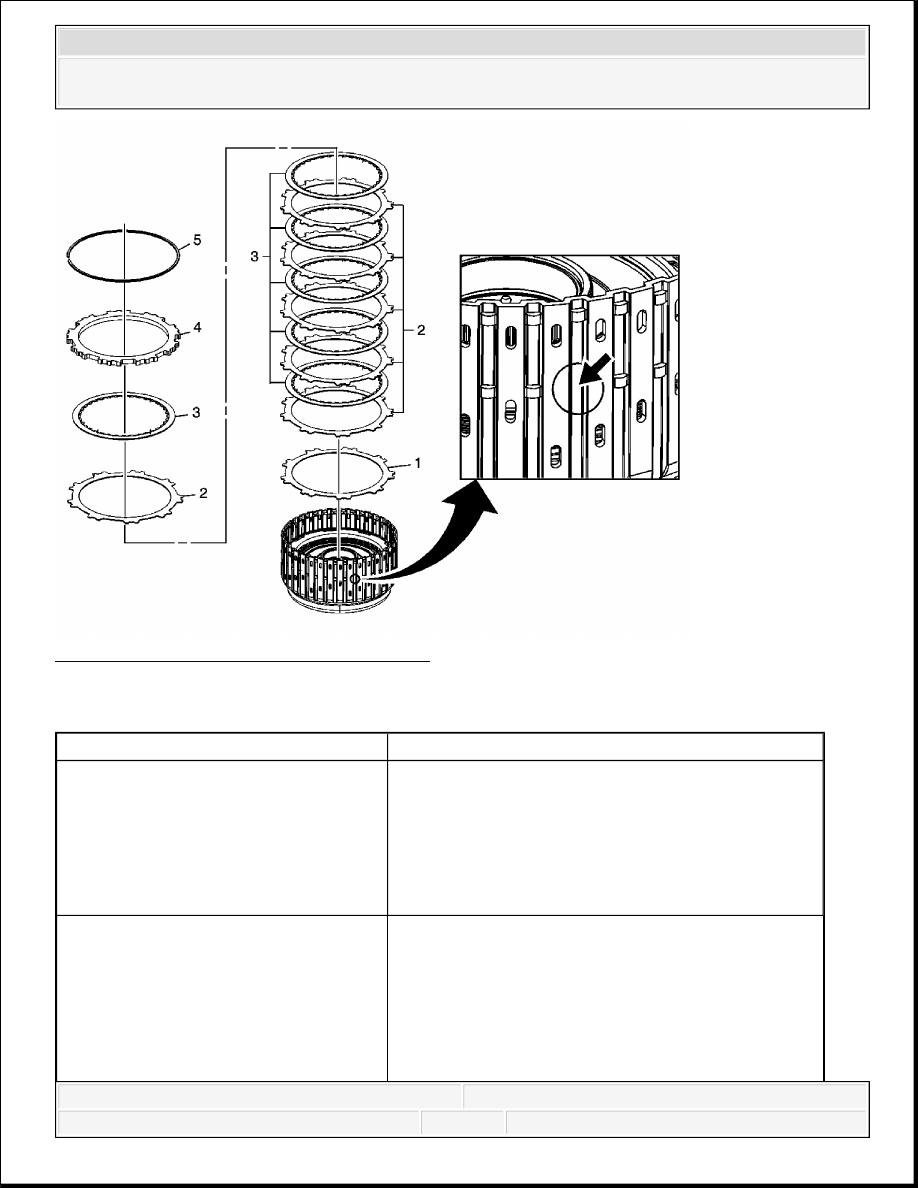

Fig. 164: 3-5 and Reverse Clutch Plate Installation
Courtesy of GENERAL MOTORS CORP.
3-5 and Reverse Clutch Plate Installation
Callout
Component Name
1
3-5 Reverse Clutch Apply Ring
NOTE:
Ensure apply ring legs are positioned into the 3-5
reverse clutch piston. Failure to do so may cause
damage to the 3-5 reverse clutch assembly.
2
3-5 Reverse Clutch (Waved) Plate
3
3-5 Reverse Clutch Plate (Qty: 5)
4
3-5 Reverse Clutch Plate Assembly (Qty: 5)
5
3-5 Reverse Clutch Backing Plate
3-5 Reverse Clutch Backing Plate Retaining Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
1-2-3-4 AND 3-5 REVERSE CLUTCH BEARING ASSEMBLY REPLACEMENT

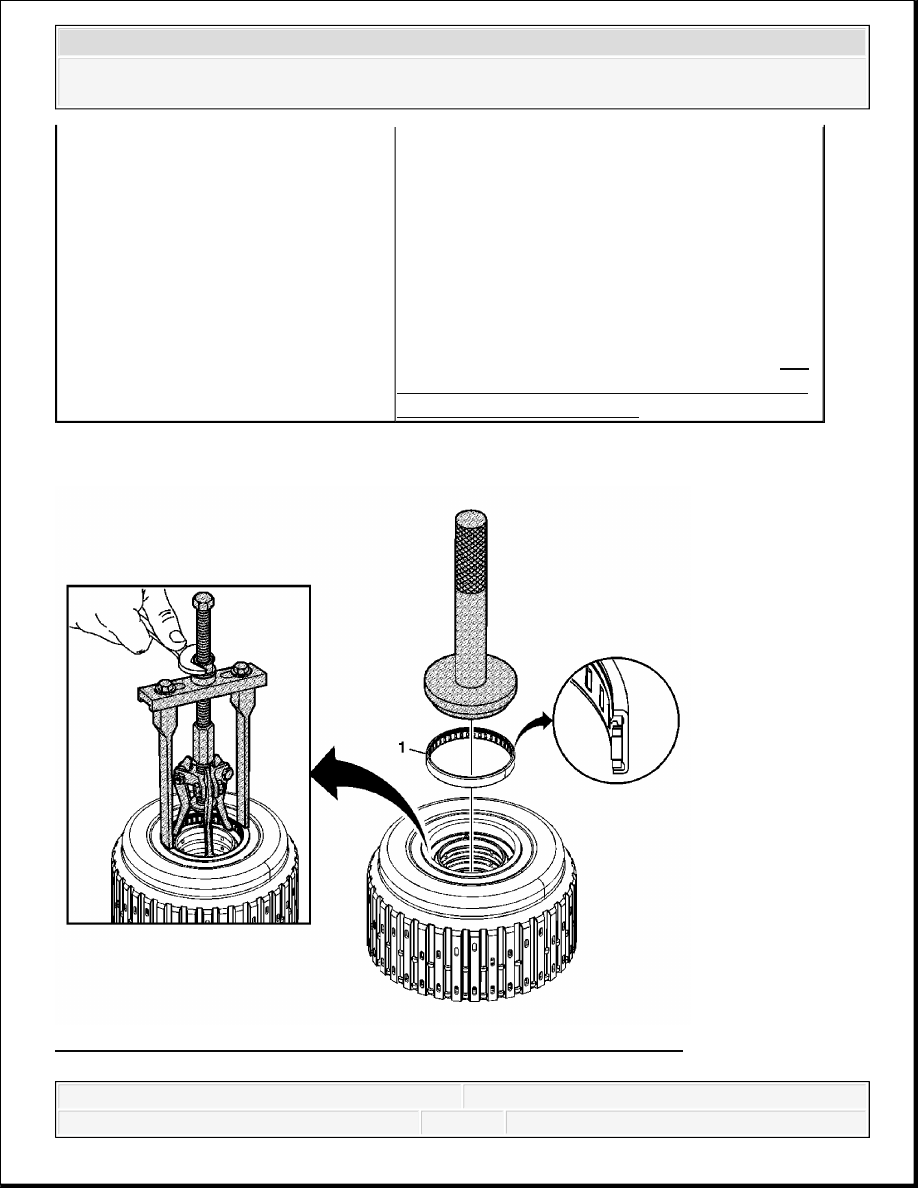

Fig. 165: Replacing 1-2-3-4 and 3-5 Reverse Clutch Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
6
Tip: After the retaining ring is installed, determine
clutch piston travel in order to verify if the correct
selective retaining ring is being used. Refer to 3-5
Reverse Clutch Backing Plate Retaining Ring
Measurement (6L80/6L90).
NOTE:
Depending on the housing configuration, align the
retaining ring gap with the missing snap ring groove
punch in the housing or the offset punch in the
housing. Failure to do so may cause damage to the
clutch assembly.
