Low and Reverse Clutch Plate Removal LOW AND REVERSE CLUTCH PISTON REMOVAL Fig. 129: Removing Low And Reverse Clutch Piston Low and Reverse Clutch Piston Removal Callout Component Name 1 Low and Reverse Clutch Backing Plate 2 Low and Reverse Clutch Backing Plate 3 Low and Reverse Clutch Plate Assembly (Qty: 4 Low and Reverse Clutch Plate (Qty: 5) 5 Low and Reverse Clutch (Waved) Plate Callout Component Name Low and Reverse Clutch Spring Retaining
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

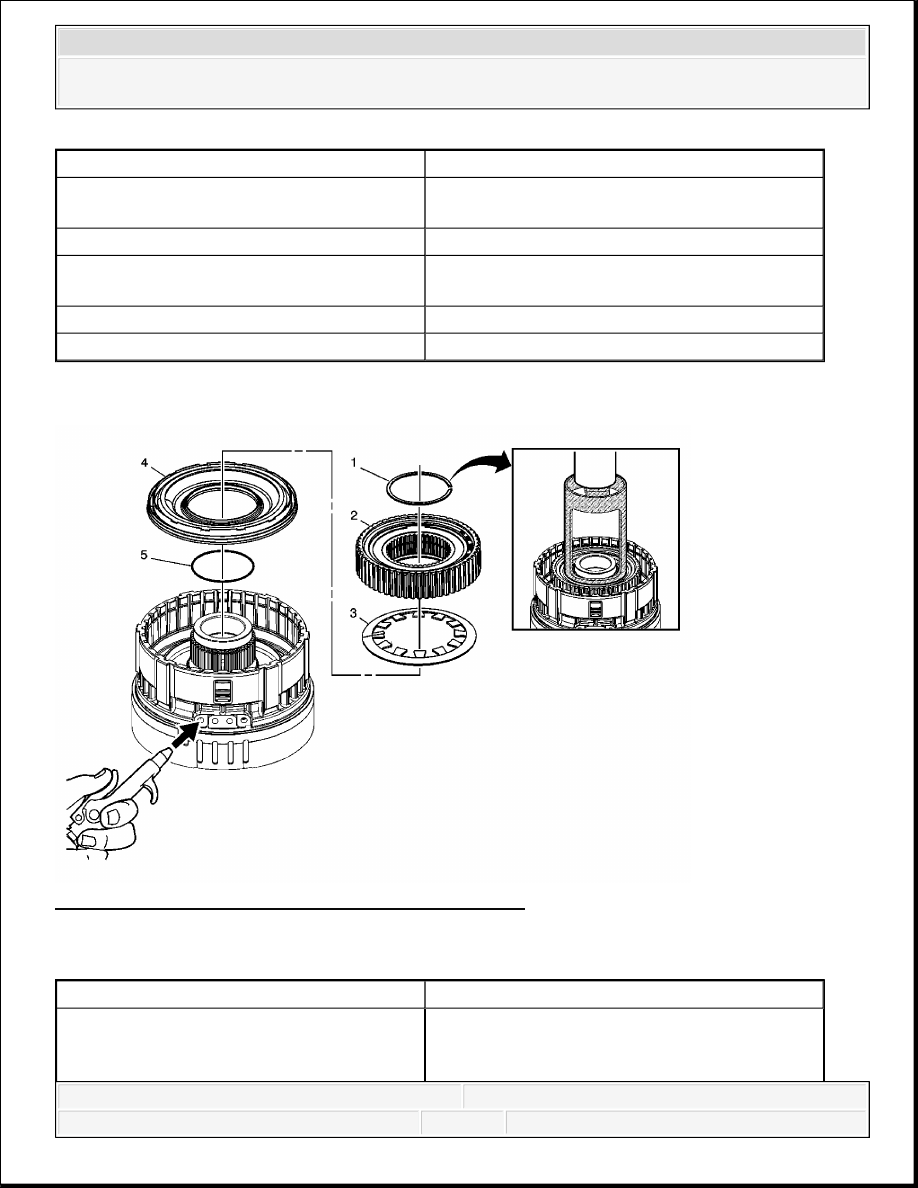

LOW AND REVERSE CLUTCH PISTON INSTALLATION 1 NOTE: Ensure the DT 47779 contacts the sprag assembly 2 Low Clutch Sprag Assembly 3 Low and Reverse Clutch Spring 4 Low and Reverse Clutch Piston Assembly 5 Low Clutch Sprag Seal NOTE: Refer to Seal Reuse Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

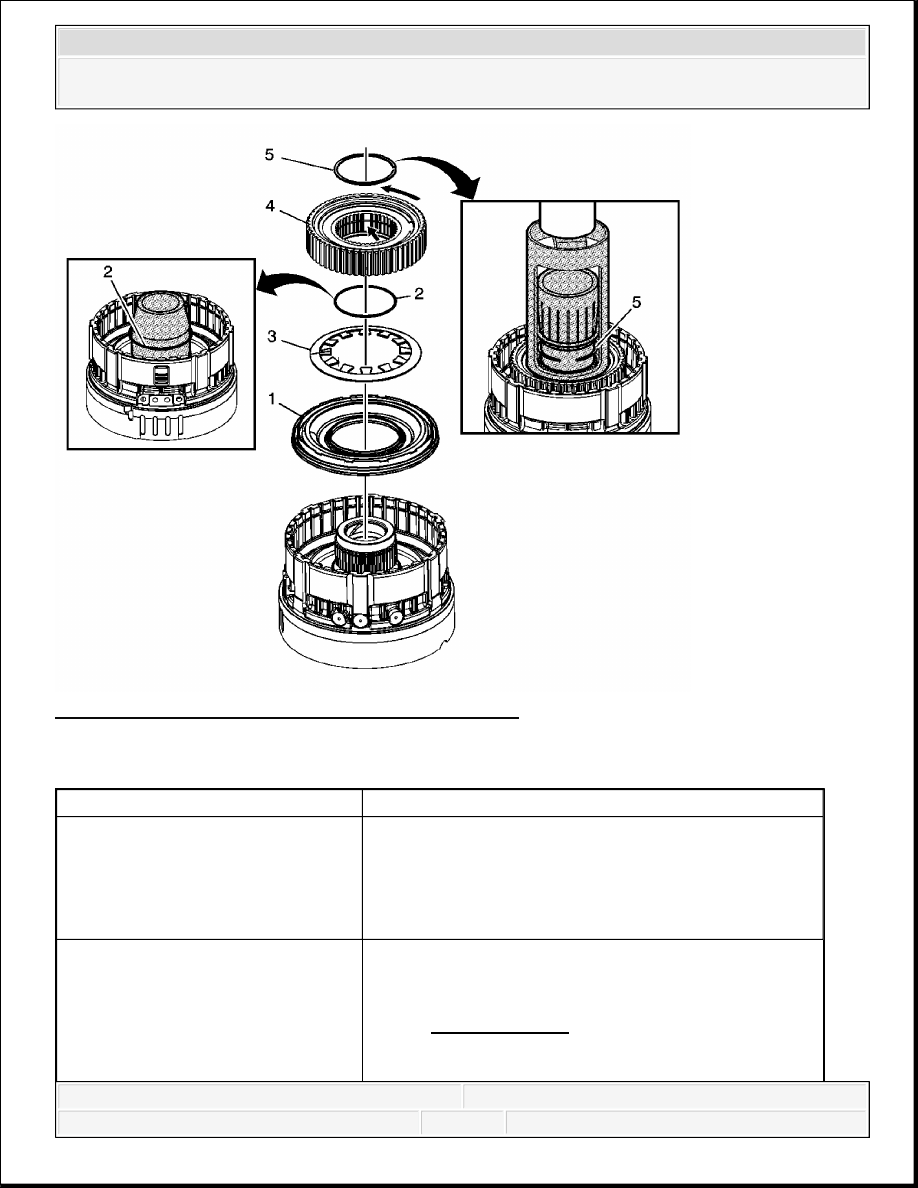

Fig. 130: Installing Low And Reverse Clutch Piston Low and Reverse Clutch Piston Installation Callout Component Name 1 Low and Reverse Clutch Piston Assembly Low Clutch Sprag Seal
NOTE: Refer to Seal Reuse Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
LOW AND REVERSE CLUTCH PLATE INSTALLATION 2 Tip: Apply ATF to the DT 47780 to ease seal 3 Low and Reverse Clutch Spring NOTE: Ensure the spring tabs are facing up during installation. 4 Low Clutch Sprag Assembly Verify that the low clutch sprag is operating Ensure the missing splines on the sprag assembly 5 Low and Reverse Clutch Spring Retaining Ring Special Tools DT 47778-1 Low Clutch Sprag Retaining Ring DT 47778-2 Low Clutch Sprag Retaining Ring DT 47779 Clutch Spring Compressor. See NOTE: Ensure the DT 47779 contacts the sprag assembly and not NOTE: The retaining ring gap must be aligned with the 3 missing
