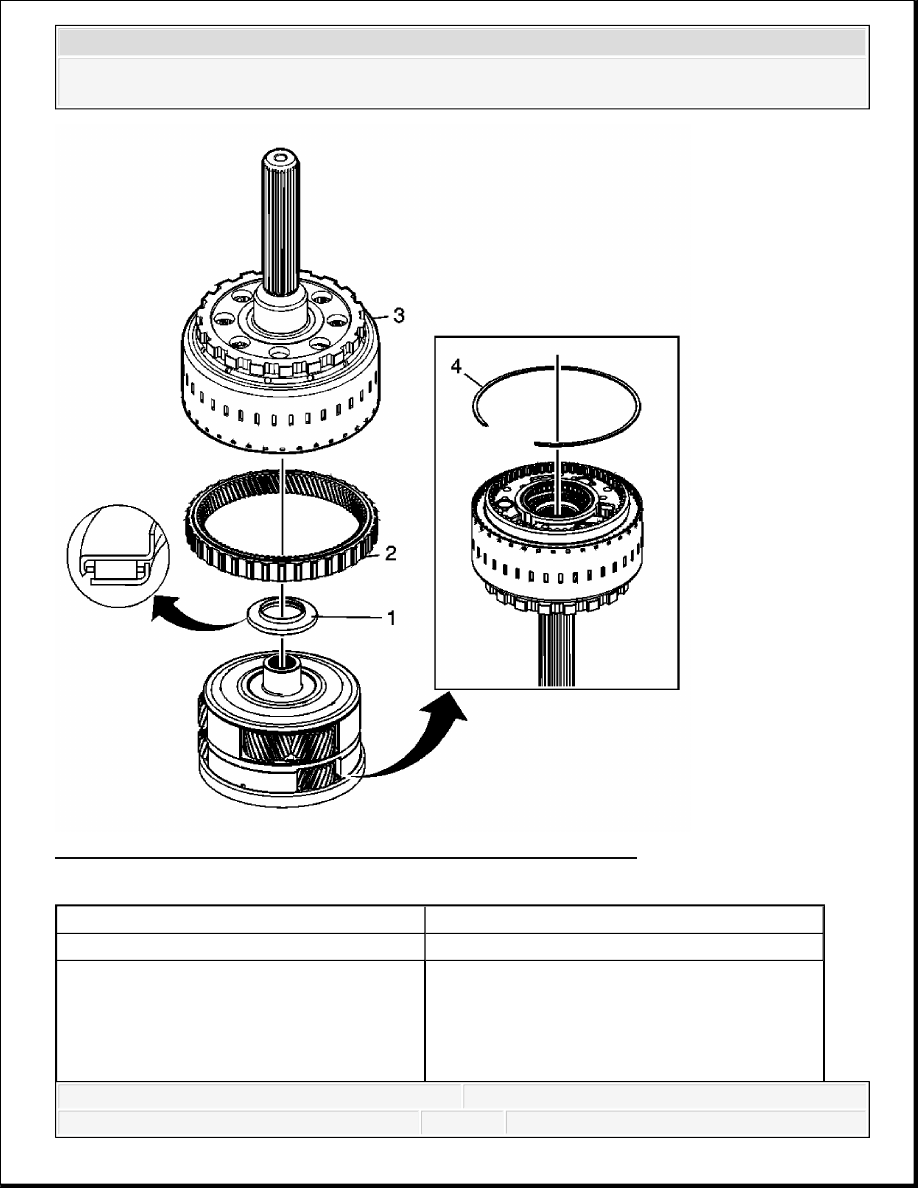

Fig. 121: Output Carrier to Output Shaft Assemble (6L80/6L90)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Output Carrier Thrust Bearing Assembly
2
Output Carrier Internal Front Gear
NOTE:
Install the gear flat side down. Failure to install the
gear flat side down may result in transmission
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
2-6 CLUTCH OVERHAUL (6L80)
2-6 CLUTCH PLATES REMOVAL
damage.
3
Output Shaft Assembly
4
Output Carrier Internal Gear Retaining Ring
Tip: Grasp the output shaft and carrier with
both hands to turn over.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

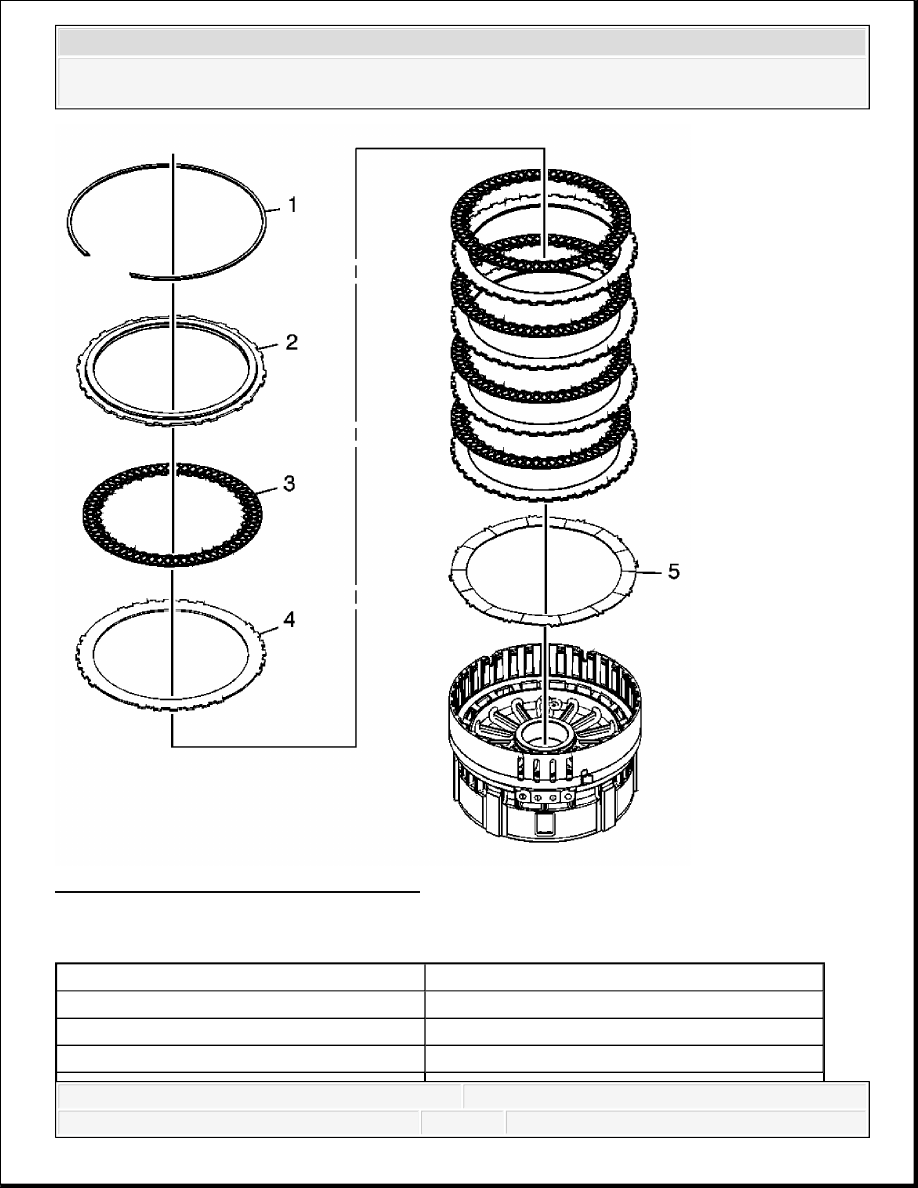

Fig. 122: Overhauling 2-6 Clutch (6L80)
Courtesy of GENERAL MOTORS CORP.
2-6 Clutch Plates Removal
Callout
Component Name
1
2-6 Clutch Backing Plate Retaining Ring
2
2-6 Clutch Backing Plate
3
2-6 Clutch Plate Assembly (Qty: 5)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
2-6 CLUTCH PISTON REPLACEMENT

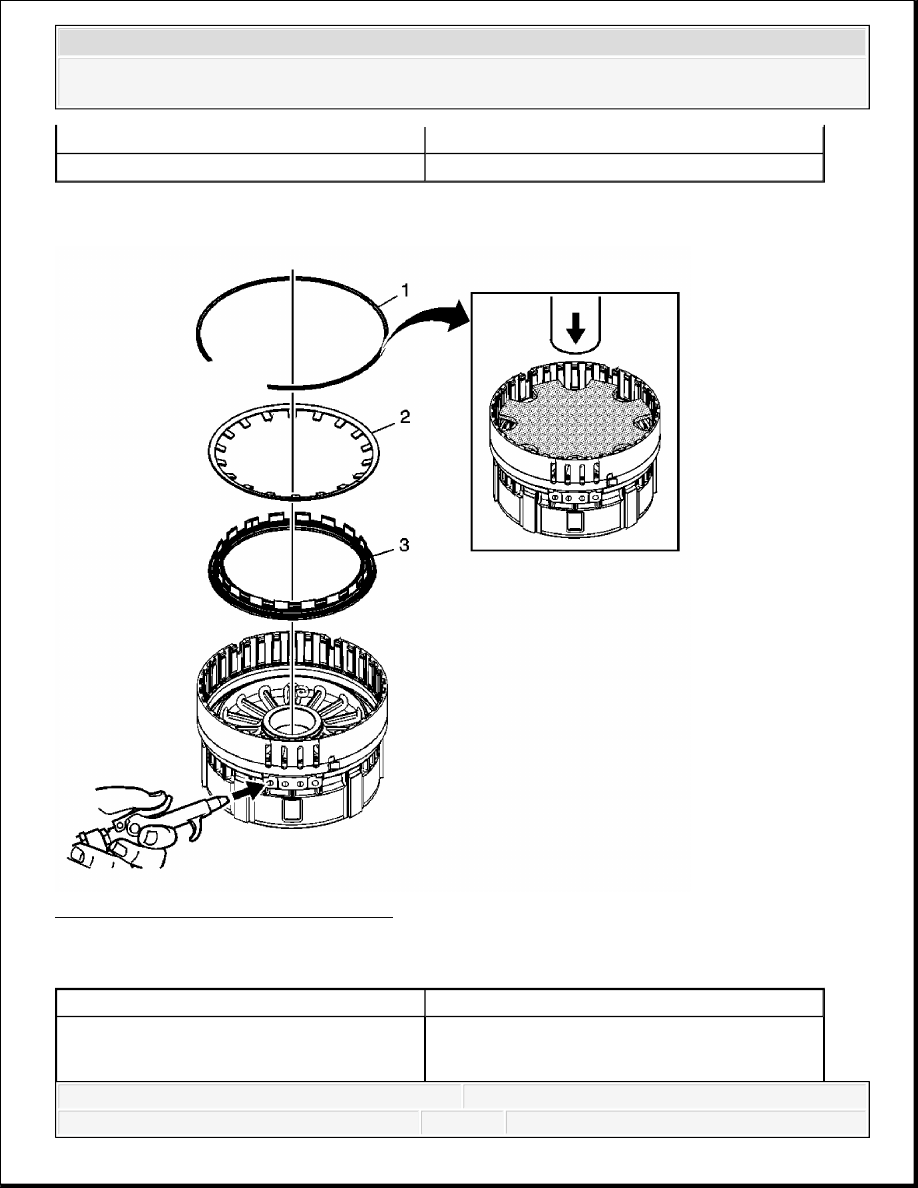

Fig. 123: Replacing 2-6 Clutch Piston
Courtesy of GENERAL MOTORS CORP.
2-6 Clutch Piston Replacement
4
2-6 Clutch Plate (Qty: 5)
5
2-6 Clutch (Waved) Plate
Callout
Component Name
2-6 Clutch Spring Retaining Ring
Tip: Ensure the DT 47761 is centered over the
