Chevrolet Silverado / GMC Sierra. Manual - part 775

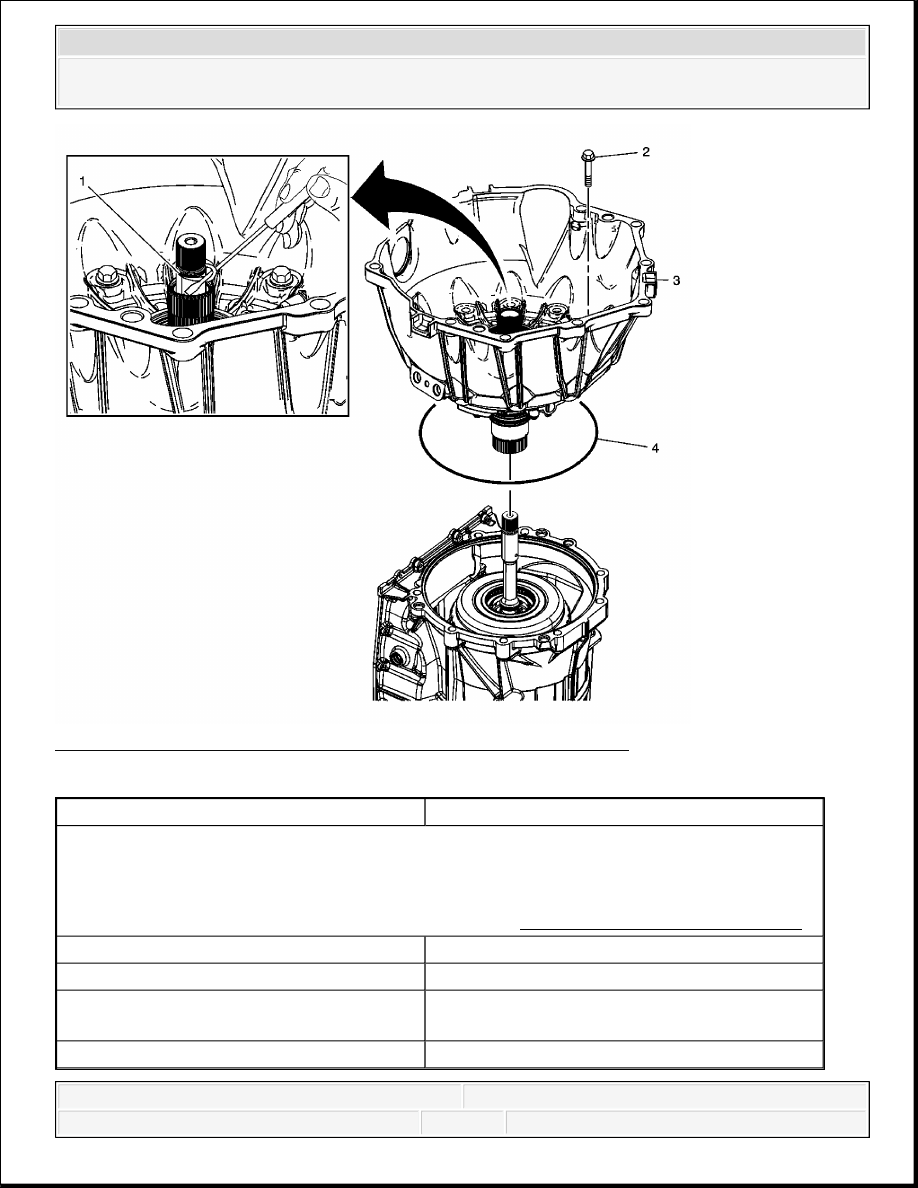

Fig. 110: Torque Converter Housing with Fluid Pump Removal
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
NOTE:
The valve body assembly must be removed prior to removing the torque converter (with fluid pump)
housing assembly. Failure to ensure this will cause severe damage to both fluid pump seal
assemblies. Also, the load of the valve body pushing on the seals, which in turn push on the pump,
may prevent proper pump installation into the case. Refer to control valve body assembly removal.
1
Turbine Shaft (O-ring) Seal
2
Bolt M10 x 50 (Qty: 9)
3
Torque Converter (With Fluid Pump) Housing
Assembly
4
Fluid Pump Seal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
1-2-3-4 AND 3-5 REVERSE CLUTCH ASSEMBLY AND 4-5-6 CLUTCH
ASSEMBLY REMOVAL

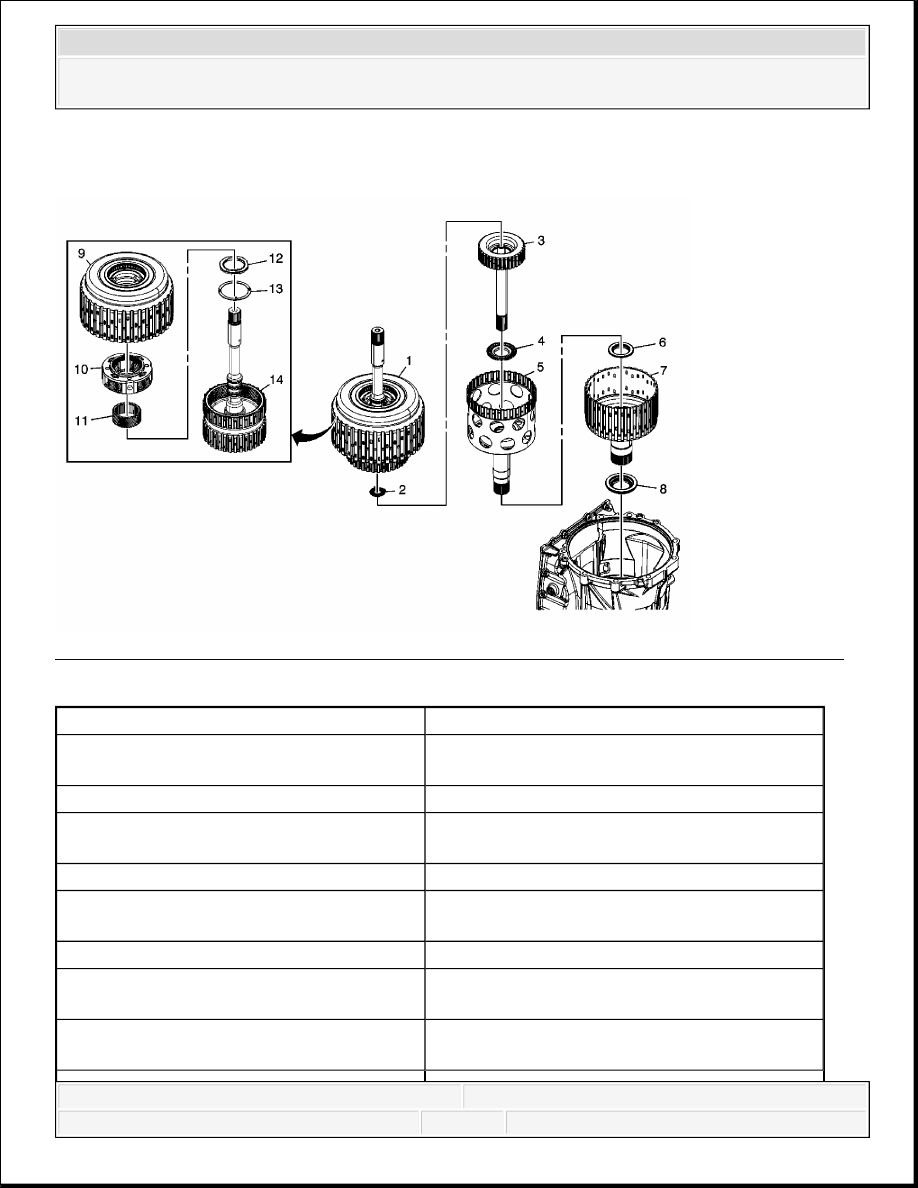

Fig. 111: 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
1-2-3-4 and 3-5 Reverse Clutch Assembly and
4-5-6 (With Turbine Shaft) Clutch Assembly
2
Turbine Shaft Thrust Bearing Assembly
3
4-5-6 Clutch (With Output Carrier Shaft and
Dampener) Hub Assembly
4
4-5-6 Clutch Hub Thrust Bearing Assembly
5
1-2-3-4 Clutch (With Output Carrier Inner Sun
Gear Shaft) Hub Assembly
6
1-2-3-4 Clutch Hub Thrust Bearing Assembly
7
2-6 and 3-5 Reverse Clutch (With Output
Carrier Outer Sun Gear Shaft) Hub Assembly
8
2-6 and 3-5 Reverse Clutch Hub Thrust
Bearing Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
CENTER SUPPORT, OUTPUT CARRIER AND OUTPUT SHAFT REMOVAL
(6L80/6L90)

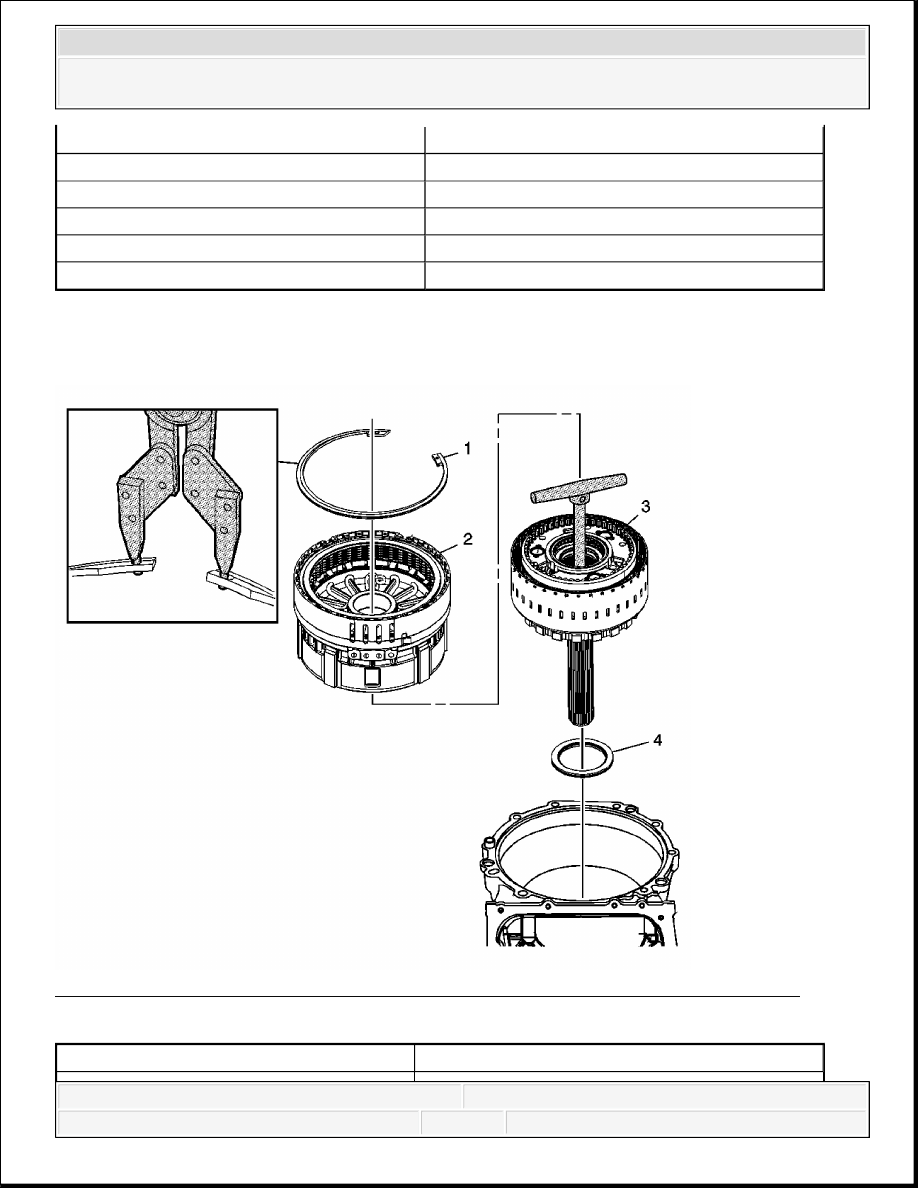

Fig. 112: Center Support, Output Carrier and Output Shaft Removal (6L80/6L90)
Courtesy of GENERAL MOTORS CORP.
9
1-2-3-4 and 3-5 Reverse Clutch Assembly
10
Input Carrier Assembly
11
Input Sun Gear
12
Input Sun Gear Thrust Bearing
13
Input Sun Gear Thrust Washer
14
4-5-6 (With Turbine Shaft) Clutch Assembly
Callout
Component Name
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
MANUAL SHIFT SHAFT AND PARKING SYSTEM COMPONENTS
OVERHAUL (6L80/6L90)
1
Center Support Retaining Ring
Tip: To release tension on the retaining ring,
place the retaining ring flat on the floor and step
on it, then remove the tool.
Special Tools
DT 47773 Snap Ring Pliers Adapter Set.
See Special Tools.
J 45126 Snap Ring Pliers. See Special
Tools.
CAUTION:
Use care when removing or installing the retaining
ring. Ensure the J 45126 and DT 47773 are installed
properly onto the retaining ring or bodily injury may
occur.
2
Center (with 2-6 Low and Reverse Clutch)
Support Assembly
3
Output Carrier Assembly and Output Shaft
Assembly
Special Tool:
DT 47786 Output Carrier/Shaft Lifting Tool.
See Special Tools.
NOTE:
Ensure the DT 47786 is completely threaded into the
output shaft assembly. Due to the weight of the
assembly, incomplete threading may cause the
assembly to break free from the DT 47786, causing
component damage.
4
Output Shaft Thrust Bearing Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
