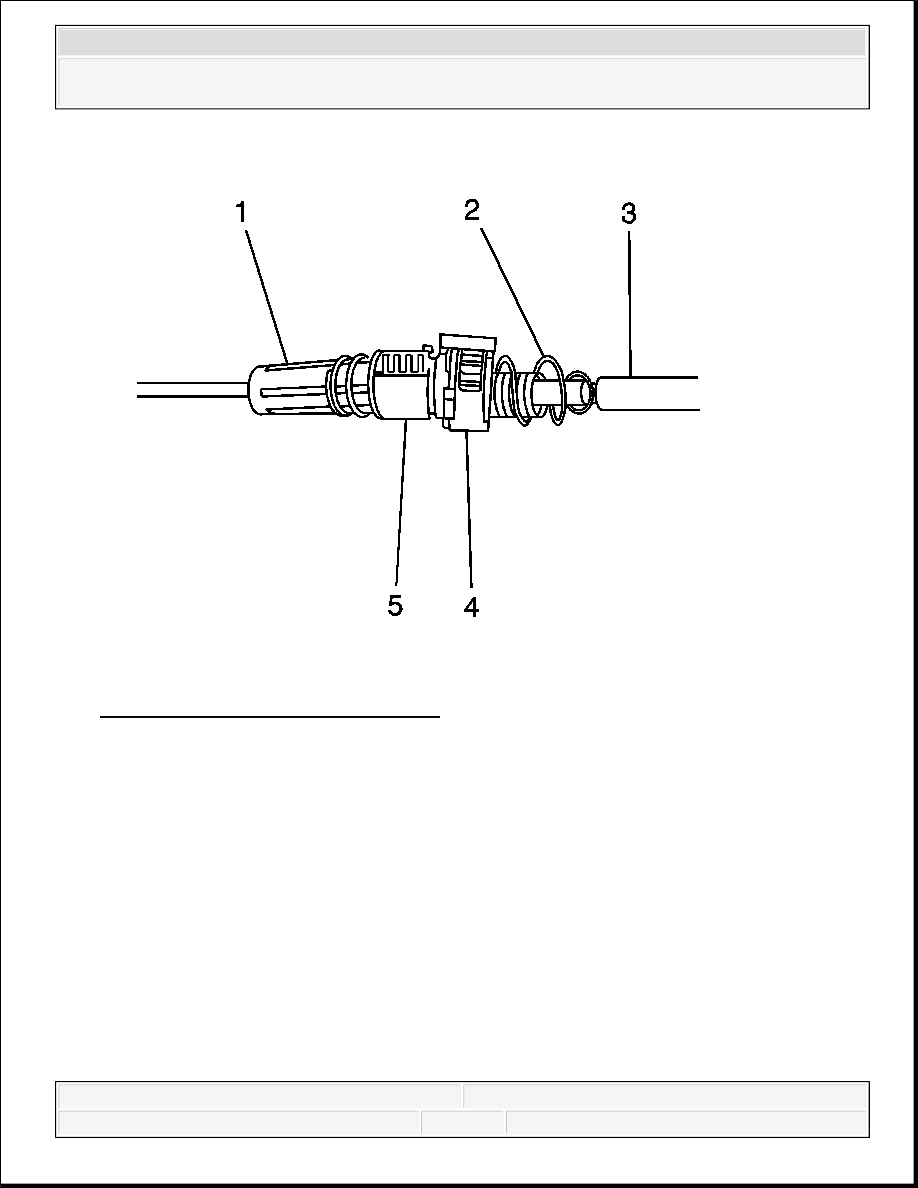

Fig. 47: Tension/Adjust Cable System
Courtesy of GENERAL MOTORS CORP.
6. Release the transmission end (3) and allow the spring (2) to tension/adjust the cable system.
7. Pull the white cover (5) on the shifter end (1) back.
8. Push the natural colored lock button (4) down to engage the locking teeth on the
transmission end (3).
IMPORTANT: DO NOT hold the transmission end (1) during this operation,
this will result in a mis-adjusted cable.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

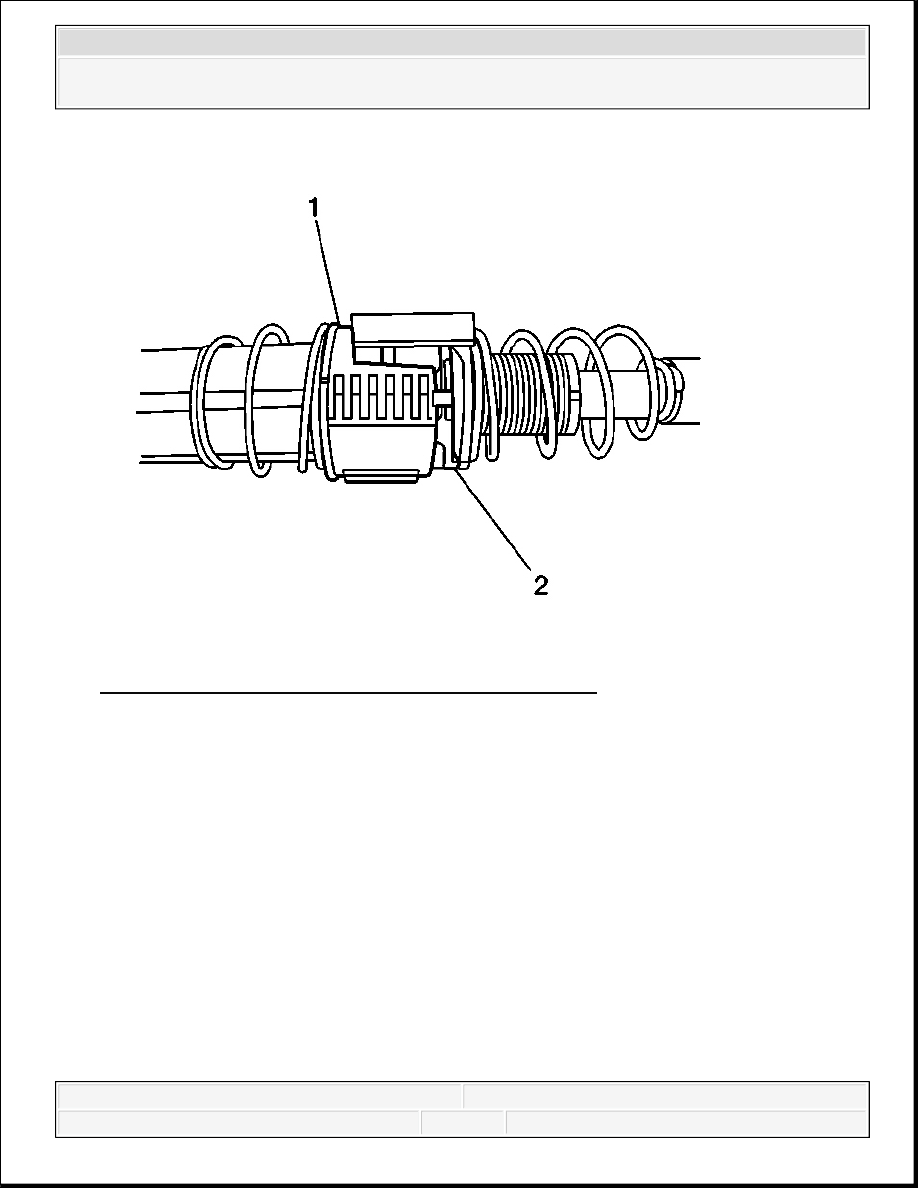

Fig. 48: View Of White Cover & Natural Colored Lock
Courtesy of GENERAL MOTORS CORP.
9. Release the white cover (1).
10. Verify the white cover (1) conceals the natural colored lock (2).
RANGE SELECTOR LEVER CABLE BRACKET REPLACEMENT
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

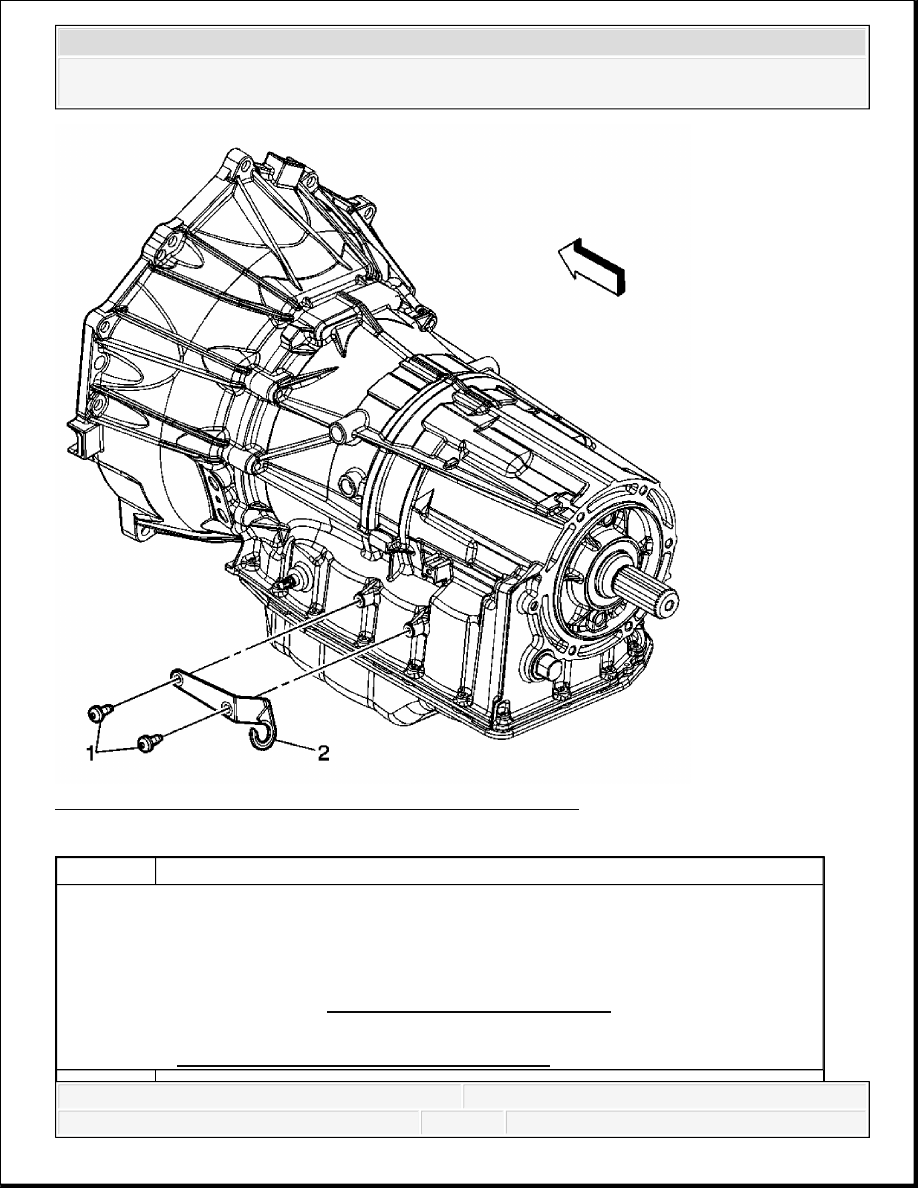

Fig. 49: Range Selector Lever Cable Bracket Replacement
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Apply the park brake.
2. Shift the transmission into neutral.
3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
4. Remove the transmission range selector cable from the range selector cable bracket.
Refer to Range Selector Lever Cable Replacement.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
AUTOMATIC TRANSMISSION RANGE SELECTOR LEVER REPLACEMENT

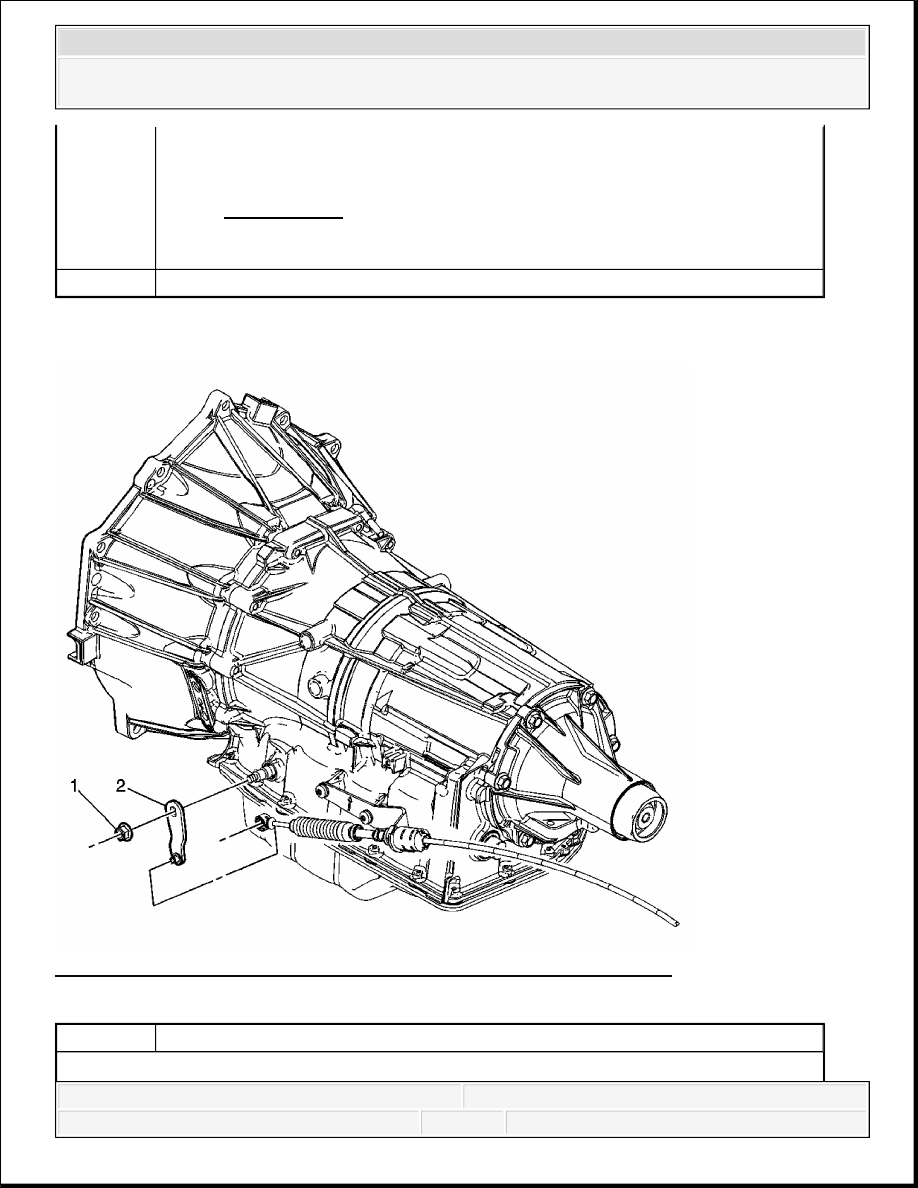

Fig. 50: Automatic Transmission Range Selector Lever Replacement
Courtesy of GENERAL MOTORS CORP.
1
Transmission Range Selector Cable Bracket Bolt (Qty: 2)
Tighten: 25 N.m (18 lb ft)
NOTE:
Refer to Fastener Notice .
2
Transmission Range Selector Cable Bracket
Callout
Component Name
Preliminary Procedures
2008 Chevrolet Silverado 1500
