Preliminary Procedures 1. Turn the ignition switch to the OFF position. 2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 3. Remove any dirt and debris from the area of the brake pressure modulator valve (BPMV) assembly. 4. Disconnect the electronic brake control module (EBCM) electrical connector. 1 Master Cylinder Inlet Brake Pipe Fitting (Qty: 2) Tighten: 18 N.m (13 lb ft) NOTE: Refer to Fastener Notice . 2 Front Wheel Outlet Brake Pipe Fitting (Qty: 2) Tighten: 18 N.m (13 lb ft) 3 Rear Wheel Outlet Brake Pipe Fitting Tighten: 18 N.m (13 lb ft) 4 Brake Pressure Modulator Valve (BPMV) Bracket Bolt (Qty: 3) Tighten: 22 N.m (16 lb ft) 5 BPMV Mounting Bolt Tighten: 11 N.m (97 lb in) 6 BPMV Mounting Bracket 7 BPMV Insulator (Qty: 2) BPMV Assembly
2008 Chevrolet Silverado 1500 2008 BRAKES Antilock Brake System - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

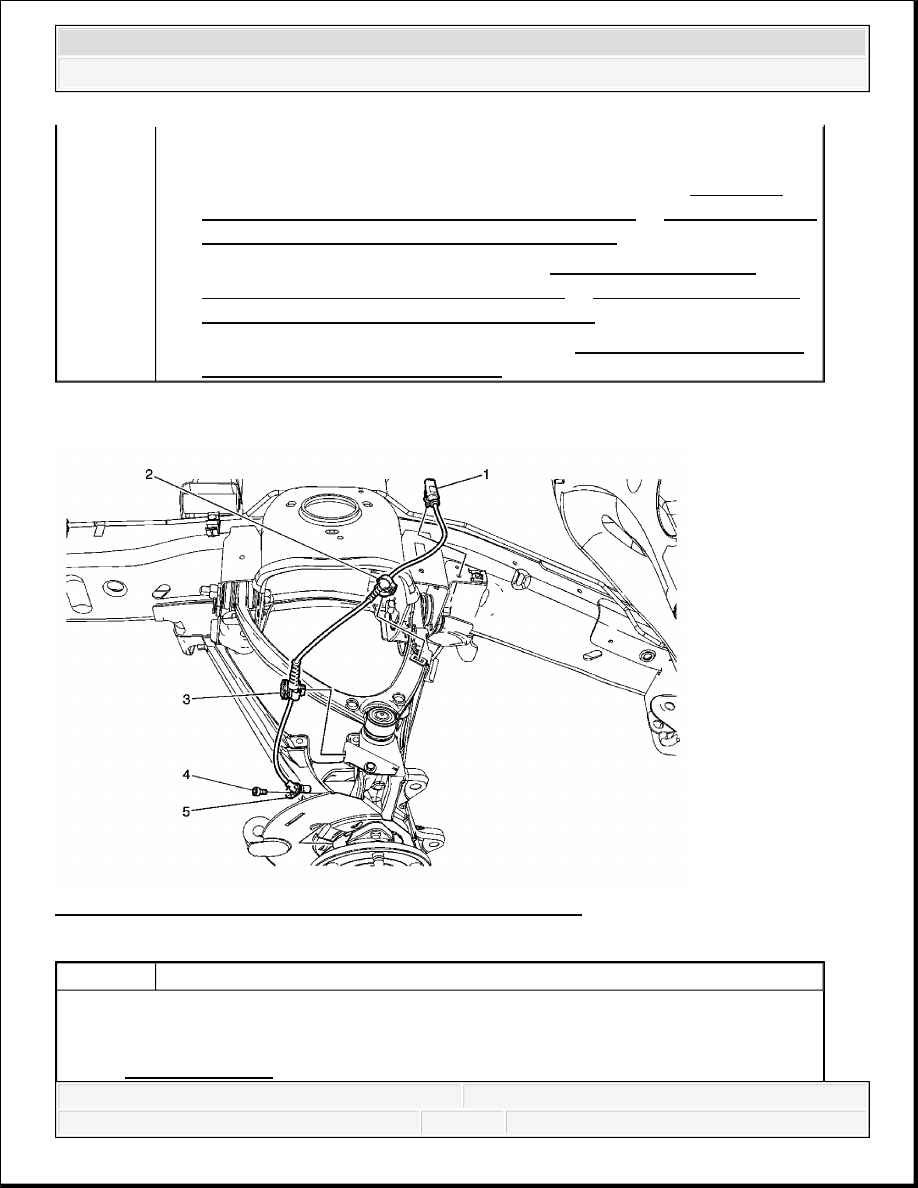

FRONT WHEEL SPEED SENSOR REPLACEMENT (JD9, JF3, JF7) Fig. 9: View Of Front Wheel Speed Sensor & Components 8 Procedure 1. If necessary, remove the EBCM from the BPMV. Refer to Electronic Brake Control Module Replacement (JH6, JH7) or Electronic Brake 2. Bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed Procedure (With JL4) or Antilock Brake System 3. Calibrate the brake pressure sensor. Refer to Electronic Brake Control Module Programming and Setup . Callout Component Name CAUTION: Refer to Brake Dust Caution .
2008 Chevrolet Silverado 1500 2008 BRAKES Antilock Brake System - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
FRONT WHEEL SPEED SENSOR REPLACEMENT (JH6, JH7) Preliminary Procedures 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . 3. Remove the brake rotor. Refer to Front Brake Rotor Replacement (JH6, JH7) or Front Brake Rotor Replacement (JD9, JF3, JF7) . 1 Wheel Speed Sensor Electrical Connector Clip Procedure 1. Disconnect the electrical connector. 2. Release the wheel speed sensor electrical connector clip from the brake hose bracket. 2 Wheel Speed Sensor Harness Clip 3 Wheel Speed Sensor Harness Clip 4 Wheel Speed Sensor Bolt Tighten: 17 N.m (13 lb ft) NOTE: Refer to Fastener Notice . 5 Wheel Speed Sensor
2008 Chevrolet Silverado 1500 2008 BRAKES Antilock Brake System - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

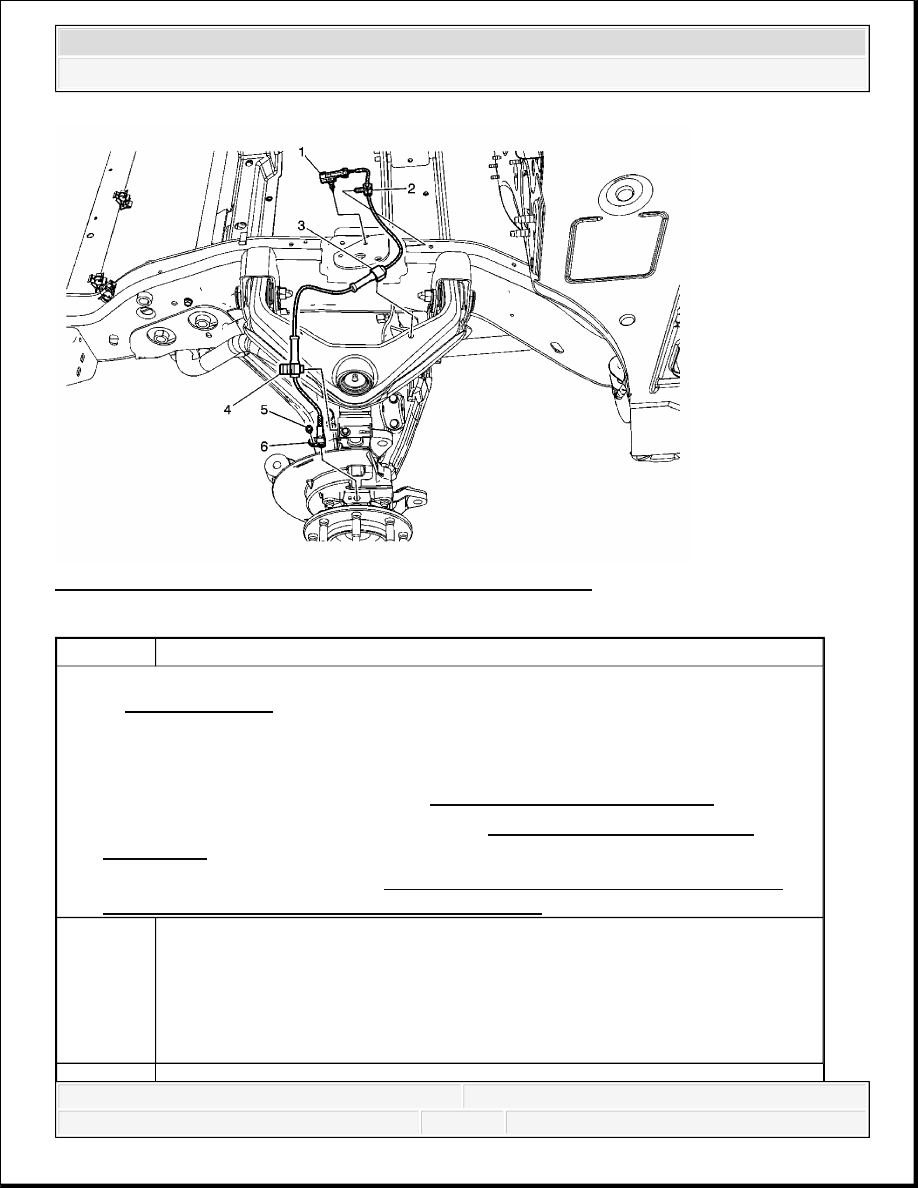

Fig. 10: View Of Front Wheel Speed Sensor & Components Callout Component Name Preliminary Procedures 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . 3. Remove the brake rotor. Refer to Front Brake Rotor Replacement (JH6, JH7) or Front Brake Rotor Replacement (JD9, JF3, JF7) . CAUTION: Refer to Brake Dust Caution . 1 Wheel Speed Sensor Electrical Connector Clip Procedure 1. Disconnect the electrical connector. 2. Release the wheel speed sensor electrical connector clip from the frame.
