Chevrolet Silverado / GMC Sierra. Manual - part 621

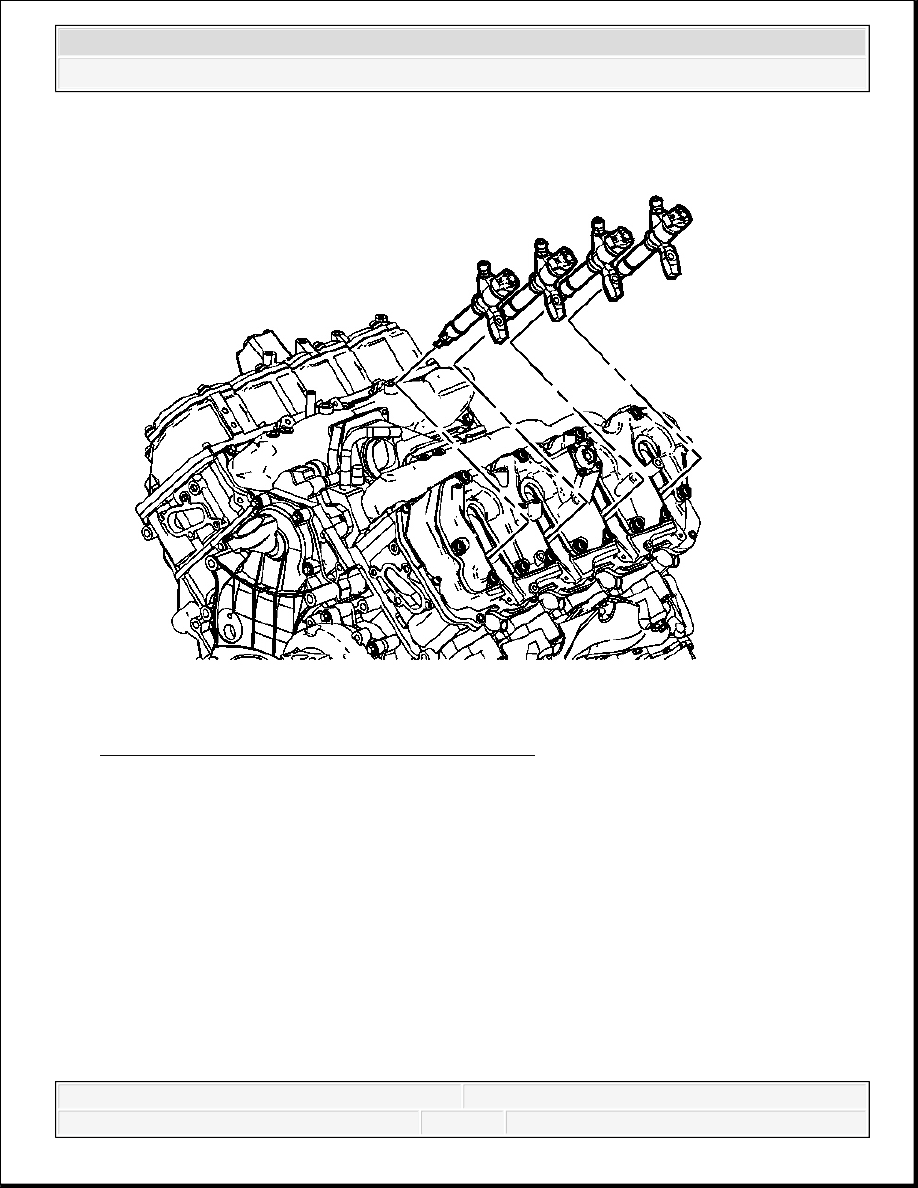

Fig. 13: View Of Left Fuel Injectors W/Brackets
Courtesy of GENERAL MOTORS CORP.
7. Install the left fuel injector with fuel injector bracket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

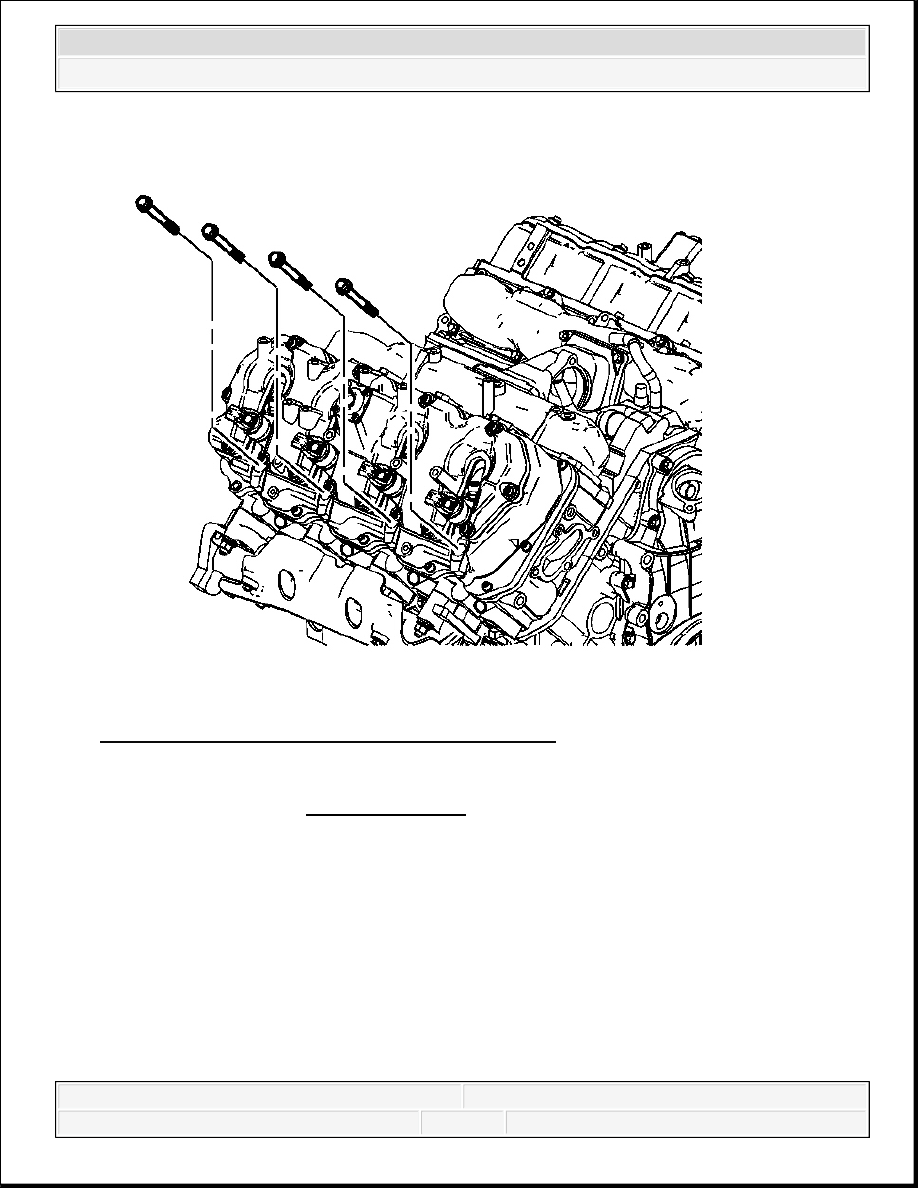

Fig. 14: View Of Right Fuel Injector Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
8. Install the right fuel injector bracket bolts.
Tighten: Tighten the right fuel injector bracket bolts to 30 N.m (22 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

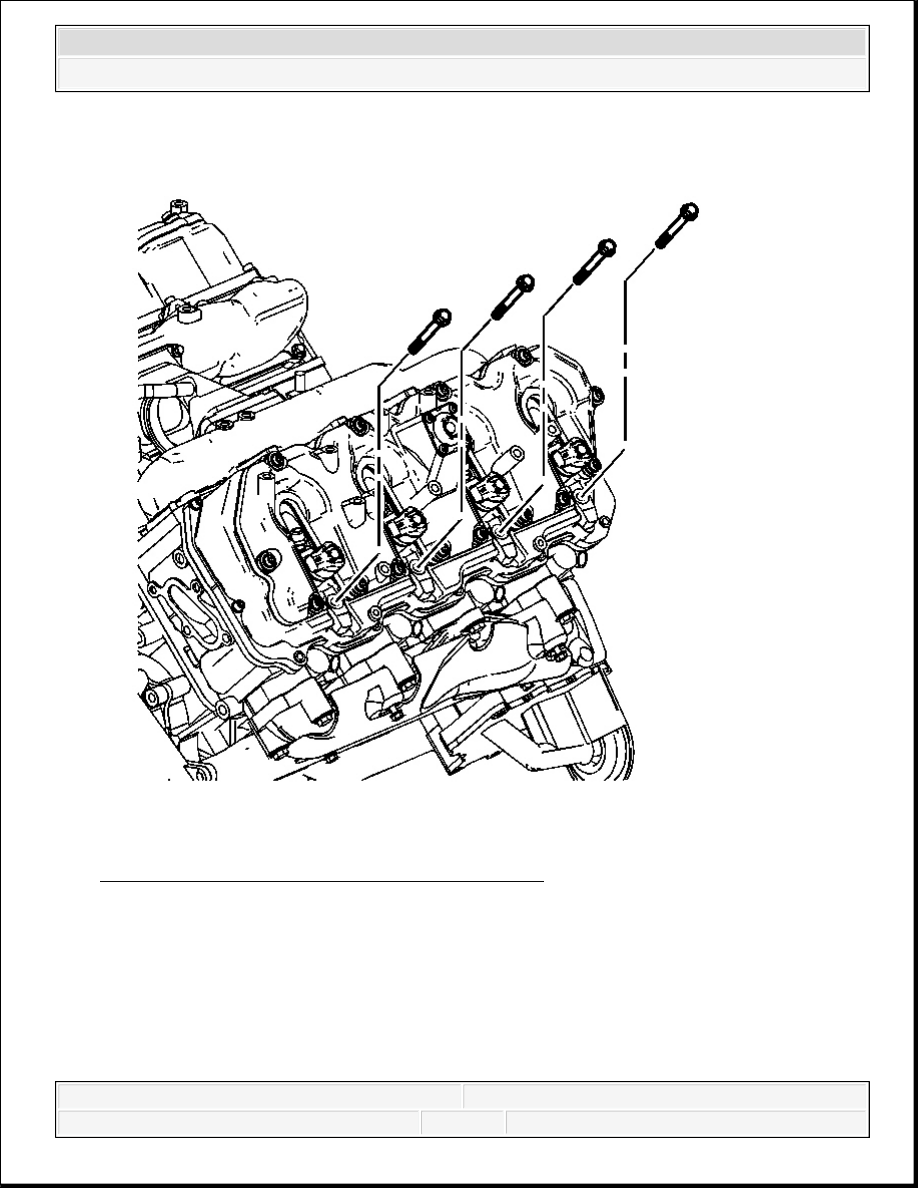

Fig. 15: View Of Left Fuel Injector Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
9. Install the left fuel injector bracket bolts.
Tighten: Tighten the left fuel injector bracket bolts to 30 N.m (22 lb ft).
FUEL PIPES AND FUEL RAIL INSTALLATION
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

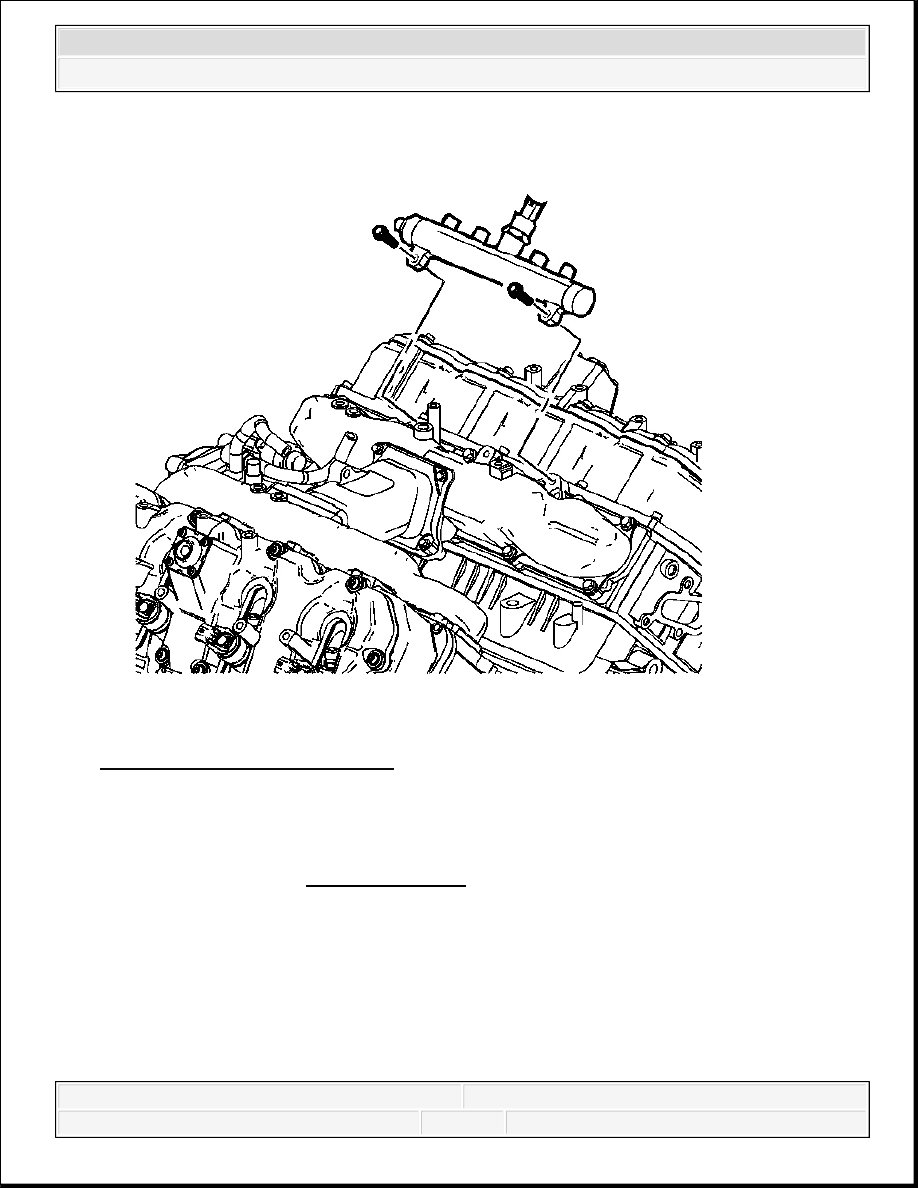

Fig. 16: View Of Right Fuel Rail
Courtesy of GENERAL MOTORS CORP.
1. Install the right fuel rail.
2. Install the right fuel rail mounting bolts.
Tighten: Tighten the right fuel rail mounting bolts to 25 N.m (18 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
