10. Install the original connecting rod cap bolts for the plastic gauging. NEW bolts will be used for final assembly. 11. Tighten the bolts in three steps. Tighten: 1. 1st step 64 N.m (47 lb ft) 2. 2nd step 30 degrees using J 45059 3. 3rd step 30 degrees using J 45059 12. Remove the connecting rod cap bolts. 13. Compare the width of the gauging plastic with the scale printed on the gauging plastic container. The connecting rod bearing clearance should be 0.10 mm (0.0039 in). 14. Discard the original connecting rod bolts once the plastic gauging is completed. NEW connecting rod bolts will be used for final assembly. 15. Carefully clean the gauging plastic from the bearing surface and the crankpin. 16. Lubricate the connecting rod bearing inserts with engine oil. 17. Install the connecting rod caps with the stamped cylinder number aligned with the stamped cylinder number on the connecting rods. 18. Install NEW connecting rod cap bolts. 19. Tighten the connecting rod cap bolts in three steps. Tighten: 1. 1st step 64 N.m (47 lb ft) 2. 2nd step 30 degrees using J 45059 3. 3rd step 30 degrees using J 45059 PISTON OIL COOLING NOZZLE INSTALLATION NOTE: Refer to Fastener Notice . NOTE: This component uses bolts with a preapplied molybdenum
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

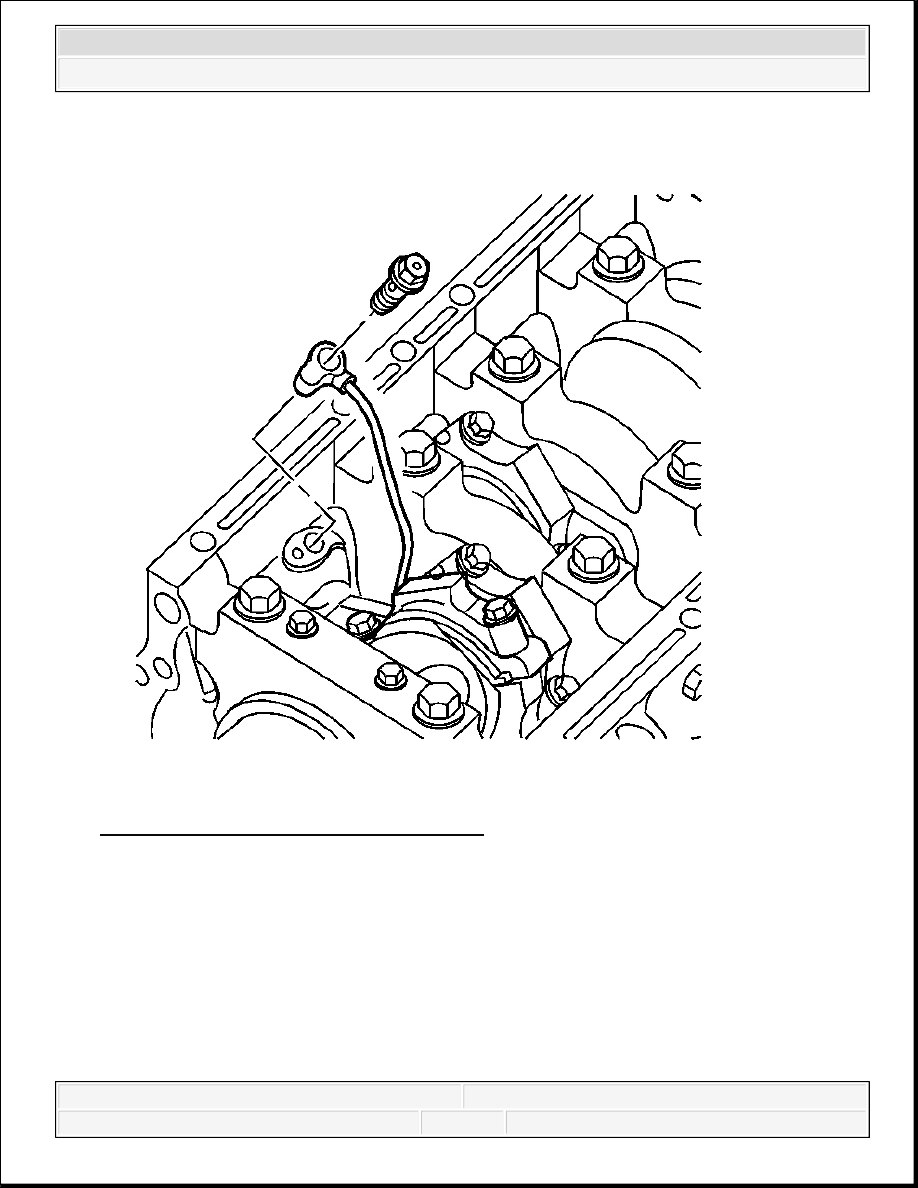

Fig. 97: View Of Piston Oil Cooling Nozzle 1. Install the piston oil cooling nozzle.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

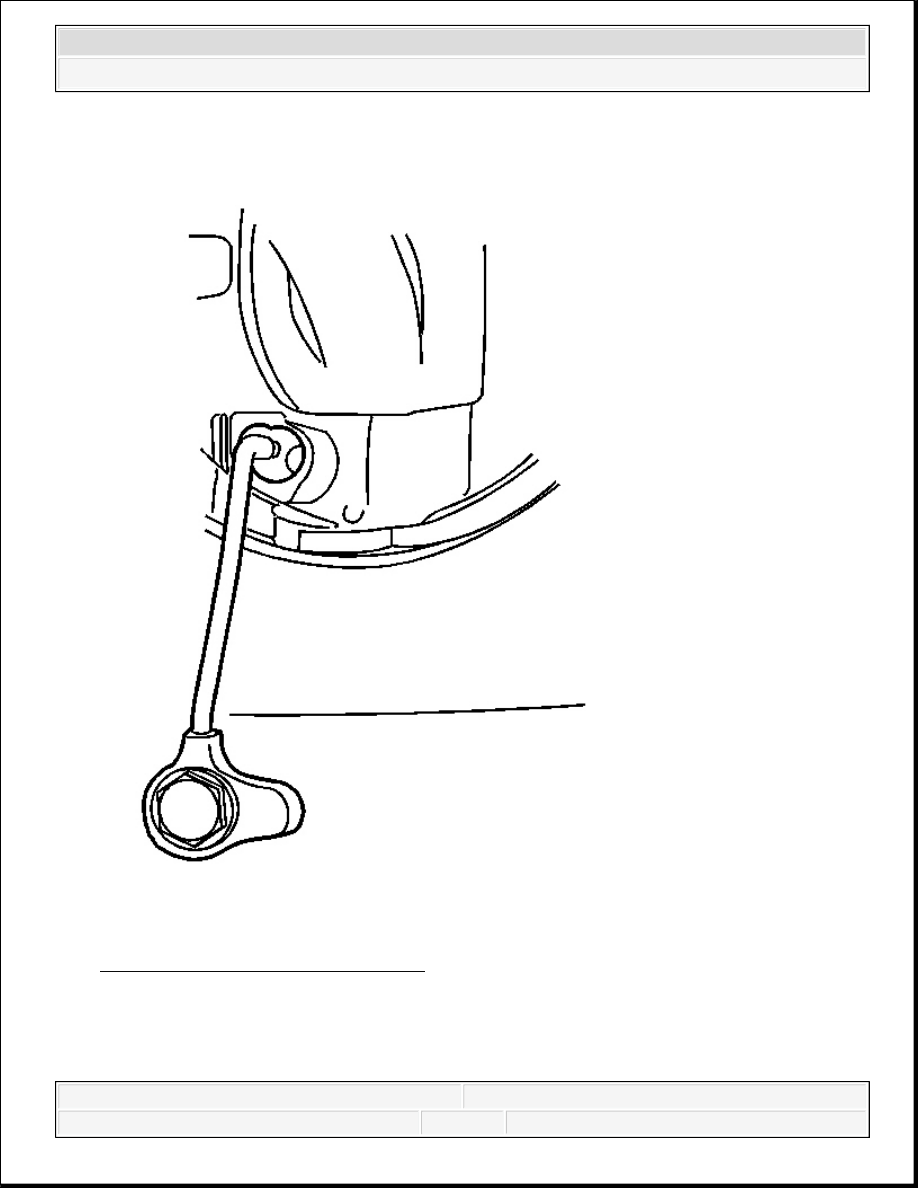

Fig. 98: Aligning Oil Cooling Nozzle NOTE: The piston oil cooling nozzle must be aligned to direct oil
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

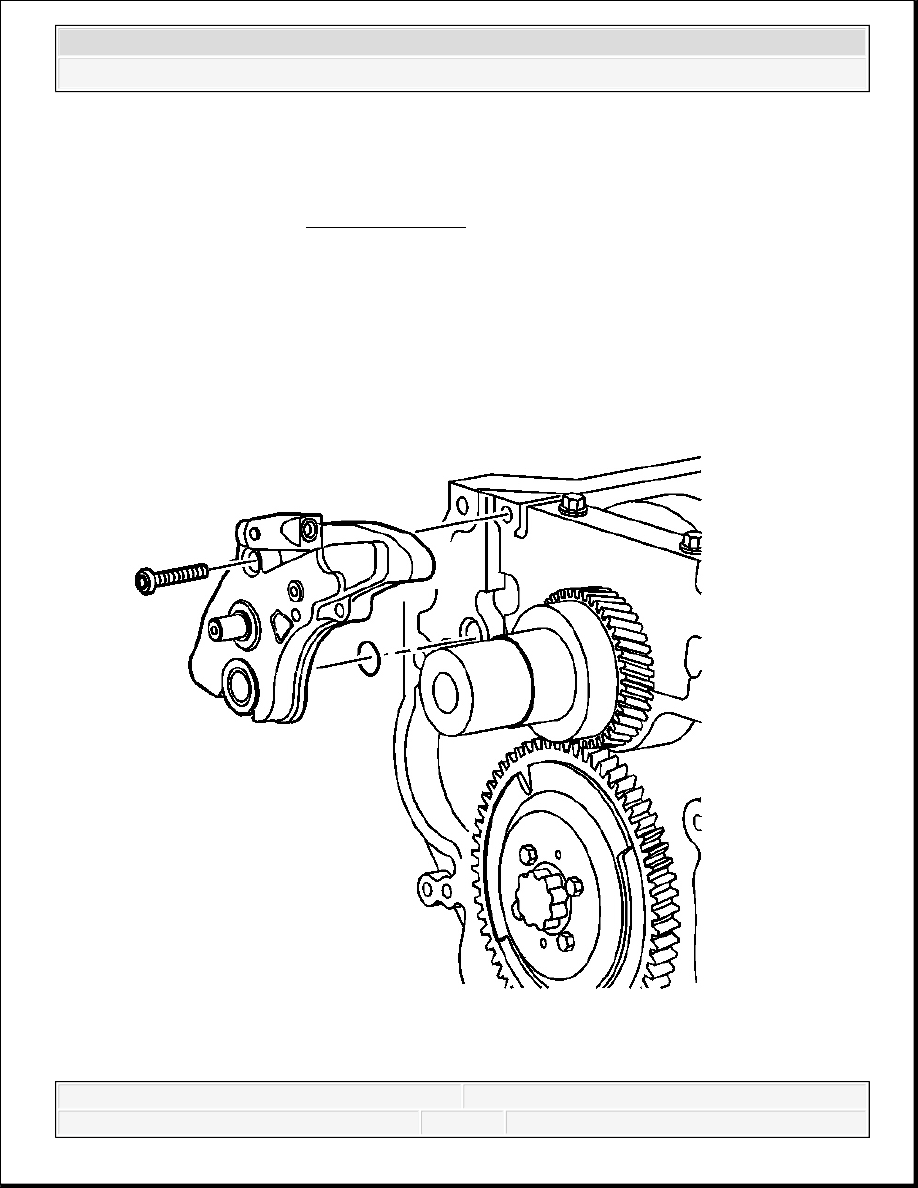

2. Install the piston oil cooling nozzle bolt. Tighten: Tighten the piston oil cooling nozzle bolts to 21 N.m (15 lb ft). OIL PUMP INSTALLATION Fig. 99: View Of Oil Pump, Bolts & O-Ring alignment of the piston oil cooling nozzle will allow insufficient NOTE: Refer to Fastener Notice .
