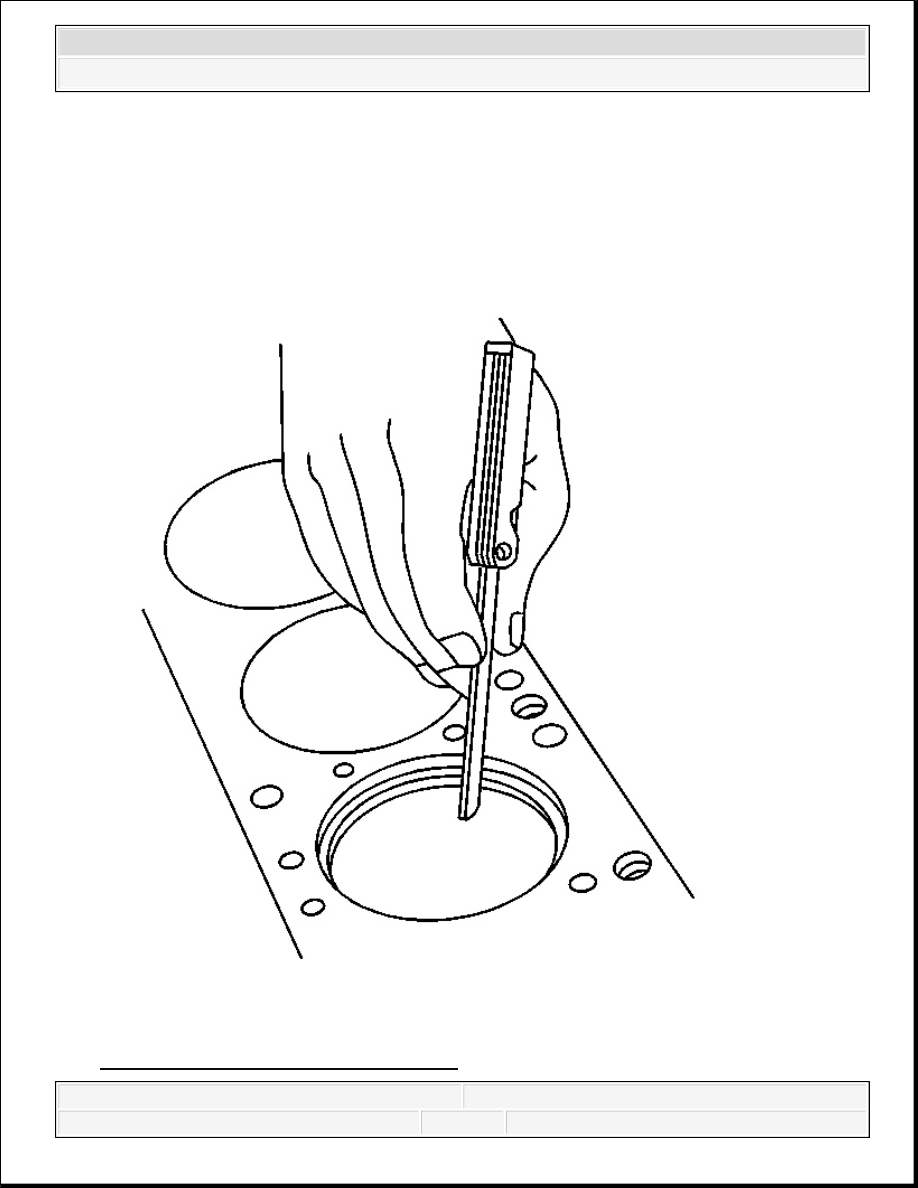

Fig. 3: Measuring Piston Ring End Gap
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
3. Measure the piston ring end gap.
Use a piston to square the piston ring near the top of the cylinder.
Use a feeler gauge to measure the piston ring gap.
The 1st compression ring production gap is 0.30-0.45 mm (0.0118-0.0177 in) and the
service limit is 1.37 mm (0.0539 in).
The 2nd compression ring production gap is 0.50-0.65 mm (0.0197-0.0256 in) and the
service limit is 1.35 mm (0.0531 in).
The oil ring production gap is 0.15-0.35 mm (0.0059-0.0138 in) and the service limit
is 1.20 mm (0.0472 in).
Replace the piston ring if the measured value exceeds the service limit.

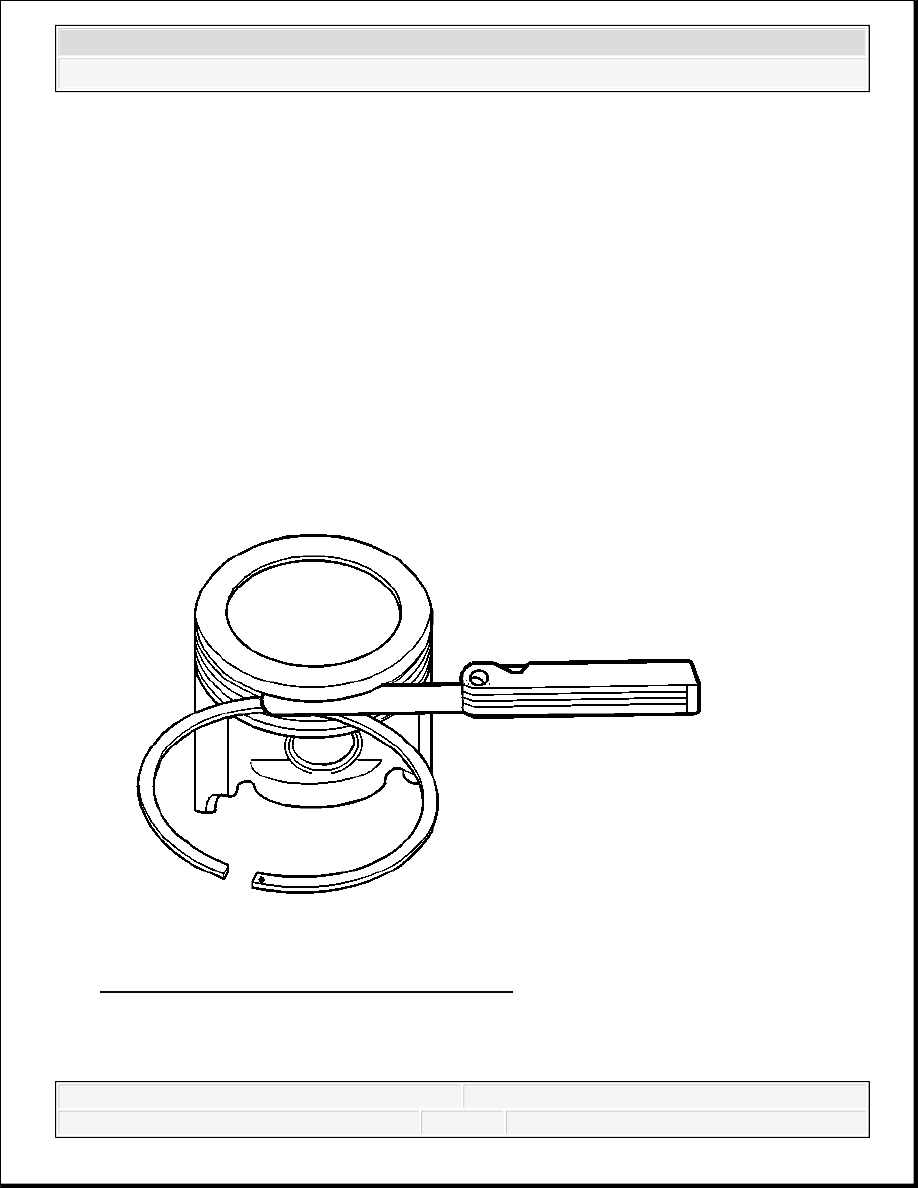

Fig. 4: Measuring Piston Ring Side Clearance
Courtesy of GENERAL MOTORS CORP.
4. Measure the piston ring to piston ring groove clearance.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Use a feeler gauge to measure the clearance between the piston ring and the piston ring
groove at several points around the piston.
The 1st compression ring production clearance is 0.08-0.17 mm (0.0030-0.0007 in)
and the service limit is 0.26 mm (0.0102 in).
The 2nd compression ring production clearance is 0.01-0.03 mm (0.0004-0.0012 in)
and the service limit is 0.10 mm (0.0039 in).
The oil ring production clearance is 0.01-0.03 mm (0.0004-0.0012 in) and the service
limit is 0.12 mm (0.0047 in).
Replace the piston ring if the measured value exceeds the service limit.

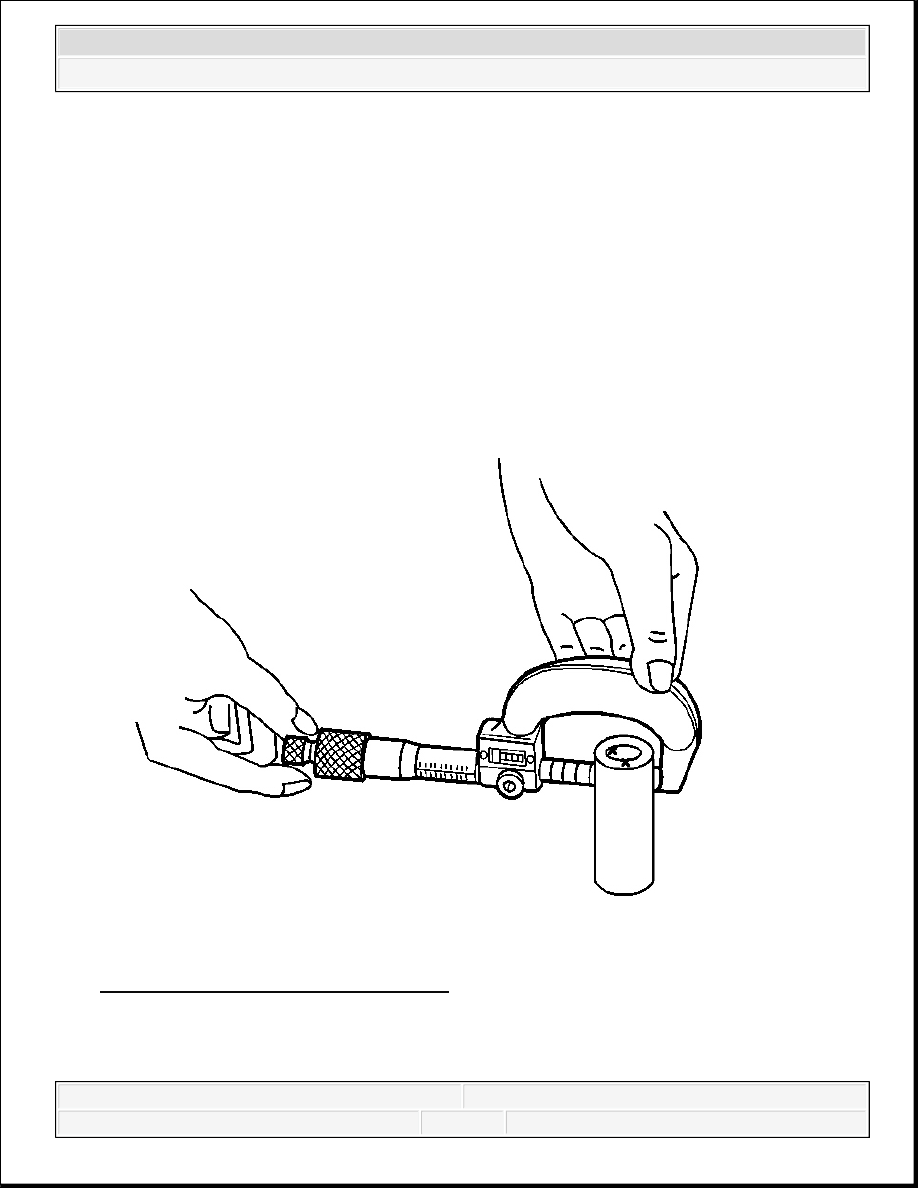

Fig. 5: Measuring Piston Pin Diameter
Courtesy of GENERAL MOTORS CORP.
5. Measure the piston pin outside diameter.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Measure the piston pin outside diameter at several points.
The production value is 34.495-34.50 mm (1.3581-1.3563 in) and the service limit is
34.450 mm (1.3563 in).
Replace the piston pin if the measured value is less than the service limit.

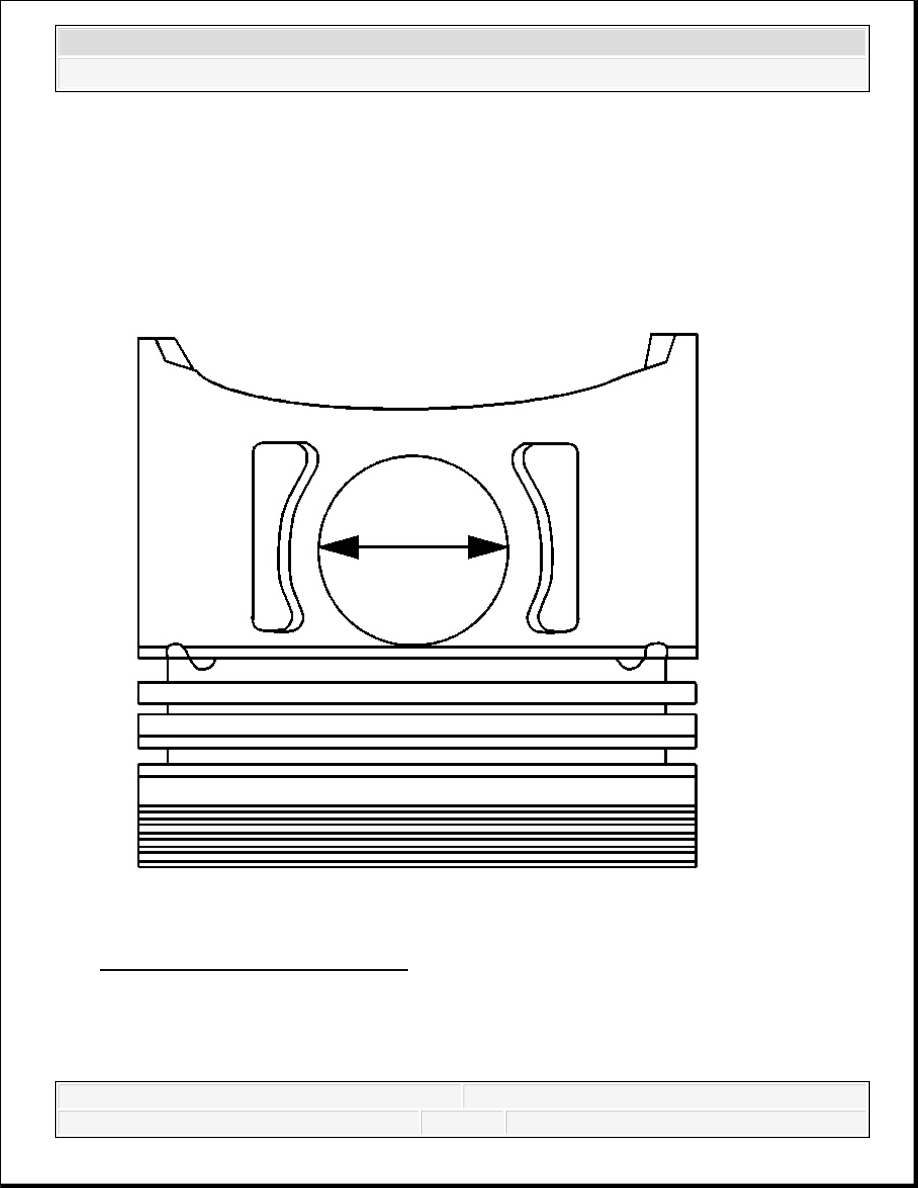

Fig. 6: Measuring Piston Pin Bore
Courtesy of GENERAL MOTORS CORP.
6. Measure the piston pin to piston pin bore clearance.
Measure the piston pin bore.
