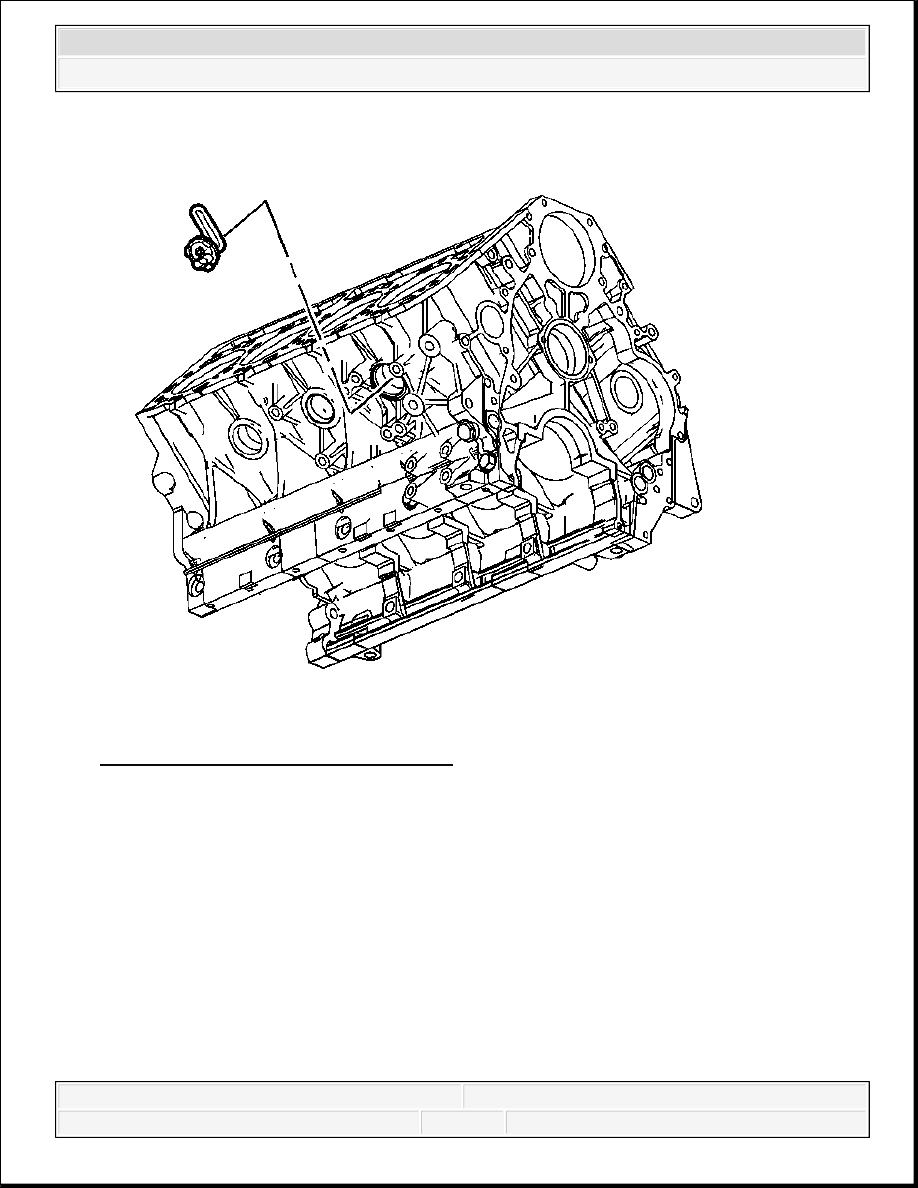

Fig. 170: View Of Engine Block Heater
Courtesy of GENERAL MOTORS CORP.
26. Install a new O-ring to the block heater.
27. Lubricate the O-ring with engine coolant.
28. Install the engine block heater.
UPPER OIL PAN CLEANING AND INSPECTION
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

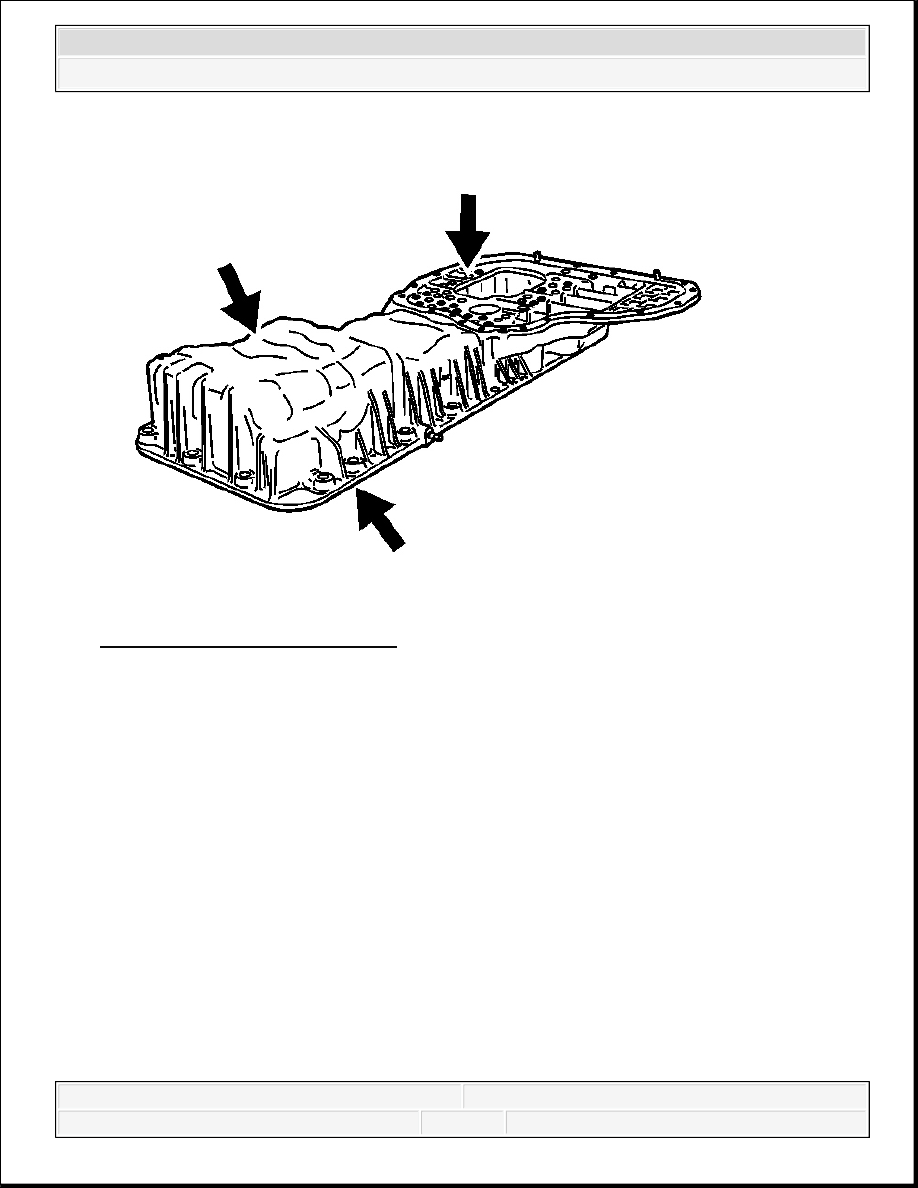

Fig. 171: View Of Upper Oil Pan
Courtesy of GENERAL MOTORS CORP.
1. Clean the upper oil pan.
2. Carefully clean the sealer from the threaded holes.
3. Inspect the upper oil pan for cracks.
4. Inspect the upper oil pan sealing surfaces for damage.
5. Replace the upper oil pan if any damage is found.
CAMSHAFT AND BEARINGS CLEANING AND INSPECTION
Tools Required
J 7872 Dial Indicator Set
Inspection
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

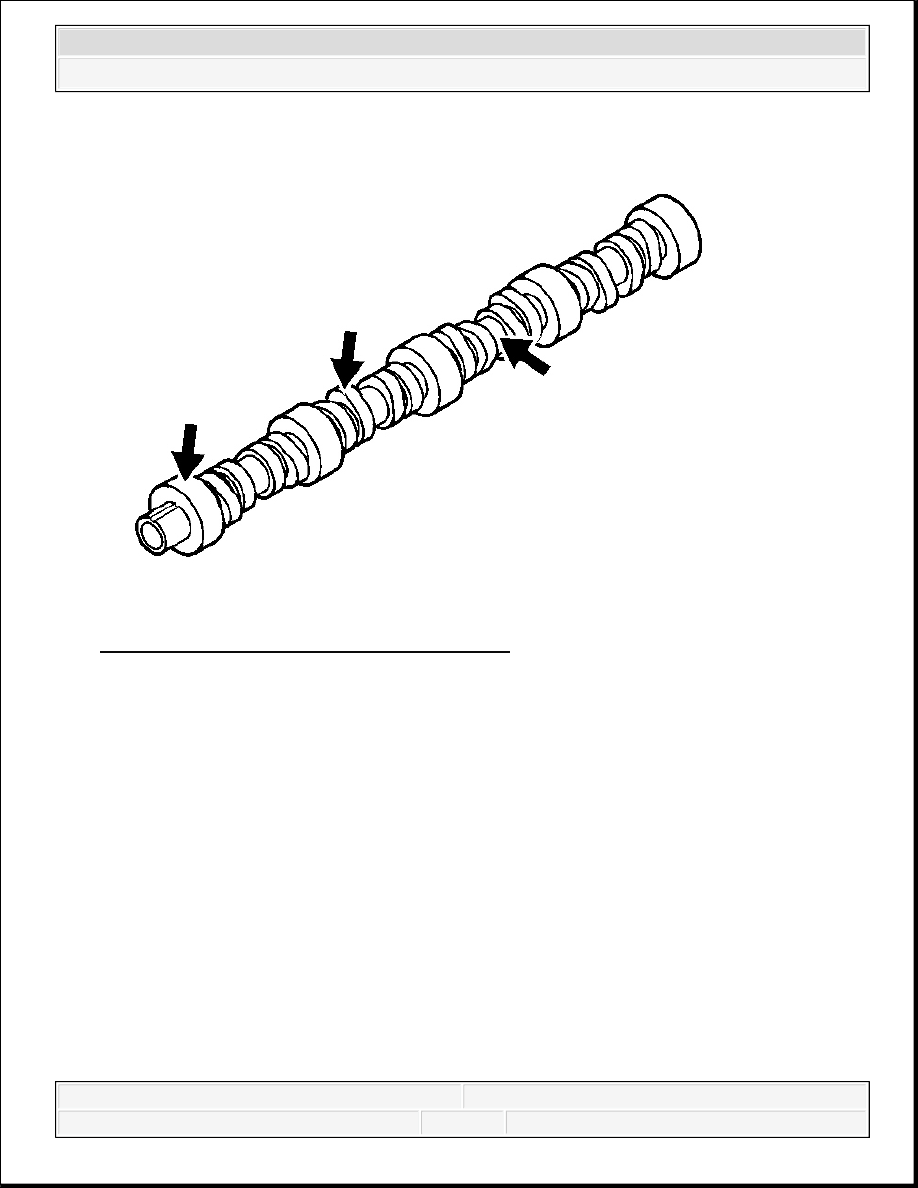

Fig. 172: View Of Camshaft Inspection Areas
Courtesy of GENERAL MOTORS CORP.
1. Clean the camshaft.
2. Visually inspect the camshaft bearings in the engine block for the following conditions:
Scoring
Nicks
Damage caused by lack of lubrication
Misaligned oil feed holes
IMPORTANT: The camshaft bearings are not serviceable. If the camshaft
bearings are damaged, the engine must be replaced.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

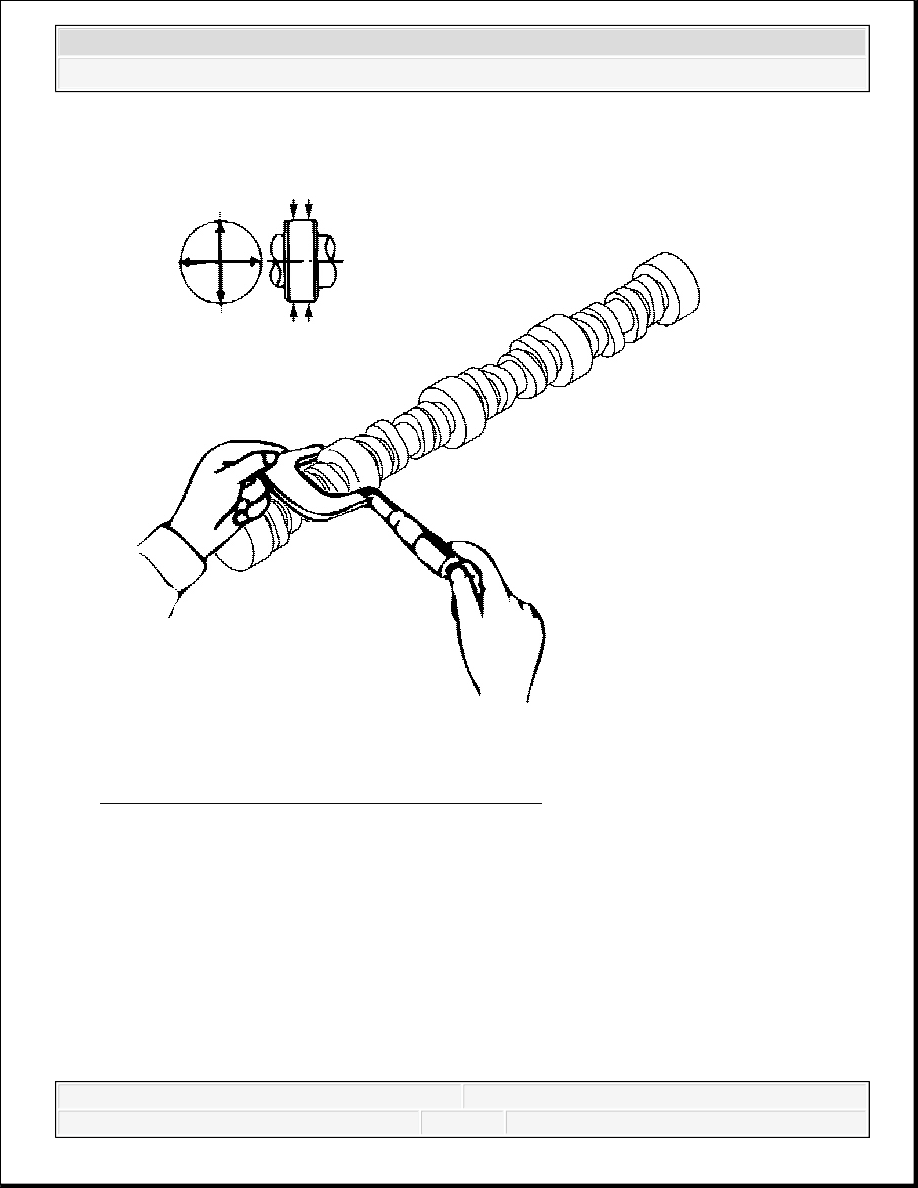

Fig. 173: Measuring Camshaft Journal Diameter
Courtesy of GENERAL MOTORS CORP.
3. Measure the camshaft journal diameter.
The production value is 60.932-60.962 mm (2.3990-2.4001 in) and service limit is
60.920 mm (2.3984 in).
Replace the camshaft if the measured value is less than service limit.
