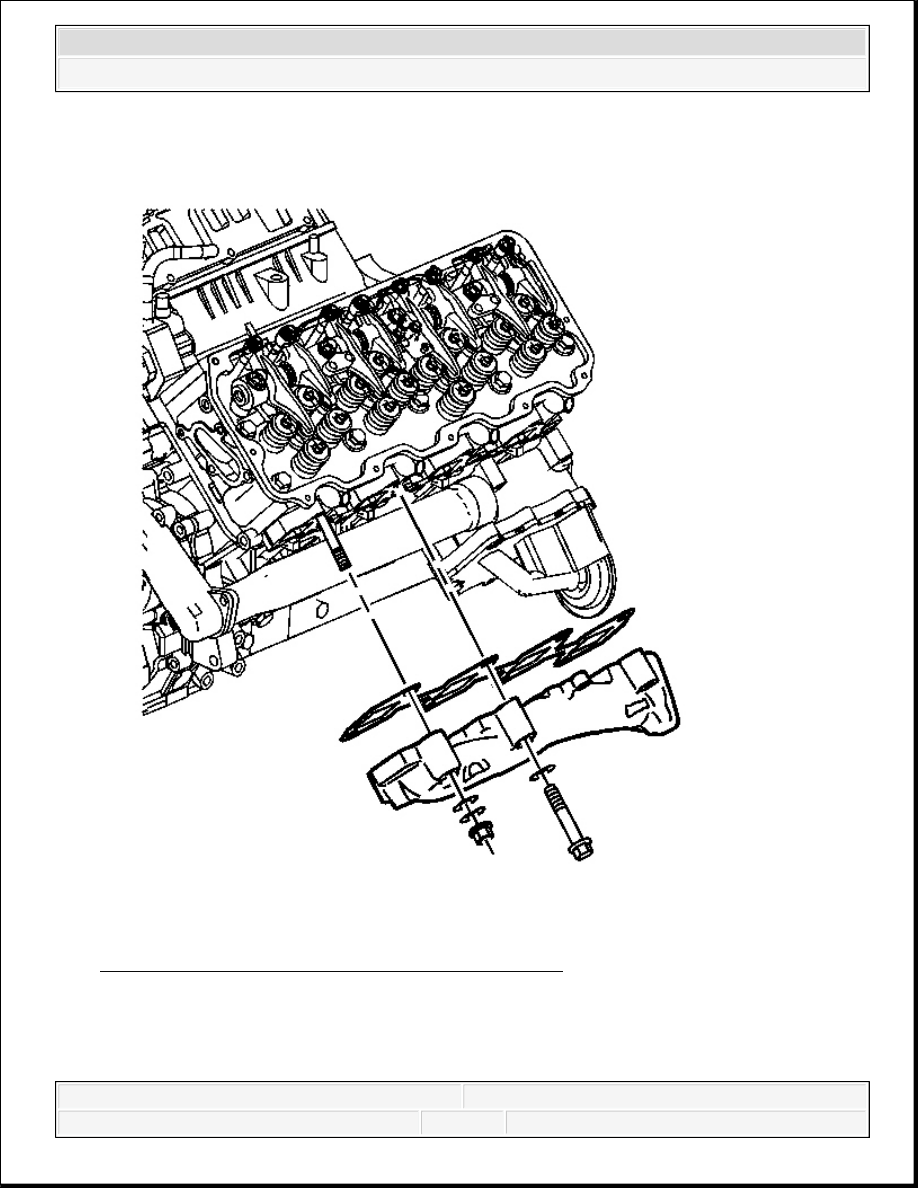

Fig. 123: View Of Left Exhaust Manifold & Gasket
Courtesy of GENERAL MOTORS CORP.
4. Remove the left exhaust manifold and gasket.
EXHAUST MANIFOLD REMOVAL - RIGHT SIDE
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

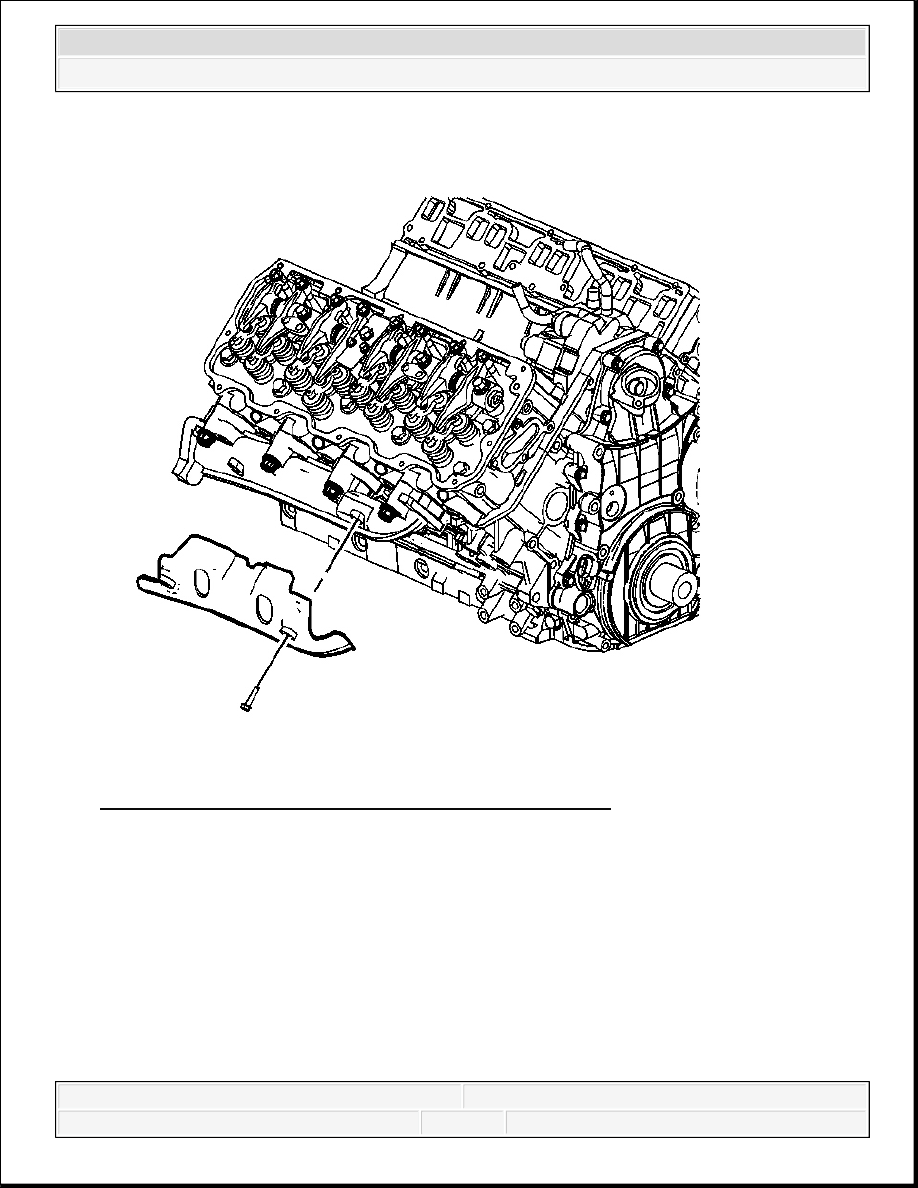

Fig. 124: View Of Exhaust Manifold Heat Shield (Right)
Courtesy of GENERAL MOTORS CORP.
1. Remove the exhaust manifold heat shield bolts.
2. Remove the exhaust manifold heat shield.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

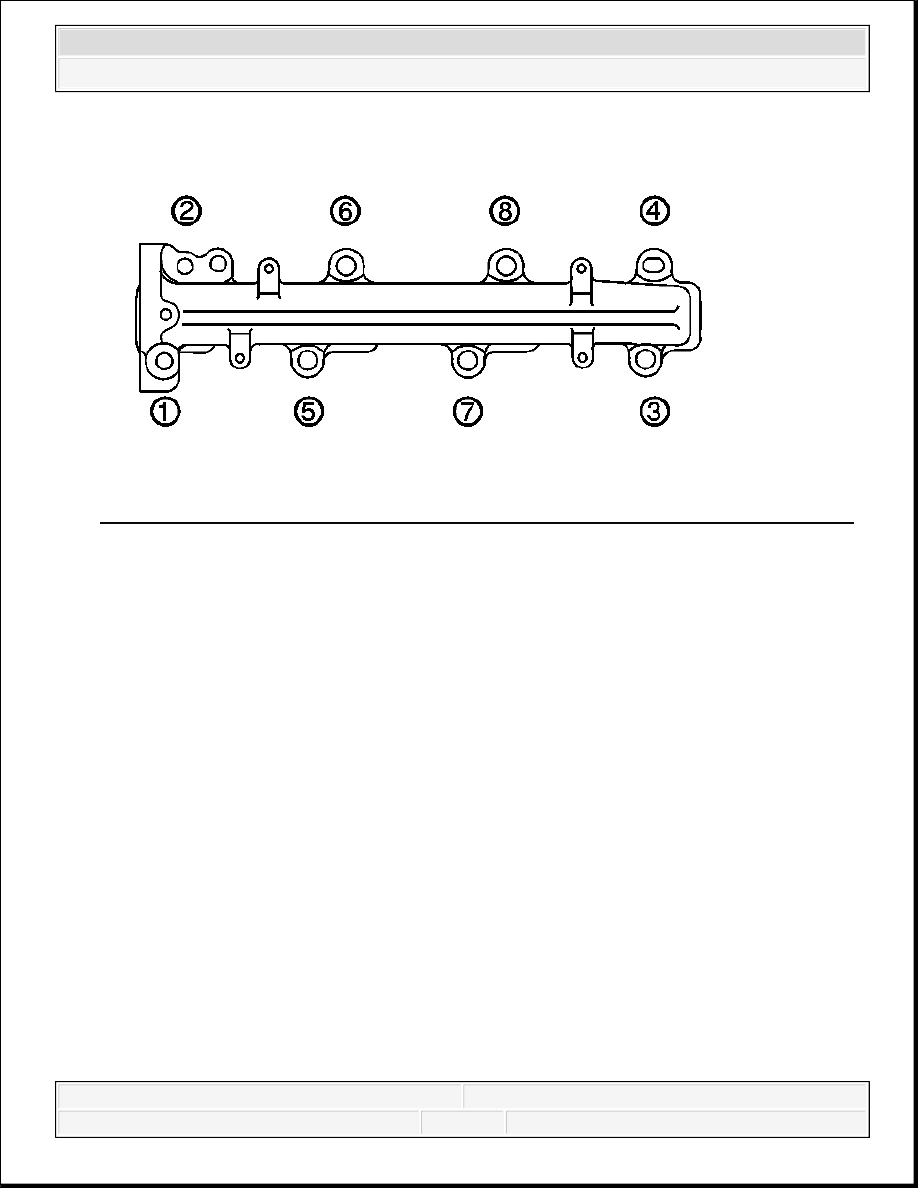

Fig. 125: Right Exhaust Manifold Bolts And Nuts Removal & Installation Sequence
Courtesy of GENERAL MOTORS CORP.
3. Remove the right exhaust manifold bolts and nuts in the proper sequence.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

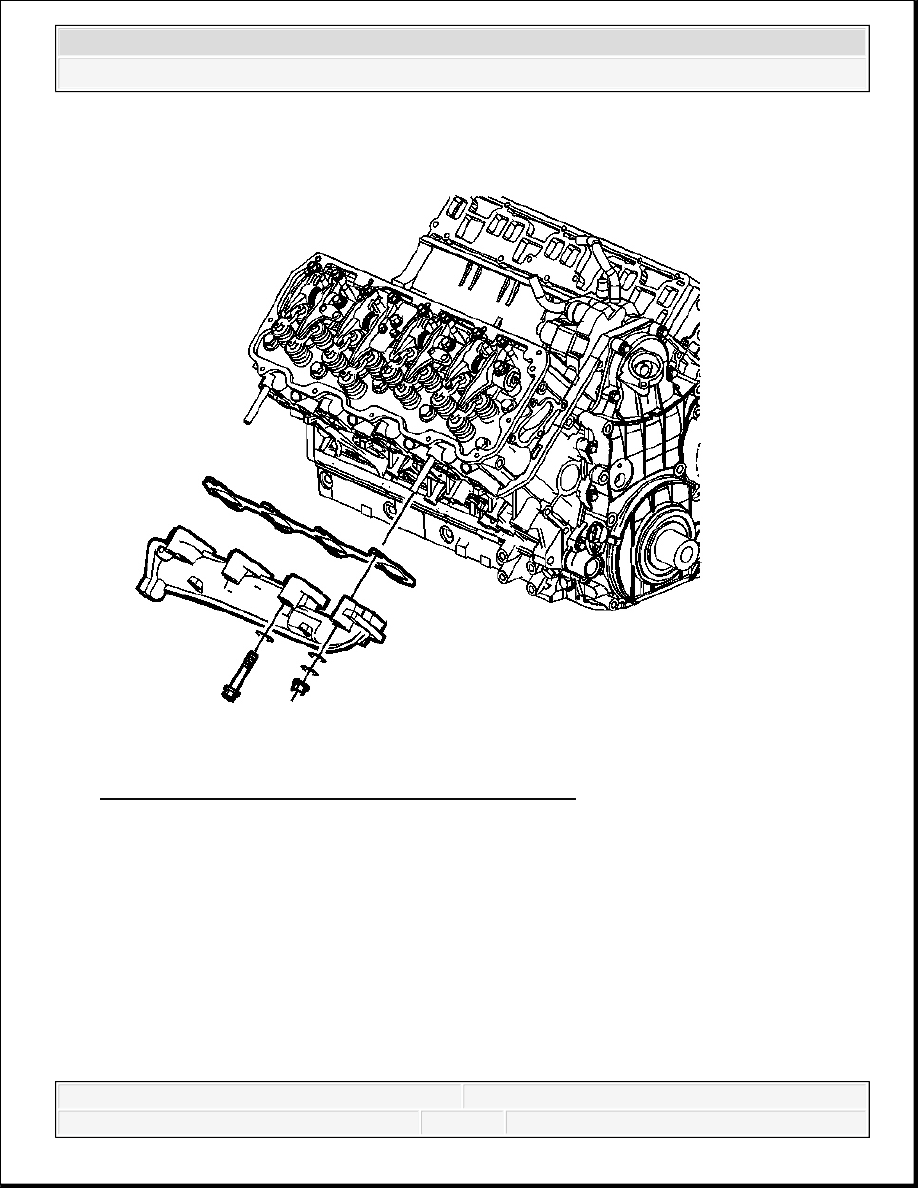

Fig. 126: View Of Right Exhaust Manifold & Gasket
Courtesy of GENERAL MOTORS CORP.
4. Remove the right exhaust manifold and gasket.
CYLINDER HEAD REMOVAL - LEFT SIDE
