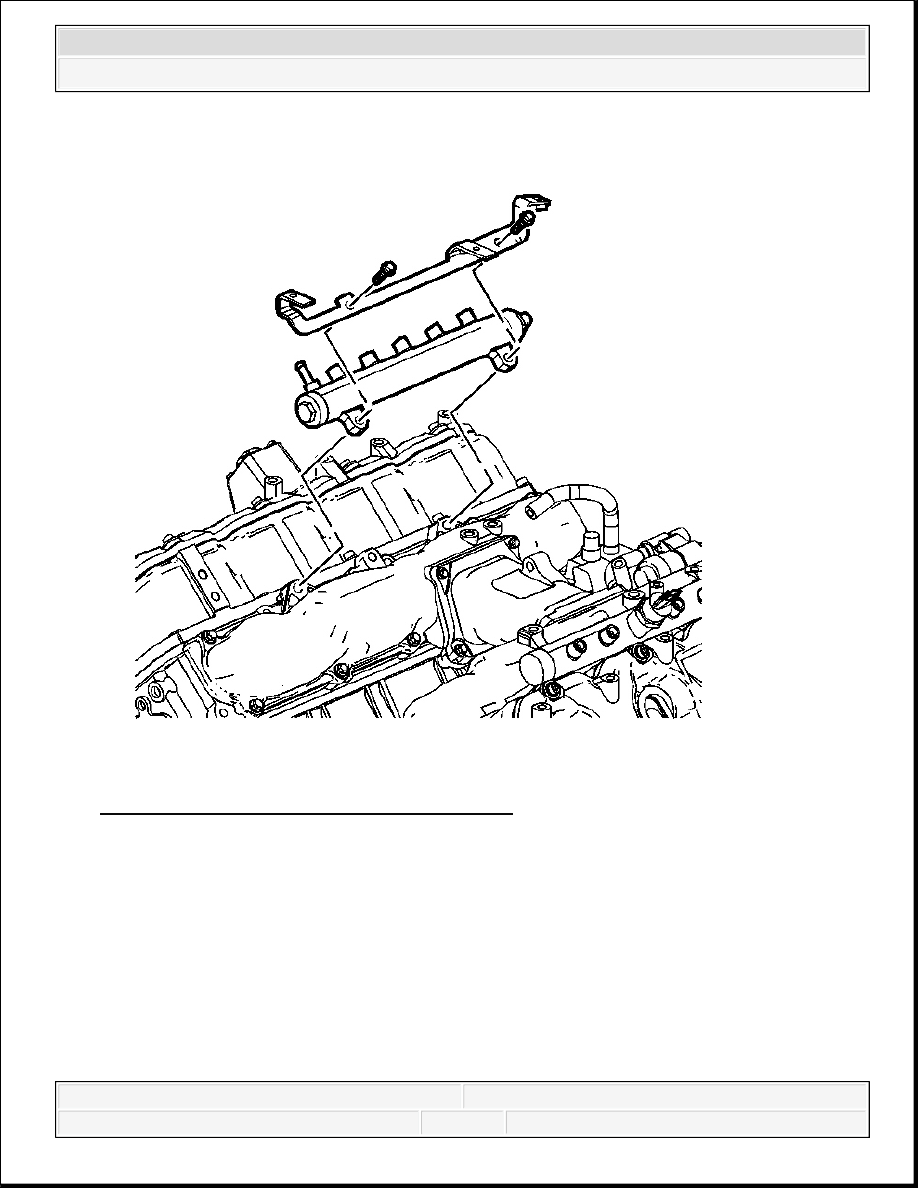

Fig. 103: View Of Left Fuel Rail And Bracket
Courtesy of GENERAL MOTORS CORP.
22. Remove the left fuel rail and bracket bolts.
23. Remove the left fuel rail and bracket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

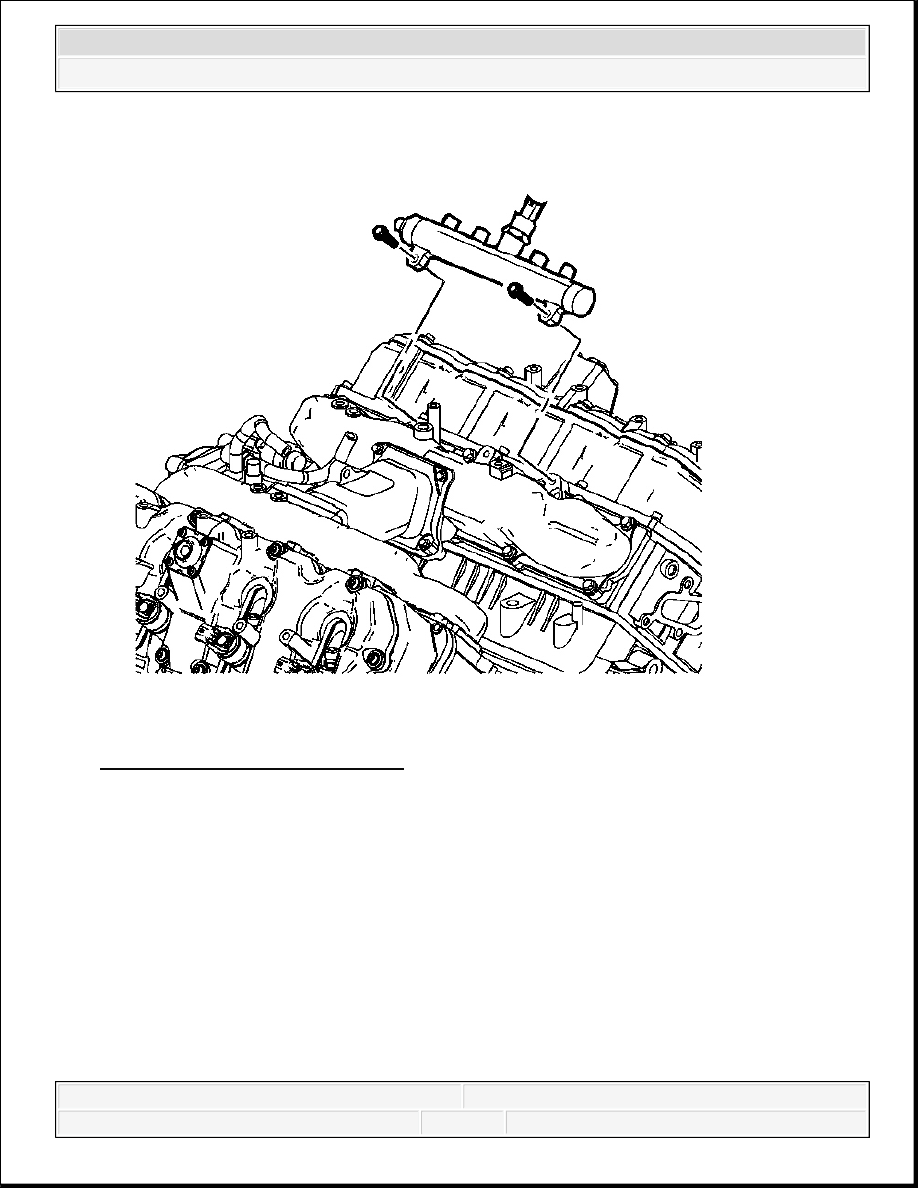

Fig. 104: View Of Right Fuel Rail
Courtesy of GENERAL MOTORS CORP.
24. Remove the right fuel rail bolts.
25. Remove the right fuel rail.
FUEL INJECTORS REMOVAL
Tools Required
J-46594 Fuel Injector Remover
Removal
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

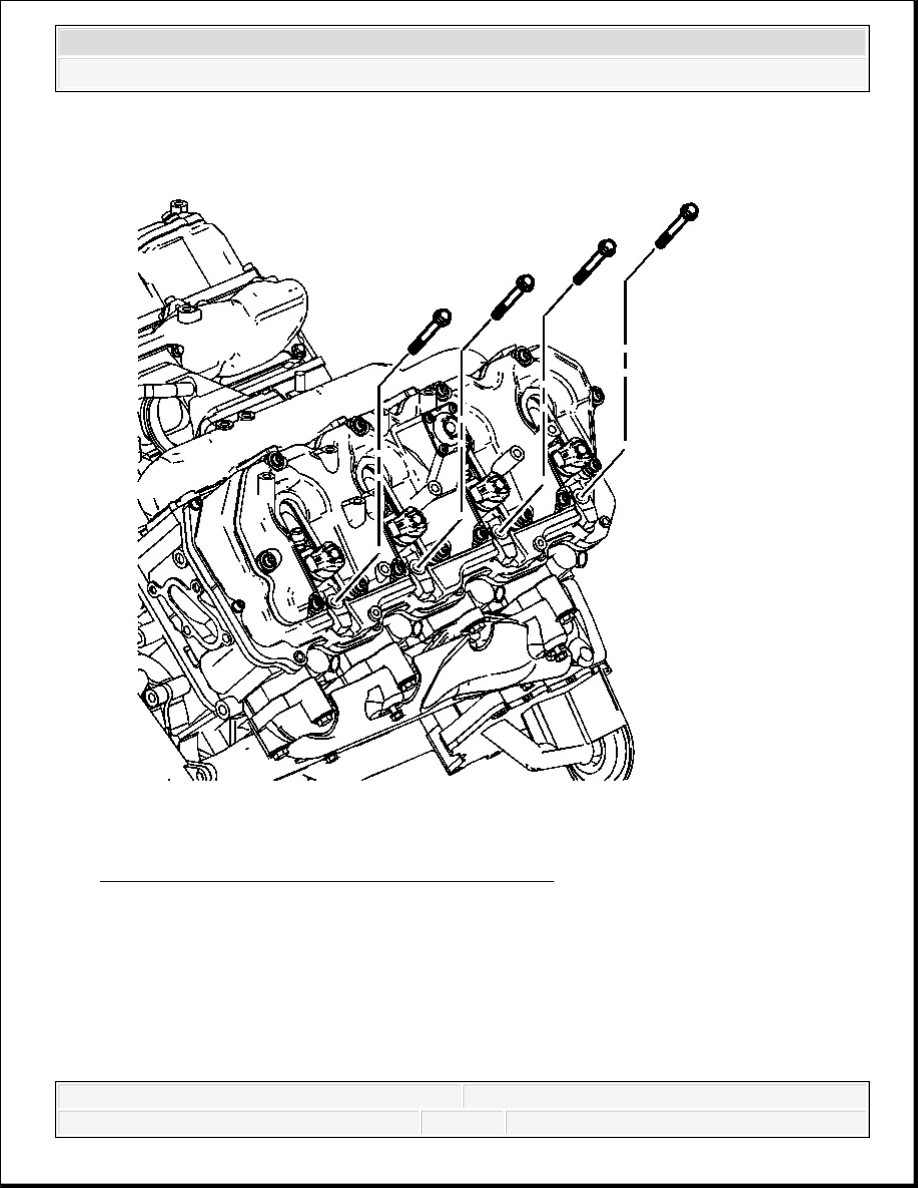

Fig. 105: View Of Left Fuel Injector Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
1. Remove the left fuel injector bracket bolts.
