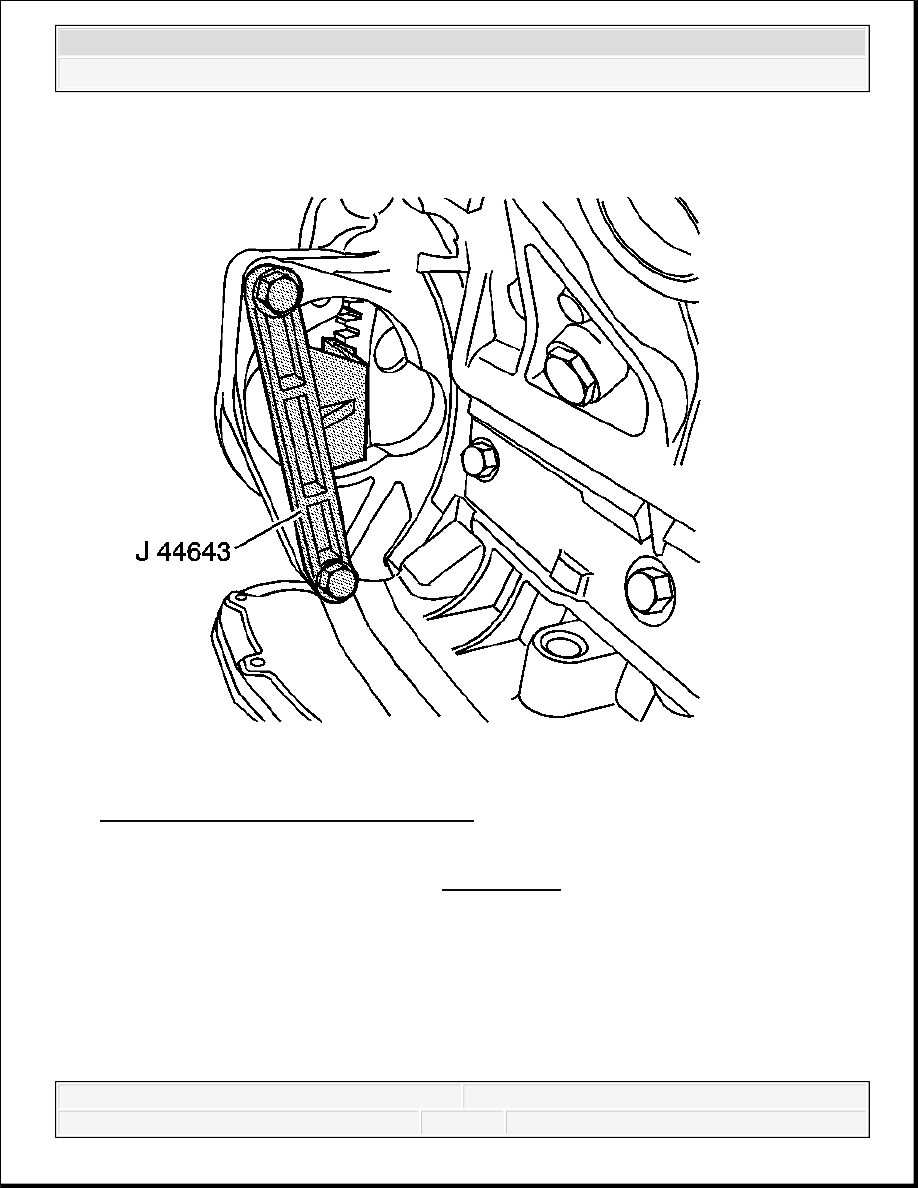

Fig. 410: Locking Flywheel Using J 44643
Courtesy of GENERAL MOTORS CORP.
1. Install J 44643 to lock the flywheel. See Special Tools .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

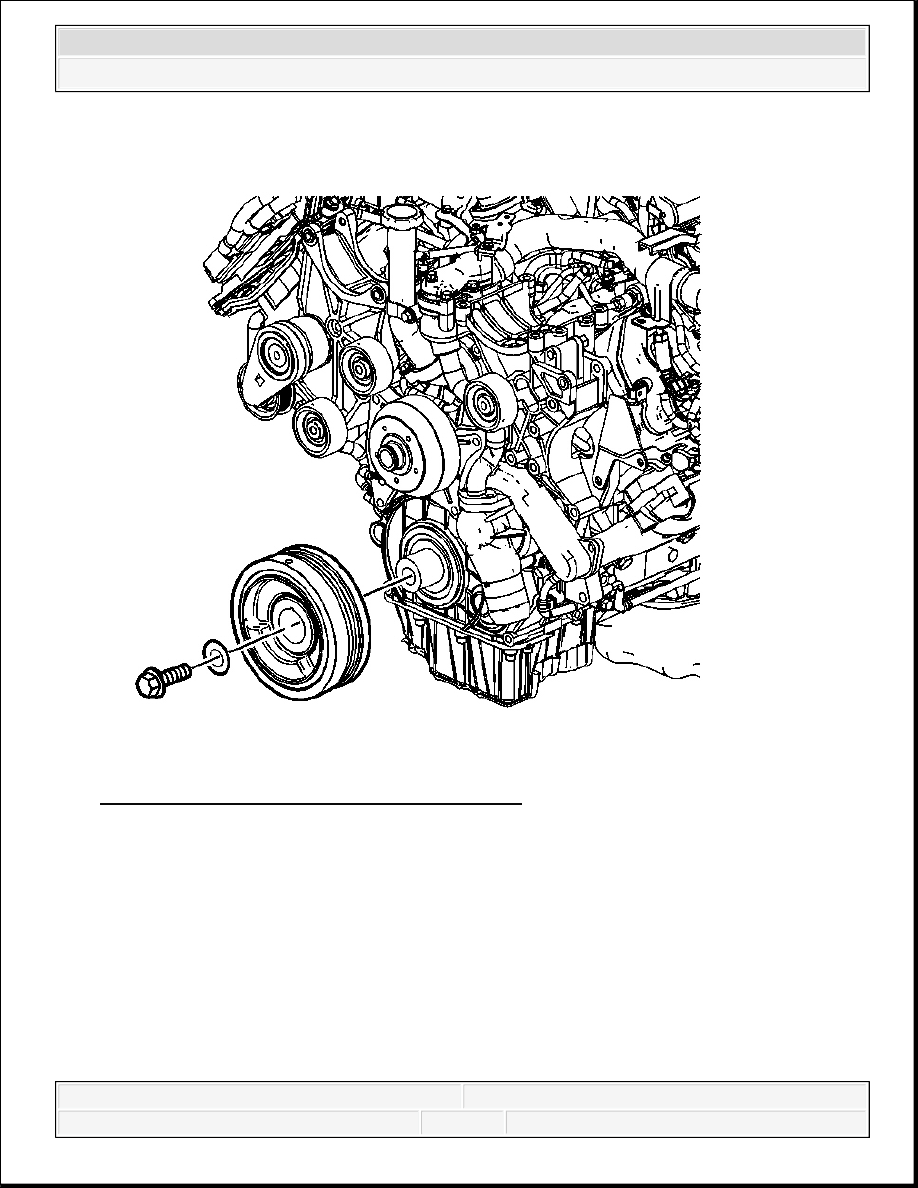

Fig. 411: View Of Crankshaft Balancer & Bolt
Courtesy of GENERAL MOTORS CORP.
2. Remove the crankshaft balancer bolt.
3. Remove the crankshaft balancer.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2008 ENGINE
Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
OFF-VEHICLE REPAIR INSTRUCTIONS (CONT.)
ENGINE FLYWHEEL REMOVAL (AUTOMATIC TRANSMISSION)
Tools Required
J 44643 Flywheel Hold Tool. See Special Tools .
Removal

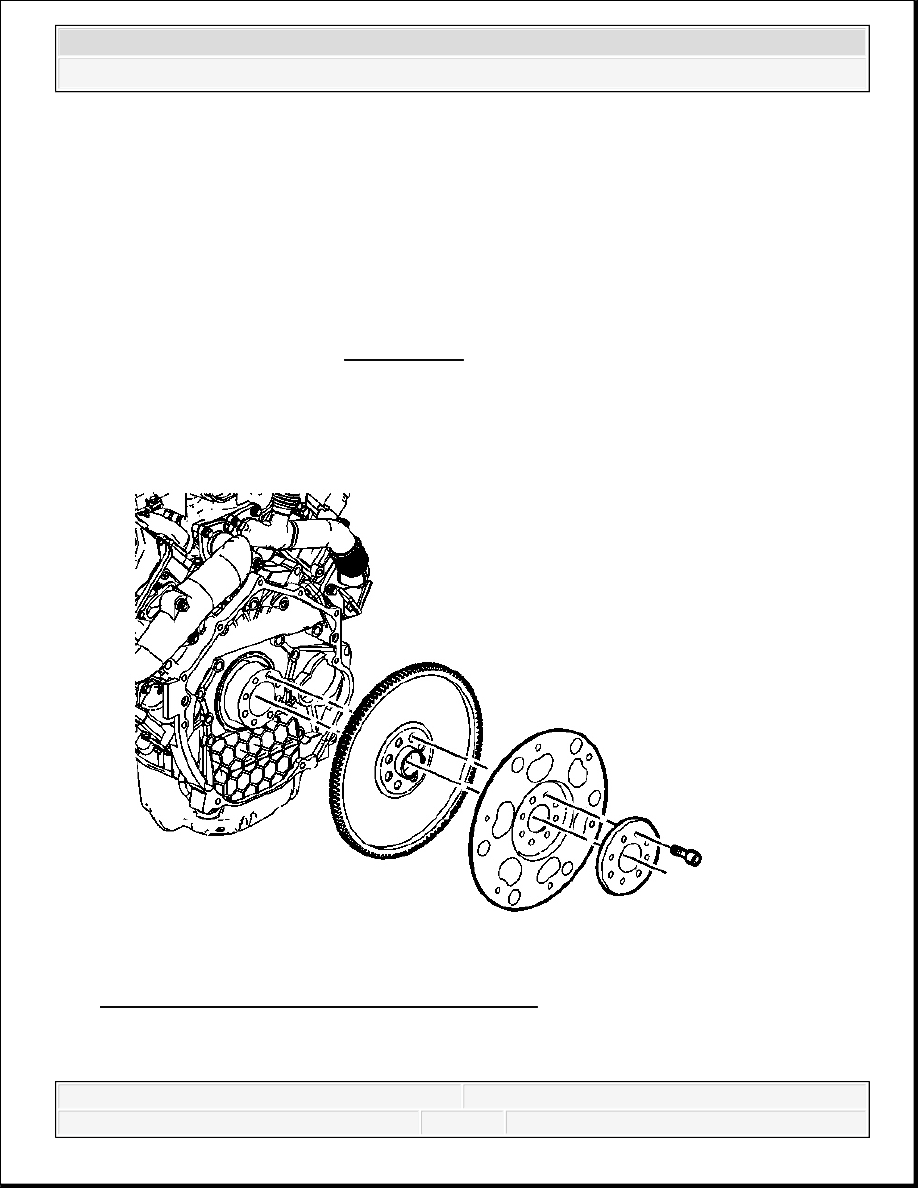

Fig. 1: View Of Flywheel & Washer (Automatic)
Courtesy of GENERAL MOTORS CORP.
1. Remove the flywheel mounting bolts and discard.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2. Remove the flywheel washer.
3. Remove the J 44643 . See Special Tools .
4. Remove the flywheel assembly.
ENGINE FLYWHEEL REMOVAL (MANUAL TRANSMISSION)
Tools Required
J 44643 Flywheel Hold Tool. See Special Tools .
Removal
