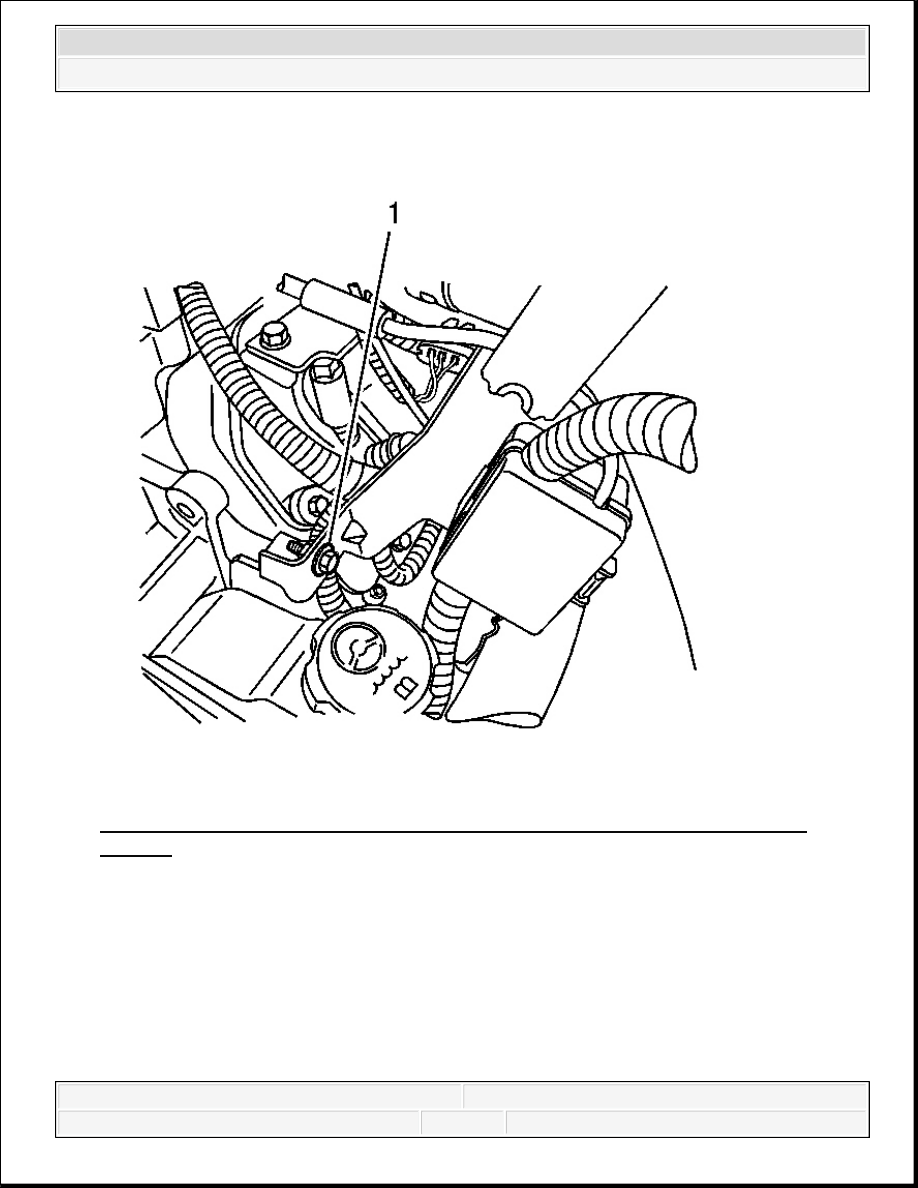

Fig. 388: View Of Battery Cable Junction Block Bolt At Power Steering Pump
Bracket
Courtesy of GENERAL MOTORS CORP.
43. Install the cable junction block and bolt (1) to the power steering pump.
Tighten: Tighten the bolt to 9 N.m (80 lb in).
44. If equipped, install the battery cable to the auxiliary generator.
45. Install the battery cable to the generator.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the nut to 9 N.m (80 lb in).
46. Install the battery cable harness clip to the bracket.

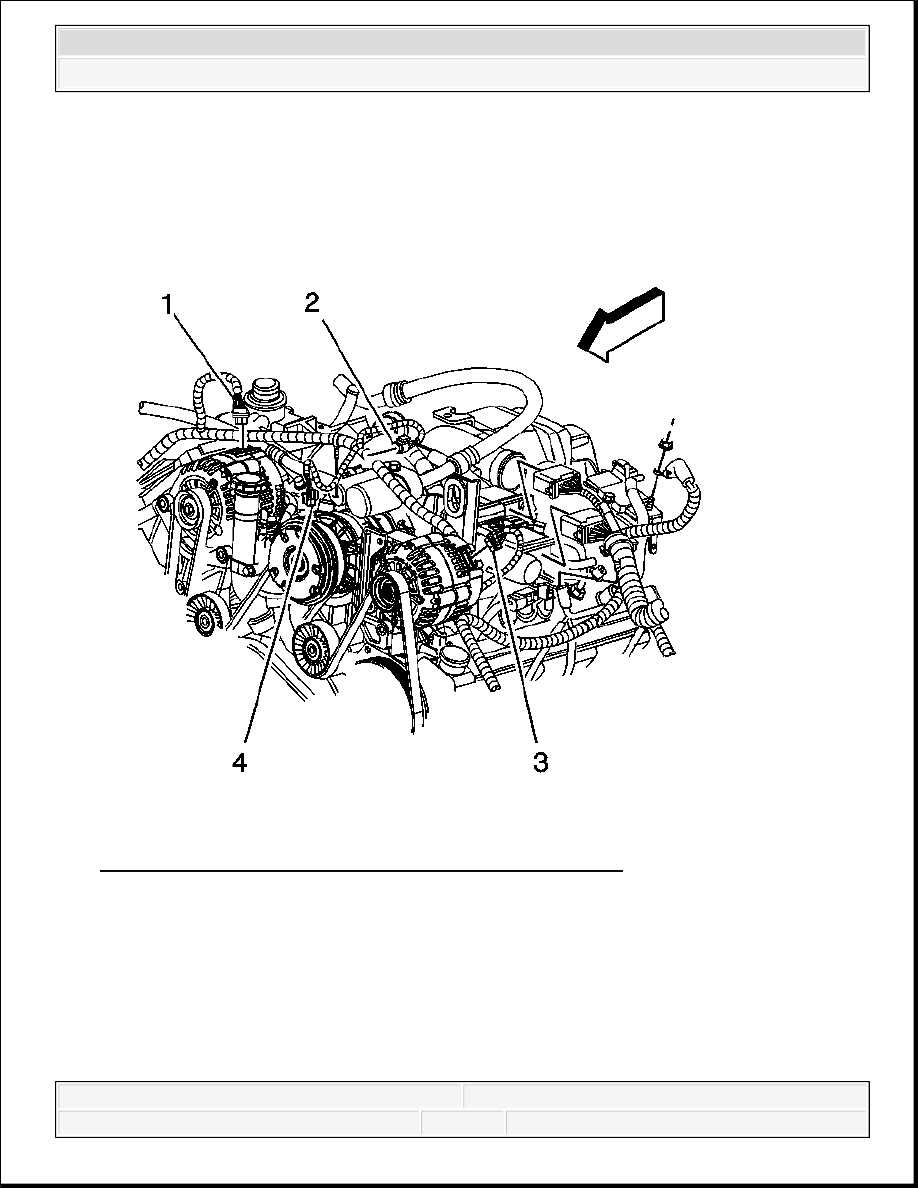

Fig. 389: View Of A/C & Generator Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
47. Connect the following electrical connectors:
Generator connector (1)
A/C refrigerant switch (2)
Dual generator harness connector (3), if equipped
A/C compressor clutch (4)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
48. Install the harness clip to the A/C compressor bracket.
49. Install the upper radiator support. Refer to Radiator Support Replacement .
50. Install the A/C condenser. Refer to Condenser Replacement .
51. Install the charged air cooler. Refer to Charge Air Cooler Replacement .
52. Install the radiator. Refer to Radiator Replacement (LLM) .

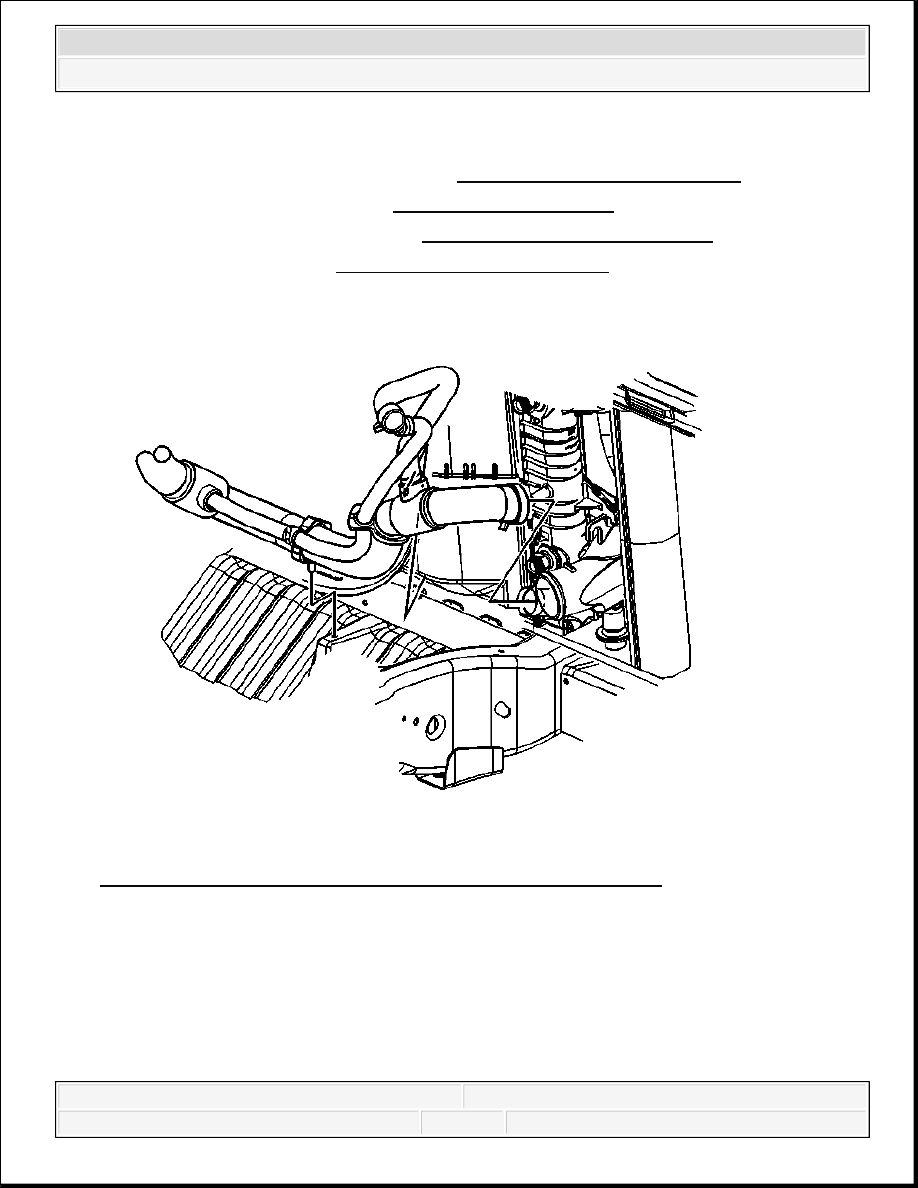

Fig. 390: View Of Radiator Outlet Hose & Outlet Heater Hose
Courtesy of GENERAL MOTORS CORP.
53. Install the outlet radiator hose to the radiator and tighten the hose clamp.
54. Install the hose clips to the frame.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

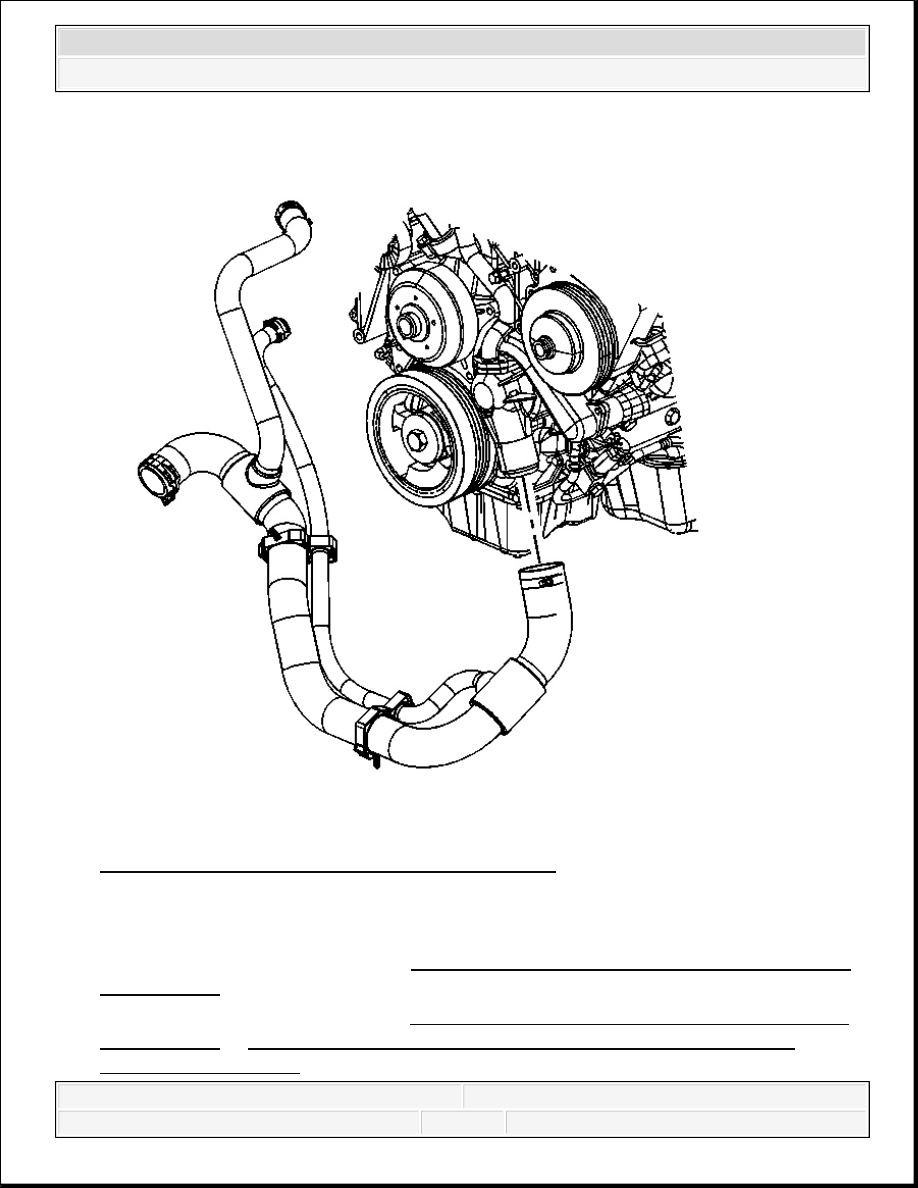

Fig. 391: View Of Radiator Outlet Hose At Engine
Courtesy of GENERAL MOTORS CORP.
55. Install the outlet radiator hose to the engine and tighten the hose clamp.
56. Install the lower fan shroud. Refer to Engine Coolant Fan Lower Shroud Replacement
(Mechanical) .
57. Install the upper fan shroud. Refer to Engine Coolant Fan Upper Shroud Replacement
(Mechanical) or Engine Coolant Fan Upper Shroud Replacement (Automatic
Transmission - Diesel) .
