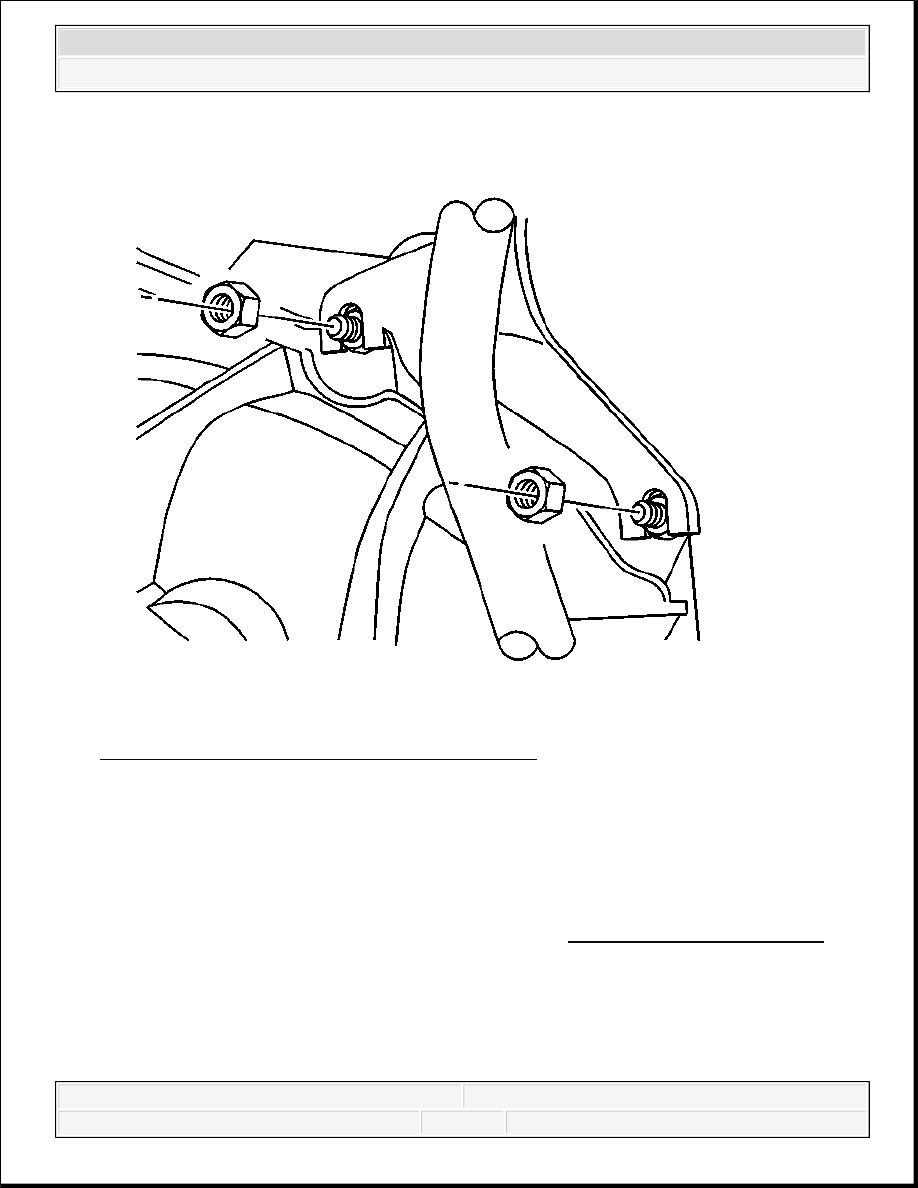

Fig. 376: View Of Fill Tube To Bellhousing Nuts
Courtesy of GENERAL MOTORS CORP.
14. If equipped with an automatic transmission, install the nuts retaining the transmission fluid
fill tube bracket.
Tighten: Tighten the nuts to 18 N.m (13 lb ft).
15. If the vehicle is 4WD, install the lower oil pan. Refer to Lower Oil Pan Replacement.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

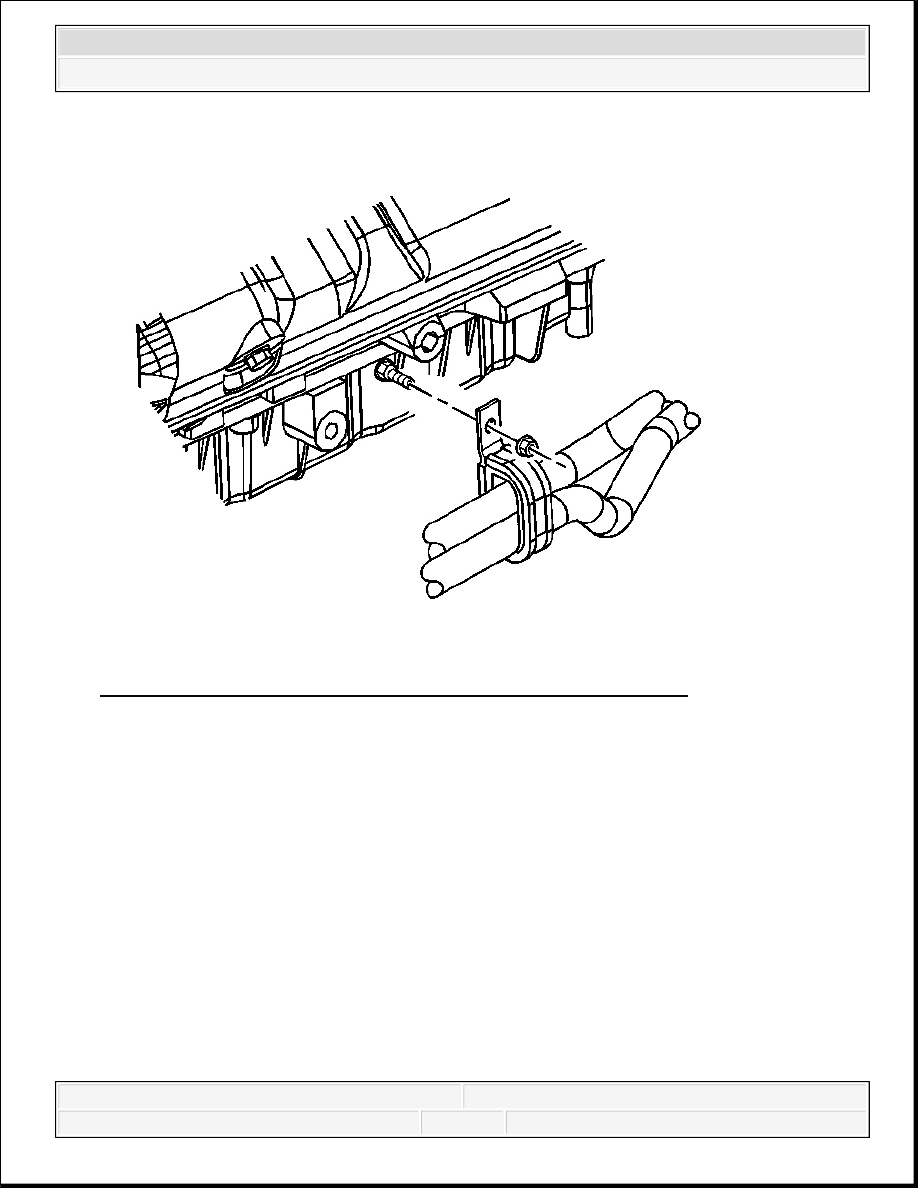

Fig. 377: View Of Transmission Oil Cooler Lines, Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.
16. If equipped with an automatic transmission, install the nut retaining the transmission oil
cooler line clip.
Tighten: Tighten the nut to 9 N.m (80 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

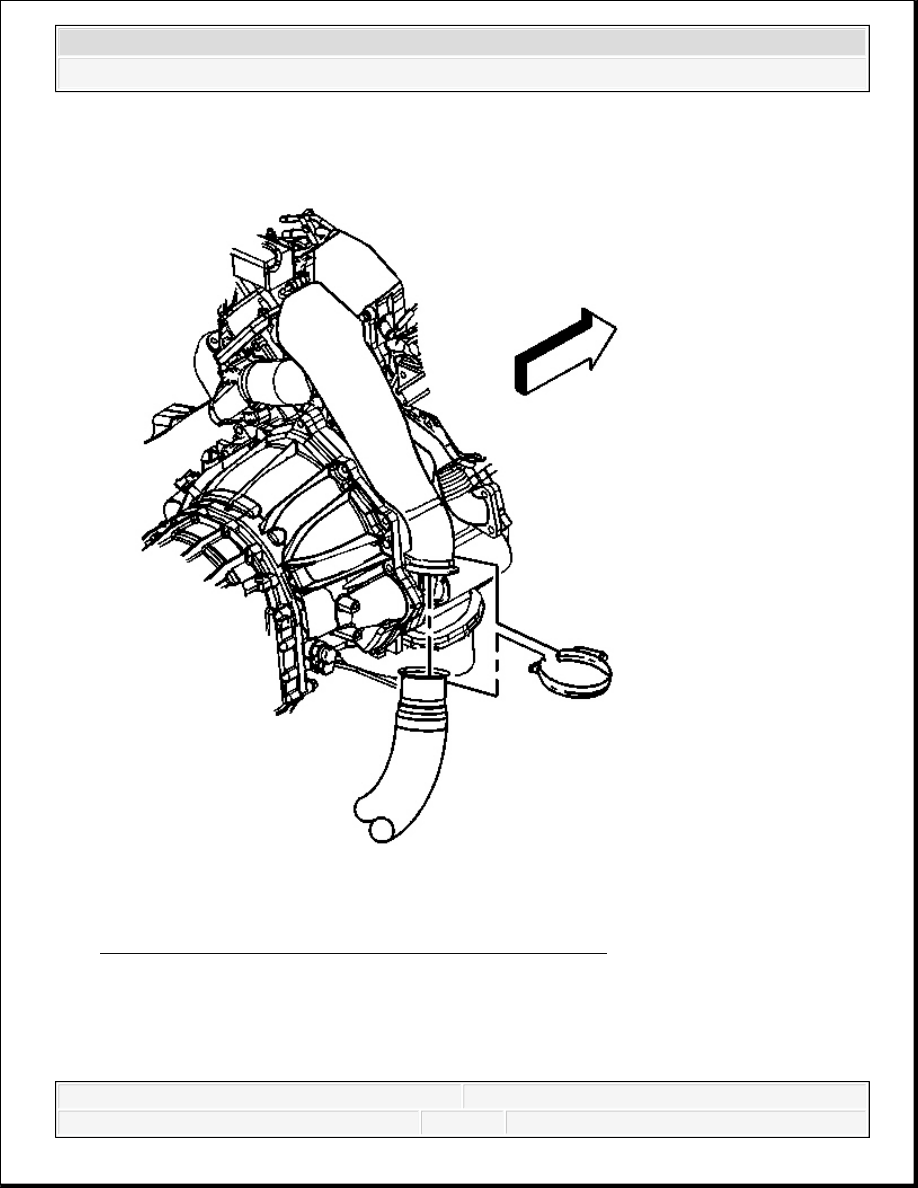

Fig. 378: View Of Turbocharger Exhaust Pipe & Clamp
Courtesy of GENERAL MOTORS CORP.
17. Install the exhaust pipe to the exhaust outlet.
18. Install the exhaust manifold pipe to the exhaust outlet clamp.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the clamp to 40 N.m (30 lb ft).
19. Lower the vehicle to work through the front fender wheelhouse openings.

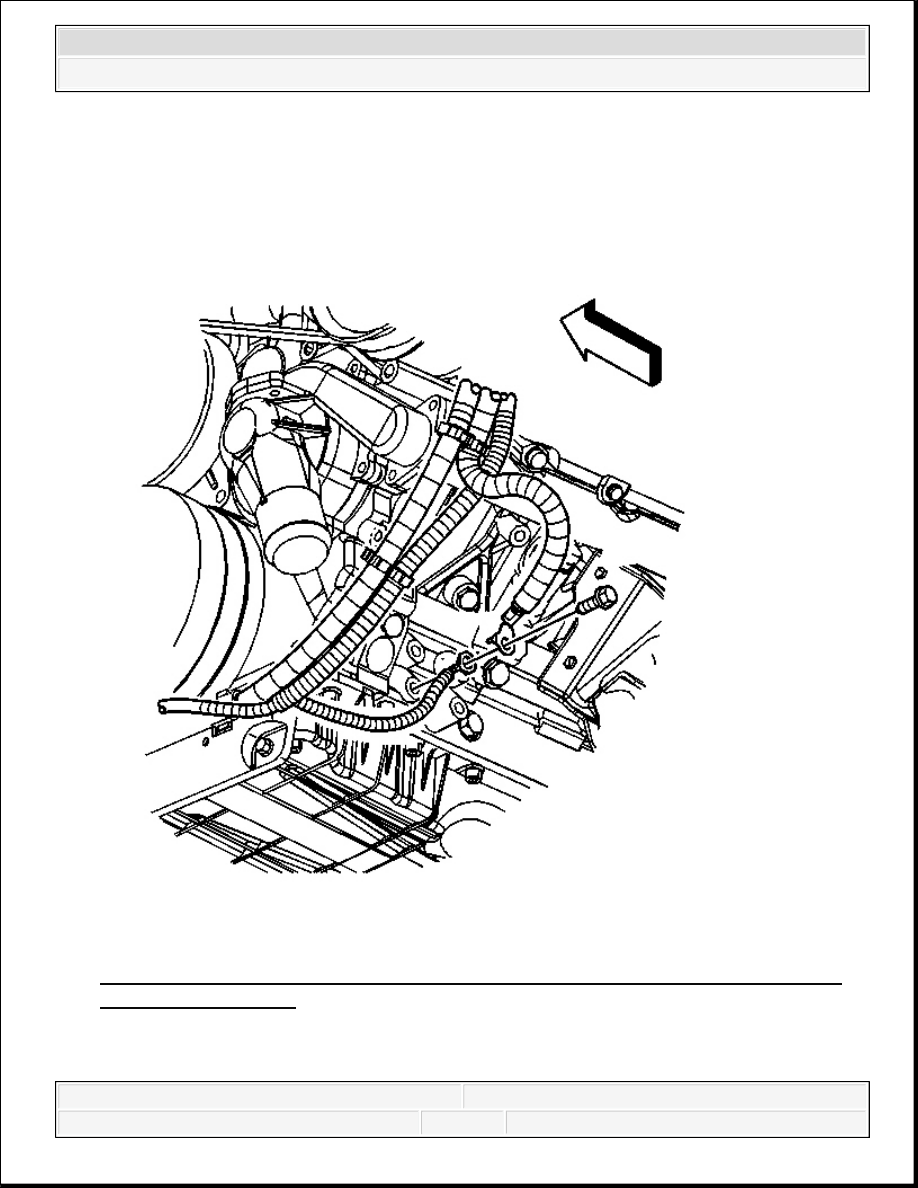

Fig. 379: View Of Engine Wiring Harness Ground Wire & Battery Negative Cable
(Left Side Of Engine)
Courtesy of GENERAL MOTORS CORP.
20. Install the bolt retaining the battery negative cable and the engine wiring harness ground
