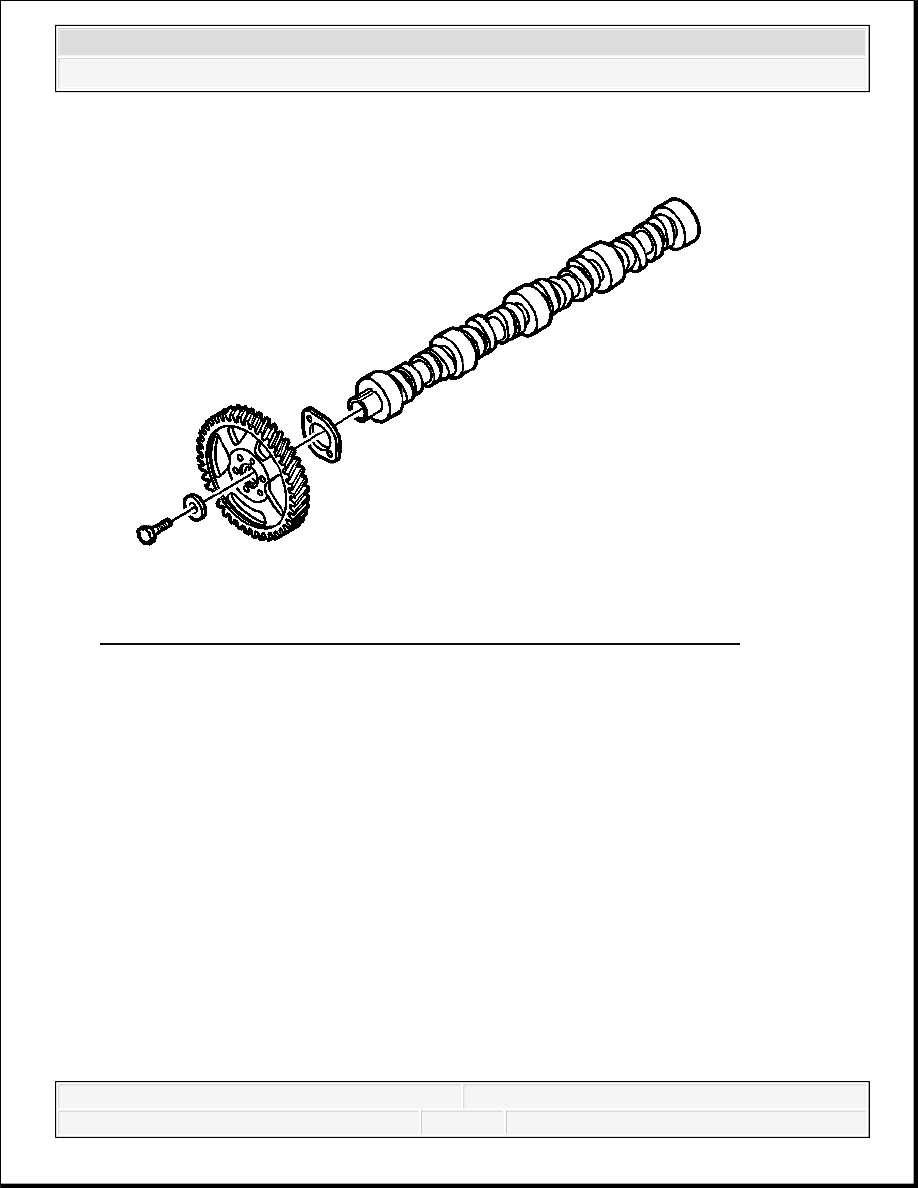

Fig. 257: View Of Camshaft, Camshaft Gear & Camshaft Thrust Plate
Courtesy of GENERAL MOTORS CORP.
1. Install the camshaft thrust plate to the camshaft.
2. Install the camshaft driven gear.
3. Install a NEW camshaft driven gear bolt.
Leave the bolt finger tight.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

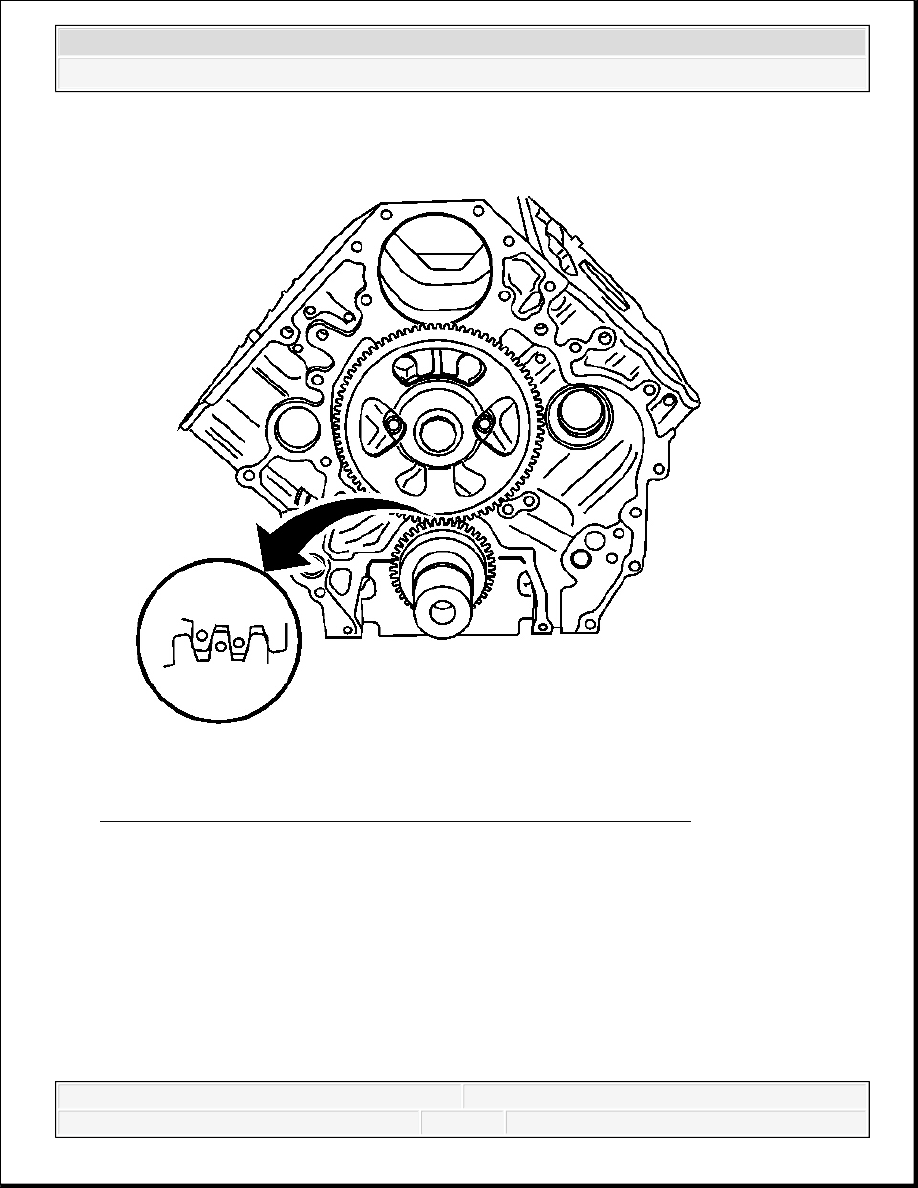

Fig. 258: View Of Camshaft Gear Aligned With Crankshaft Gear
Courtesy of GENERAL MOTORS CORP.
4. Install the camshaft into the cylinder block, align the camshaft gear to the crankshaft gear as
shown.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

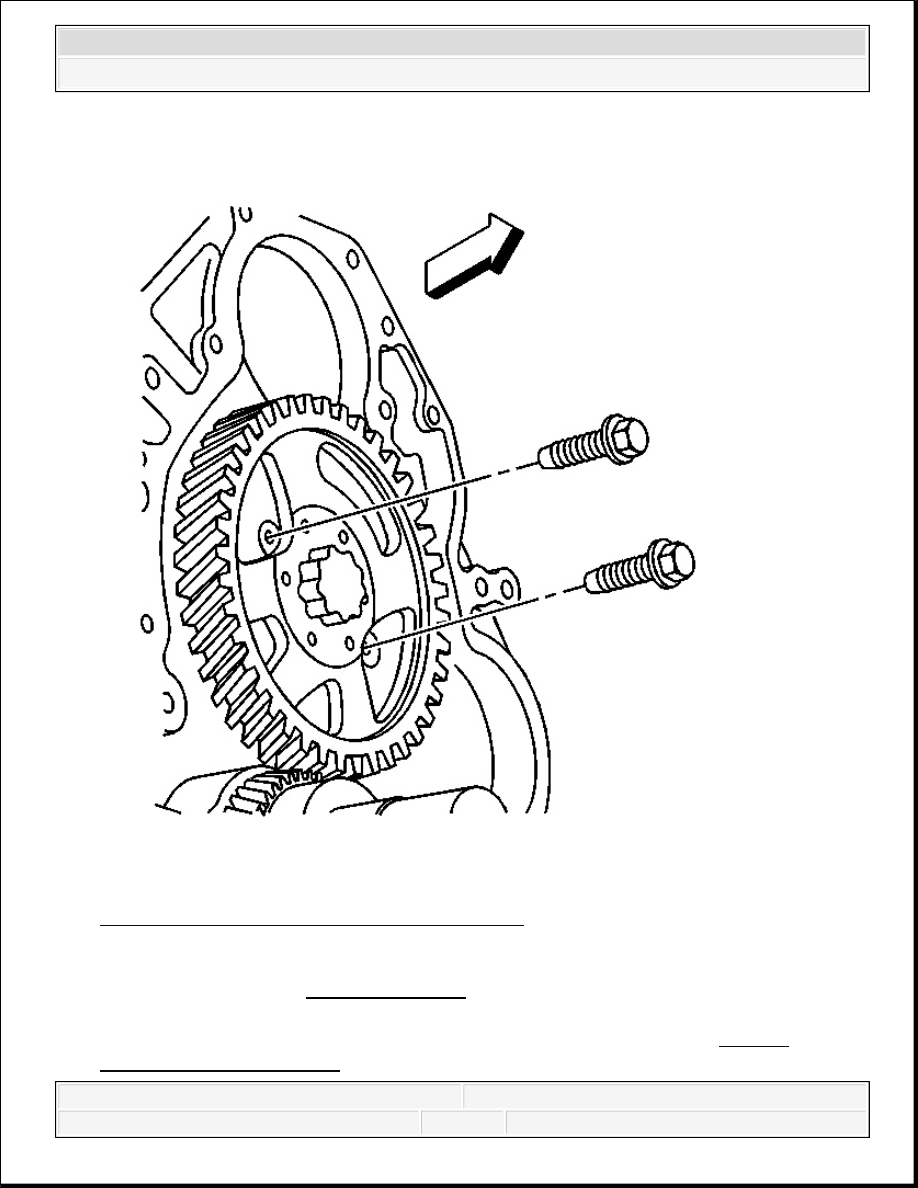

Fig. 259: View Of Camshaft Thrust Plate Bolts
Courtesy of GENERAL MOTORS CORP.
5. Apply threadlock to the threads of the camshaft thrust plate bolts. Refer to Sealers,
Adhesives, and Lubricants for the correct part number.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
6. Install the camshaft thrust plate bolts.
Tighten: Tighten the bolts to 22 N.m (16 lb ft).

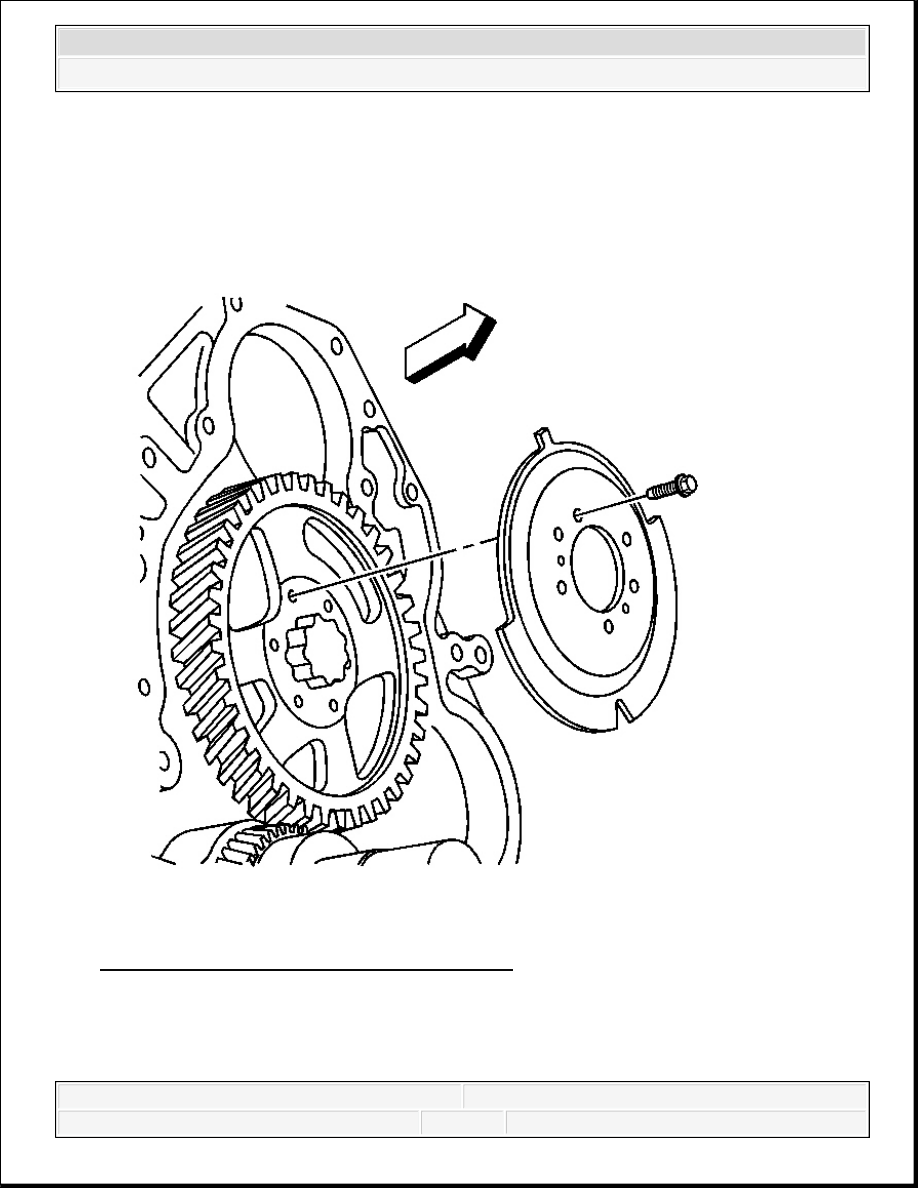

Fig. 260: View Of Camshaft Reluctor & Bolts
Courtesy of GENERAL MOTORS CORP.
7. Install the camshaft reluctor to the camshaft gear.
8. Install the camshaft reluctor bolts.
