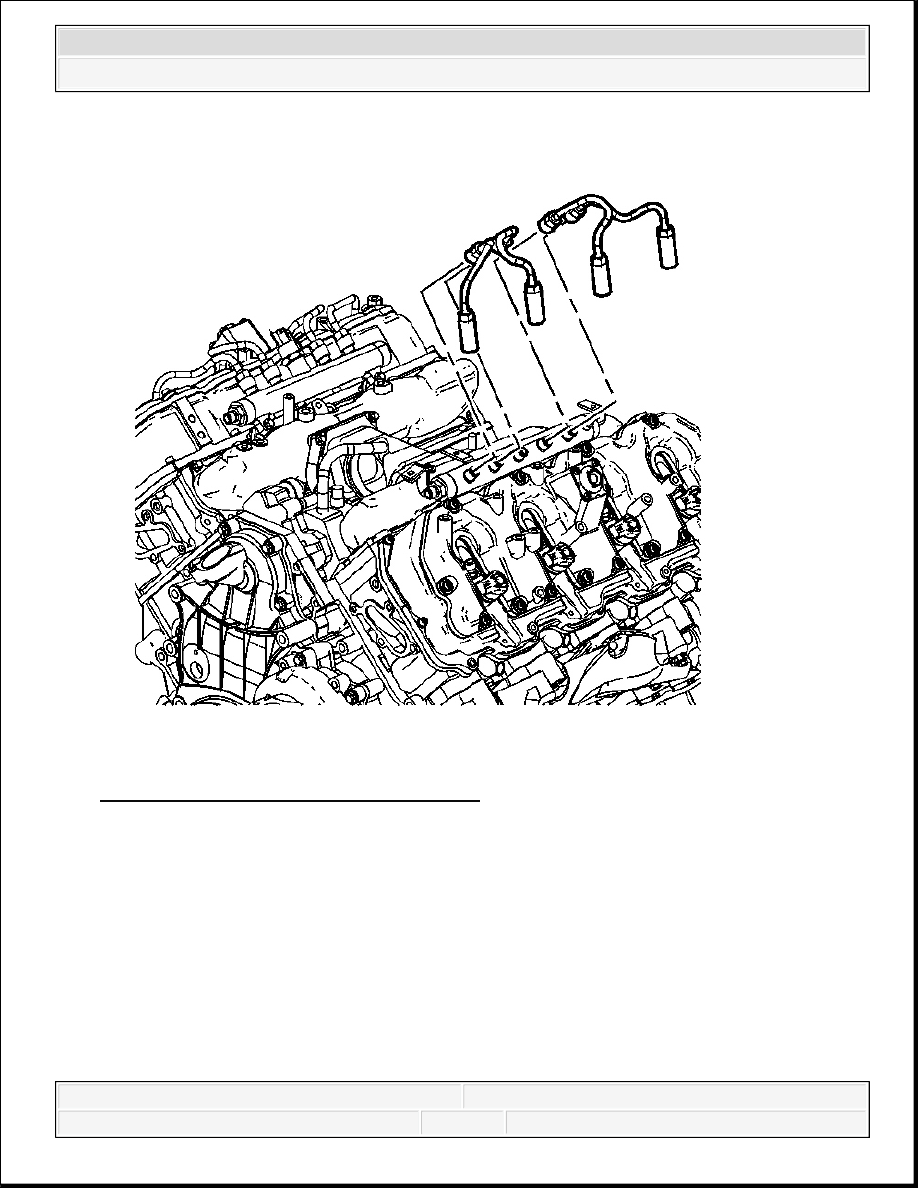

Fig. 105: View Of Left Fuel Injector Pipes
Courtesy of GENERAL MOTORS CORP.
5. Install the left fuel injector pipes.
Tighten: Tighten the pipes to 41 N.m (30 lb ft).
NOTE:
Ensure proper torquing of the fuel injector line. An under-
torqued fuel injector line will not seal properly and an over-
torqued fuel injector line may damage the fuel injector fitting.
An improperly sealed or damaged fuel injector line or fuel
injector fitting will cause a fuel leak.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
6. Install the water outlet tube. Refer to Water Outlet Tube Replacement (LMM) .
7. Install the auxiliary generator, if equipped. Refer to Auxiliary Generator Replacement
(6.6L) .
8. Install the PCV hose/pipe. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube
Replacement.

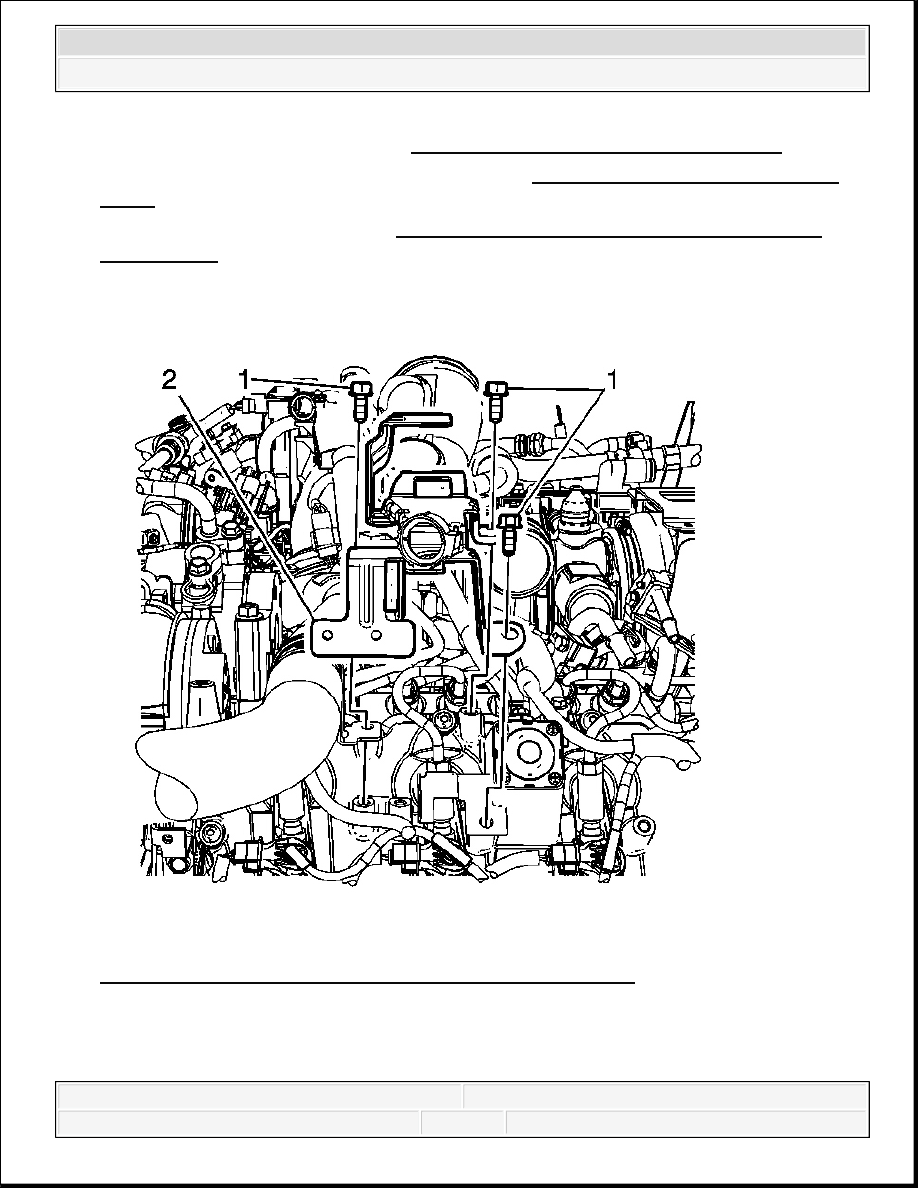

Fig. 106: View Of Main Electrical Harness Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
9. Install the main electrical connector harness bracket (2).
10. Install the main electrical connector harness bracket bolts (1).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the bolts to 21 N.m (15 lb ft).

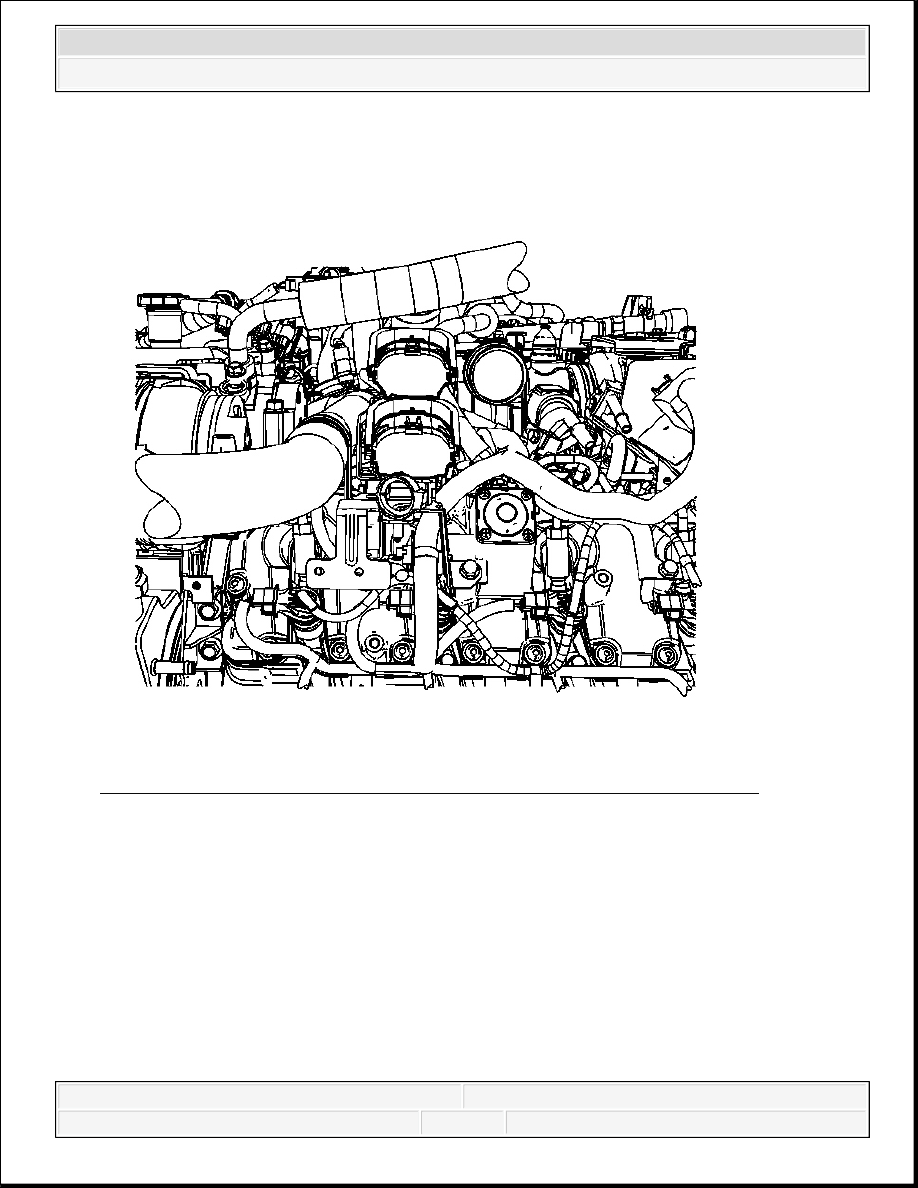

Fig. 107: View Of Main Engine Electrical Harness Connectors & Latches
Courtesy of GENERAL MOTORS CORP.
11. Clip the main engine electrical harness connectors to the main electrical connector harness
bracket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

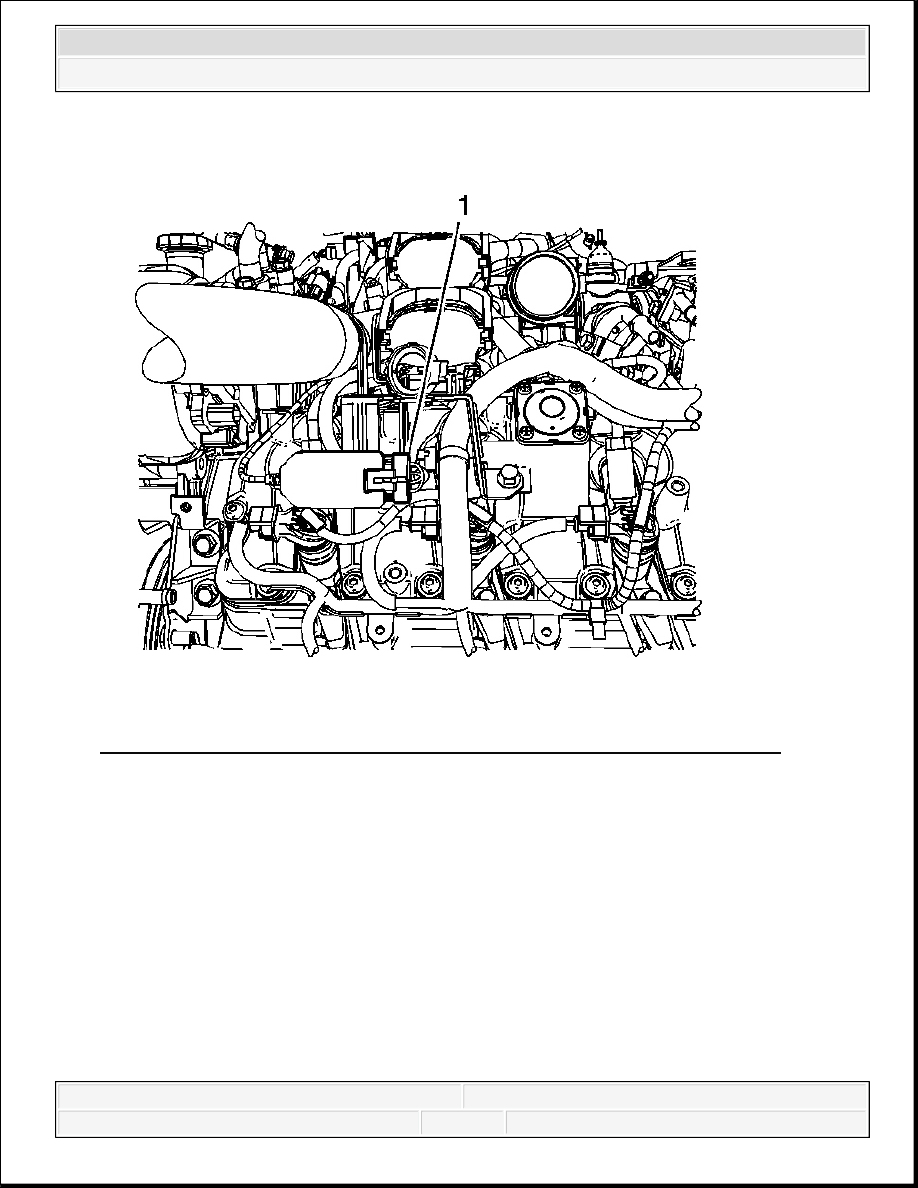

Fig. 108: View Of Turbocharger Vane Position Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
12. Connect the turbocharger vane position sensor electrical connector (1).
