Fig. 15: Generator Bracket (Front View)
Courtesy of GENERAL MOTORS CORP.
Generator Bracket - Front View
Service
Hole
Location
Thread
Size
Drill
Counterbore
Tool
Stop
Collar Tap Driver Insert
Drill
Depth
(Max)
Tap
Depth
(Min)
mm (in) mm (in)
1
M 10 x
1.5
-211
-212
N/A
-213
-214
-215
THRU
THRU
2
M 8 x
1.25
-206
-207
N/A
-208
-209
-415
17 0.669 12 0.472
3
M 10 x
1.5
-211
-212
N/A
-213
-214
-420
THRU
25 0.985
4
M 8 x
1.25
-206
-207
N/A
-208
-209
-210
22 0.866 17 0.669
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Generator Bracket - Rear View
Fig. 16: Generator Bracket (Rear View)
Courtesy of GENERAL MOTORS CORP.
Generator Bracket - Rear View
Service
Hole
Location
Thread
Size
Drill
Counterbore
Tool
Stop
Collar Tap Driver Insert
Drill
Depth
(Max)
Tap
Depth
(Min)
mm (in) mm (in)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

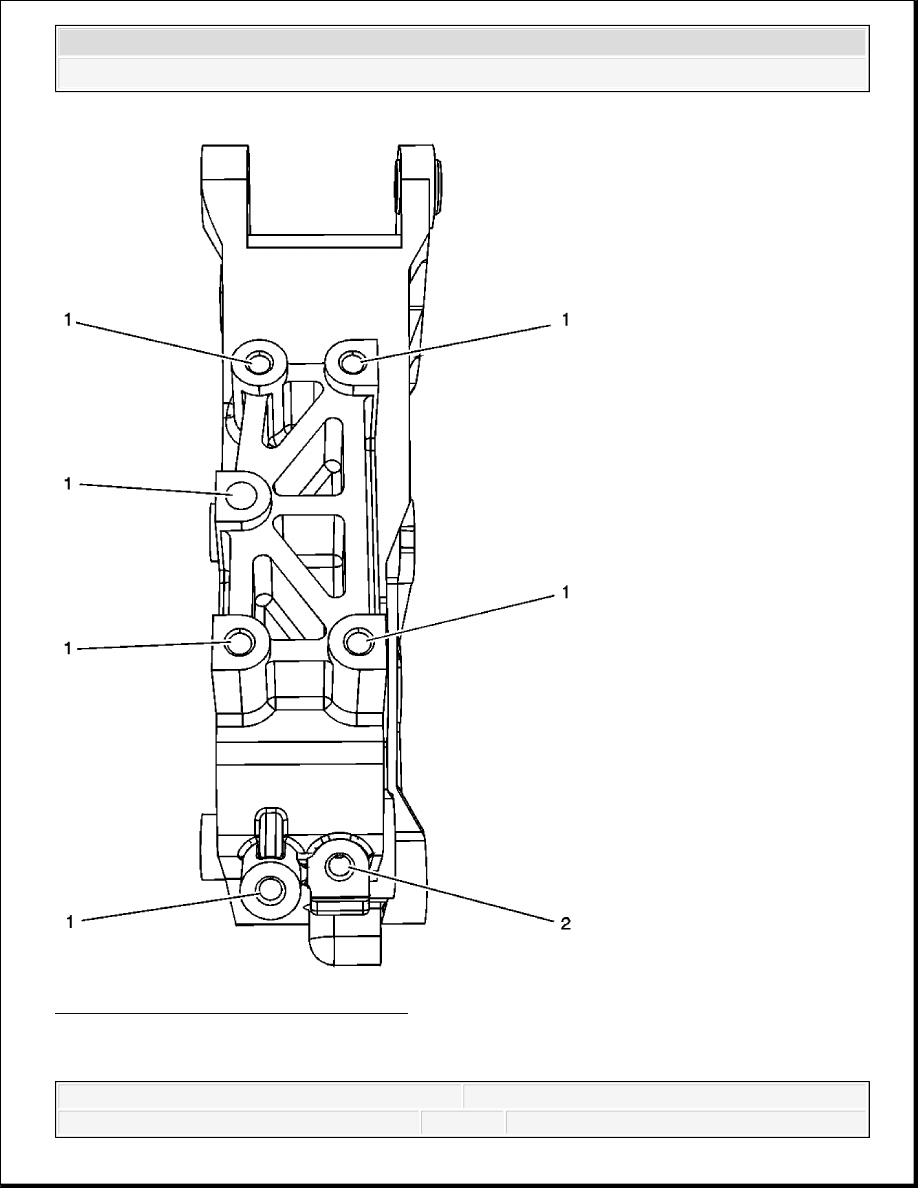

Generator Bracket - Side View
1
M 10 x
1.5
-211
-212
N/A
-213
-214
-215
THRU
THRU
