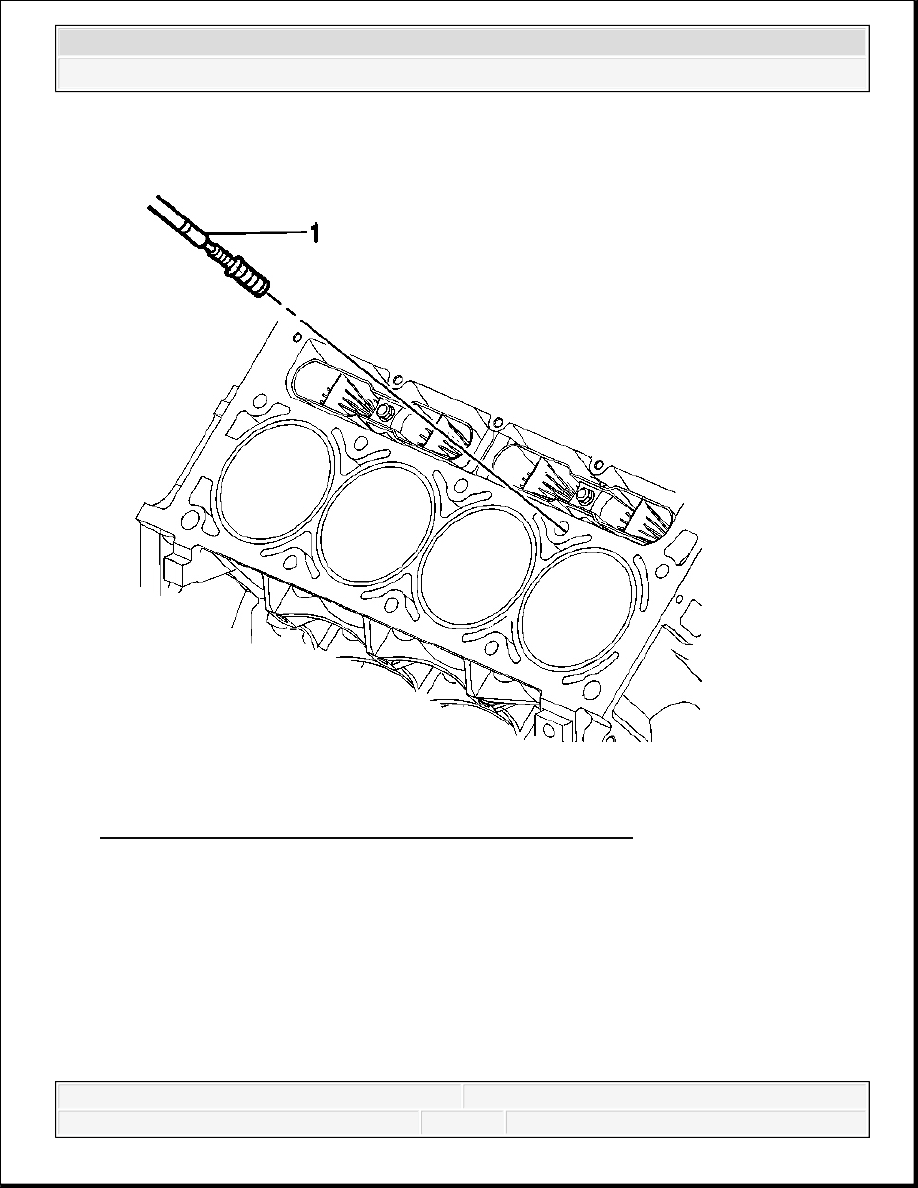

Fig. 531: Installing Insert & Driver Into Cylinder Bolt Hole
Courtesy of GENERAL MOTORS CORP.
18. Install the insert and driver (1) into the hole.
Rotate the driver tool until the mark on the tool aligns with the deck surface of the engine
block.
The installer tool will tighten up before screwing completely through the insert. This is
acceptable. You are forming the bottom threads of the insert and mechanically locking the
insert to the base material threads.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Main Cap Bolt Hole Thread Repair
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
2008 ENGINE
Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Application
Specification
Metric
English
A/C Compressor Bolt
50 N.m
37 lb ft
Air Cleaner Outlet Duct Clamp
8 N.m
71 lb in
Air Conditioning Compressor/Power Steering Pump
Bracket Bolt
46 N.m
34 lb ft
Air Inlet Tube Nut
25 N.m
18 lb ft
Battery Cable Bracket Bolt
12 N.m
106 lb in
Battery Cable Bracket Nut
8 N.m
71 lb in
Bypass Pipe Bolt
25 N.m
18 lb ft
Camshaft Gear Bolt
234 N.m
173 lb ft
Camshaft Position Sensor Bolt
10 N.m
89 lb in
Camshaft Position Sensor Exciter Ring Bolt
9 N.m
80 lb in
Camshaft Thrust Plate Bolt
22 N.m
16 lb ft
Charged Air Cooler Bolt
21 N.m
15 lb ft
Charged Air Cooler Clamp
8 N.m
71 lb in
Connecting Rod Cap Bolt - Angular Tightening
Method
1st Step 64 N.m
1st Step 47 lb ft
2nd Step 30
degrees
2nd Step 30
degrees
3rd Step 30
degrees
3rd Step 30
degrees
Coolant Pipe Bolt and Nut
25 N.m
18 lb ft
Coolant Tube to Water Pump Nut
25 N.m
18 lb ft
Cooling Fan Pulley
41 N.m
30 lb ft
Crankshaft Balancer Bolt
1st Step 100 N.m
1st Step 74 lb ft
2nd Step 105
degrees
2nd Step 105
degrees
1st Step 98 N.m
1st Step 72 lb ft
2nd Step 132 N.m 2nd Step 97 lb ft
