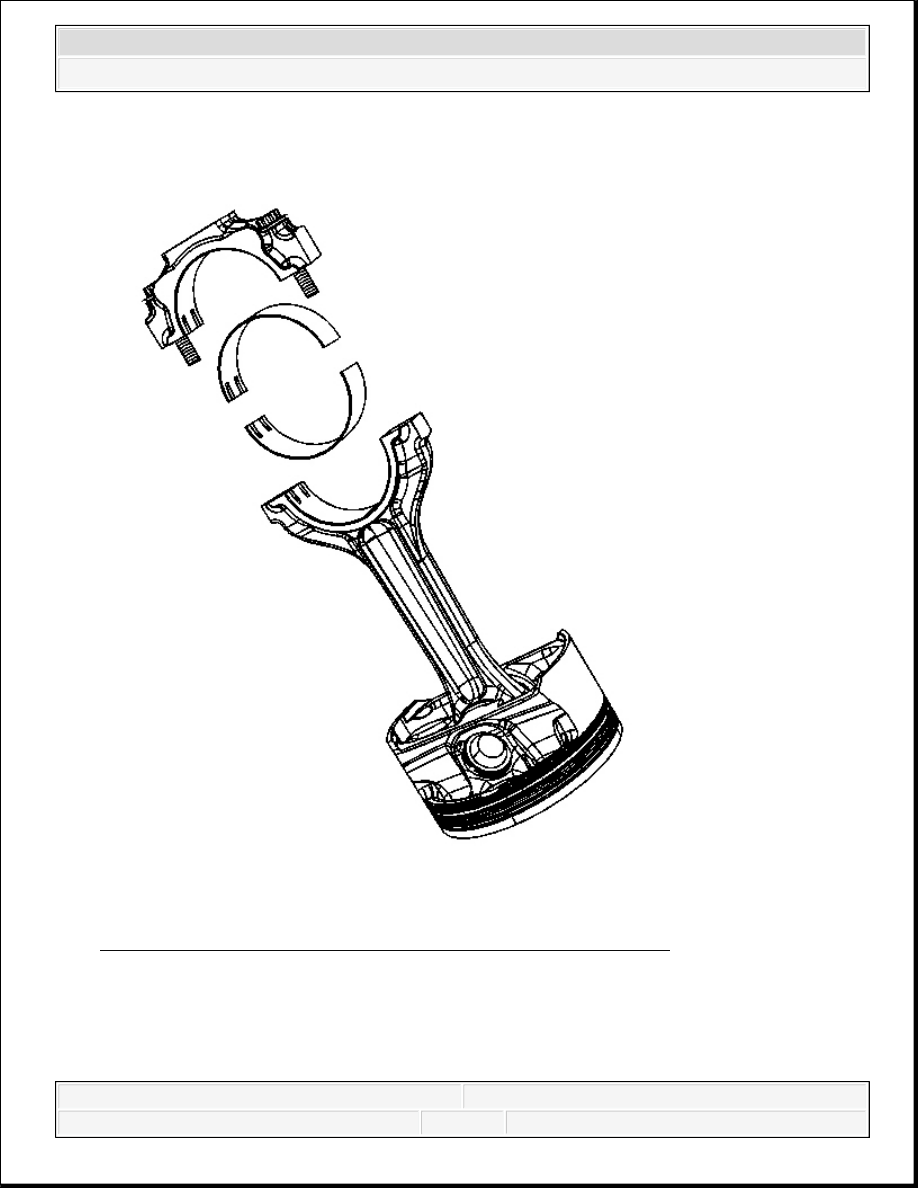

Fig. 416: View Of Piston, Connecting Rod & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
1. Remove the connecting rod bearings from the rod and cap.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

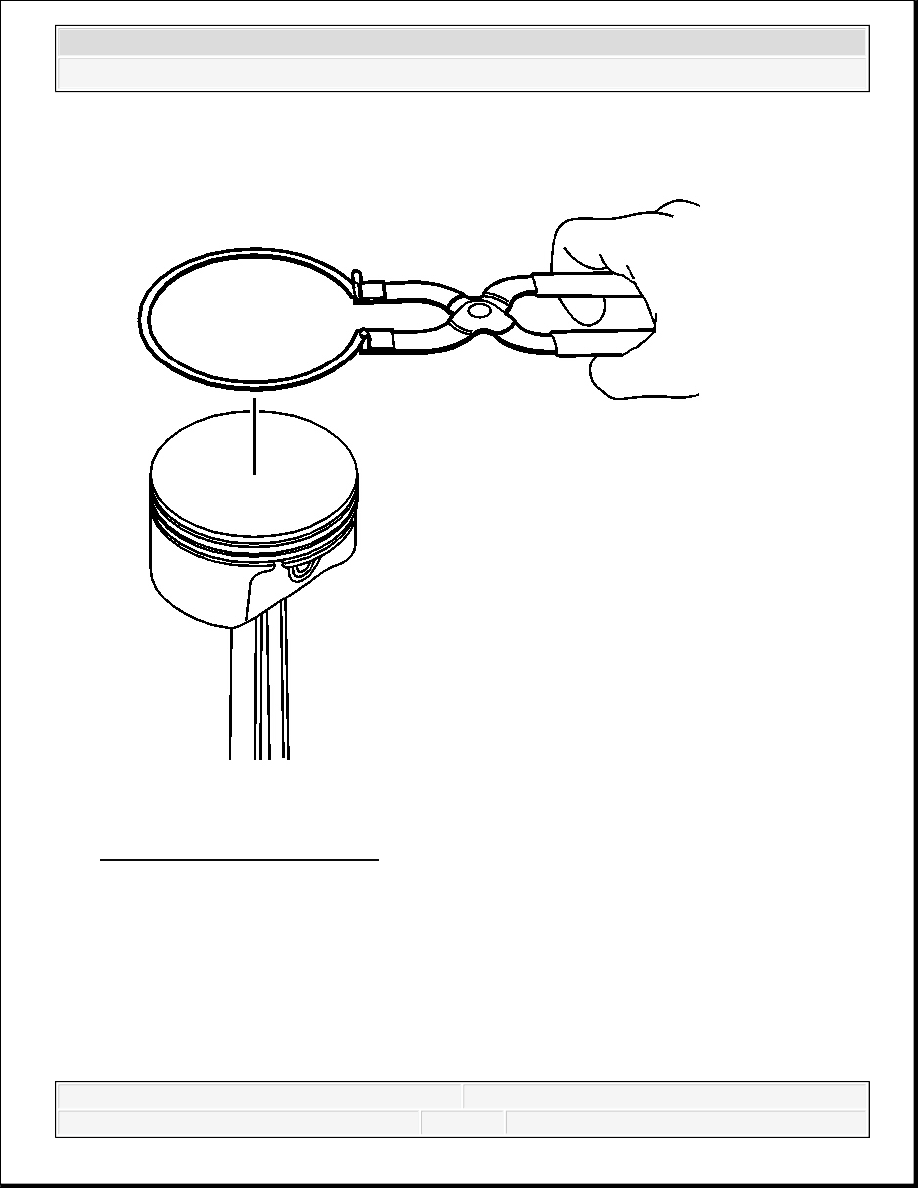

Fig. 417: View Of Piston Rings
Courtesy of GENERAL MOTORS CORP.
2. Using piston ring pliers, remove the piston rings from the piston.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

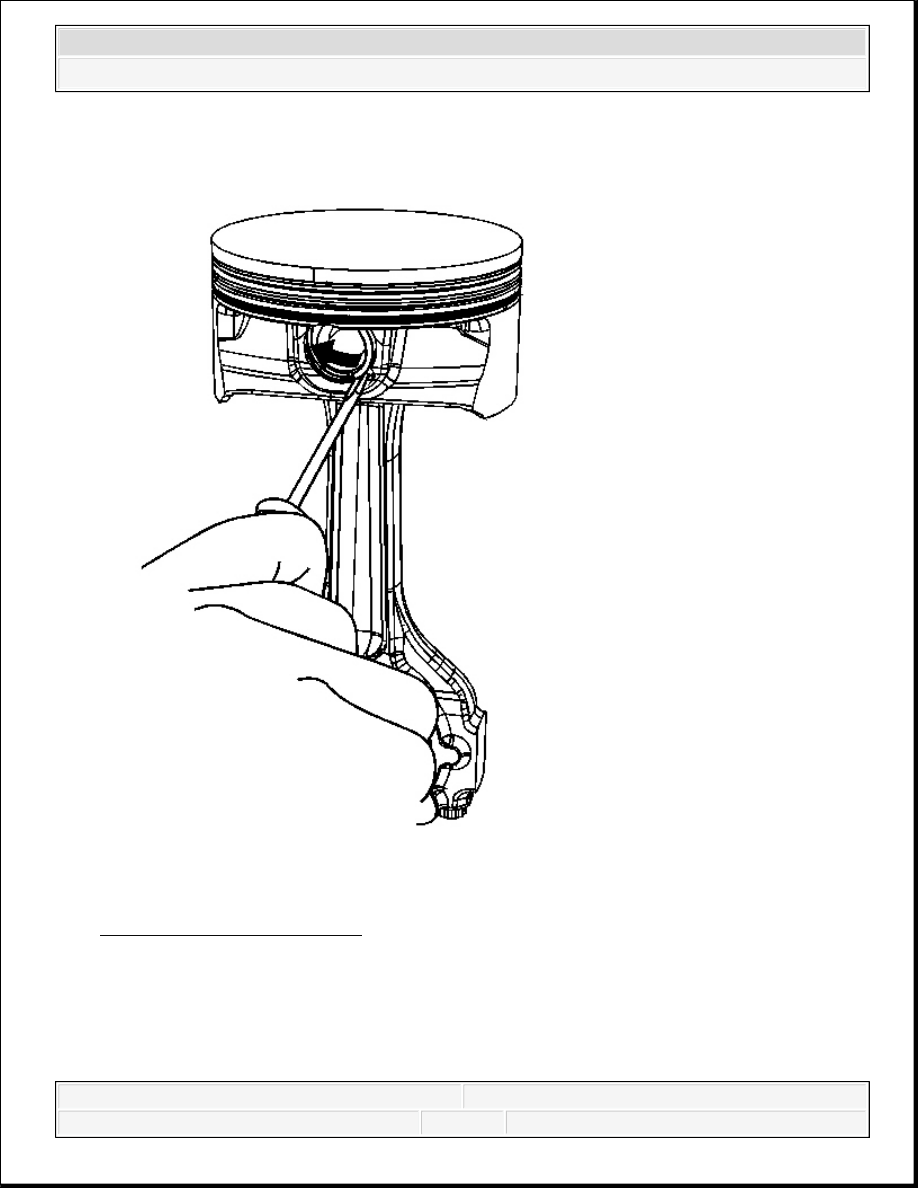

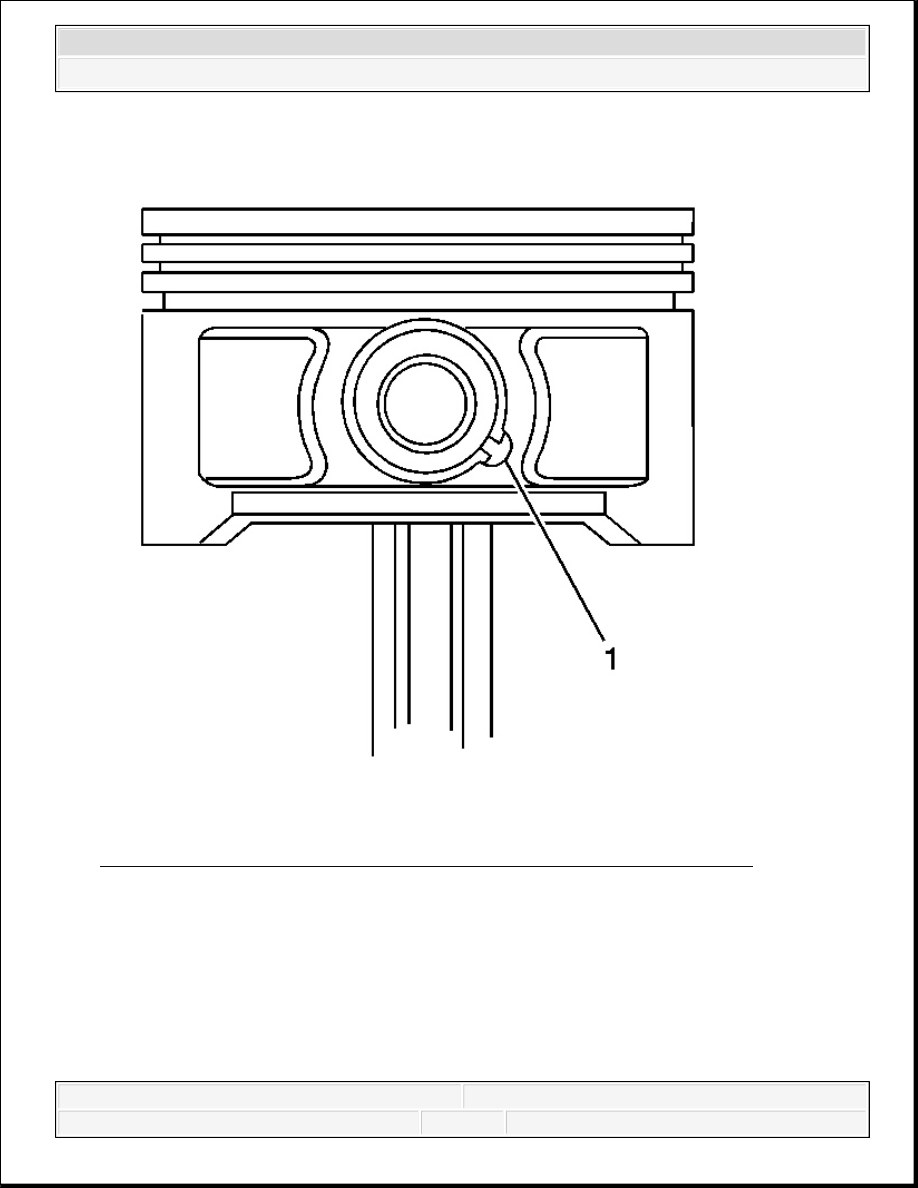

Fig. 418: View Of Piston Pin Retaining Clip & Cutout Area Of Pin Bore
Courtesy of GENERAL MOTORS CORP.
3. Rotate the piston pin retainers until the ring end gaps are positioned in the cutout area (1) of
the pin bore.
