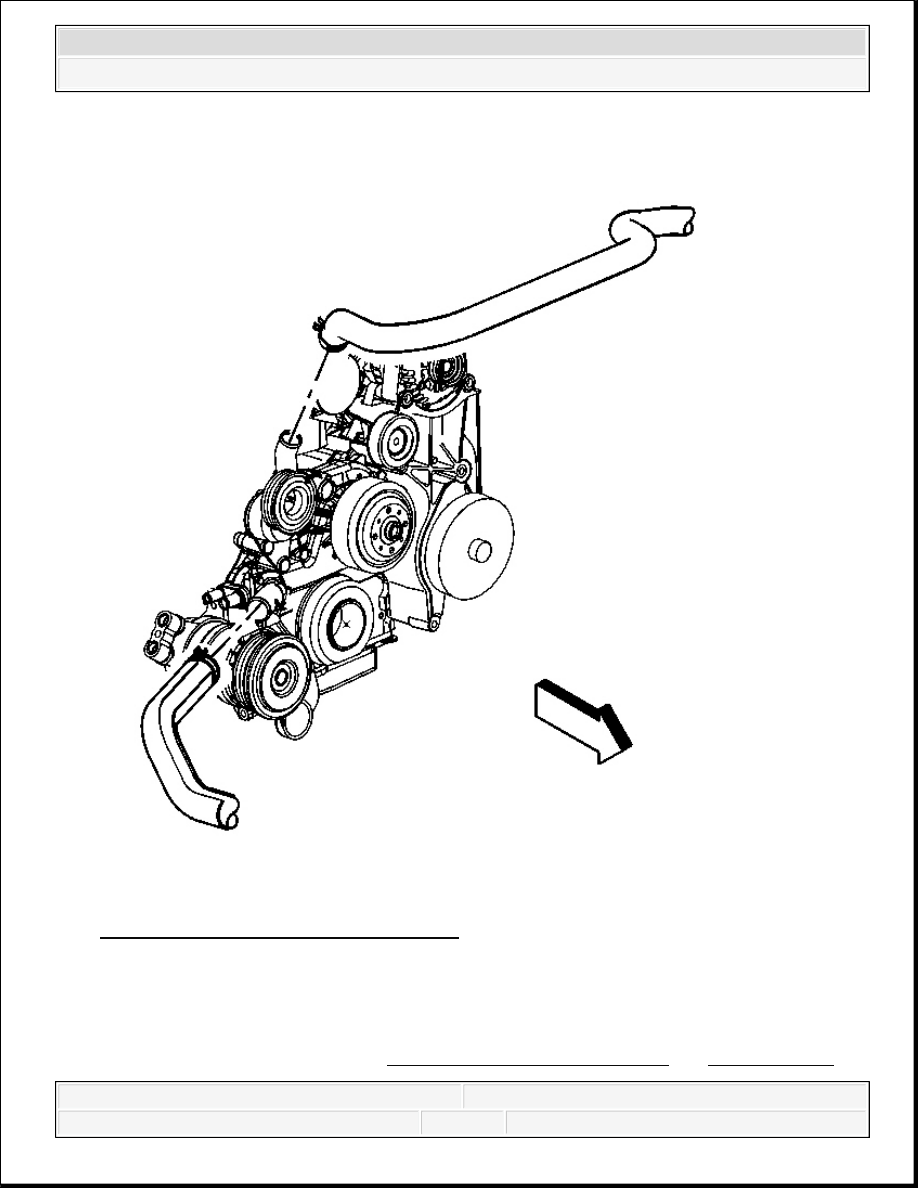

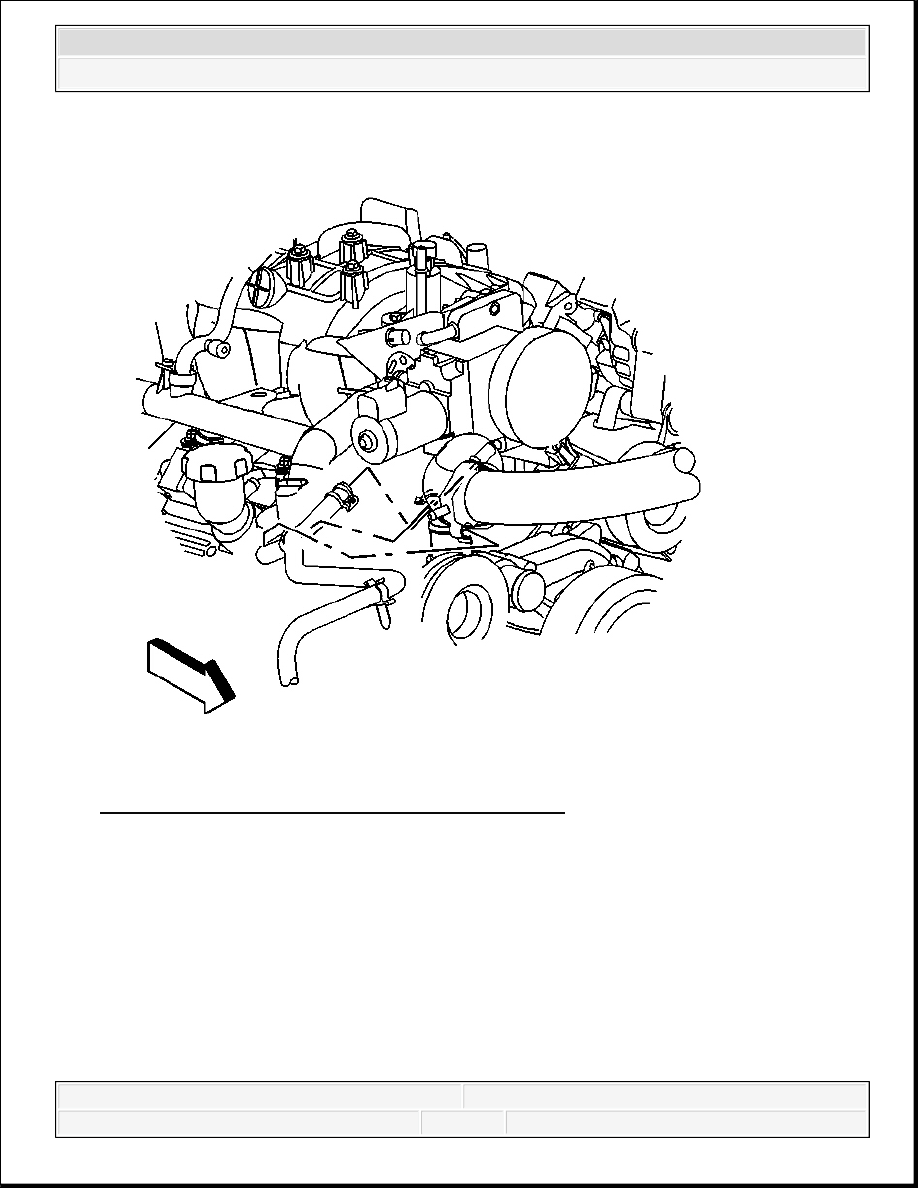

Fig. 238: View Of Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.
7. Reposition the radiator outlet hose clamp at the water pump.
8. Remove the radiator outlet hose from the water pump.
9. Remove the heater hoses. Refer to Heater Inlet Hose Replacement and Heater Outlet
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Hose Replacement .
Fig. 239: View Of Top Engine Cover
Courtesy of GENERAL MOTORS CORP.
10. Loosen the intake manifold sight shield bolt.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
11. Remove the sight shield from the retainer.

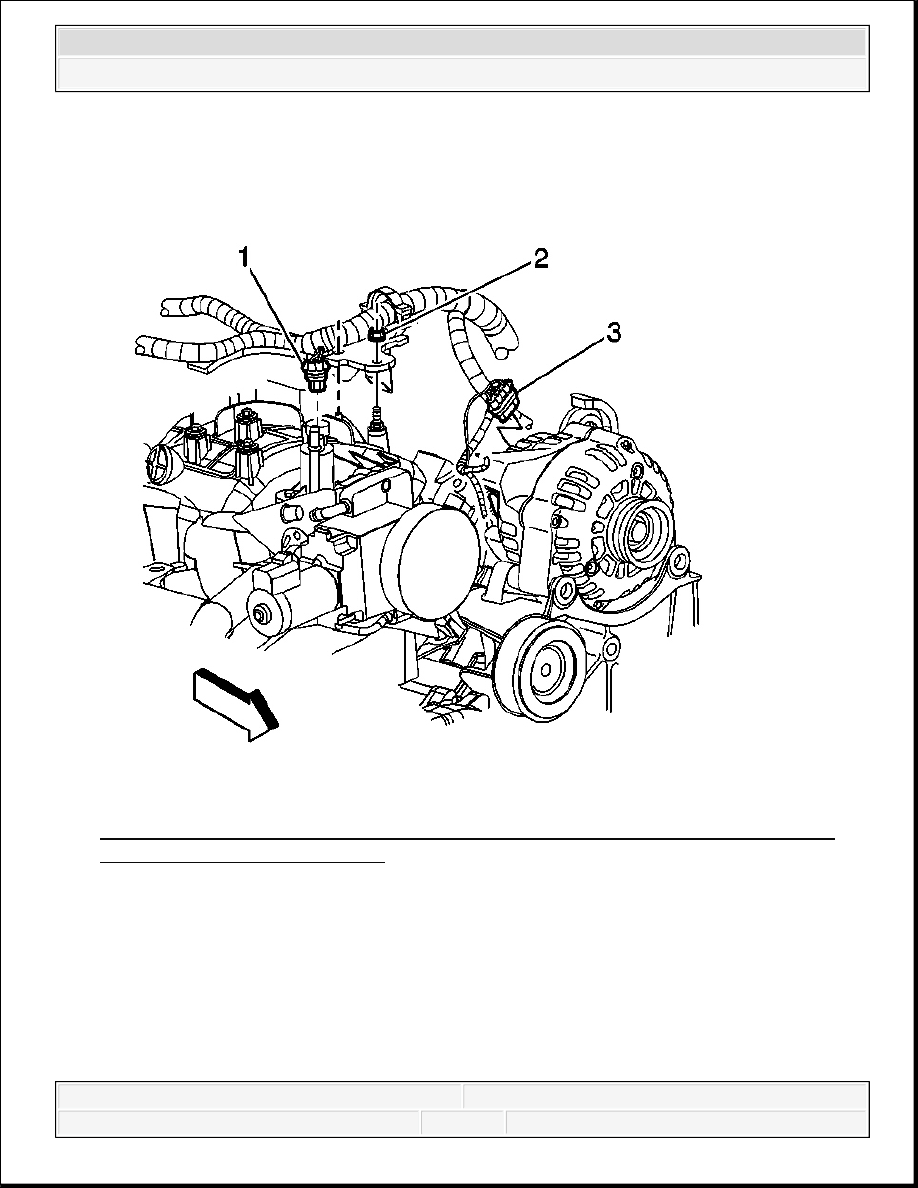

Fig. 240: Identifying Purge Solenoid Electrical Connector, Wiring Harness Nut &
Generator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
12. Disconnect the following electrical connectors:
Evaporative emissions (EVAP) canister purge solenoid (1)
Generator (3)
13. Remove the harness bracket nut (2) in order to remove the engine harness from the intake
manifold.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
