Chevrolet Silverado / GMC Sierra. Manual - part 2958
2008 ACCESSORIES & EQUIPMENT
Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
SCHEMATIC AND ROUTING DIAGRAMS
Application
Specification
Metric
English
Front Side Door Window Bolts
9 N.m
80 lb in
Front Side Door Window Channel Nuts
9 N.m
80 lb in
Front Side Door Window Channel Upper Screw
1.3 N.m
12 lb in
Front Side Door Window Regulator Bolts
4.6 N.m
41 lb in
Front Side Door Window Regulator Clamp Bolts
9 N.m
80 lb in
Front Side Door Window Regulator Motor Bolts
9 N.m
80 lb in
Front Side Door Window Run Channel Bolt
9 N.m
80 lb in
Front Side Door Window Run Channel Front Lower
Bolt
11 N.m
97 lb in
Front Side Door Window Run Channel Rear Bolt
10 N.m
89 lb in
Front Side Door Window Run Channel Rear Lower
Bolt
11 N.m
97 lb in
Liftgate Window Latch Bolts - Front Side
9 N.m
80 lb in
Liftgate Window Latch Screws
9 N.m
80 lb in
Rear Side Door Window Bolts
7 N.m
61 lb in
Rear Side Door Window Channel Lower Nuts
9 N.m
80 lb in
Rear Side Door Window Regulator Bolts
9 N.m
80 lb in
Rear Side Door Window Regulator Motor Bolts
9 N.m
80 lb in
Rear Side Door Window Regulator Nuts
9 N.m
80 lb in
Rear Side Door Window Regulator Nuts
9 N.m
80 lb in
Rear Side Door Window Regulator Nuts
9 N.m
80 lb in
Rear Sliding Window Catch Screws
3 N.m
27 lb in
Rear Sliding Window Regulator Screw
5 N.m
44 lb in
Windshield Side Reveal Molding
2 N.m
18 lb in
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
MOVEABLE WINDOW SCHEMATICS

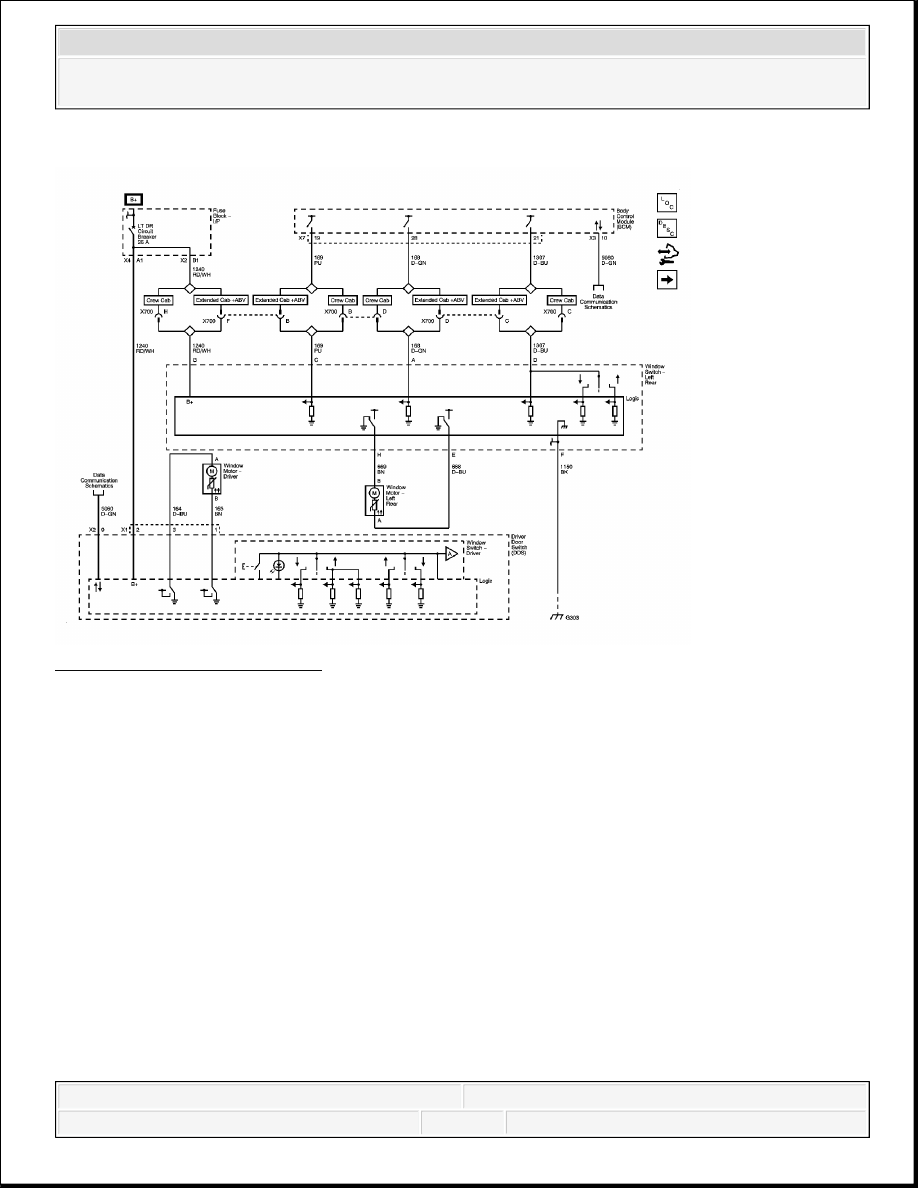

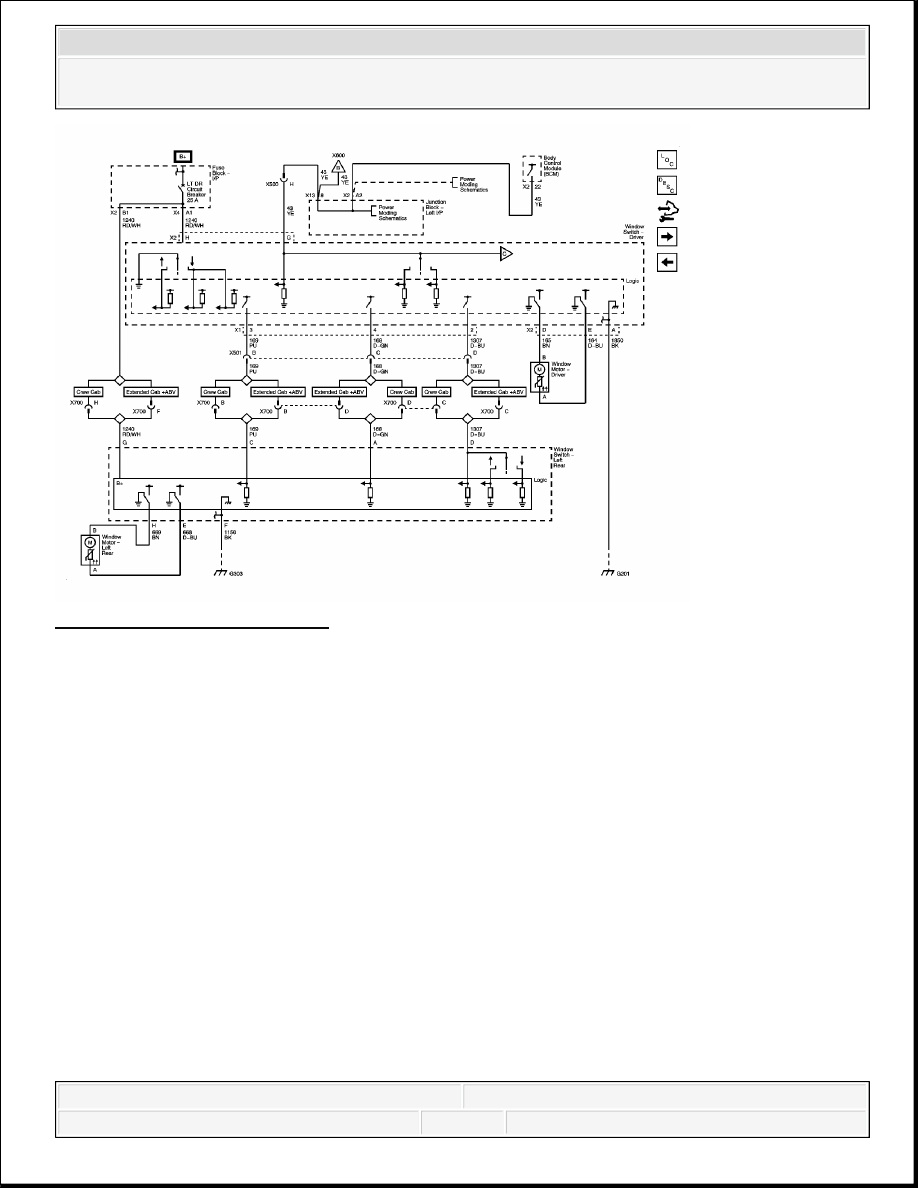

Fig. 1: Left Doors (AN3/DL3)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

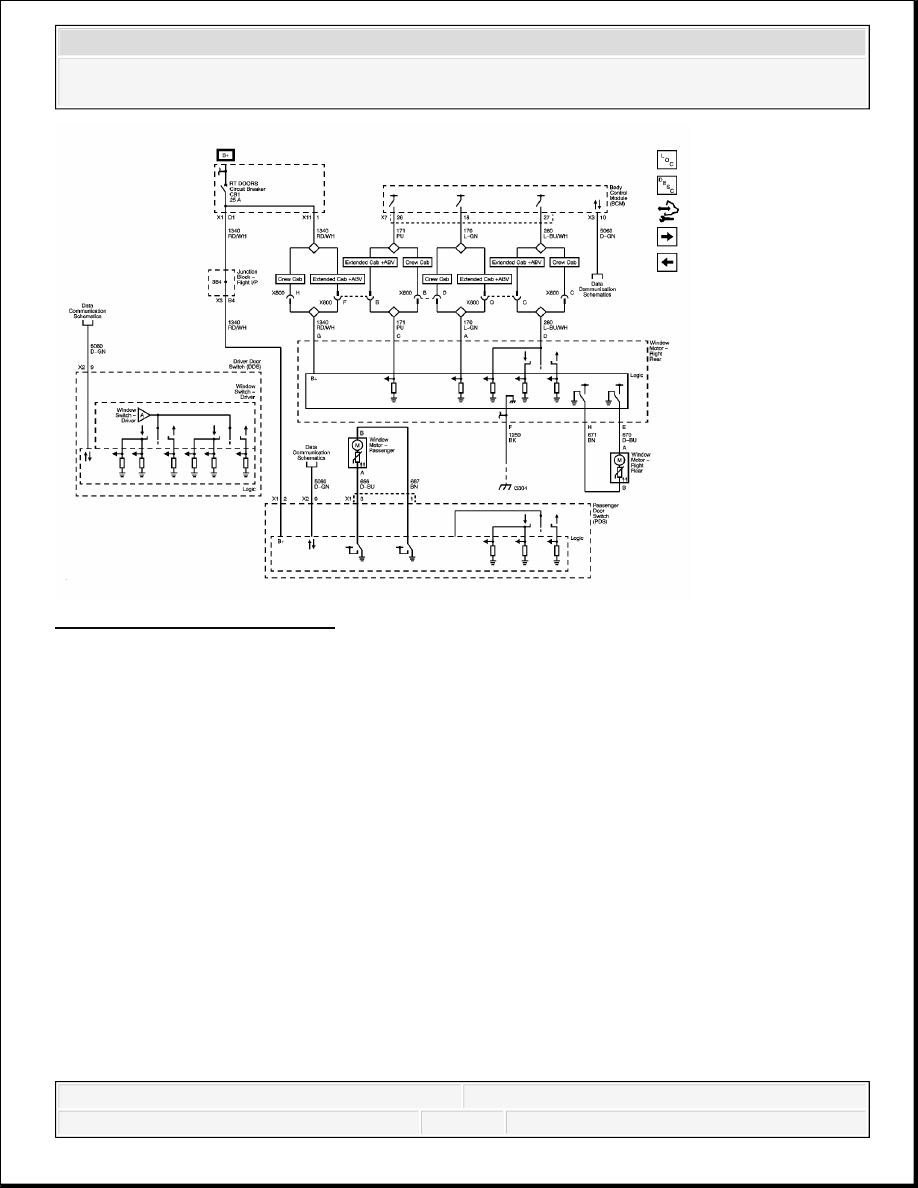

Fig. 2: Right Doors (AN3/DL3)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
