Chevrolet Silverado / GMC Sierra. Manual - part 2899
Courtesy of GENERAL MOTORS CORP.
Input Shaft and Planetary Assembly Installation
Rear Output Shaft Assembly
Callout
Component Name
1
Transfer Case Input Shaft Bearing Assembly
2
Transfer Case Input Shaft Inner Retaining Ring
3
Transfer Case High/Low Planetary Carrier
Assembly
4
Transfer Case Planetary Carrier Sun Gear Thrust
Washer
5
Transfer Case Input Shaft
6
Transfer Case Planetary Carrier Sun Gear Thrust
Washer
7
Transfer Case High/Low Locking Plate
8
Transfer Case High/Low Planetary Carrier
Retaining Ring
9
Transfer Case Input Shaft/Planetary Assembly
10
Transfer Case Input Shaft Bearing Outer Retaining
Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

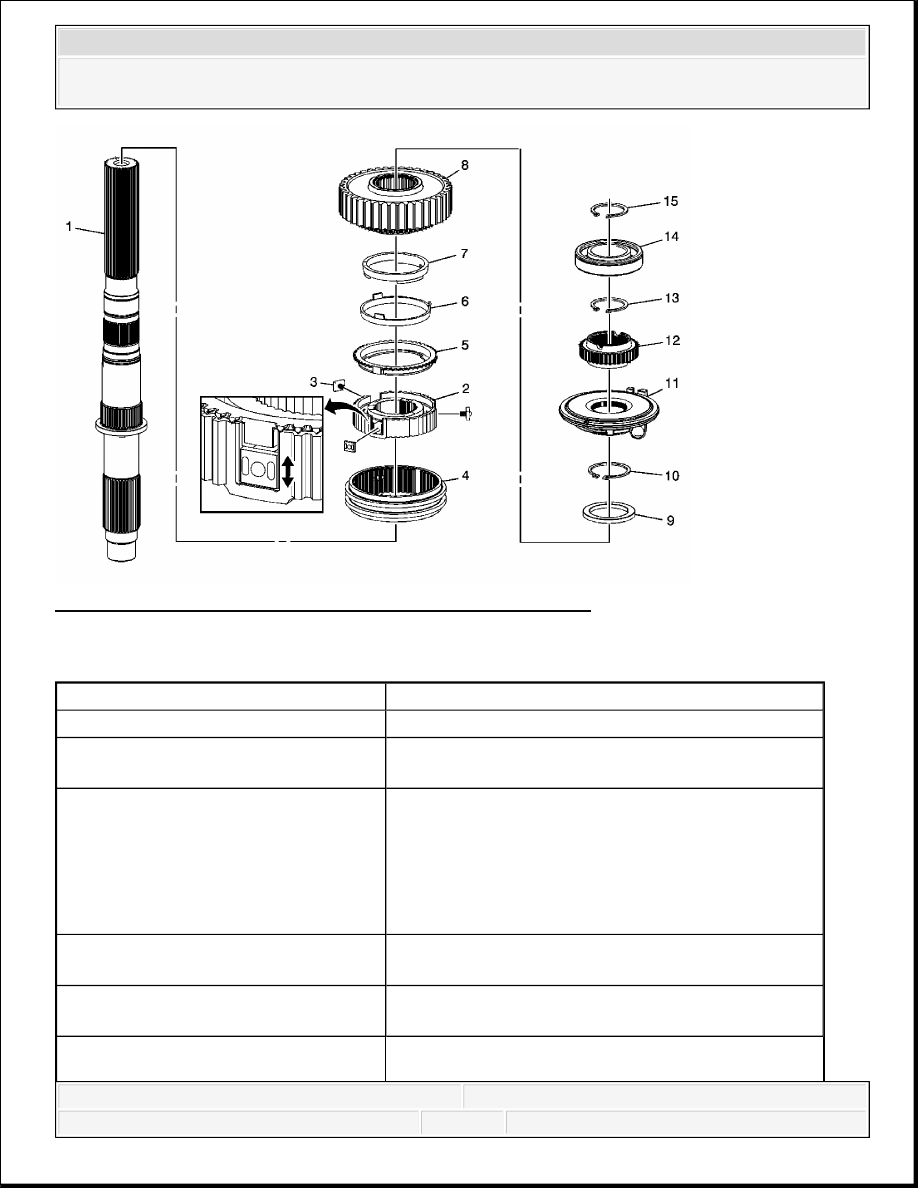

Fig. 45: View Of Rear Output Shaft Assembly Components
Courtesy of GENERAL MOTORS CORP.
Rear Output Shaft Assembly
Callout
Component Name
1
Transfer Case Rear Output Shaft
2
Transfer Case Two/Four Wheel Drive Synchronizer
Hub
3
Transfer Case Two/Four Wheel Drive Synchronizer
Insert (Qty: 3)
Tip: Ensure that the inserts are installed in the
correct orientation in the synchronizer hub. The
inserts should be able to move when correctly
installed.
4
Transfer Case Two/Four Wheel Drive Synchronizer
Sleeve
5
Transfer Case Two/Four Wheel Drive Synchronizer
Assembly
6
Transfer Case Two/Four Wheel Drive Synchronizer
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Shift Fork Assemblies and Rear Output Shaft Assembly Installation
Blocking - Outer - Ring
7
Transfer Case Two/Four Wheel Drive Synchronizer
Blocking - Inner - Ring
8
Transfer Case Front Output Shaft Drive Sprocket
9
Transfer Case Front Output Shaft Drive Sprocket
Spacer - Rear
10
Transfer Case Front Output Shaft Drive Sprocket
Retaining Ring
11
Transfer Case Oil Pump Assembly
12
Transfer Case Rear Output Shaft Speed Reluctor
Wheel
13
Transfer Case Rear Output Shaft Rear Bearing
Retaining Ring
14
Transfer Case Rear Output Shaft Rear Bearing
Assembly
Tip:
Use an arbor press or suitable installer to
install the bearing to the rear output shaft.
Ensure the retaining ring groove in the outer
race is positioned toward the rear.
15
Transfer Case Rear Output Shaft Rear Bearing
Retaining Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

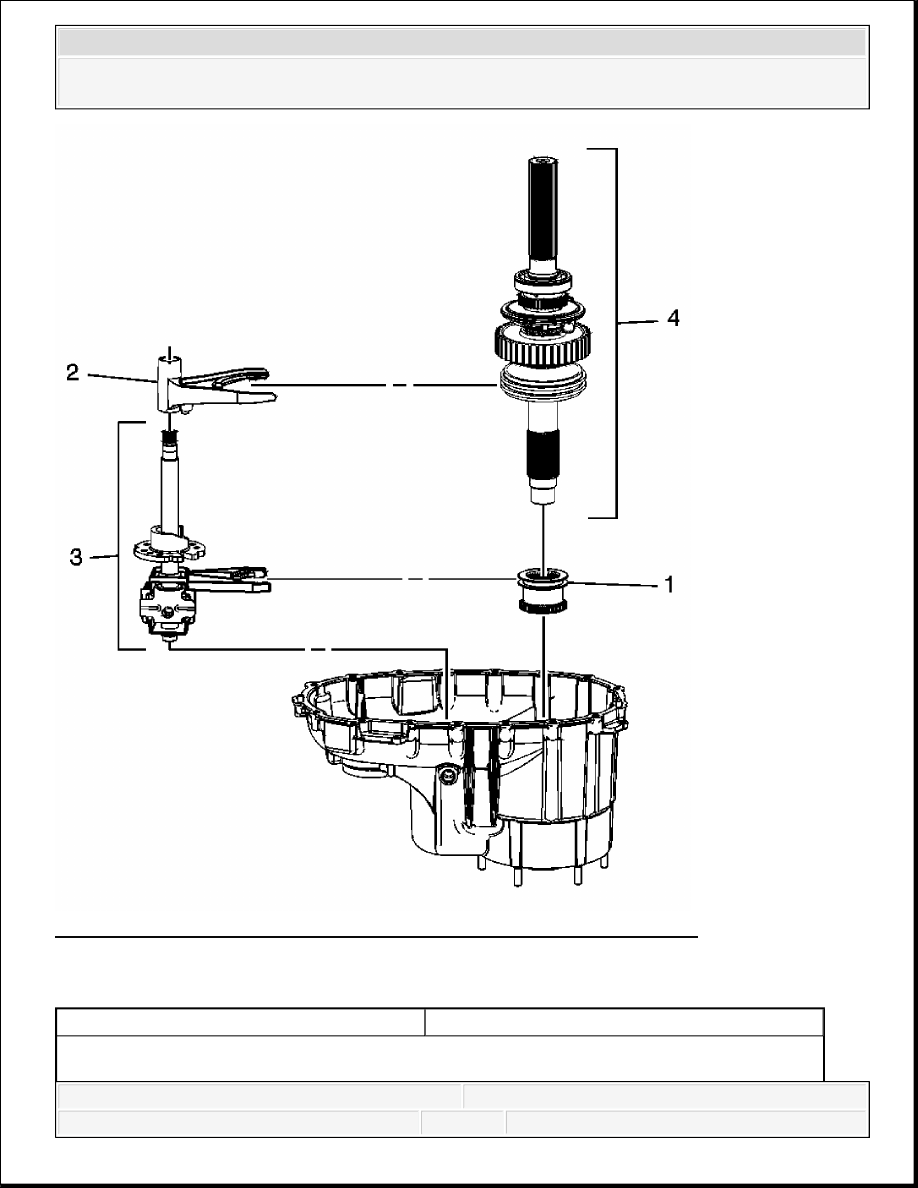

Fig. 46: View Of Shift Fork Assemblies & Rear Output Shaft Assembly
Courtesy of GENERAL MOTORS CORP.
Shift Fork Assemblies and Rear Output Shaft Assembly Installation
Callout
Component Name
Tip:
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
