Chevrolet Silverado / GMC Sierra. Manual - part 2888

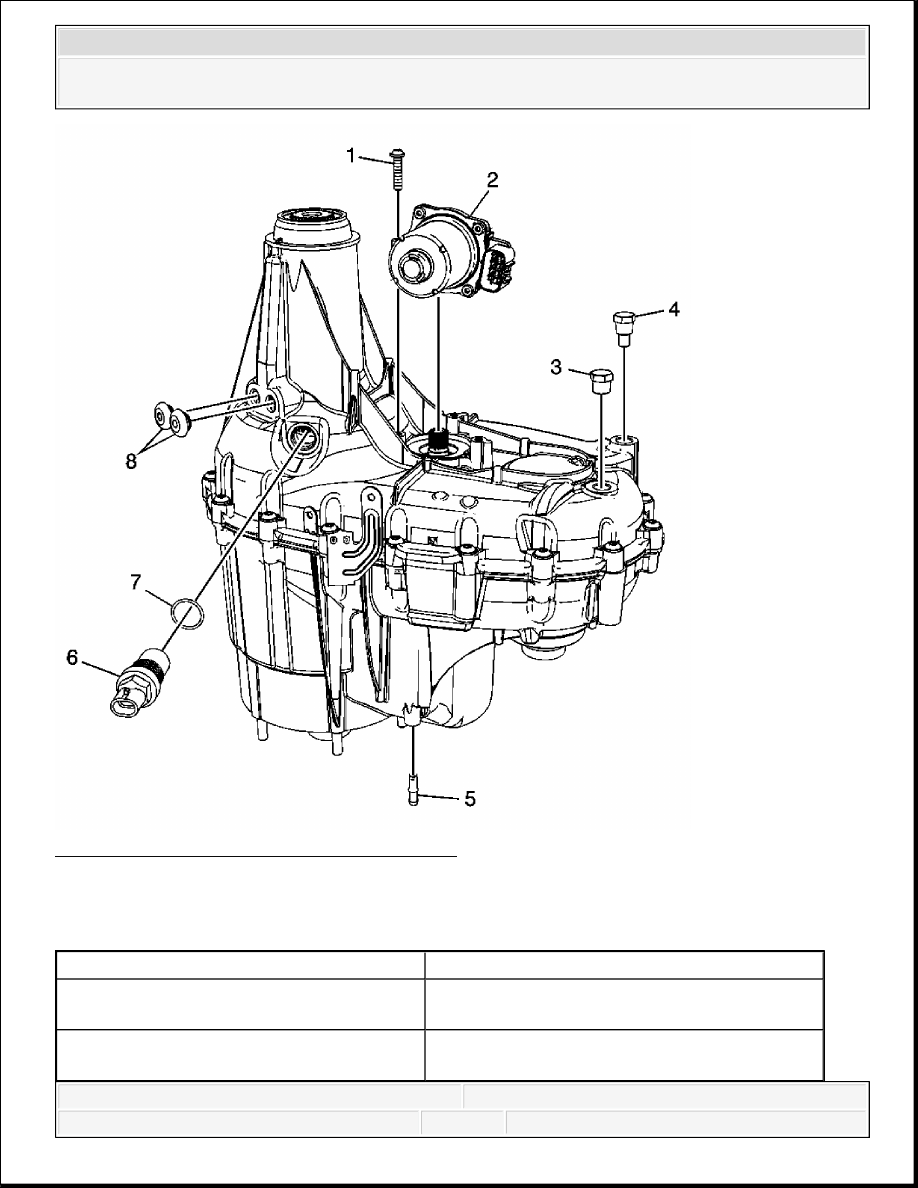

Fig. 20: View Of Transfer Case Components
Courtesy of GENERAL MOTORS CORP.
Access Hole Plugs, Fill and Drain Plug, Vent, 2/4 Wheel Drive Actuator, and Vehicle
Speed Sensor Removal
Callout
Component Name
1
Transfer Case Two/Four Wheel Drive Actuator
Bolt/Screw
2
Transfer Case Two/Four Wheel Drive Actuator
Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Rear Output Shaft Seal and Shift Detent Plunger Assembly Removal
3
Transfer Case Oil Fill Plug
4
Transfer Case Oil Drain Plug
5
Transfer Case Vent
Tip: Remove ONLY if the vent pipe is
damaged.
6
Vehicle Speed Sensor Assembly
7
Vehicle Speed Sensor O-Ring Seal
8
Transfer Case Access Hole Plugs (Qty: 2)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

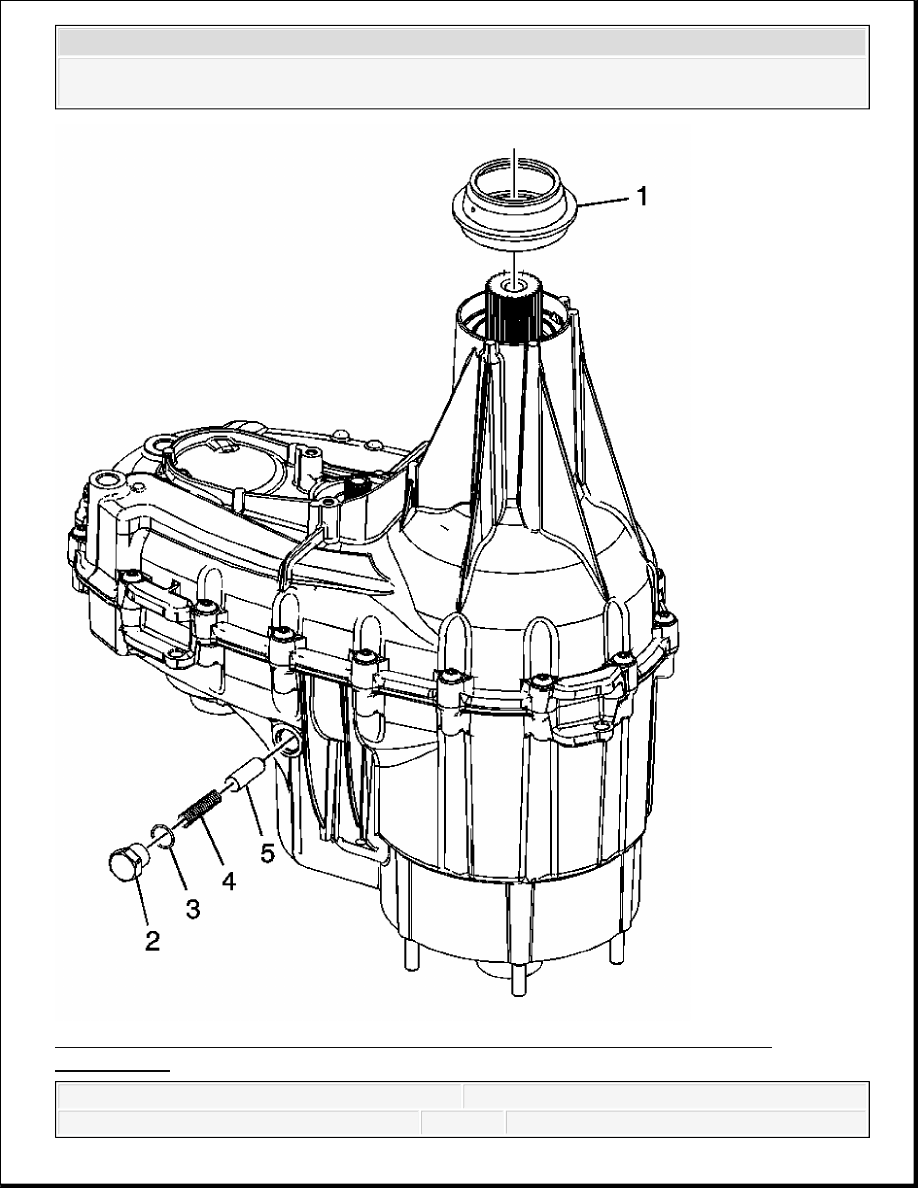

Fig. 21: View Of Transfer Case Rear Output Shaft Seal & Shift Detent Plunger
Components
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Courtesy of GENERAL MOTORS CORP.
Rear Output Shaft Seal and Shift Detent Plunger Assembly Removal
Transfer Case Rear Case Half Removal
Callout
Component Name
1
Transfer Case Rear Output Shaft Seal
NOTE:
Refer to Transfer Case Seal Removal Notice .
2
Transfer Case Shift Detent Plunger Plug
3
Transfer Case Shift Detent Plunger Plug Seal
4
Transfer Case Shift Detent Spring
5
Transfer Case Shift Detent Plunger
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
