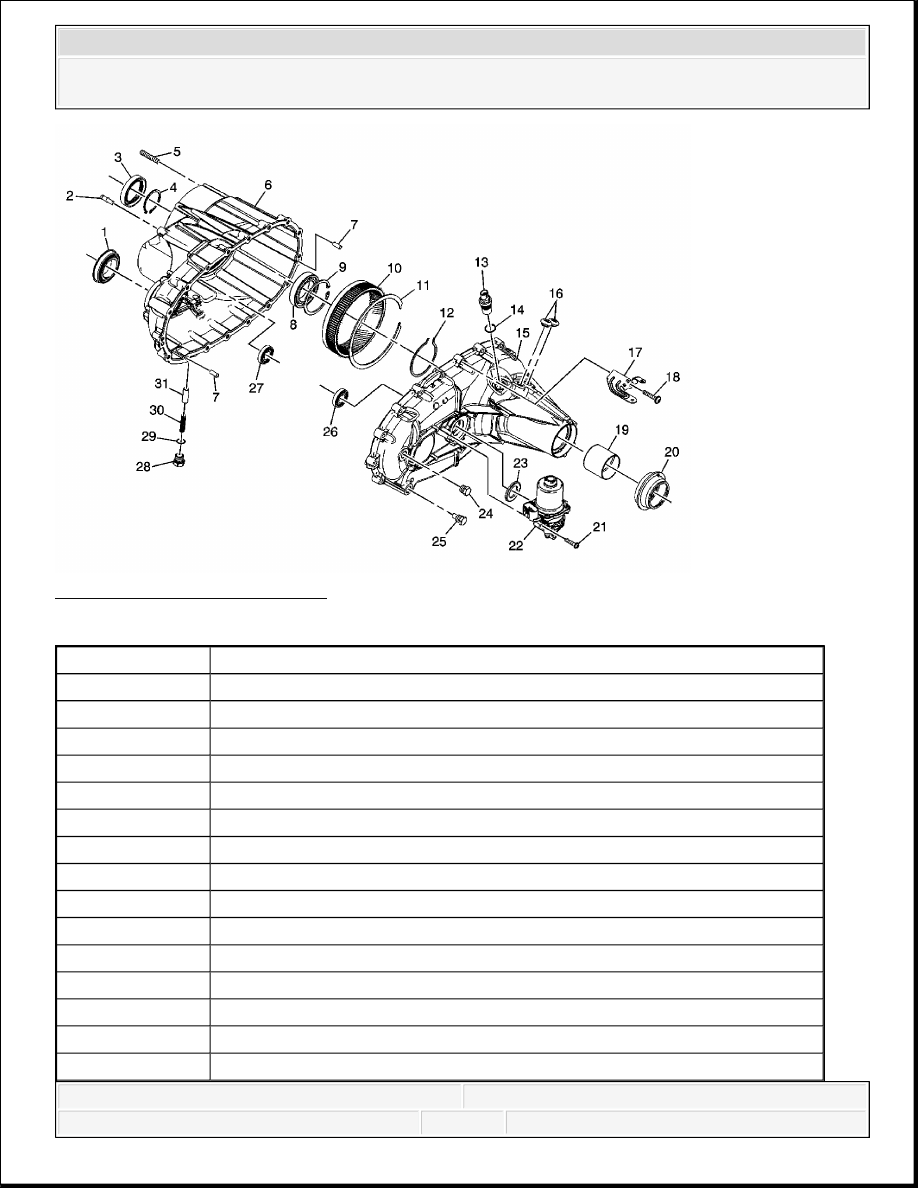

Fig. 4: Case Half Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Transfer Case Front Output Shaft Seal
2
Transfer Case Vent
3
Transfer Case Input Shaft Seal
4
Transfer Case Input Shaft Bearing Outer Retaining Ring
5
Transfer Case Stud
6
Transfer Case Front Half
7
Transfer Case Half Locating Pin
7
Transfer Case Half Locating Pin
8
Transfer Case Input Shaft Bearing Assembly
9
Transfer Case Input Shaft Inner Retaining Ring
10
Transfer Case High/Low Internal Gear
11
Transfer Case High/Low Internal Gear Retaining Ring
12
Transfer Case Rear Output Shaft Rear Bearing Outer Retaining Ring
13
Vehicle Speed Sensor Assembly
14
Vehicle Speed Sensor - O-Ring - Seal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
15
Transfer Case Rear Half
16
Transfer Case Access Hole Plug
17
Transfer Case - Harness - Bracket
18
Transfer Case Half Bolt/Screw
19
Transfer Case Rear Output Shaft Bushing
20
Transfer Case Rear Output Shaft Seal
21
Transfer Case Two/Four Wheel Drive Actuator Bolt/Screw
22
Transfer Case Two/Four Wheel Drive Actuator Assembly
23
Transfer Case Two/Four Wheel Drive Actuator Seal
24
Transfer Case Oil Fill Plug
25
Transfer Case Oil Drain Plug
26
Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly
27
Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly
28
Transfer Case Shift Detent Plunger Plug
29
Transfer Case Shift Detent Plunger Plug - O-Ring - Seal
30
Transfer Case Shift Detent Spring
31
Transfer Case Shift Detent Plunger
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

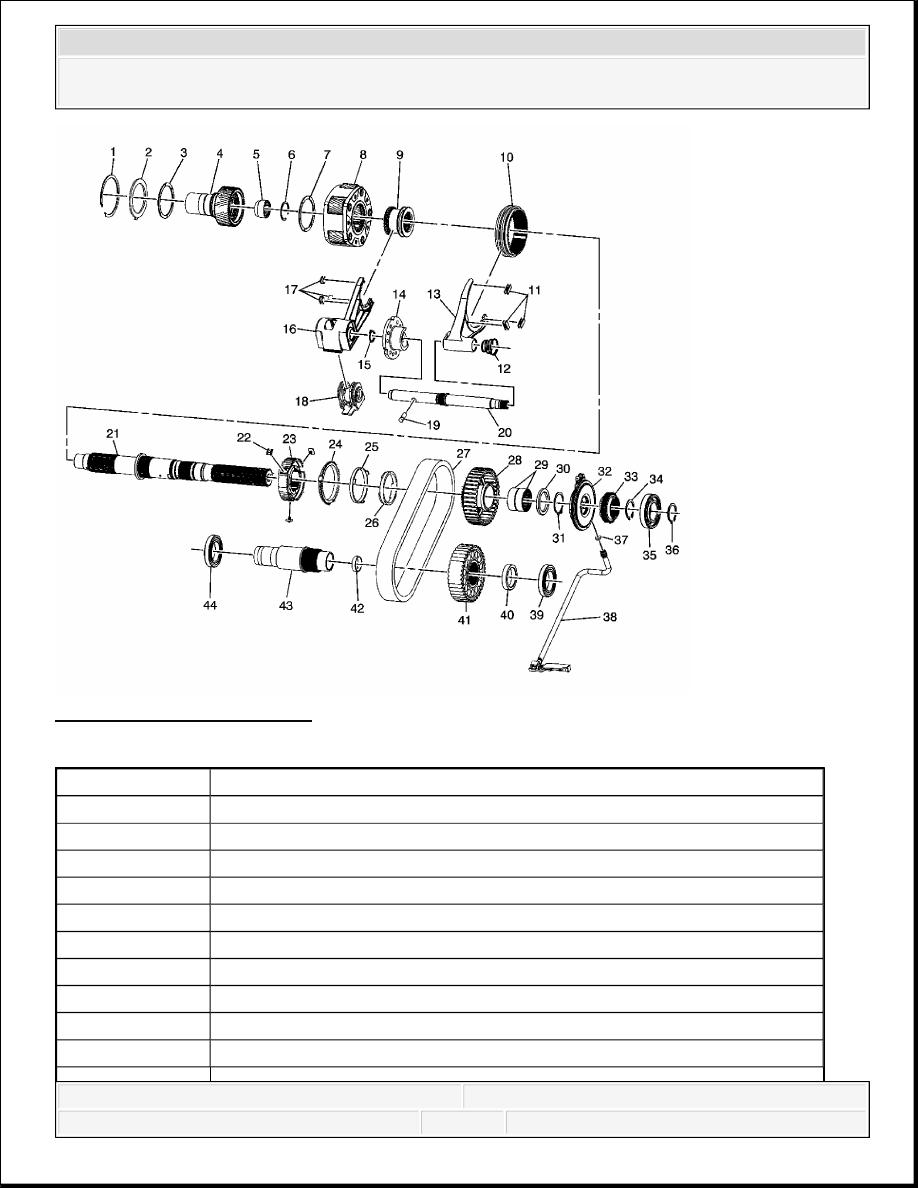

Fig. 5: Internal Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Transfer Case High/Low Planetary Carrier Retaining Ring
2
Transfer Case High/Low Locking Plate
3
Transfer Case Planetary Carrier Sun Gear Thrust Washer
4
Transfer Case Input Shaft
5
Transfer Case Input Shaft Pilot Bearing Assembly
6
Transfer Case Input Shaft Pilot Bearing Retaining Ring
7
Transfer Case Planetary Carrier Sun Gear Thrust Washer
8
Transfer Case High/Low Planetary Carrier Assembly
9
Transfer Case High/Low Clutch
10
Transfer Case Two/Four Wheel Drive Synchronizer Sleeve
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
11
Transfer Case Two/Four Wheel Drive Shift Fork Insert
12
Transfer Case Shift Fork Spring
13
Transfer Case Two/Four Wheel Drive Shift Fork Assembly
14
Transfer Case Two/Four Wheel Drive Actuator Cam
15
Transfer Case Two/Four Wheel Drive Actuator Cam Retaining Ring
16
Transfer Case High/Low Shift Fork
17
Transfer Case High/Low Shift Fork Pads
18
Transfer Case High/Low Shift Fork Spring Assembly
19
Transfer Case High/Low Shift Fork Pin
20
Transfer Case Control Actuator Shaft
21
Transfer Case Rear Output Shaft
22
Transfer Case Two/Four Wheel Drive Synchronizer Inserts
23
Transfer Case Two/Four Wheel Drive Synchronizer Hub
24
Transfer Case Two/Four Wheel Drive Synchronizer Assembly
25
Transfer Case Two/Four Wheel Drive Synchronizer Blocking - Outer -
Ring
26
Transfer Case Two/Four Wheel Drive Synchronizer Blocking - Inner -
Ring
27
Transfer Case Front Output Shaft Drive Chain Assembly
28
Transfer Case Front Output Shaft Drive Sprocket
29
Transfer Case Front Output Shaft Drive Sprocket Bearing Assembly
30
Transfer Case Front Output Shaft Drive Sprocket Spacer - Rear
31
Transfer Case Front Output Shaft Drive Sprocket Retaining Ring
32
Transfer Case Oil Pump Assembly
33
Transfer Case Rear Output Shaft Speed Reluctor Wheel
34
Transfer Case Rear Output Shaft Rear Bearing Retaining Ring
35
Transfer Case Rear Output Shaft Rear Bearing Assembly
36
Transfer Case Rear Output Shaft Rear Bearing Retaining Ring
37
Transfer Case Oil Pump Suction Pipe Seal
38
Transfer Case Oil Pump Suction Pipe
39
Transfer Case Front Output Shaft Rear Bearing Assembly
40
Transfer Case Front Output Shaft Driven Sprocket Spacer
41
Transfer Case Front Output Shaft Driven Sprocket
42
Transfer Case Front Output Shaft Hole Plug
43
Transfer Case Front Output Shaft
