Rear Output Shaft Assembly Installation
10
Transfer Case Input Shaft Bearing Outer Retaining
Ring
11
Transfer Case Shift Lever Seal
Tip:
Lubricate the seal to ease installation.
Ensure the lip on the seal is facing inward.
Ensure the seal is installed squarely into the
bore.
Press the seal in, until it contacts the sector
bearing.
Special Tools
DT-48215 Shift Detent Lever Bearing Installer.
See Special Tools.
J 7079-2 Universal Driver Handle - Non-
Threaded. See Special Tools.
12
Transfer Case Shift Detent Lever Assembly
13
Transfer Case Shift Detent Plunger
14
Transfer Case Shift Detent Spring
15
Transfer Case Shift Detent Plunger Plug Seal
Tip: Lightly lubricate the O-ring with clean
DEXRON®VI.
16
Transfer Case Shift Detent Plunger Plug
Tighten: 20 N.m (15 lb ft)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

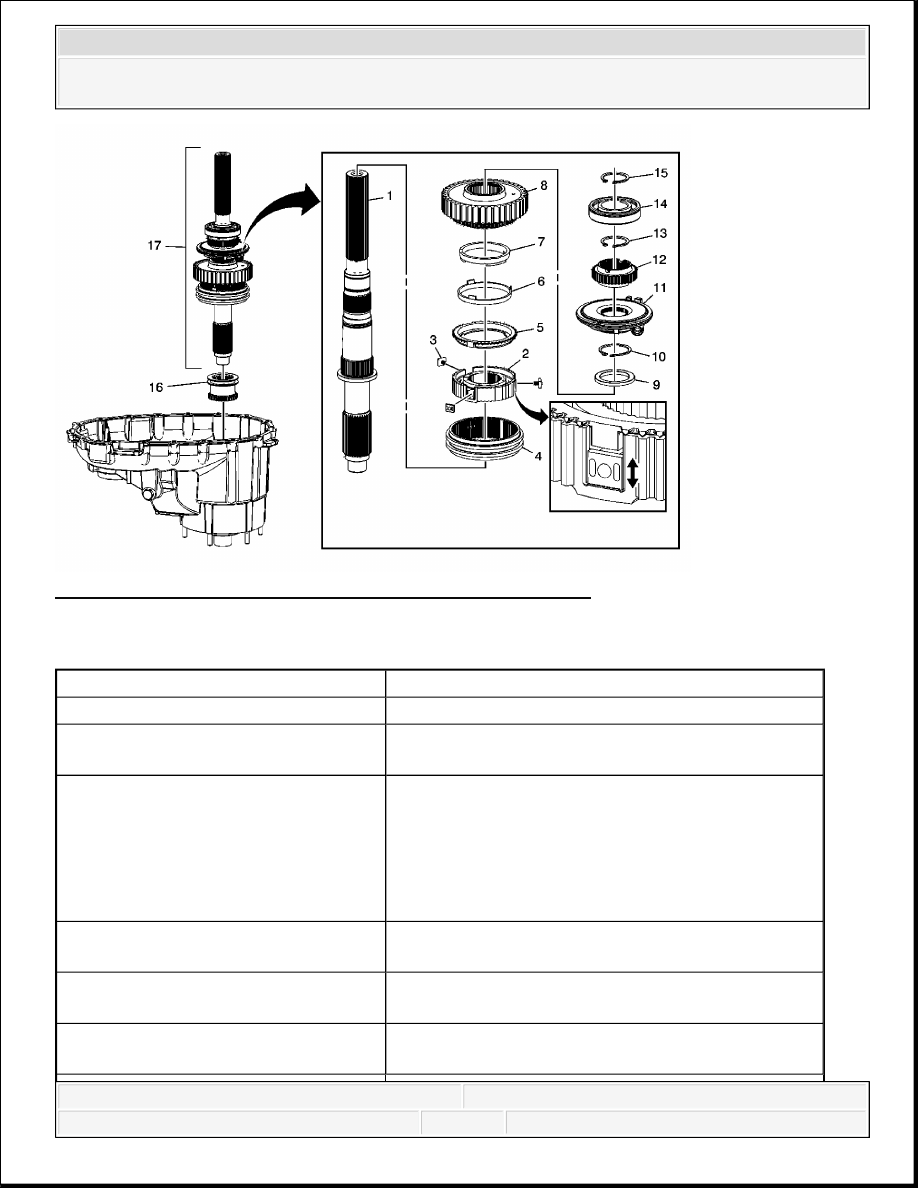

Fig. 44: View Of Rear Output Shaft Assembly Components
Courtesy of GENERAL MOTORS CORP.
Rear Output Shaft Assembly Installation
Callout
Component Name
1
Transfer Case Rear Output Shaft
2
Transfer Case Two/Four Wheel Drive Synchronizer
Hub
3
Transfer Case Two/Four Wheel Drive Synchronizer
Insert (Qty: 3)
Tip: Ensure that the inserts are installed in the
correct orientation in the synchronizer hub. The
inserts should be able to move when correctly
installed.
4
Transfer Case Two/Four Wheel Drive Synchronizer
Sleeve
5
Transfer Case Two/Four Wheel Drive Synchronizer
Assembly
6
Transfer Case Two/Four Wheel Drive Synchronizer
Blocking - Outer - Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

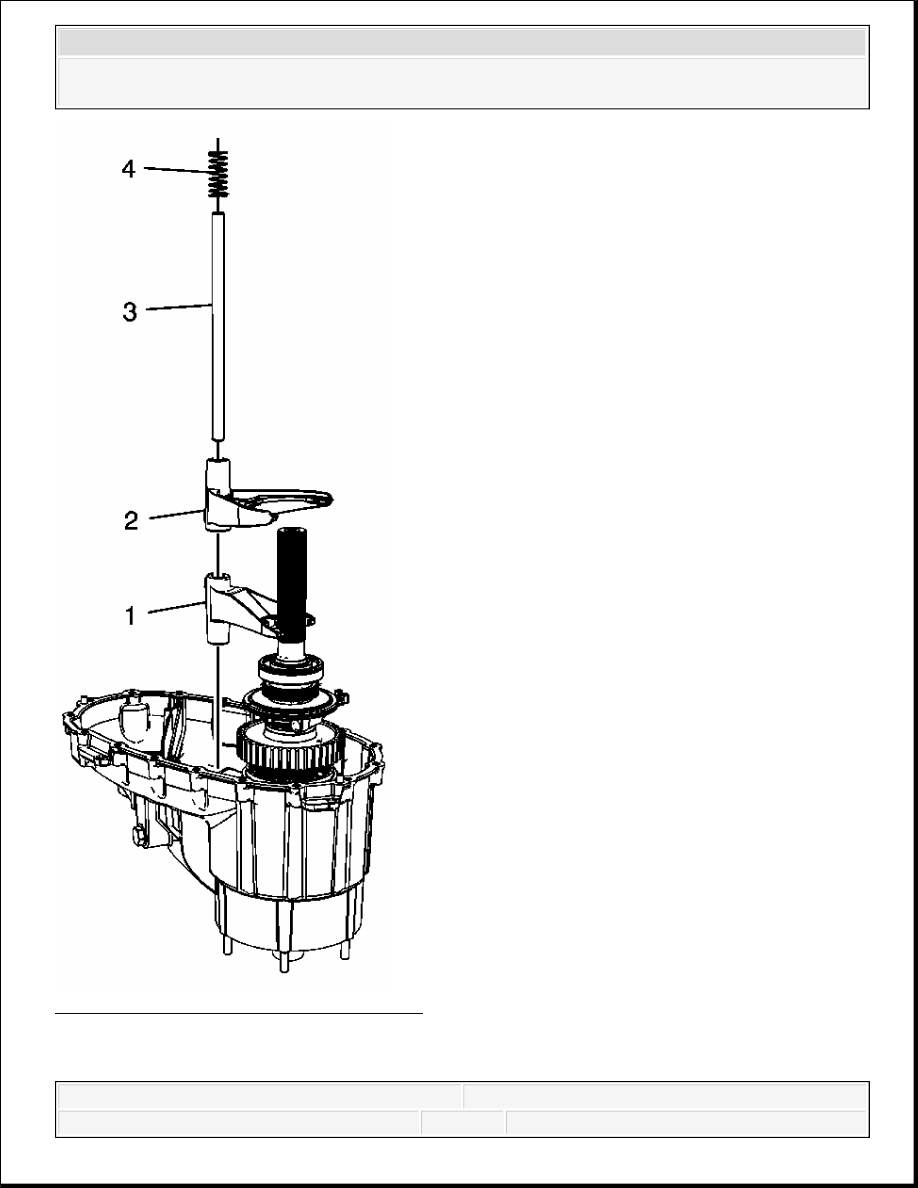

Shift Forks Installation
7
Transfer Case Two/Four Wheel Drive Synchronizer
Blocking - Inner - Ring
8
Transfer Case Front Output Shaft Drive Sprocket
9
Transfer Case Front Output Shaft Drive Sprocket
Spacer - Rear
10
Transfer Case Front Output Shaft Drive Sprocket
Retaining Ring
11
Transfer Case Oil Pump Assembly
12
Transfer Case Rear Output Shaft Speed Reluctor
Wheel
13
Transfer Case Rear Output Shaft Rear Bearing
Retaining Ring
14
Transfer Case Rear Output Shaft Rear Bearing
Assembly
Tip:
Use an arbor press or a suitable installer to
install the bearing to the rear output shaft.
Ensure the retaining ring groove in the outer
race is positioned toward the rear.
15
Transfer Case Rear Output Shaft Rear Bearing
Retaining Ring
16
Transfer Case High/Low Clutch
17
Transfer Case Rear Output Shaft Assembly
2008 Chevrolet Silverado 1500
