Fig. 37: View Of Inner & Outer Shift Detent Lever Bearings
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
Using the J 7079-2 , remove the bearings from the front case half. See Special Tools.
Ensure the bearings are installed squarely into the bearing bores.
1
Transfer Case Shift Detent Lever Bearing - Inner
Tip:
Ensure the printing on the bearing is facing
upward.
Install the bearing using the long side of the
DT-48215 . See Special Tools.
Press the bearing until the tool bottoms on the
front case half.
Special Tools
DT-48215 Shift Detent Lever Bearing
Installer. See Special Tools.
J 7079-2 Universal Driver Handle - Non-
Threaded. See Special Tools.
2
Transfer Case Shift Detent Lever Bearing - Outer
Tip:
Ensure the printing on the bearing is facing
upward.
Install the bearing using the short side of the
DT-48215 . See Special Tools.
Press the bearing until the tool bottoms on the
front case half.
Special Tools
DT-48215 Shift Detent Lever Bearing
Installer. See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
INPUT SHAFT PILOT BEARING REPLACEMENT (LIGHT DUTY)
J 7079-2 Universal Driver Handle - Non-
Threaded. See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

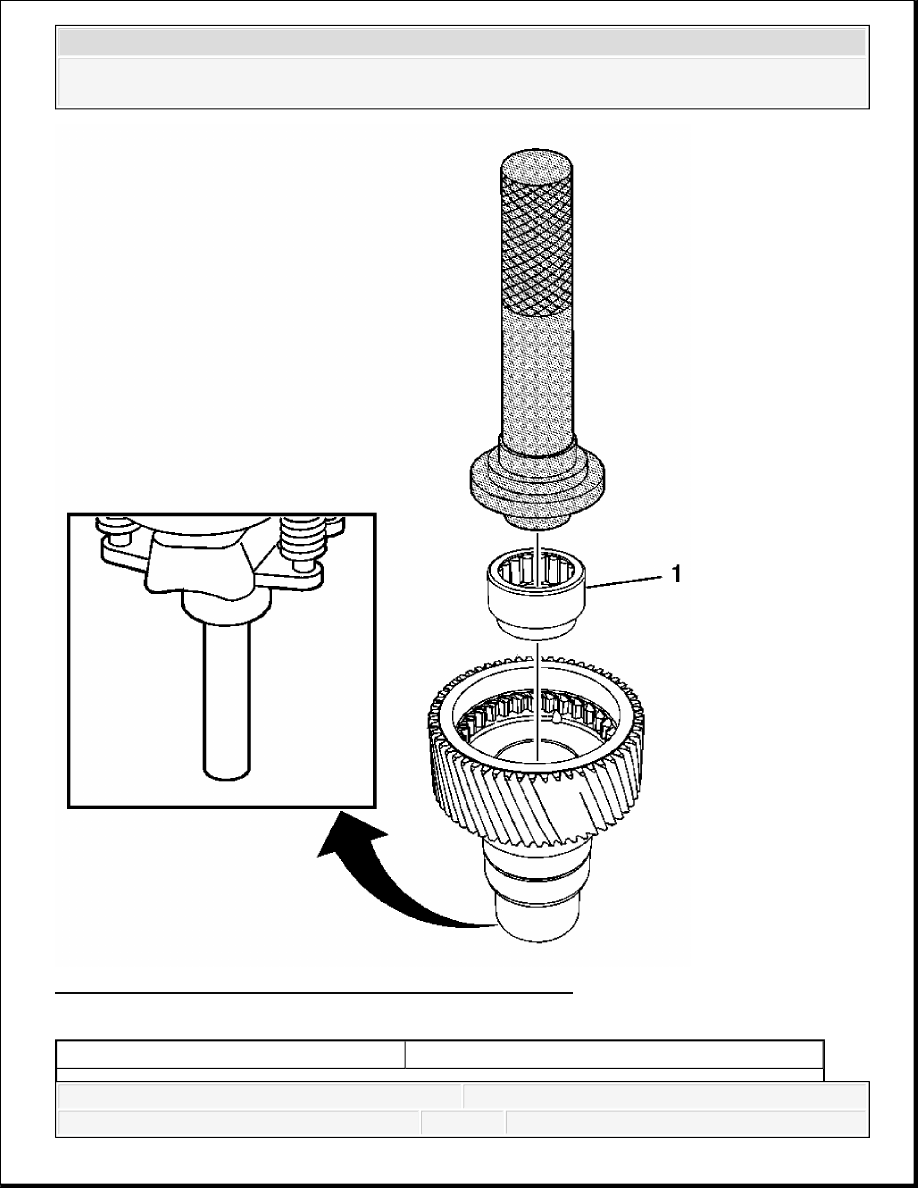

Fig. 38: View Of Transfer Case Input Shaft Pilot Bearing
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
INPUT SHAFT PILOT BEARING REPLACEMENT (HEAVY DUTY AND SUPER HEAVY DUTY)
DUTY)
Preliminary Procedure:
Ensure the bearing is installed squarely into the input shaft bore.
1
Transfer Case Input Shaft Pilot Bearing
Tip:
Using a suitable adapter and an arbor press,
remove the input shaft pilot bearing by
going through the front of the input gear.
Install the bearing using the small side of the
DT-48212 . See Special Tools.
Press the bearing until the tool bottoms on
the input shaft.
Special Tools
DT-48212 Input Shaft Pilot Bearing
Installer. See Special Tools.
J 8092 Driver Handle
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
