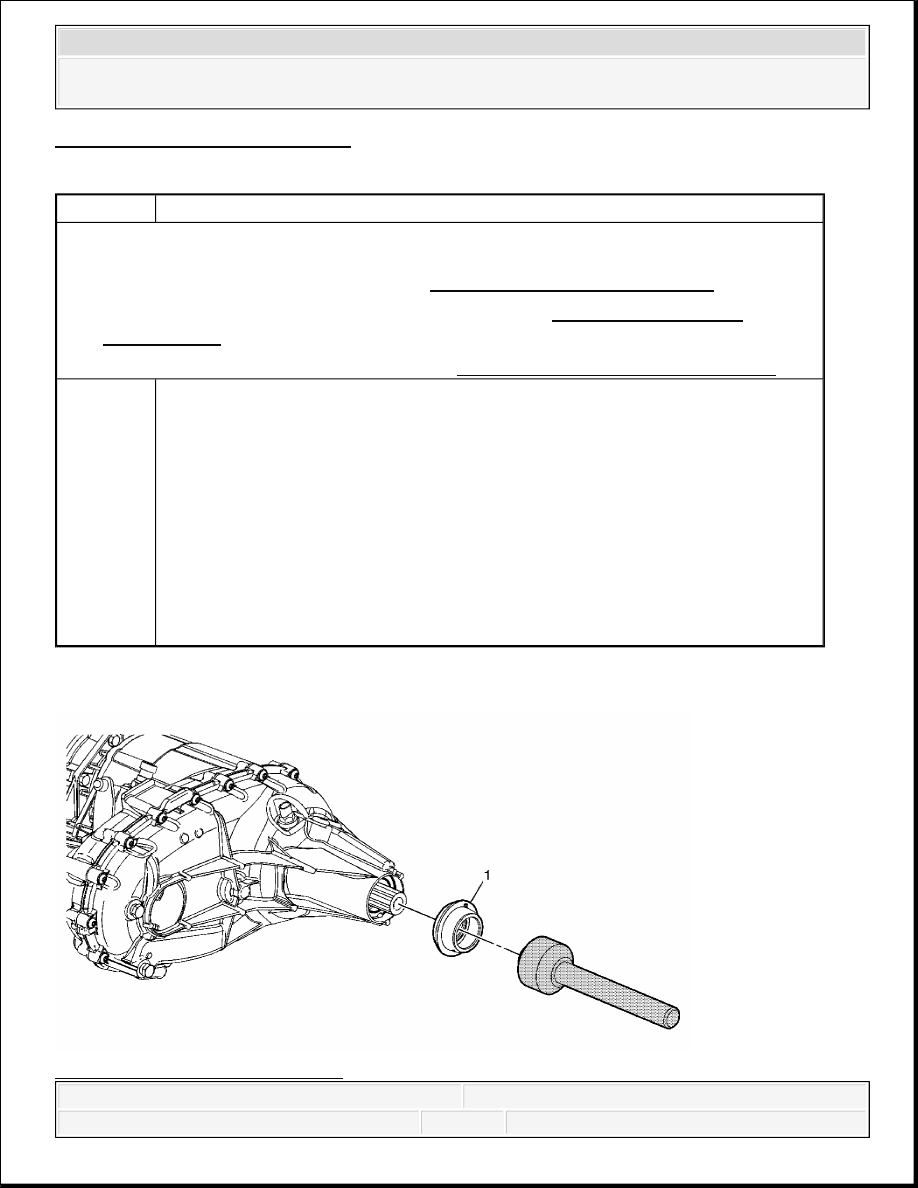

Fig. 12: Front Output Shaft Seal REAR OUTPUT SHAFT SEAL REPLACEMENT Fig. 13: Rear Output Shaft Seal Callout Component Name Preliminary Procedures 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement . 3. Remove the front propeller shaft. Refer to Front Propeller Shaft Replacement . 1 Transfer Case Output Shaft Seal Procedure 1. Remove the seal using a flat-bladed tool. 2. Install the seal using J 8092 and J 43484 . Special Tools J 8092 Drive Handle J 43484 Front Output Shaft Seal Installer
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

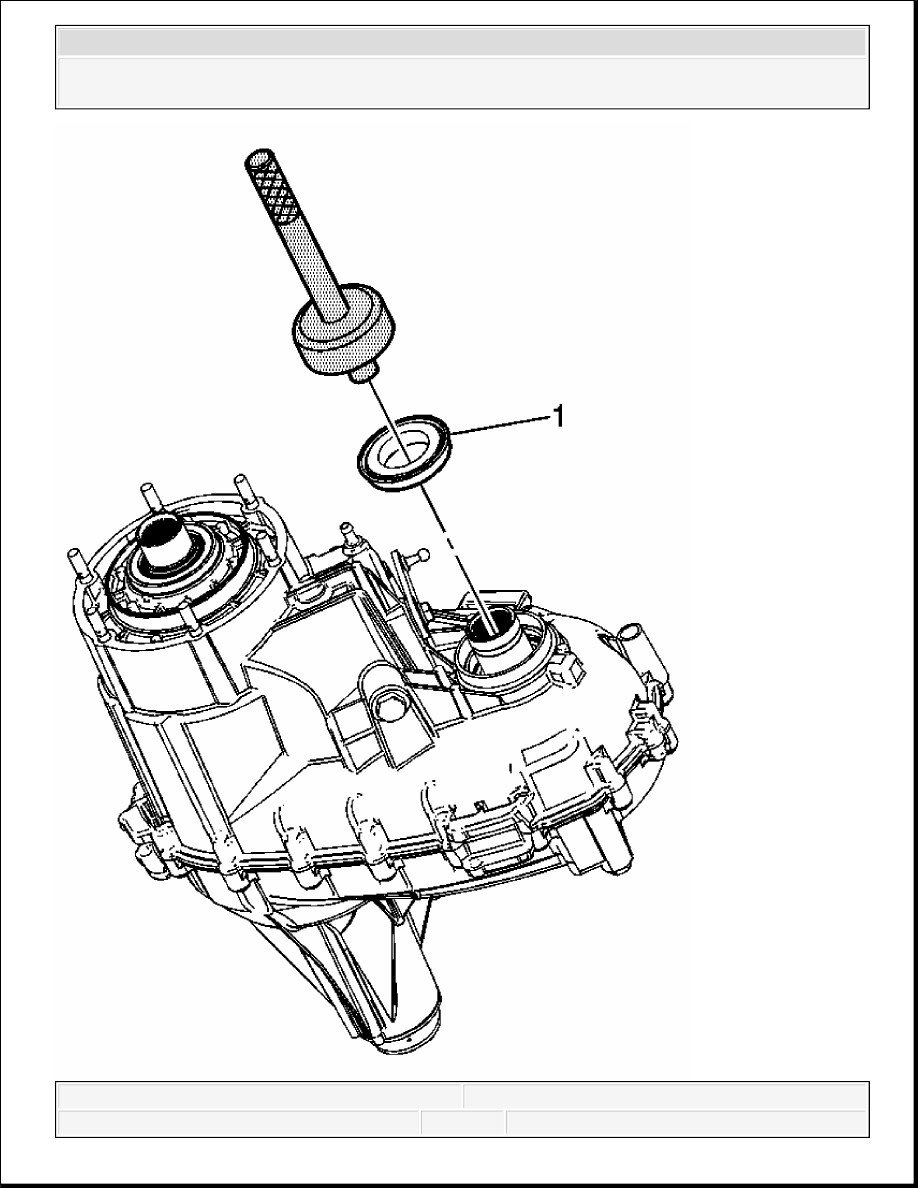

Courtesy of GENERAL MOTORS CORP. TRANSFER CASE REAR EXTENSION BUSHING REPLACEMENT Callout Component Name Preliminary Procedure: 1 Transfer Case Output Shaft Seal Procedure 1. Remove the seal using a flat-bladed tool. 2. Install the seal with the notch at the top and the weep hole at the bottom. Special Tools DT-48021 Seal Installer (Heavy Duty) DT-48210 Seal Installer (Light Duty). See Special Tools. J 8092 Drive Handle
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

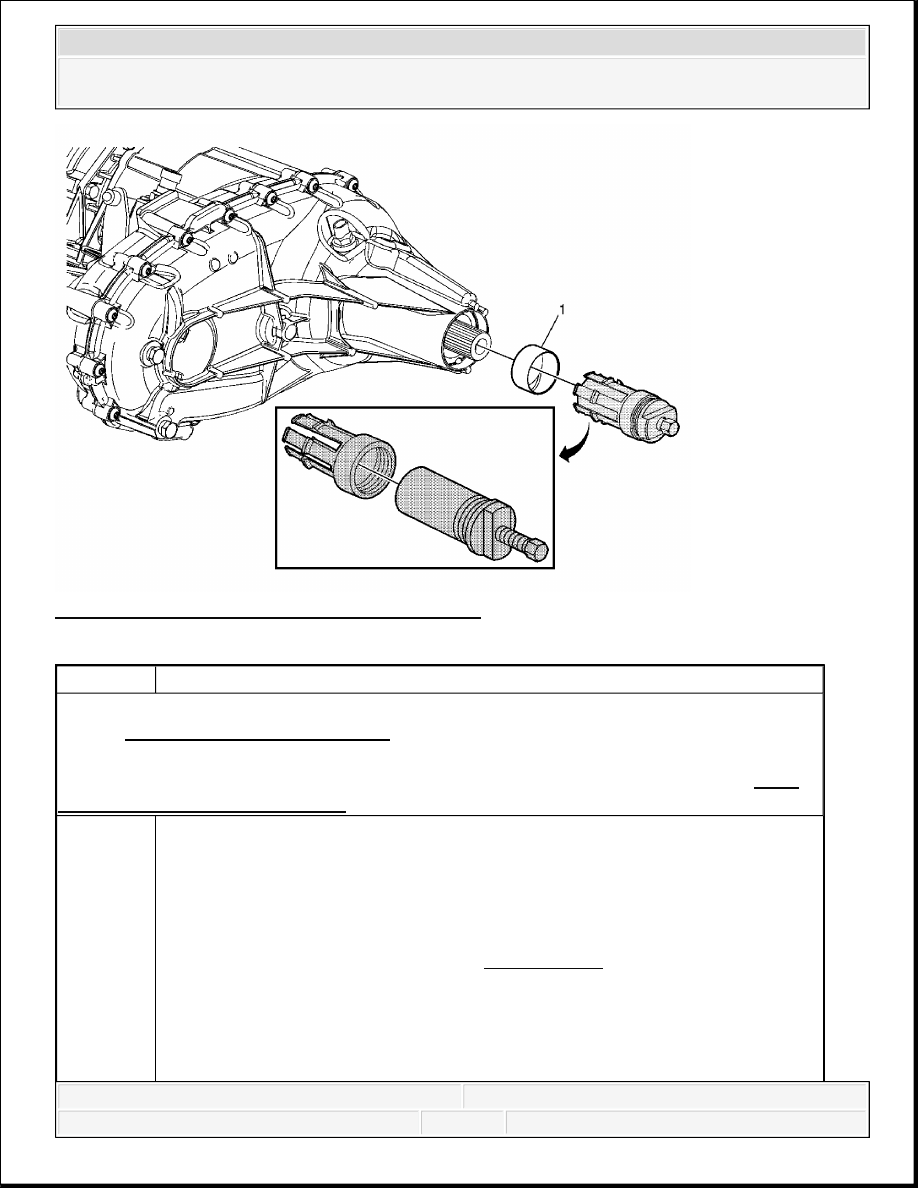

Fig. 14: Transfer Case Rear Extension Bushing Callout Component Name Preliminary Procedures: Remove the transfer case rear output shaft seal. Refer to Rear NOTE: Refer to Transfer Case Seal Removal Notice . Transfer Case Rear Output Shaft Bushing Procedure 1. Install the finger section of the DT-48734 (Heavy Duty) or J 45380 (Light Duty) in front of the bushing. See Special Tools. 2. Install the forcing tube assembly into the finger section. Ensure the forcing screw is backed out. 3. Using a wrench on the forcing screw, remove the bushing. 4. Remove the old bushing from the DT-48734 (Heavy Duty) or J 45380
