Chevrolet Silverado / GMC Sierra. Manual - part 2803
apply the manual trailer brake apply lever mechanism located on the trailer brake control
panel switch. Adjusting trailer gain at slower speeds may result in an incorrect gain setting.
Adjust the trailer gain to just below the threshold of trailer wheel lock-up. Important trailer
wheel lock-up may not occur if towing a heavily loaded trailer. In this case, adjust the
trailer gain to the highest allowable setting for the towing condition.
Trailer Brake Control Panel
The TBCM system has a control panel with the trailer gain and manual apply switches, and is
located on the instrument panel to the left of the steering column. See Instrument Panel Overview
for more information on location. The control panel and switches allows you to adjust the amount
of output, referred to as trailer gain, available to the electric trailer brakes and allows you to
manually apply the trailer brakes. The Trailer Brake Control Panel, and switches is used along
with the Trailer Brake Display Page on the DIC to adjust and display power output to the trailer
brakes.
Driver Information Indicators and Messages
The following indicators are used to inform the driver of several different factors.
TRAILER CONNECTED
This message will be briefly displayed when a trailer with electric brakes is first connected to the
vehicle. This message will automatically turn off in about ten seconds. The driver can also
acknowledge this message before it automatically turns off
CHECK TRAILER WIRING and TRAILER NOT CONNECTED
This message will be displayed if:
The ITBC system first determines connection to a trailer with electric brakes, and then if the
trailer harness becomes disconnected from the vehicle. If a trailer connection is made
initially and the vehicle or trailer wiring connections is not correct the TRAILER NOT
CONNECTED message will display during key up as if there is no trailer connected. If the
TBCM trailer connection is recognized initially and the disconnect occurs while the vehicle
is stationary, this message will automatically turn off in about thirty seconds. This message
will also turn off if the driver acknowledges this message off or if the trailer harness is re-
connected. If the disconnect occurs while the vehicle is moving, the CHECK TRAILER
IMPORTANT: Re-adjust trailer gain any time tow vehicle and trailer loading or
road surface conditions change or if you notice trailer wheel
lock-up at any time while you are towing.
2008 Chevrolet Silverado 1500
2008 BRAKES Trailer Brake Controls - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
WIRING message will continue until the ignition is turned off. This message will also turn
off if the driver acknowledges this message off or if the trailer harness is re-connected or
repairs completed.
There is an electrical fault in the wiring to the electric trailer brakes. The CHECK
TRAILER WIRING message will continue as long as there is an electrical fault in the trailer
wiring. This message will also turn off if the driver acknowledges this message off. To
determine if the electrical fault is on the vehicle side or trailer side of the trailer wiring
harness connection, do the following:
SERVICE TRAILER BRAKE SYSTEM
This message will be displayed when there is a problem with the TBCM system. If this message
persists over multiple ignition cycles there is problem with the TBCM system. Take your vehicle
to an authorized GM dealer to have the TBCM system diagnosed and repaired.
TRAILER GAIN and OUTPUT Display
This display menu can be accessed by scrolling through the DIC vehicle Information menu, or any
time the trailer gain +/- button is depressed, or the manual trailer brake apply lever is actuated.
The trailer gain display is 0 to 10 in 0.5 step increments, and indicates the current user setting of
the trailer output gain. The trailer output is 0 to 10 bars in 1 bar increments, and indicates the
output power provided to the trailer brakes, relative to the gain setting.
2008 Chevrolet Silverado 1500
2008 BRAKES Trailer Brake Controls - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2008 TRANSMISSION
Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
SPECIFICATIONS
APPROXIMATE FLUID CAPACITIES
FASTENER TIGHTENING SPECIFICATIONS
SEALERS, ADHESIVES, AND LUBRICANTS
COMPONENT LOCATOR
TRANSFER CASE DISASSEMBLED VIEW
Application
Specification
Metric
English
DEXRON®VI GM P/N 88861003 (Canadian P/N
88861004)
1.4 liters
1.5 quarts
Application
Specification
Metric
English
Adapter Studs
10 N.m
89 lb in
Case Bolts
21 N.m
15 lb ft
Drain Plug
25 N.m
18 lb ft
Fill Plug
25 N.m
18 lb ft
Vent
6 N.m
53 lb in
Application
Type of Material
GM Part Number
United
States
Canada
Drain Plug
Pipe Sealant
12346004
10953480
Fill Plug
Pipe Sealant
12346004
10953480
Front Output Shaft Cup Plug
Threadlocker
12345382
10953489
Rear Case Half to Front Case Half
RTV Sealant
12345739
10953541
Transfer Case Fluid
DEXRON®VI
88861003
88861004
Vent
Pipe Sealant
12346004
10953480
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

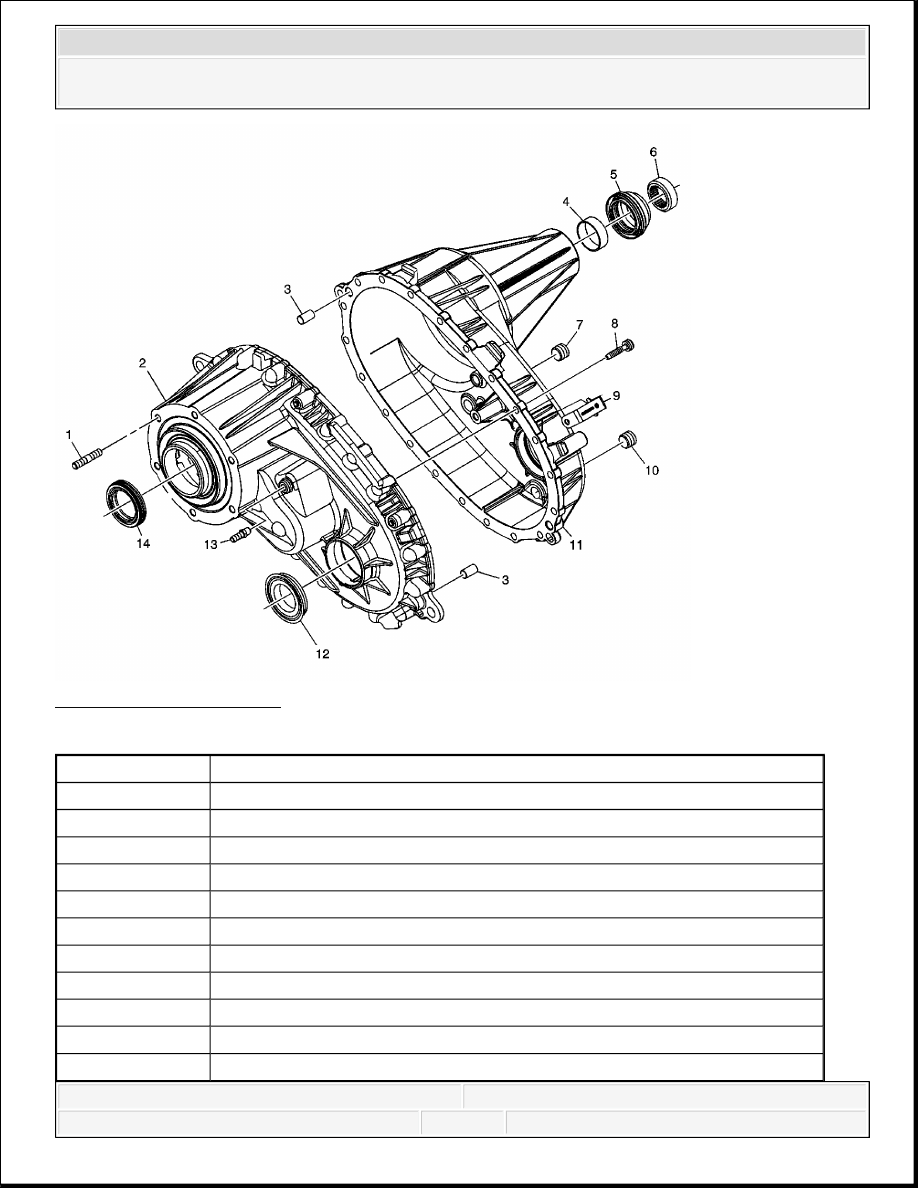

Fig. 1: Case Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Adapter Stud
2
Front Case Half
3
Location Pin
3
Location Pin
4
Rear Output Shaft Bushing
5
Rear Output Shaft Seal
6
Shipping Seal
7
Fill Plug
8
Case Half Bolt
9
Wiring Harness Bracket
10
Drain Plug
