SUNROOF SUNSHADE REPLACEMENT (EXTENDED CAB) Removal Procedure 1. Remove the sunroof window. Refer to Sunroof Window Replacement (Extended Cab) or Sunroof Window Replacement (Crew Cab). 2. Power the sunroof window guides to the fully open position. 1 Tighten: 10 N.m (89 lb in) NOTE: Refer to Fastener Notice . 2 HeadlinerTrim Panel Console Bracket 3 Sunroof Motor/Actuator Bolt (Qty: 3) Tighten: 4 N.m (35 lb in) 4 Sunroof Motor/Actuator IMPORTANT: If the sunshade spring releases, it will be necessary to rewind it. Turn the sunshade roller end slot 20 times in the IMPORTANT: A new sunshade service part comes pre-loaded with a pin tool holding spring tension on the sunshade. If the sunshade
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

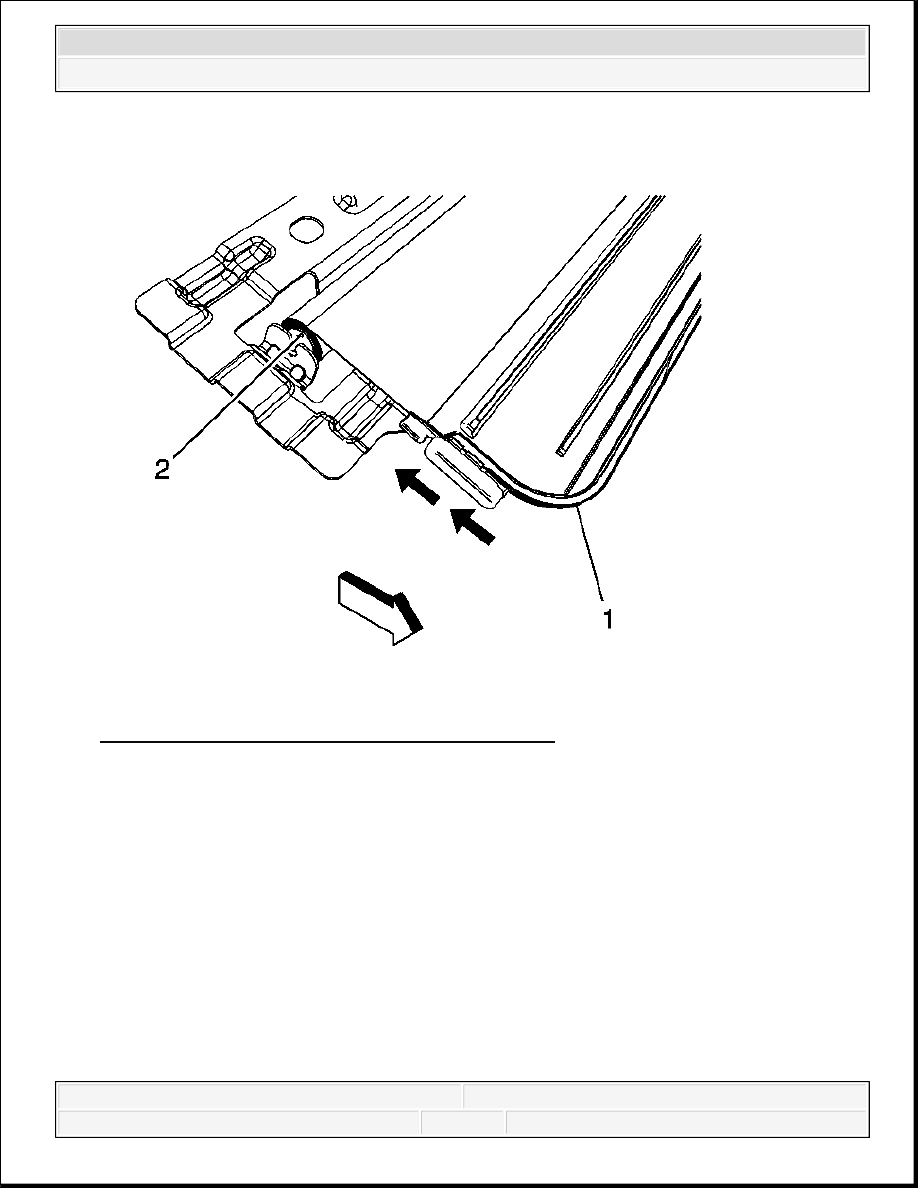

Fig. 33: View of Sunshade And Cam Locking Hole 3. Close the sunshade (1) until the cam locking hole (2) come in to view. IMPORTANT: The cam locking hole will come in to view when the sunshade is in the fully open position on the passengers
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

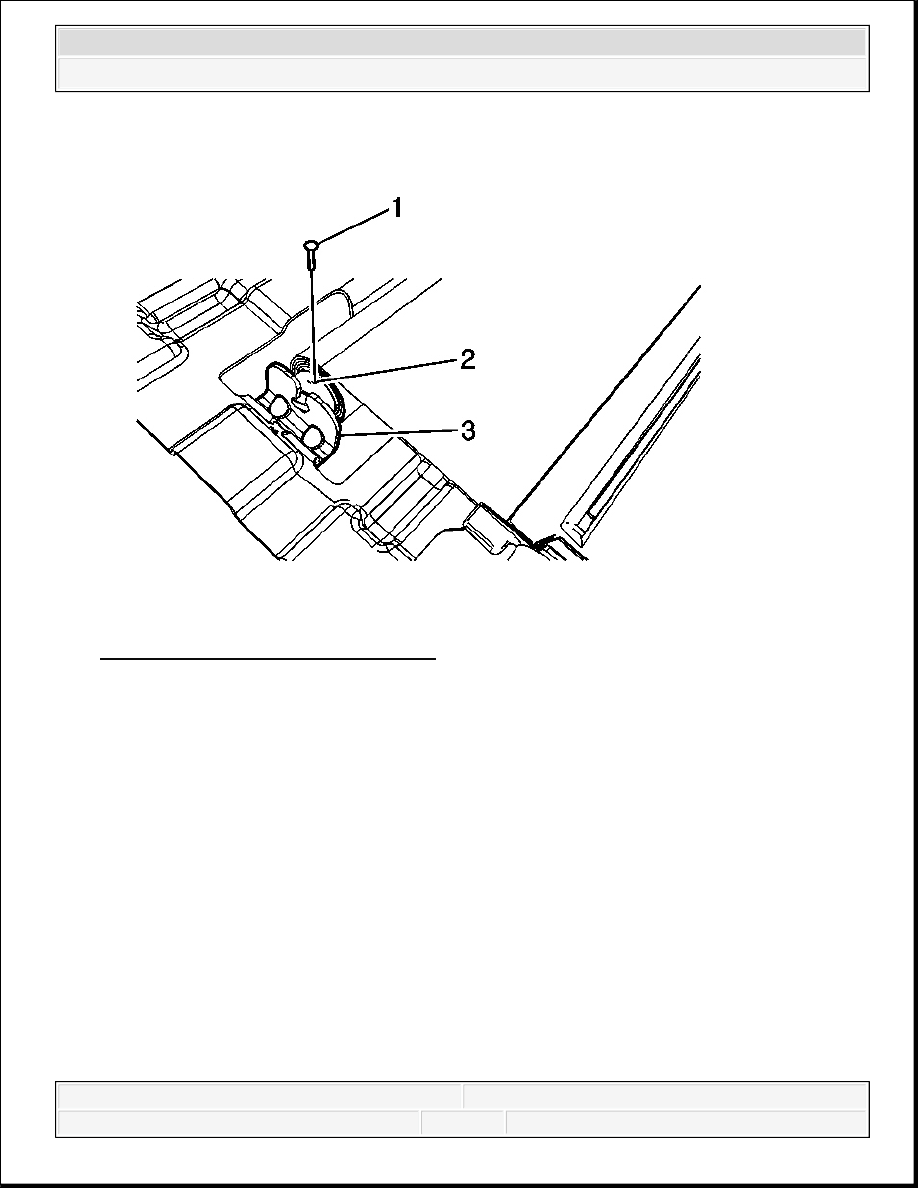

Fig. 34: Sunshade Cam Locking Hole 4. Insert a suitable tool (1) into the sunshade cam locking hole (2).
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

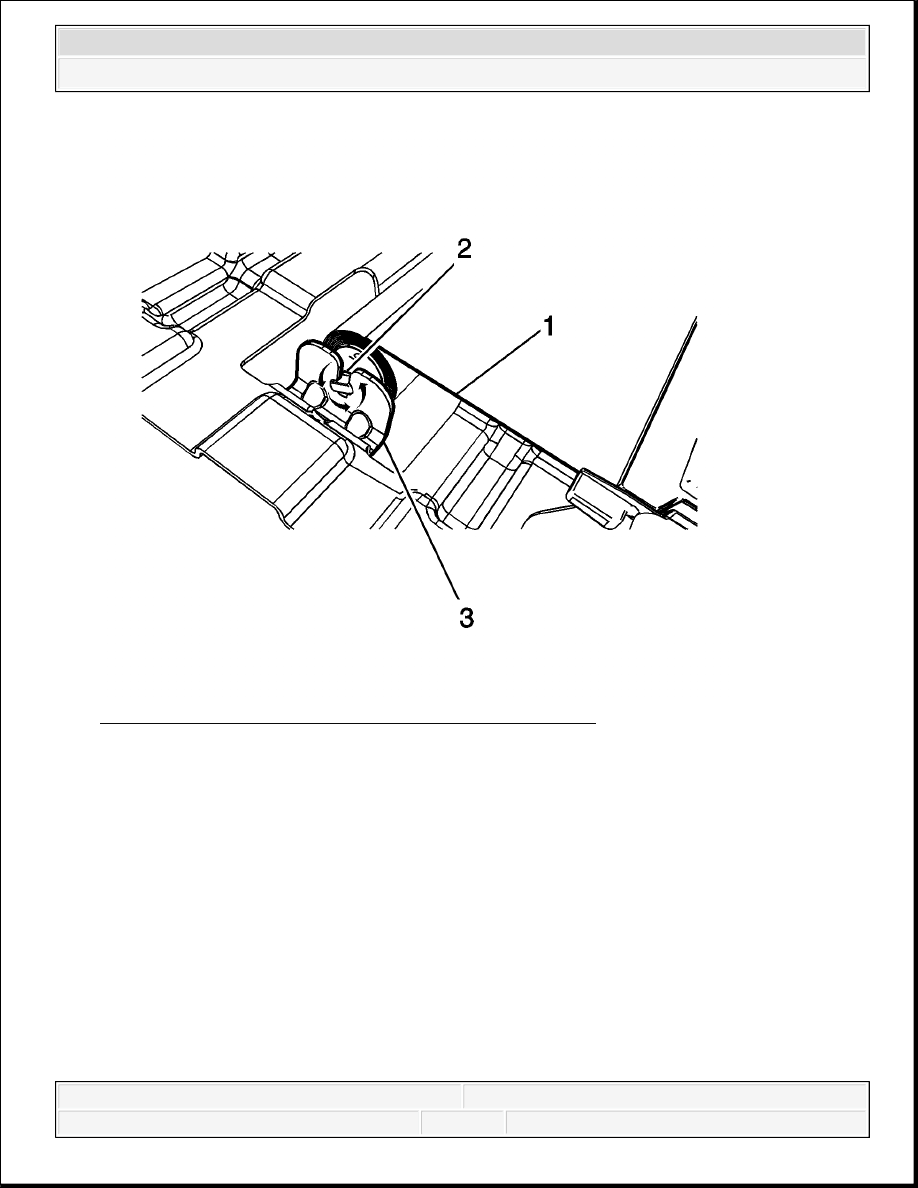

Fig. 35: Turning The Sunshade Cam Counterclockwise 5. Turn the sunshade (1) counterclockwise until the shade cam (2) is align with the bracket (3) notch.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
