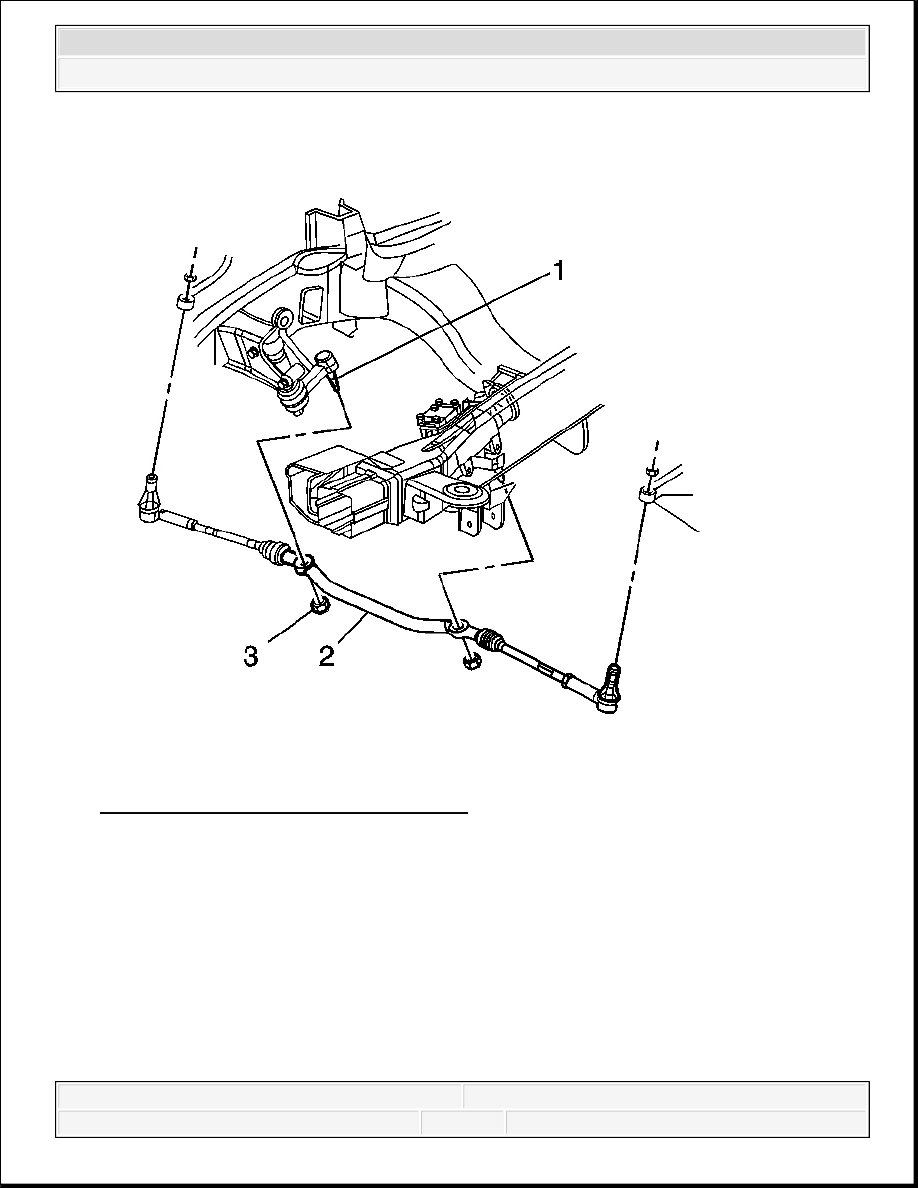

Fig. 20: View Of Idler Arm & Relay Rod
Courtesy of GENERAL MOTORS CORP.
2. Remove the idler arm nut (3) from the idler arm (1).
3. Separate the idler arm (1) from the relay rod (2).
IMPORTANT: Discard the idler arm nut.
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

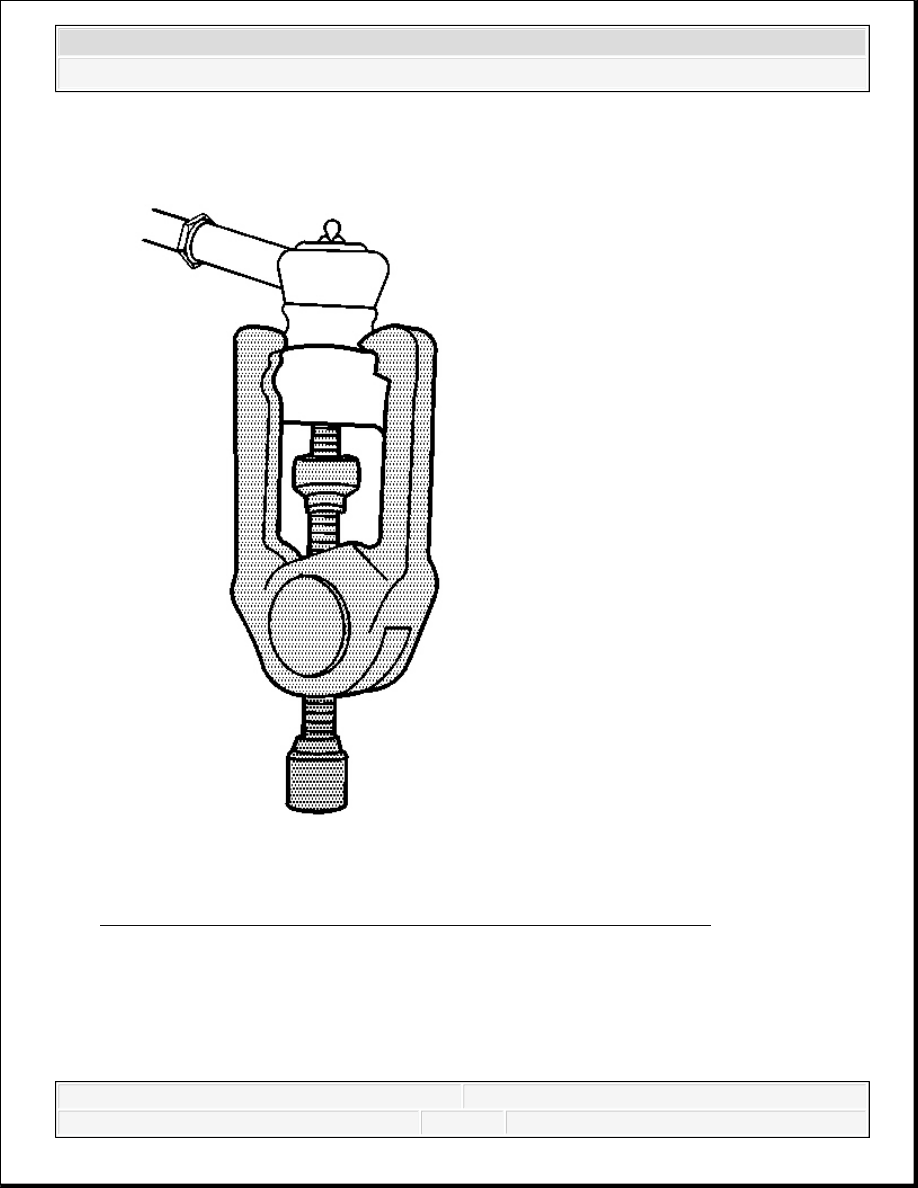

Fig. 21: Removing Outer Tie Rod Assembly From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
4. Remove the idler arm from the relay rod using puller J 24319-B .
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

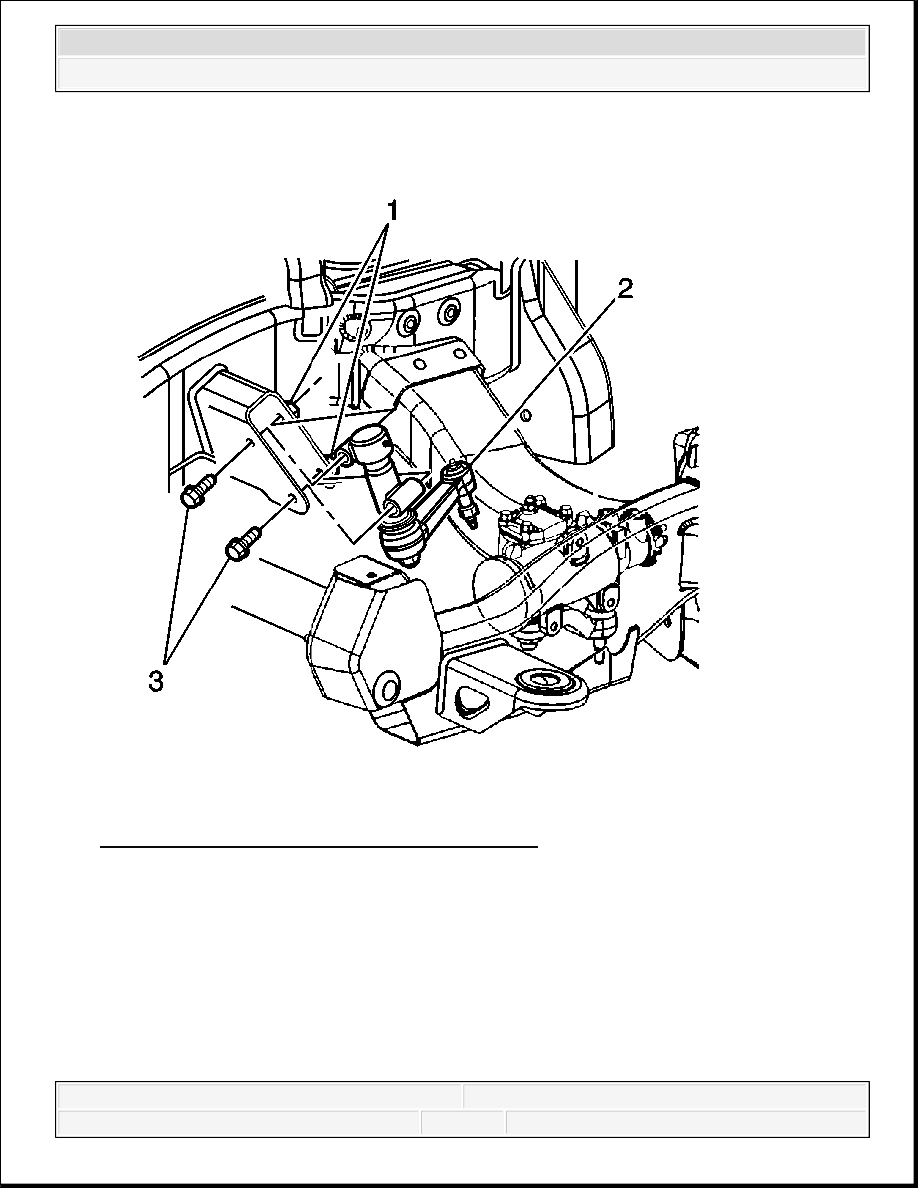

Fig. 22: View Of Idler Arm, Frame Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
5. Remove the idler arm bolts (3) and the nuts (1) at the vehicle frame.
6. Remove the idler arm (2) from the vehicle.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

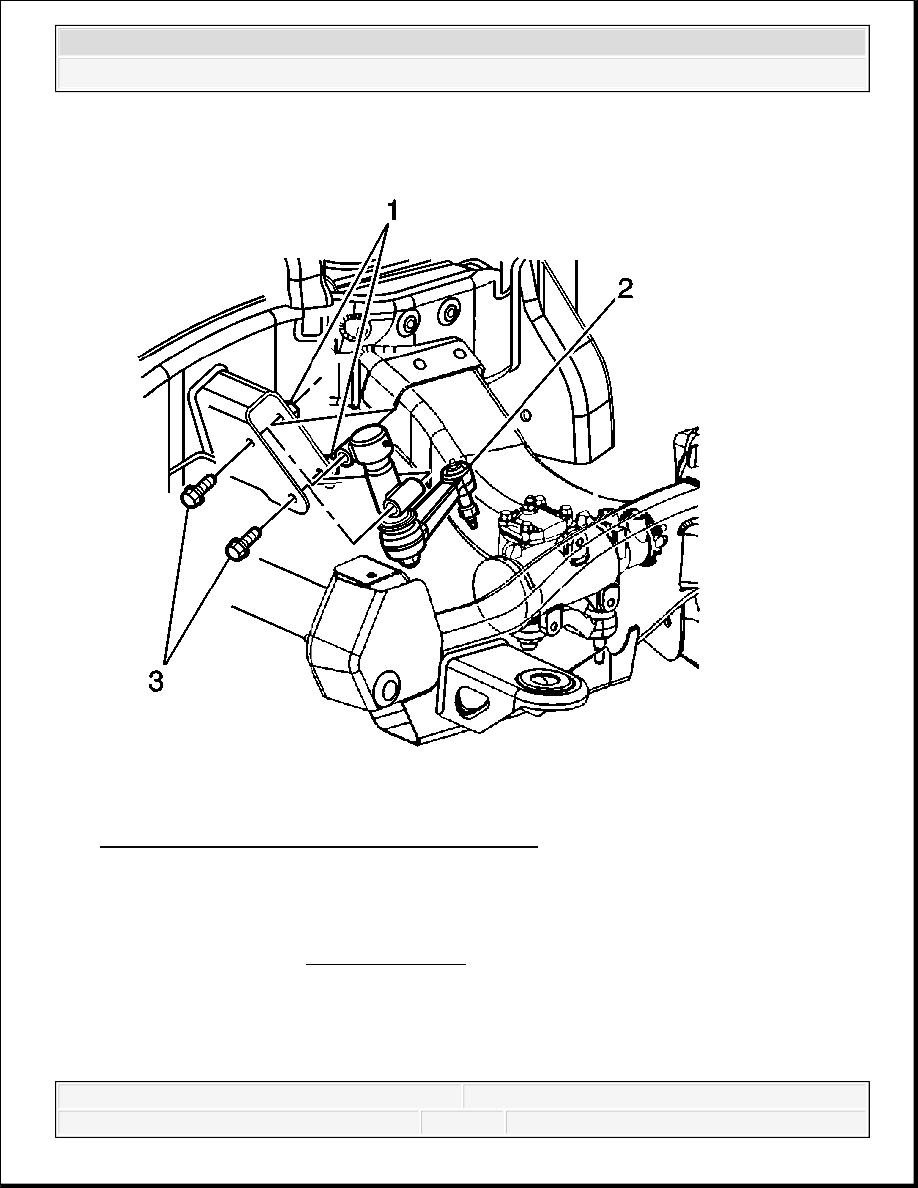

Fig. 23: View Of Idler Arm, Frame Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
1. Position the idler arm (2) to the vehicle frame.
2. Install the idler arm bolts (3) and nuts (1) to the frame.
Tighten: Tighten the bolts and nuts to 105 N.m (78 lb ft).
NOTE:
Refer to Fastener Notice .
