Chevrolet Silverado / GMC Sierra. Manual - part 2724

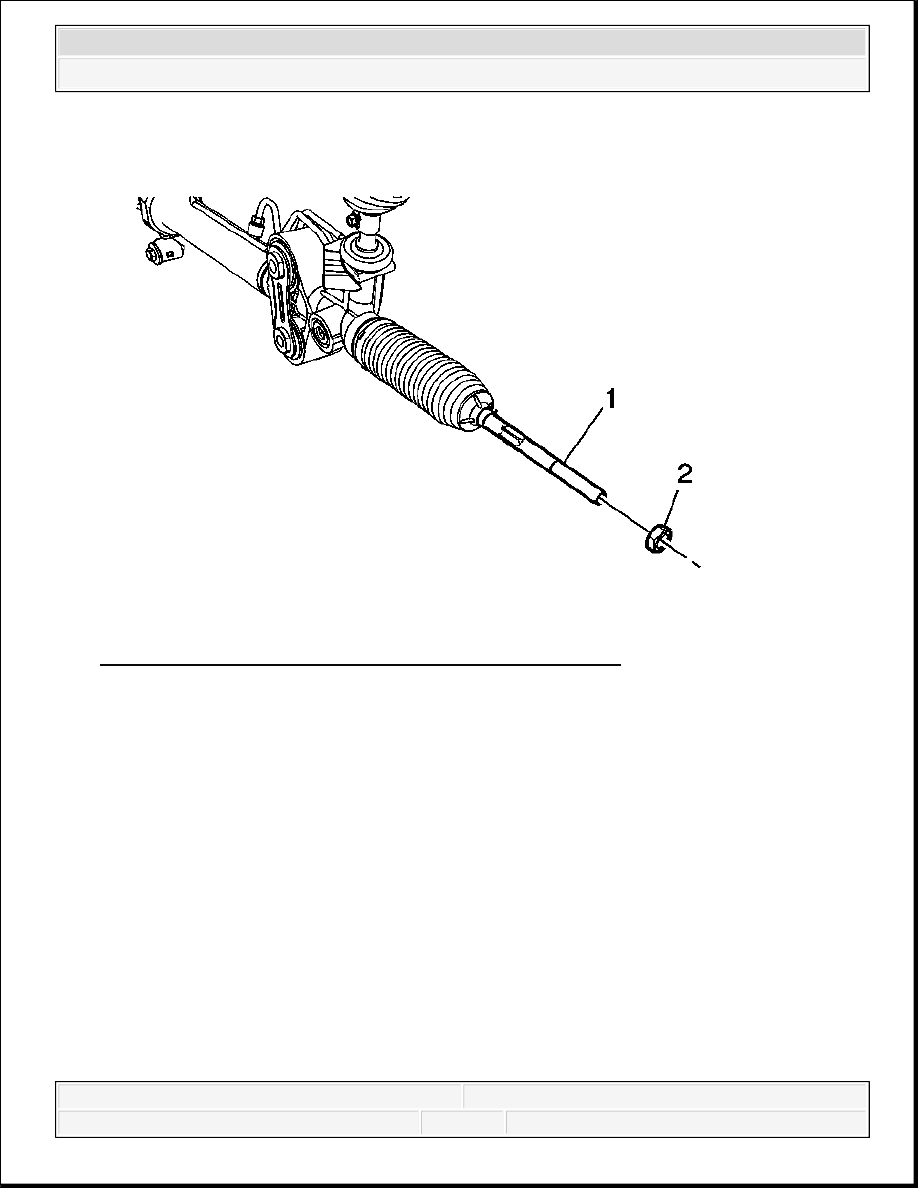

Fig. 54: View Of Inner Tie Rod Assembly & Hex Jam Nut
Courtesy of GENERAL MOTORS CORP.
2. Remove the steering linkage inner tie rod nut (2) from the steering linkage inner tie rod (1).
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 55: View Of Rack & Pinion Boot & Clamp
Courtesy of GENERAL MOTORS CORP.
3. Remove the steering gear boot clamp (2) from the steering gear boot (1).
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

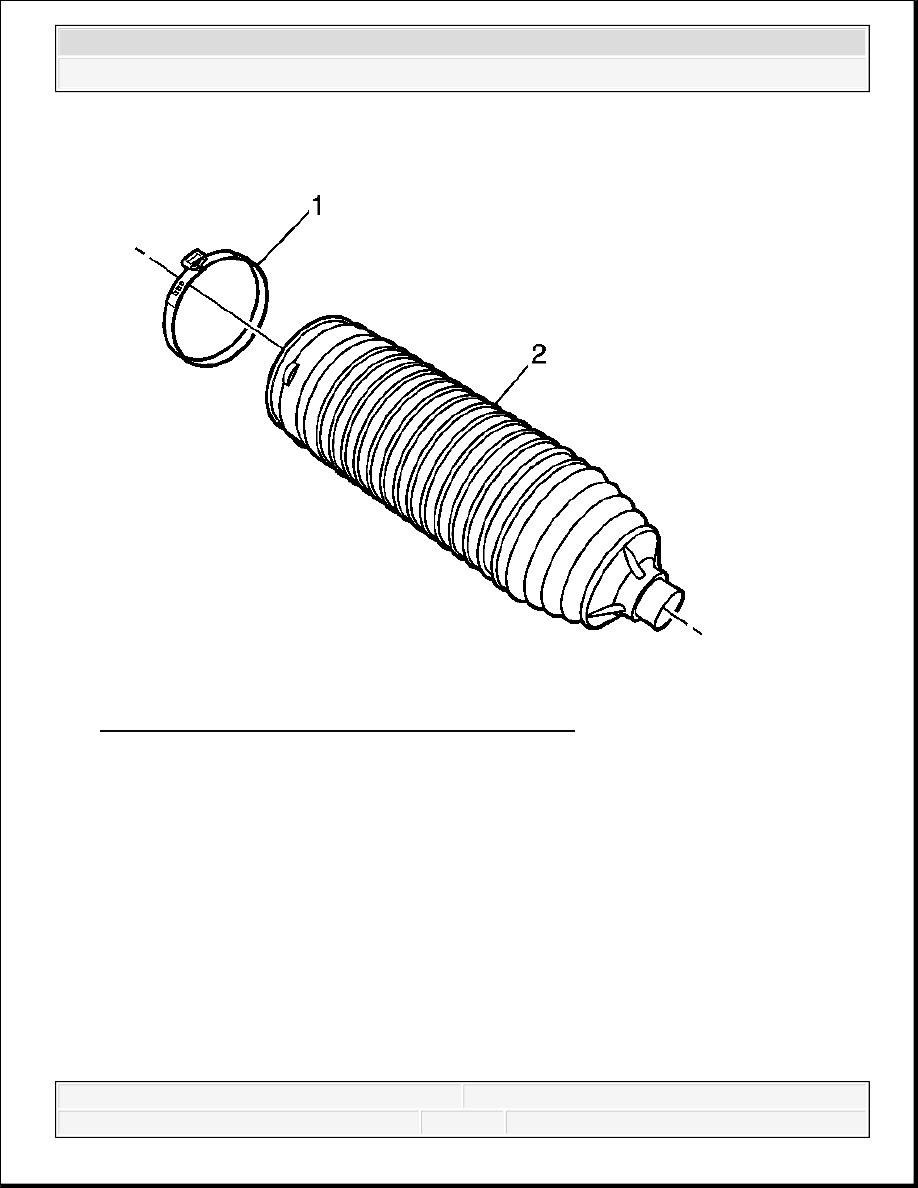

Fig. 56: View Of Rack & Pinion Boot & Boot Clamp
Courtesy of GENERAL MOTORS CORP.
4. Remove the steering gear boot clamp (1) from the steering gear boot (2) with side cutters.
5. Discard the steering gear boot clamp (1).
6. Remove the steering gear boot from the steering gear.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 57: View Of Rack & Pinion Boot & Boot Clamp
Courtesy of GENERAL MOTORS CORP.
1. Install the new steering gear boot clamp (1) onto the steering gear boot (2).
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
