Chevrolet Silverado / GMC Sierra. Manual - part 2689
Courtesy of GENERAL MOTORS CORP.
Fig. 2: Module Power, Ground, Serial Data and Memory Switch (AN3)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Power Seats - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 3: Seat Adjuster Switches (AN3)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Power Seats - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

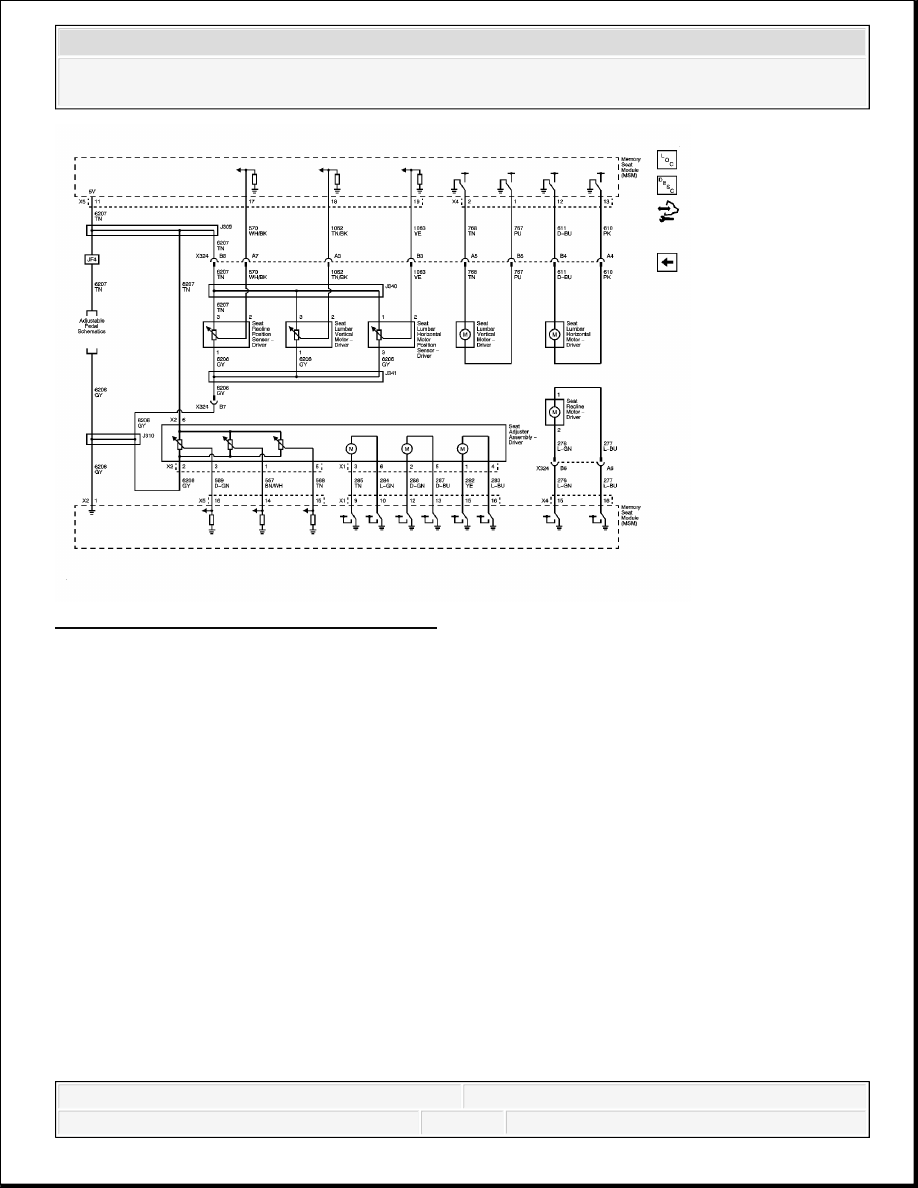

Fig. 4: Motors and Position Sensors (AN3)
Courtesy of GENERAL MOTORS CORP.
PASSENGER SEAT SCHEMATICS
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Power Seats - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
