Chevrolet Silverado / GMC Sierra. Manual - part 2645

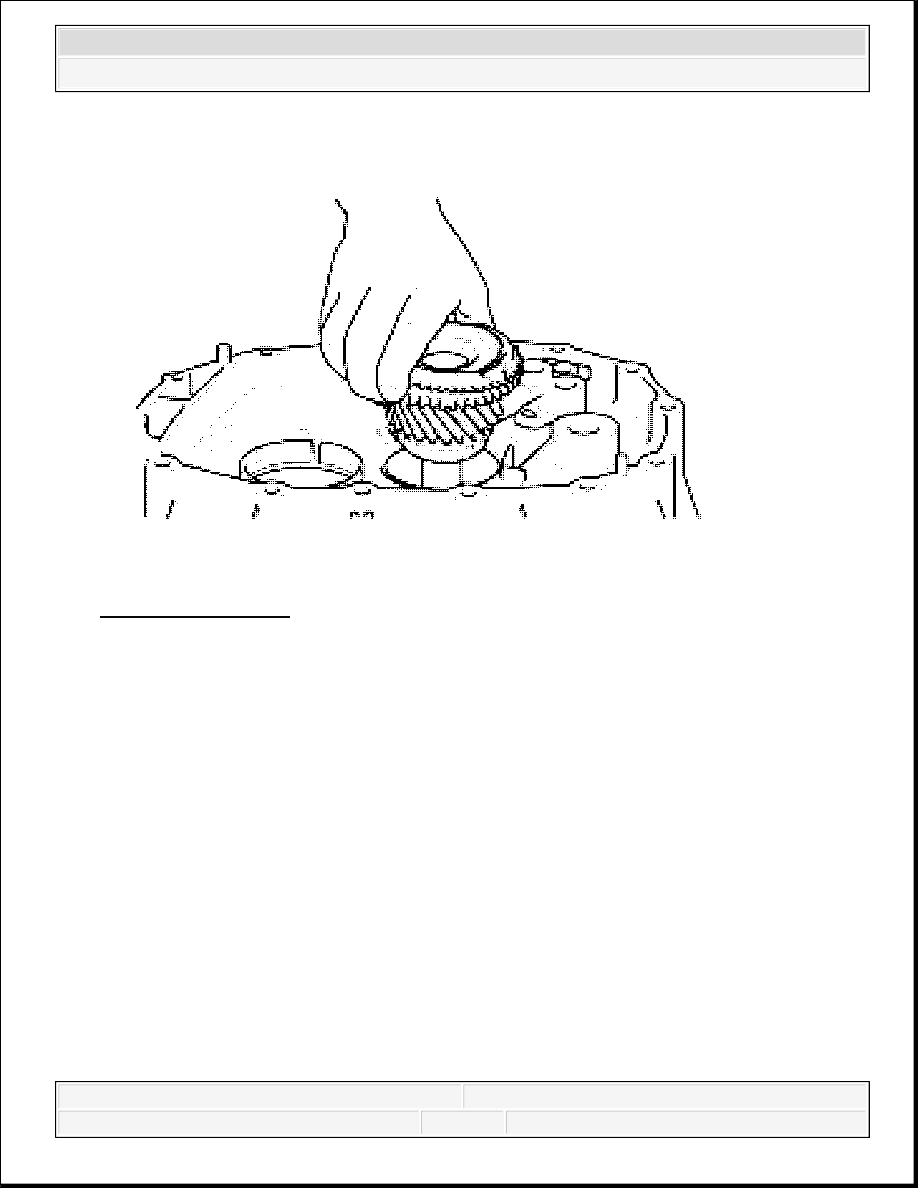

Fig. 192: Input Shaft
Courtesy of GENERAL MOTORS CORP.
4. Install the input shaft.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

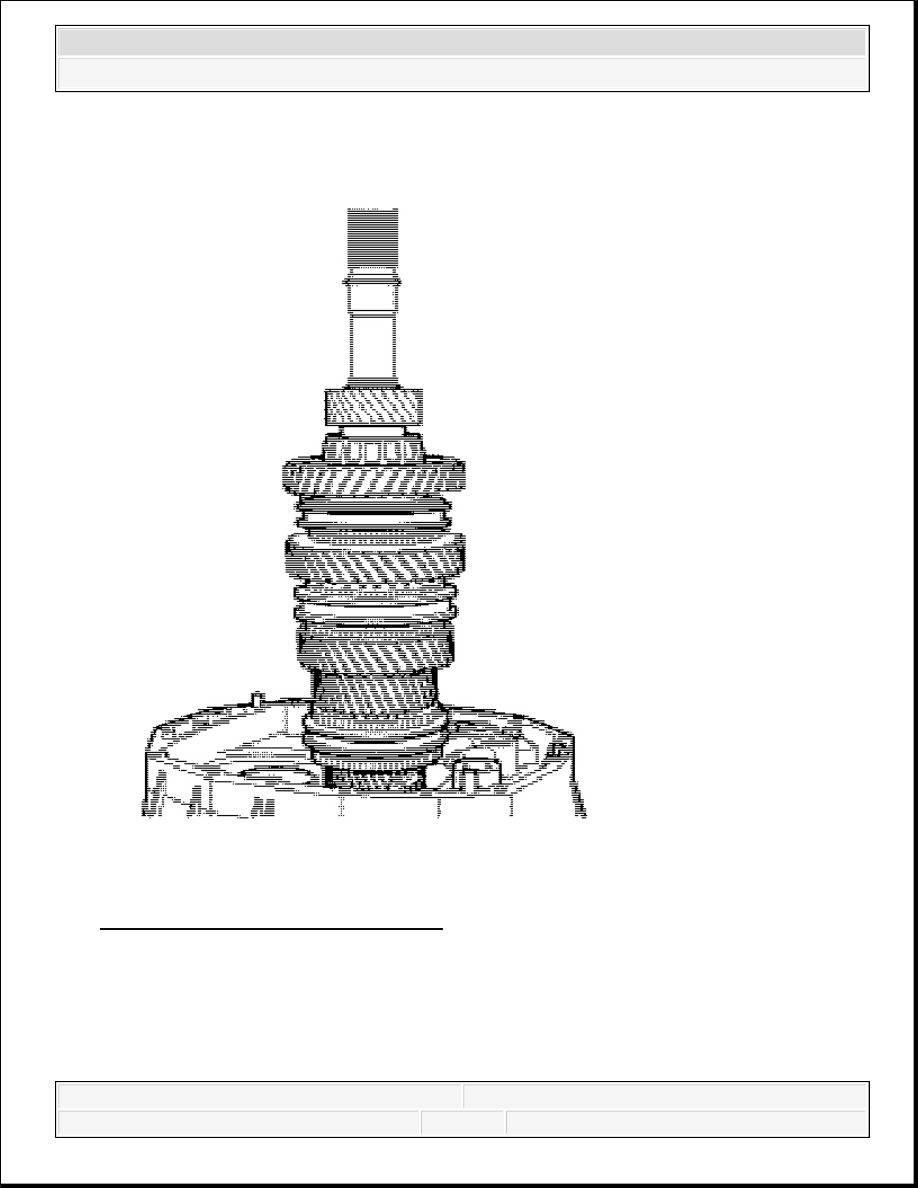

Fig. 193: Primary Shaft Arrangement
Courtesy of GENERAL MOTORS CORP.
5. Install the primary shaft arrangement.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

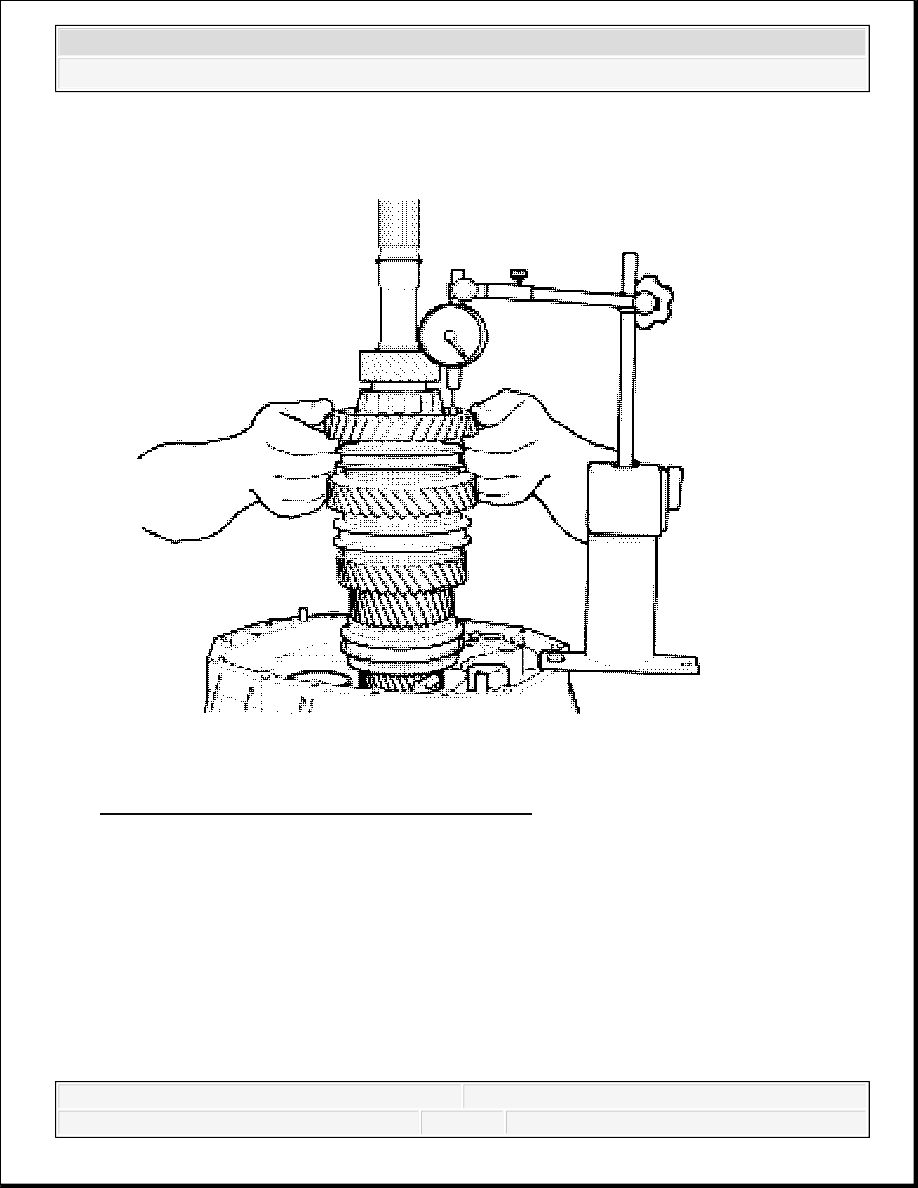

Fig. 194: Inspecting Axial Play Of Reverse Gear
Courtesy of GENERAL MOTORS CORP.
6. Inspect the axial play of the reverse gear.
Specification: 0.0101-0.0355 cm (0.004-0.014 in)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

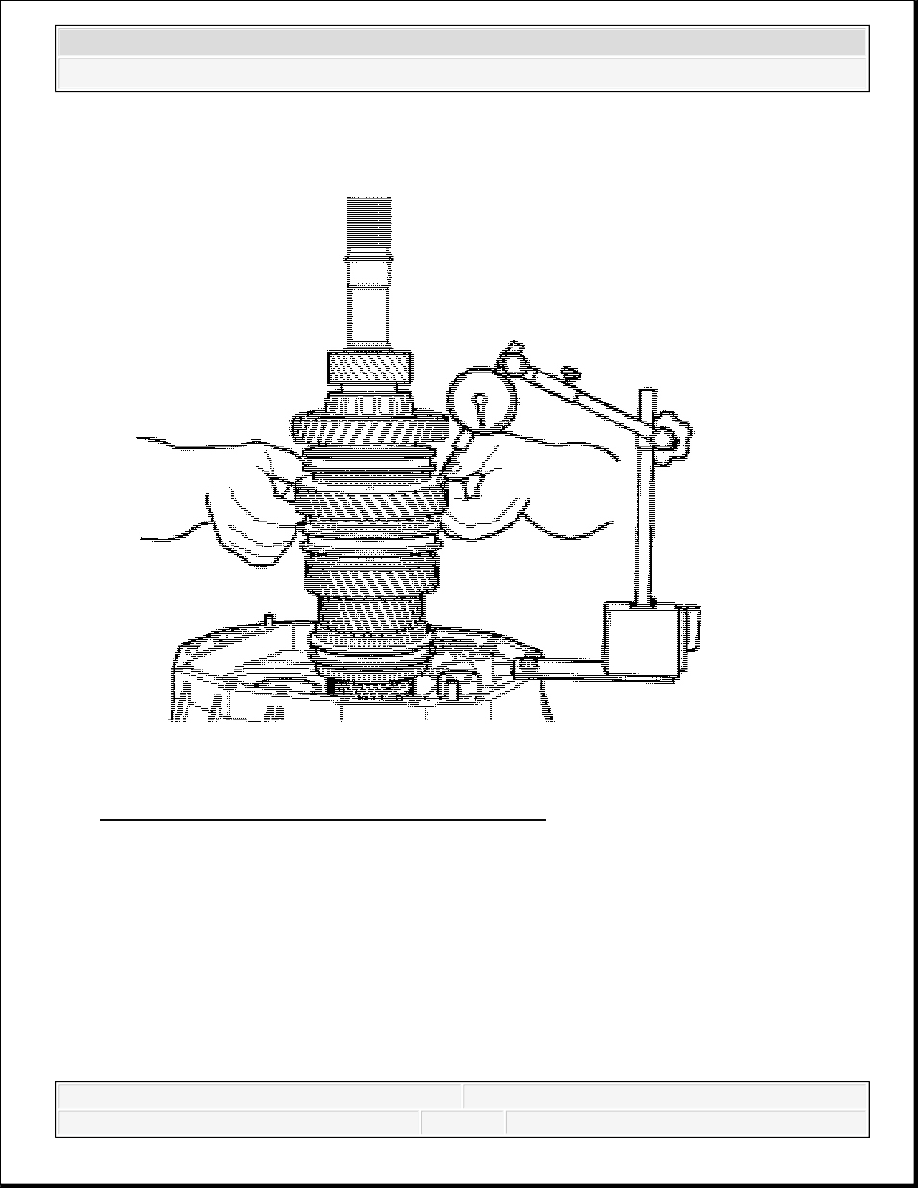

Fig. 195: Inspecting Axial Play Of 1st Speed Gear
Courtesy of GENERAL MOTORS CORP.
7. Inspect the axial play of the 1st speed gear.
Specification: 0.0203-0.0406 cm (0.008-0.016 in)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
