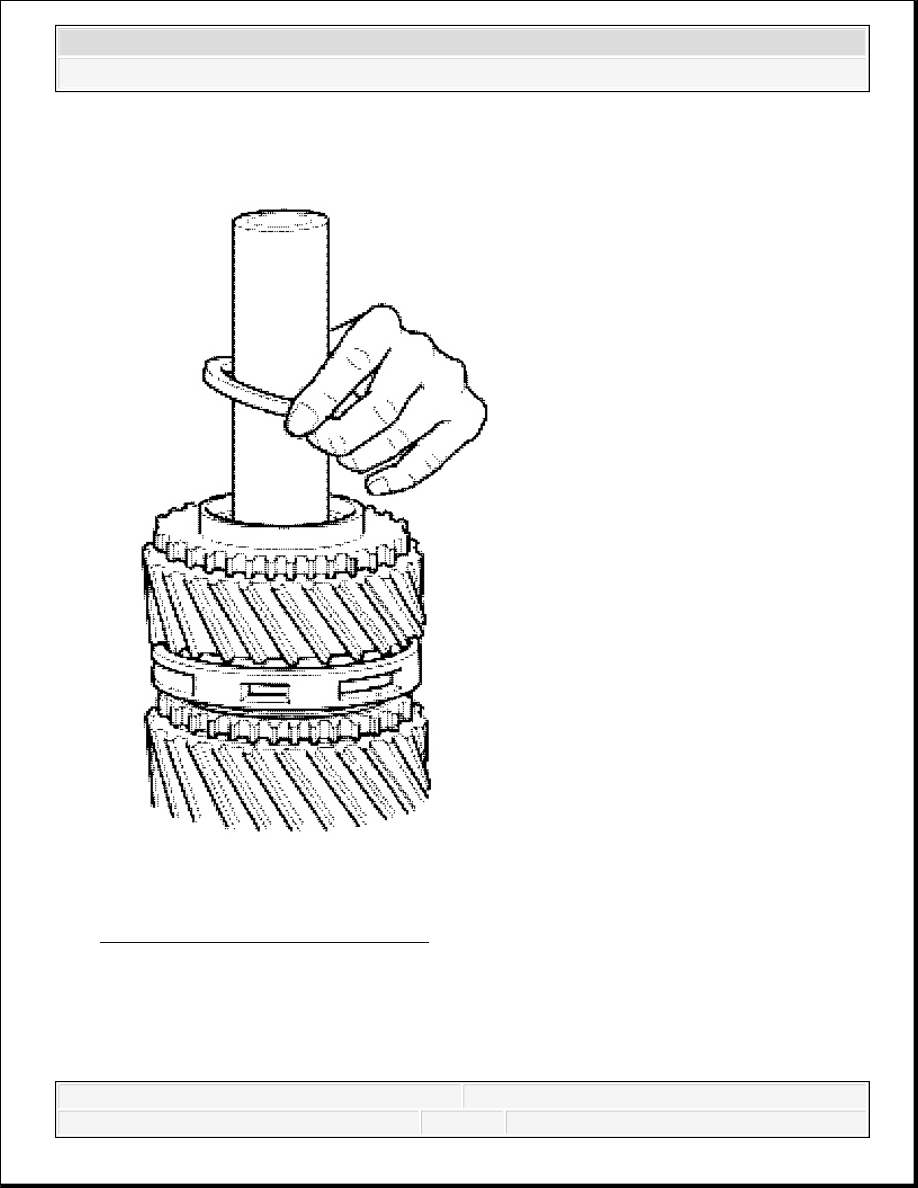

Fig. 160: Coupling Cone
Courtesy of GENERAL MOTORS CORP.
14. Install the reverse gear assembly coupling cone.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

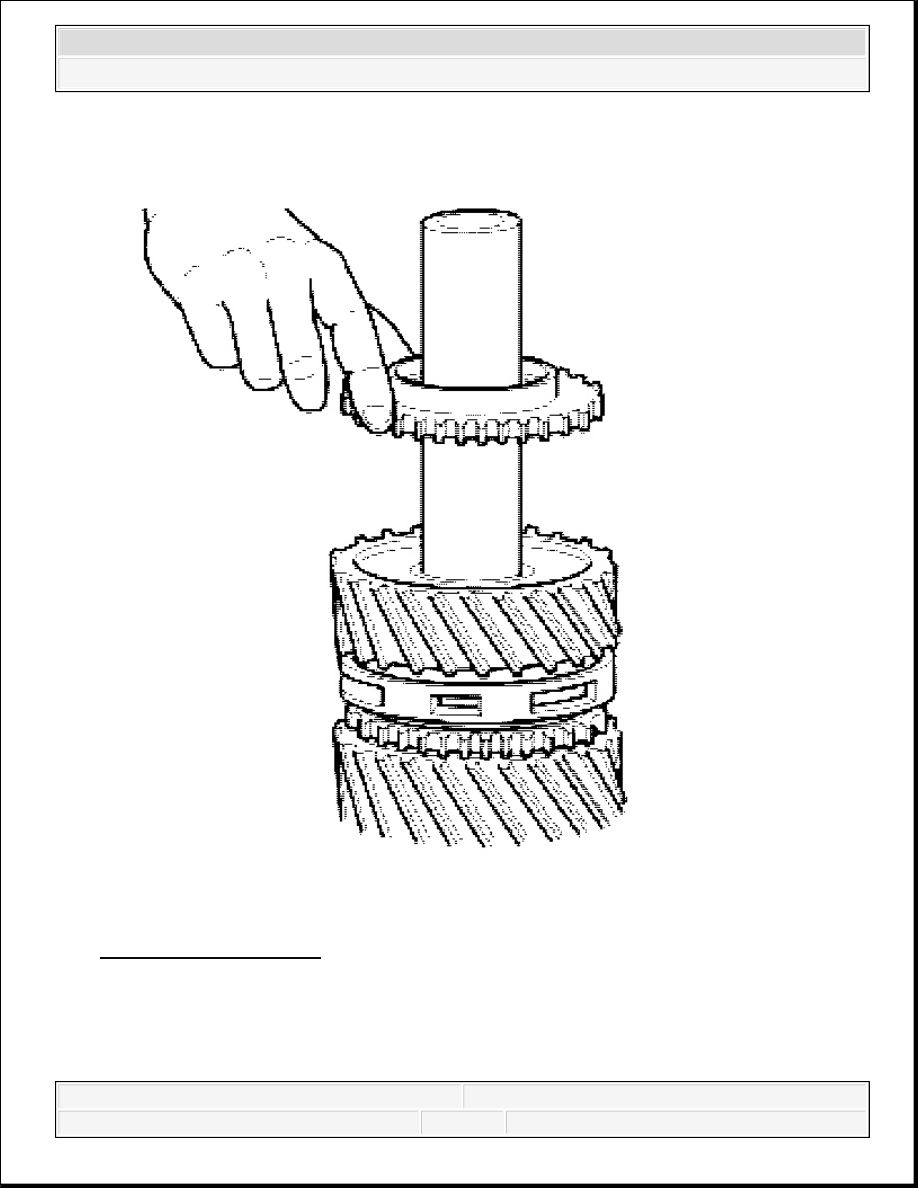

Fig. 161: Reverse Synchronizer Ring
Courtesy of GENERAL MOTORS CORP.
15. Install the reverse gear assembly synchronizer ring.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

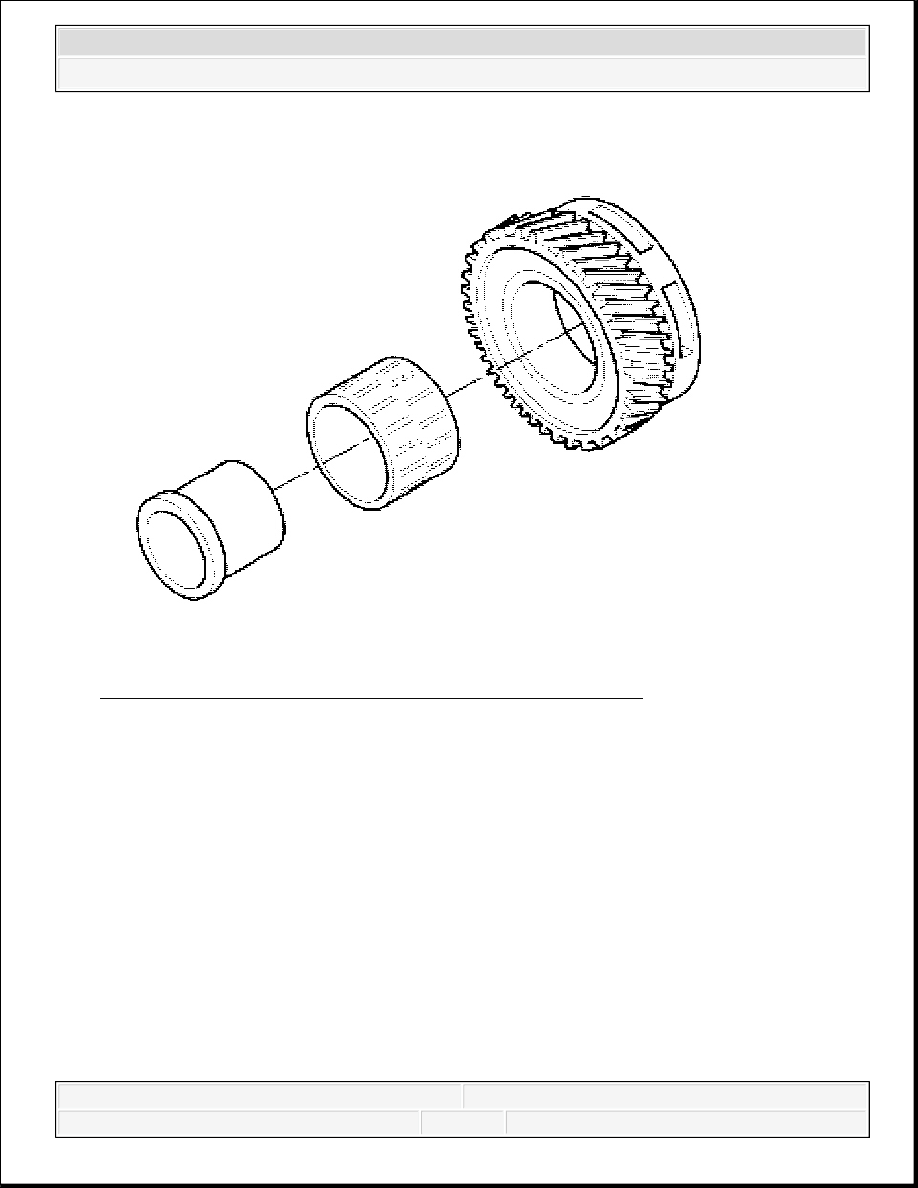

Fig. 162: Bushing, Roller Cage, And Reverse Gear Assembly
Courtesy of GENERAL MOTORS CORP.
16. The reverse gear assembly arrangement shows the bushing, roller cage, and reverse gear
assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
