Chevrolet Silverado / GMC Sierra. Manual - part 2615
Fig. 77: Removing 5th Speed Gear Using Press
Courtesy of GENERAL MOTORS CORP.
12. Using a press, remove the 5th speed gear leaning it on the reverse gear.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
Fig. 78: Removing 5th Speed Gear, Taper Bearings, Bushing, Roller Cage, And
Reverse Synchronizer Assembly
Courtesy of GENERAL MOTORS CORP.
13. When removing the 5th speed gear, the taper bearings, bushing, roller cage, and reverse
synchronizer assembly will also come out.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)

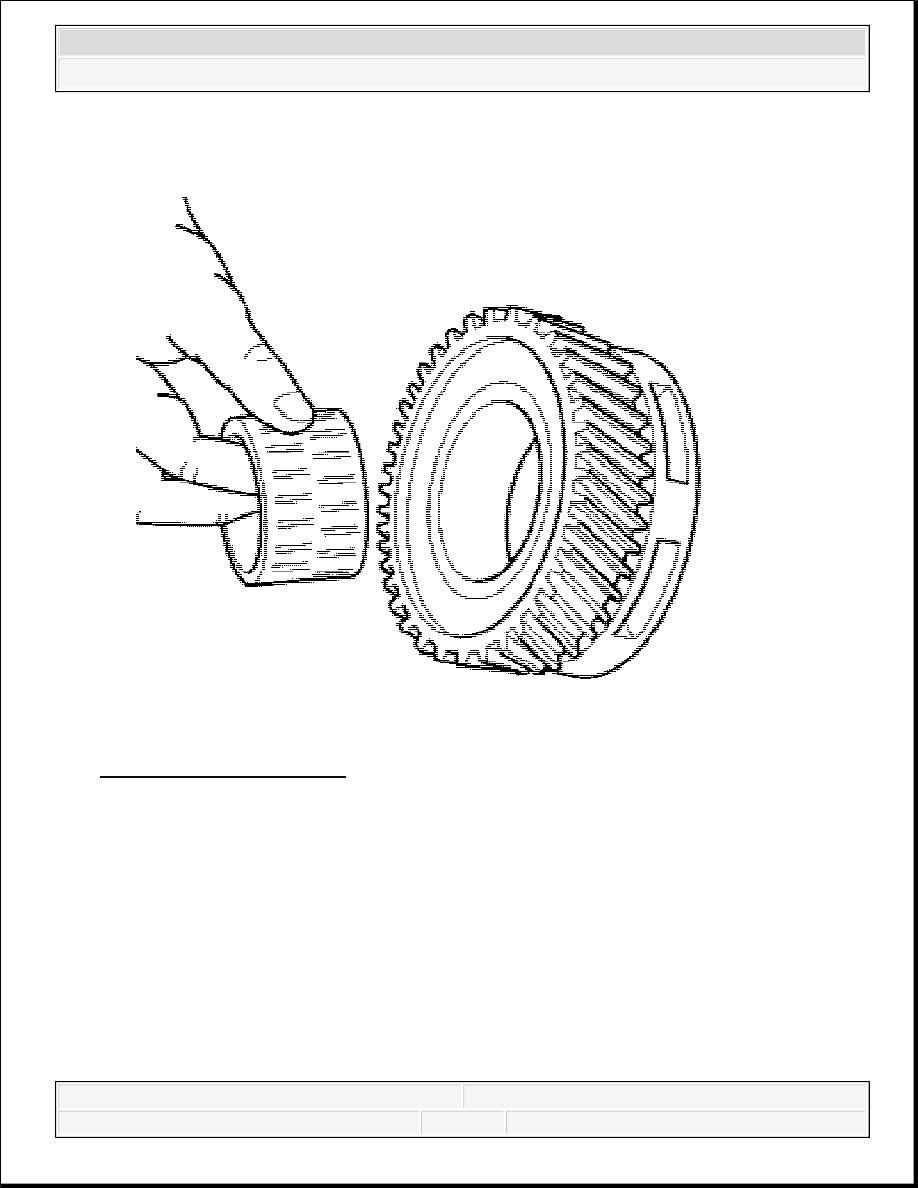

Fig. 79: Reverse Gear Cage
Courtesy of GENERAL MOTORS CORP.
14. Remove the reverse gear cage.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (TZ0)
