Fig. 189: 3rd Gear
Courtesy of GENERAL MOTORS CORP.
29. Install the 3rd gear onto the main shaft.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 190: 3rd Gear Synchronizer
Courtesy of GENERAL MOTORS CORP.
30. Install the lubricated 3rd gear synchronizer ring.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 191: 3rd And 4th Gear Synchronizer
Courtesy of GENERAL MOTORS CORP.
31. Install the 3rd and 4th gear synchronizer assembly.
32. Turn the 3rd and 4th gear synchronizer assembly in order to seat the insert grooves.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

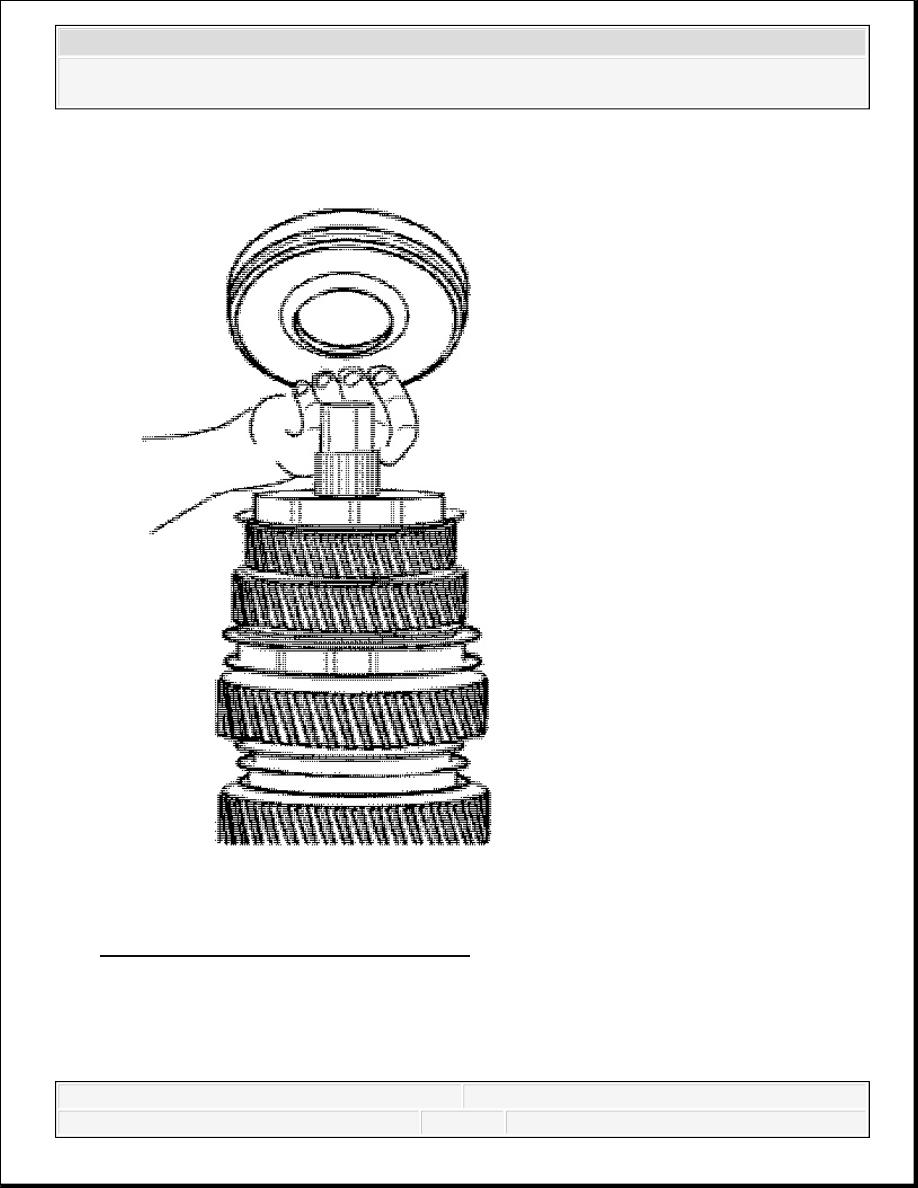

Fig. 192: Pulleys, Track And Push Bearing
Courtesy of GENERAL MOTORS CORP.
33. Install the pulley track and push bearing.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
