Chevrolet Silverado / GMC Sierra. Manual - part 2566

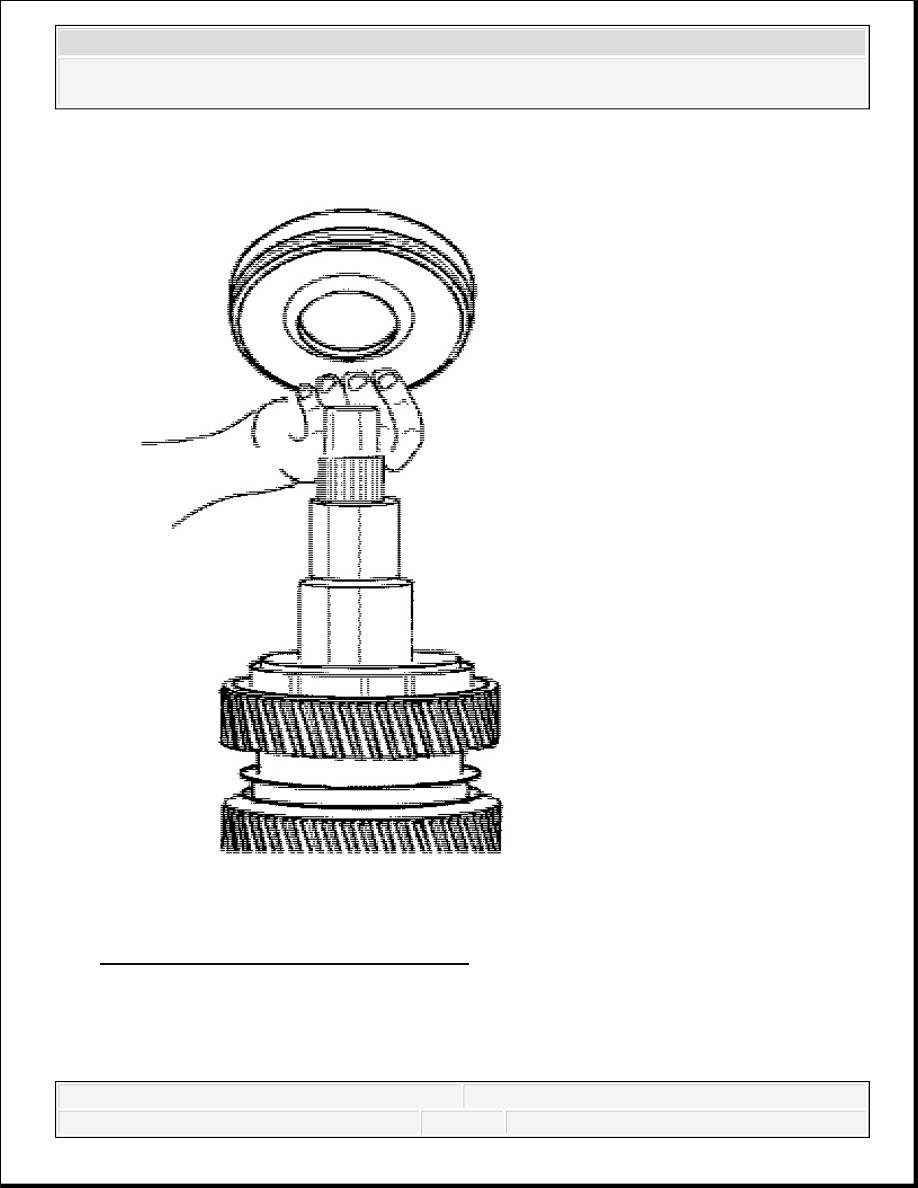

Fig. 177: Synchronizer Ring And Intermediate Ring
Courtesy of GENERAL MOTORS CORP.
16. Install the intermediate ring and the synchronizer ring.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

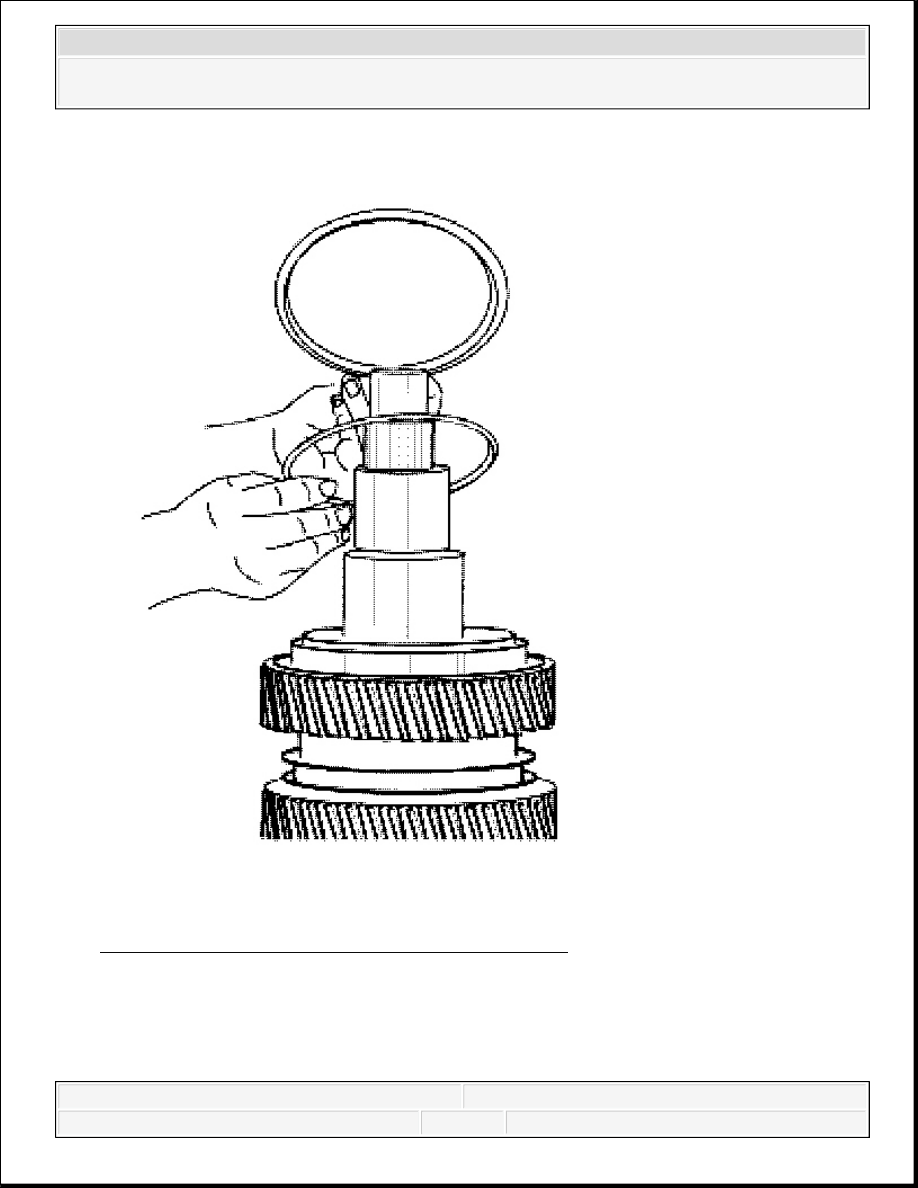

Fig. 178: 1st And 2nd Gear Synchronizer
Courtesy of GENERAL MOTORS CORP.
17. Install the 1st and 2nd gear synchronizer assembly.
18. Turn the 1st and 2nd gear synchronizer assembly in order to seat the insert grooves.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

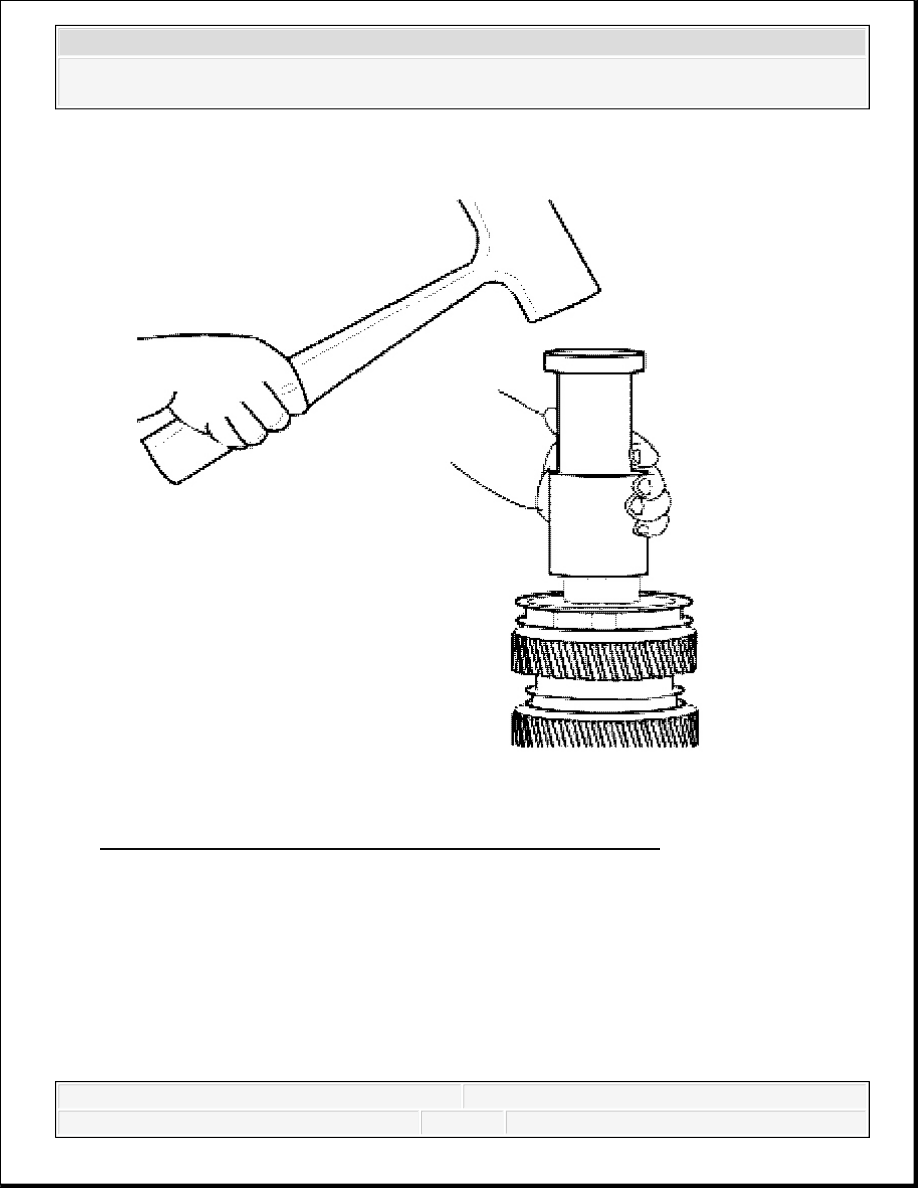

Fig. 179: Seating 1st And 2nd Gear Synchronization Assembly
Courtesy of GENERAL MOTORS CORP.
19. Using a driving tool, seat the 1st and 2nd gear synchronization assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

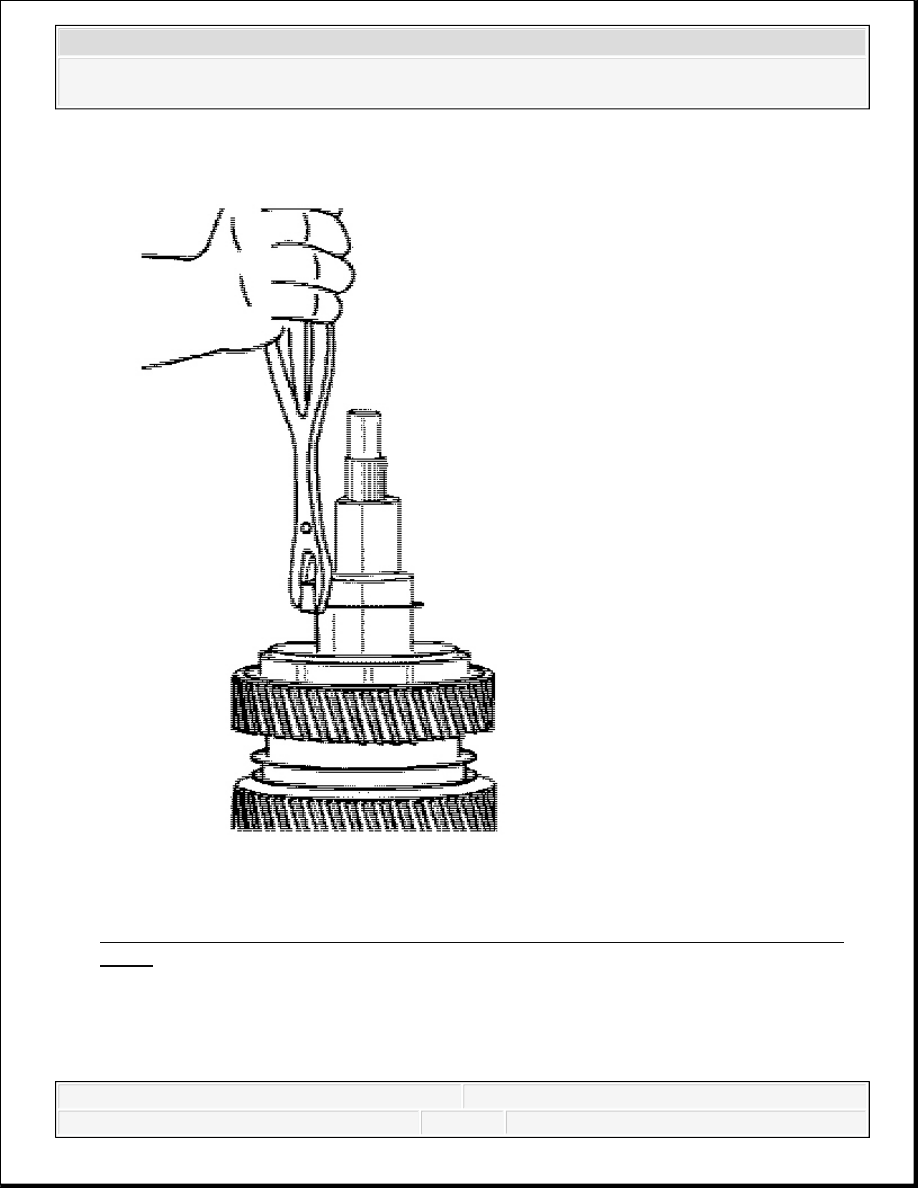

Fig. 180: View Of Snap Ring Holding Synchronization Hammer Onto 1st And 2nd
Gears
Courtesy of GENERAL MOTORS CORP.
20. Using locking pliers, install the synchronizer hammer snap ring.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
